2016 NISSAN MAXIMA display


> (GLW    0RGHO 1&*1-1 @
6. Navigation
5GB0428X
5. Touch [Entrance] or [Exit]. A list screen isdisplayed.
6. Touch the preferred destination from the list. The selected location is displayed in the
preview on the touch screen display.
INFO:
Touch [By Distance] to sort the list by the
nearest distance.
7. Touch [Start] to start route guidance.
SETTING FROM STORED ROUTESNCGNJN1402-120906-174315DE-CFE8-4311-94E7-67FE9F3D0C92It is possible to select a preferred route from the
stored routes.
1. Touch [Navi] on the Launch Bar.
2. Touch [Stored Routes]. A list screen is
displayed.
3. Touch the preferred route from the list.
5GB0430X
4. The entire route is shown on the map. Touch [Start] to start route guidance.
INFO:
. The stored route only includes locations
(destination and waypoints) and route cal-
culation conditions, not the route itself.
Therefore, when the destination is set using
a stored route, a different route may be
suggested if the current vehicle location is
different from the one when the route was
stored.
. To store the current route, touch [Store
Current Route]. A route can be stored only
when it includes one or more waypoints.
ªStoring routeº (page 6-50)
SETTING POINT ON MAPNCGNJN1402-120906-1CECA297-8DF7-4E58-9746-C408EB3A9FBDIt is possible to set a location scrolled to on the
map as the destination and have the system
calculate a route.
5GB0432X
1. Scroll the map, place the cross pointer over
the preferred location, and touch [
].
INFO:
The point on the blinking road where the
center of the cross pointer is located can be
set as a destination.
2. Touch [New Destination].
3. The entire route is shown on the touch screen display. Touch [Start] to start route
guidance.
&RQGLWLRQ
6-24


> (GLW    0RGHO 1&*1-1 @
INFO:
If a point on a freeway is set as the destination, a
confirmation message is displayed.
SETTING WITH NISSANCON-
NECTSMSERVICES (if so equipped)NCGNJN1402-9C340FD6-BECA-47BF-B787-9D191405656DIt is possible to set the destination using the
NissanConnectSMServices features.
ªNissanConnectSMServicesº (page 5-7)
INFO:
Use of NissanConnect
SMServices features is
dependent upon a valid subscription and the
telematics device being in operative condition, as
well as cellular connectivity, navigation map data
and GPS satellite signal reception being avail-
able.
Setting from information feedsGUID-97A6CF18-92BA-438F-9AF5-2F0FD2404930If the downloaded NissanConnectSMServices
information feed has location data, you can set it
as a destination. It is also possible to use
NissanConnect
SMServices features such as
ªDestination Downloadº, ªSend to Carº or
ªJourney Plannerº, etc. to set a destination.
For details of the services and settings, refer to
NissanConnect
SMServices website or contact
the NissanConnectSMServices support line. NissanConnect
SMServices website:
For U.S.
www.nissanusa.com/connect
For Canada
www.nissan.ca/nissanconnect (English)
www.nissan.ca/nissanconnect/fr (French)
NissanConnect
SMServices support
line:
1-855-426-6628
1. Touch [Info] on the Launch Bar.
2. Touch [NissanConnect Services].
3. Touch [All Information Feeds]. A list screen is displayed.
4. Touch a preferred folder. A list of information feeds is displayed.
5. Touch a preferred information feed.
INFO:
The methods for setting a destination differ
depending on the specific service (Roadside
Assistance Service, Assisted Search, Destina-
tion Download, Connected Search, etc.) and
NissanConnect
SMServices may be updated
during ownership. Please see the NissanCon- nect
SMServices website for the latest features
and services, as well as the most up-to-date user
guide. NissanConnect
SMServices website:
For U.S.
www.nissanusa.com/connect
For Canada
www.nissan.ca/nissanconnect (English)
www.nissan.ca/nissanconnect/fr (French)
Searching by using Voice Menu button
on map
NCGNJN1402-1F38A02D-BB30-4DCA-907E-78AAC84B2952
5GB0431X
It is possible to set a destination by touching the
Voice Menu button
*1on the map. You can
choose from the options provided by the voice
guidance and speak your choice, or ask the
NissanConnect
SMServices Response Specia-
lists directly to search for your destination.
6. Navigation
&RQGLWLRQ
6-25


> (GLW    0RGHO 1&*1-1 @
6. Navigation
ªConnecting to Interactive Voice Menuº
(page 5-13)
OPTIONS BEFORE STARTING THE
ROUTE GUIDANCE
NCGNJN1402-120906-E83C964B-BC32-48FB-AF85-60942AFE2170Before starting the route guidance, select menus
for route details to modify the route, preview the
turn list, or store the route.
There are two types of route details menu that
are displayed depending on the conditions and
the methods used to set the destinations.
Example 1:
5GB0433X
.[Start]:
Starts route guidance to the selected desti-
nation.
. [More Routes]:
Ð [Fastest] Selects a route that is shortest in time. Ð [Min. FWY]
Selects a route with minimum use of
freeways.
Ð [Short. Dist.] Selects a route that is shortest in
distance.
. [Route Info]:
Route Information such as turn list and
scrolled map can be displayed. The route
can also be saved for future use.
. [Add Way Pt.]:
Route can be edited by adding a destination
or a waypoint.
Ð If a waypoint is added, three alternative routes cannot be selected.
Ð It is possible to edit or add a destination or waypoints to the route that is already set.
ªEditing routeº (page 6-36)
INFO:
Choosing different route search conditions in
[More Routes] may not always generate results
search for different routes. Example 2:
5GB0421X
.
[Start]:
Starts route guidance to the selected desti-
nation.
. [Route Details]:
Displays information of the route and allows
the route to be edited.
The menu shown in Example 1 is displayed.
. [Move Location]:
Displays a map screen and allows the
location of the destination to be adjusted.
. [Add to Route]:
Adds a location to the route previously set.
. [Save Location]:
Saves the location in the Address Book.
. [Details]:
Displays detailed information of the destina-
tion. Touch [Show Map] to display the map
&RQGLWLRQ
6-26


> (GLW    0RGHO 1&*1-1 @
will not be provided in these areas.º When
approaching the endpoint of the suggested road,
voice guidance will announce, ªEntering the road
with incomplete map data. The route will be
shown in a different color in this area. Please
follow traffic regulations.º
INFO:
Actual voice guidance may vary depending on
road conditions and information registered in the
system.
Route guidance screensNCGNJN1402-120906-1EC15C97-38ED-4C88-9336-8B6A6573F8DEVarious guidance screens are displayed on the
touch screen display during route guidance.
The settings of the guidance screens can be
changed.
ªMap view settingsº (page 6-9) Route guidance on map screen:
5GB0436X
When route guidance starts, the small turn arrow
and the distance to the next guide point are
displayed in the upper right corner of the map
screen. This arrow indicates the turning direction
at the next guide point (corner or intersection) .
The distance is also displayed. When approach-
ing a guide point, enlarged intersection view is
displayed. Also, there may be cases where next
street names are announced. Enlarged intersection view:
5GB0437X
When approaching a guide point, the system
automatically changes to the split screen and
shows an enlarged view of the intersection on
the left screen. To switch to the full map screen
while the enlarged intersection view is displayed,
push


> (GLW    0RGHO 1&*1-1 @
6. Navigation
Junction guidance:
5GB0438X
While driving on a freeway, when the vehicle is
approximately 1 mile (approximately 2 km) from a
junction, the system automatically switches to
the split screen and displays an enlarged view of
the junction on the left screen. After the vehicle
passes the junction, the system automatically
returns to the full screen mode. To switch to the
full map screen while the enlarged junction view
is displayed, push


> (GLW    0RGHO 1&*1-1 @
2.Touch the landmark category. A list of
facilities located near the freeway exit is
displayed.
INFO:
The facility categories that are not shown
with an icon cannot be selected.
3. Touch the preferred facility for the waypoint.
4. The waypoint is set, and the route search is performed.
ªOptions before starting the route
guidanceº (page 6-26)
5. Touch [Start] to start the route guidance.
ROUTE MENUNCGNJN1402-120906-A1C01E8A-570A-408B-B0D8-CEBD91E269C3
WARNING1&*1-1&%$&$%&)((%%Always stop the vehicle in a safe location
before modifying the route conditions.
Modifying the route conditions while
driving may cause an accident.
During route guidance, the route conditions can
be modified and the route information can be
confirmed. Set route conditions according to
your personal preference.
5GB0442X
Touch [Navi] on the Launch Bar.
Route menu screen is displayed when a destina-
tion is already set.
6. Navigation
&RQGLWLRQ
6-33


> (GLW    0RGHO 1&*1-1 @
6. Navigation

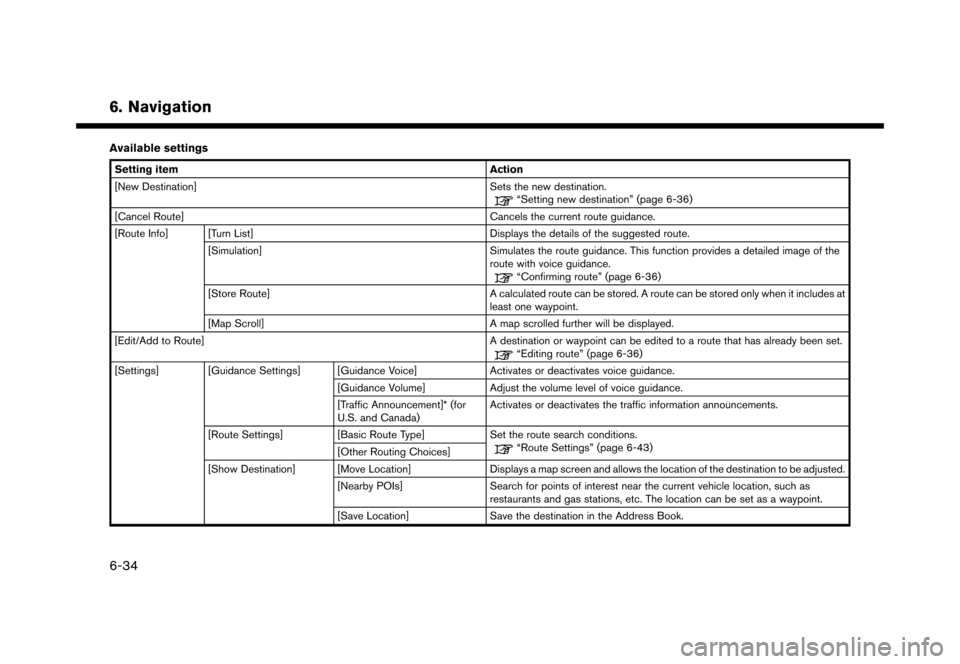

Available settings
Setting itemAction
[New Destination] Sets the new destination.
ªSetting new destinationº (page 6-36)
[Cancel Route] Cancels the current route guidance.
[Route Info] [Turn List] Displays the details of the suggested route.
[Simulation] Simulates the route guidance. This function provides a detailed image of the
route with voice guidance.
ªConfirming routeº (page 6-36)
[Store Route] A calculated route can be stored. A route can be stored only when it includes at
least one waypoint.
[Map Scroll] A map scrolled further will be displayed.
[Edit/Add to Route] A destination or waypoint can be edited to a route that has already been set.
ªEditing routeº (page 6-36)
[Settings] [Guidance Settings] [Guidance Voice] Activates or deactivates voice guidance.
[Guidance Volume] Adjust the volume level of voice guidance.
[Traffic Announcement]* (for
U.S. and Canada) Activates or deactivates the traffic information announcements.
[Route Settings] [Basic Route Type] Set the route search conditions.
ªRoute Settingsº (page 6-43)
[Other Routing Choices]
[Show Destination] [Move Location] Displays a map screen and allows the location of the destination to be adjusted.
[Nearby POIs] Search for points of interest near the current vehicle location, such as
restaurants and gas stations, etc. The location can be set as a waypoint.
[Save Location] Save the destination in the Address Book.
&RQGLWLRQ
6-34


> (GLW    0RGHO 1&*1-1 @
6. Navigation
SETTING NEW DESTINATIONGUID-51BD1B5C-9429-445F-BDE5-CD6141F3BC65When the destination is already set, new
destination can be set.
1. Touch [Navi] on the Launch Bar.
2. Touch [New Destination].
3.Touch the preferred destination setting
method.
ªSetting destinationº (page 6-14)
INFO:
You can also set a waypoint with this operation.
CANCELING ROUTENCGNJN1402-8DC58B15-9628-42A9-83C4-AE2C6B35D56BIt is possible to delete a destination and all
waypoints that have already been set.
1. Touch [Navi] on the Launch Bar.
2. Touch [Cancel Route].
3. A confirmation message is displayed. Touch [Yes] to delete the currently set destinations
and waypoints.
INFO:
The deleted destination and waypoints cannot
be reactivated.
CONFIRMING ROUTEGUID-8B990E34-30A8-4D48-967C-29510AA4560CThe route information can be confirmed and the
suggested route simulation can be performed.
1. Touch [Navi] on the Launch Bar.
2. Touch [Route Info].
5GB0480X
3. Touch the preferred item.
Available items . [Turn List]:
Displays the details of the suggested route
guidance.
. [Simulation]:
Simulate the route guidance. This function
provides a detailed image of the route with
voice guidance.
Touch the following keys for operation.
: Pauses the simulation.
: Resumes the simulation.
: Ends the simulation.
. [Store Route]:
A calculated route can be stored. A maximum
of 5 routes can be stored. The stored routes
can easily be recalled for future use.
. [Map Scroll]:
Displays a map screen where the location of
the destination can be confirmed.
EDITING ROUTENCGNJN1402-120906-0CFA5674-26DB-4DBD-94B4-07D1D137A60E
5GB0443X
1. Touch [Navi] on the Launch Bar.
2. Touch [Edit/Add to Route].
3. Edit the following settings and touch [Cal-
culate].
&RQGLWLRQ
6-36
