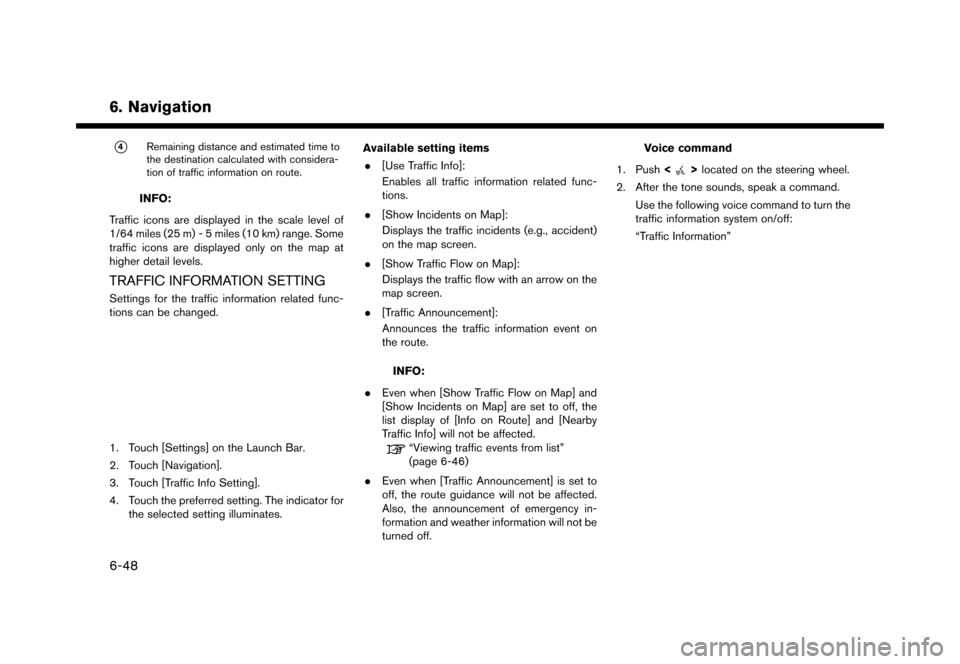

6. Navigation*
4Remaining distance and estimated time to
the destination calculated with considera-
tion of traffic information on route.
INFO:
Traffic icons are displayed in the scale level of
1/64 miles (25 m) - 5 miles (10 km) range. Some
traffic icons are displayed only on the map at
higher detail levels.
TRAFFIC INFORMATION SETTINGNCGNJN1402-9E862250-858D-4540-8106-66DE14C1E881Settings for the traffic information related func-
tions can be changed.
5GB0499X
1. Touch [Settings] on the Launch Bar.
2. Touch [Navigation].
3. Touch [Traffic Info Setting].
4. Touch the preferred setting. The indicator for the selected setting illuminates. Available setting items
. [Use Traffic Info]:
Enables all traffic information related func-
tions.
. [Show Incidents on Map]:
Displays the traffic incidents (e.g., accident)
on the map screen.
. [Show Traffic Flow on Map]:
Displays the traffic flow with an arrow on the
map screen.
. [Traffic Announcement]:
Announces the traffic information event on
the route.
INFO:
. Even when [Show Traffic Flow on Map] and
[Show Incidents on Map] are set to off, the
list display of [Info on Route] and [Nearby
Traffic Info] will not be affected.
ªViewing traffic events from listº
(page 6-46)
. Even when [Traffic Announcement] is set to
off, the route guidance will not be affected.
Also, the announcement of emergency in-
formation and weather information will not be
turned off.
Voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command. Use the following voice command to turn the
traffic information system on/off:
ªTraffic Informationº
&RQGLWLRQ
6-48


> (GLW    0RGHO 1&*1-1 @

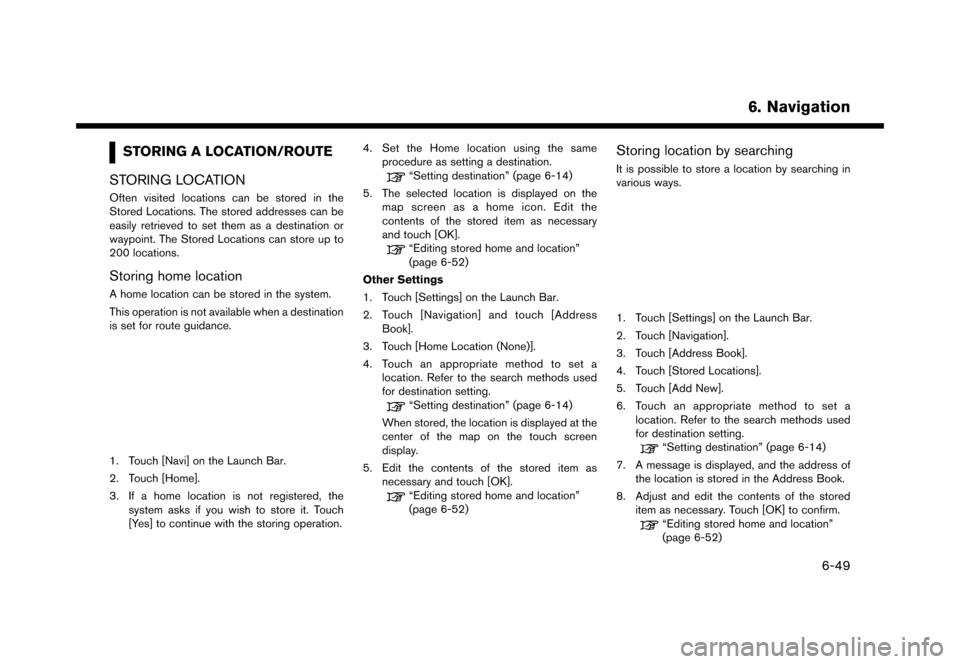

STORING A LOCATION/ROUTENCGNJN1402-120906-D56E2757-E480-448D-84DE-0D0260214C62
STORING LOCATIONNCGNJN1402-120906-544965B9-F333-49EA-BE90-4D6BE51EE5F0Often visited locations can be stored in the
Stored Locations. The stored addresses can be
easily retrieved to set them as a destination or
waypoint. The Stored Locations can store up to
200 locations.
Storing home locationNCGNJN1402-120906-18F9446E-22F6-4B69-B465-63E96AFC7E1DA home location can be stored in the system.
This operation is not available when a destination
is set for route guidance.
5GB0453X
1. Touch [Navi] on the Launch Bar.
2. Touch [Home].
3. If a home location is not registered, thesystem asks if you wish to store it. Touch
[Yes] to continue with the storing operation. 4.
Set the Home location using the same
procedure as setting a destination.
ªSetting destinationº (page 6-14)
5. The selected location is displayed on the map screen as a home icon. Edit the
contents of the stored item as necessary
and touch [OK].
ªEditing stored home and locationº
(page 6-52)
Other Settings
1. Touch [Settings] on the Launch Bar.
2. Touch [Navigation] and touch [Address
Book].
3. Touch [Home Location (None)].
4. Touch an appropriate method to set a
location. Refer to the search methods used
for destination setting.
ªSetting destinationº (page 6-14)
When stored, the location is displayed at the
center of the map on the touch screen
display.
5. Edit the contents of the stored item as necessary and touch [OK].
ªEditing stored home and locationº
(page 6-52)
Storing location by searchingNCGNJN1402-120906-6B0517E8-1830-49EB-812C-0BAA64EC0CEAIt is possible to store a location by searching in
various ways.
5GB0454X
1. Touch [Settings] on the Launch Bar.
2. Touch [Navigation].
3. Touch [Address Book].
4. Touch [Stored Locations].
5. Touch [Add New].
6.Touch an appropriate method to set a
location. Refer to the search methods used
for destination setting.
ªSetting destinationº (page 6-14)
7. A message is displayed, and the address of the location is stored in the Address Book.
8. Adjust and edit the contents of the stored item as necessary. Touch [OK] to confirm.
ªEditing stored home and locationº
(page 6-52)
6. Navigation
&RQGLWLRQ
6-49


> (GLW    0RGHO 1&*1-1 @

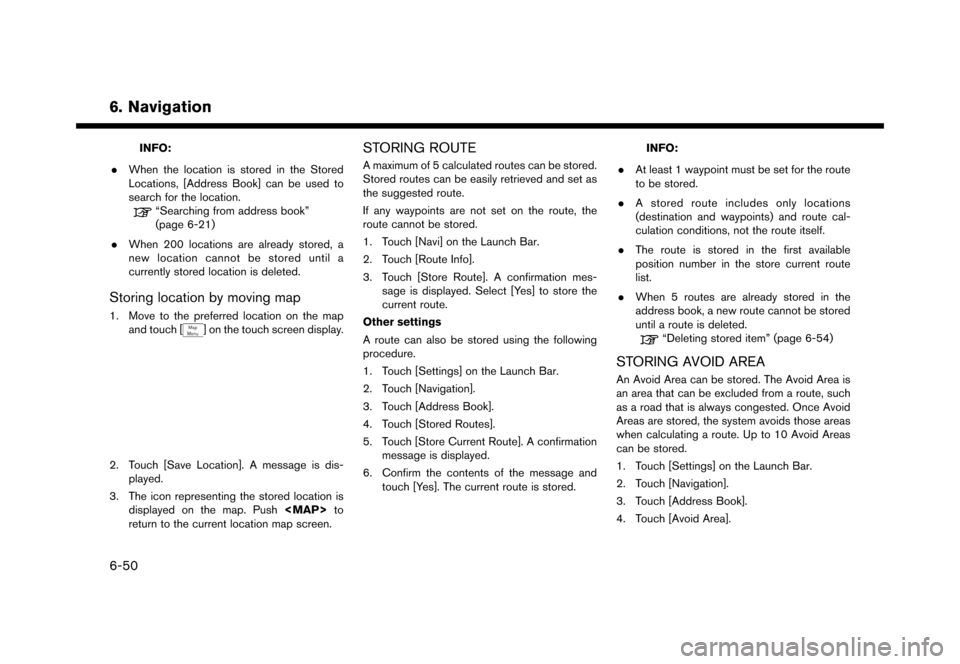

6. Navigation
INFO:
. When the location is stored in the Stored
Locations, [Address Book] can be used to
search for the location.
ªSearching from address bookº
(page 6-21)
. When 200 locations are already stored, a
new location cannot be stored until a
currently stored location is deleted.
Storing location by moving mapNCGNJN1402-120906-F725F4DF-5CDD-4070-ADB6-D4BF2474895F1. Move to the preferred location on the map
and touch [
] on the touch screen display.
5GB0455X
2. Touch [Save Location]. A message is dis-played.
3. The icon representing the stored location is displayed on the map. Push


> (GLW    0RGHO 1&*1-1 @

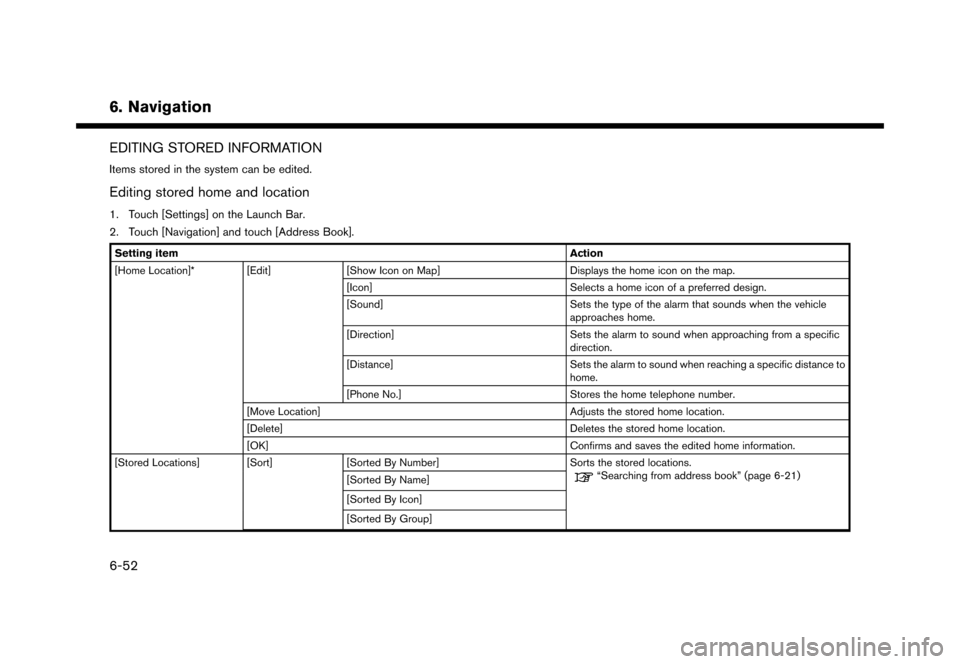

6. Navigation
EDITING STORED INFORMATIONNCGNJN1402-120906-39CF1CB1-4830-4B51-BE7E-70154B58A89CItems stored in the system can be edited.
Editing stored home and locationNCGNJN1402-120906-D9E4FAC6-0EAD-4C1E-9D3C-A1EBC19926E11. Touch [Settings] on the Launch Bar.
2. Touch [Navigation] and touch [Address Book].
Setting itemAction
[Home Location]* [Edit] [Show Icon on Map]Displays the home icon on the map.
[Icon] Selects a home icon of a preferred design.
[Sound] Sets the type of the alarm that sounds when the vehicle
approaches home.
[Direction] Sets the alarm to sound when approaching from a specific
direction.
[Distance] Sets the alarm to sound when reaching a specific distance to
home.
[Phone No.] Stores the home telephone number.
[Move Location] Adjusts the stored home location.
[Delete] Deletes the stored home location.
[OK] Confirms and saves the edited home information.
[Stored Locations] [Sort] [Sorted By Number]Sorts the stored locations.
ªSearching from address bookº (page 6-21)
[Sorted By Name]
[Sorted By Icon]
[Sorted By Group]
&RQGLWLRQ
6-52


> (GLW    0RGHO 1&*1-1 @

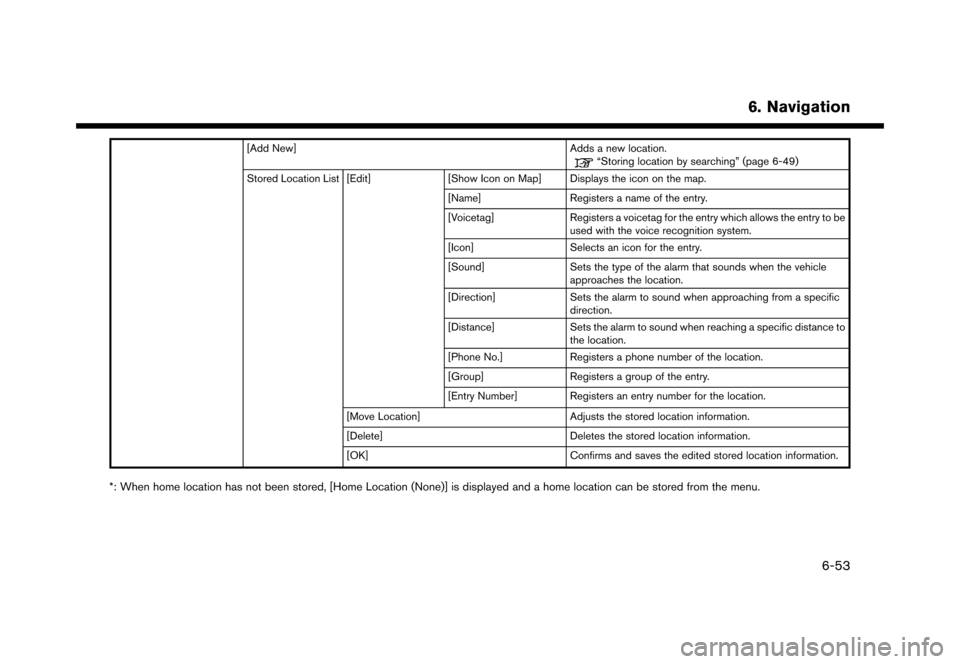

[Add New]Adds a new location.ªStoring location by searchingº (page 6-49)
Stored Location List [Edit] [Show Icon on Map] Displays the icon on the map.
[Name]Registers a name of the entry.
[Voicetag] Registers a voicetag for the entry which allows the entry to be
used with the voice recognition system.
[Icon] Selects an icon for the entry.
[Sound] Sets the type of the alarm that sounds when the vehicle
approaches the location.
[Direction] Sets the alarm to sound when approaching from a specific
direction.
[Distance] Sets the alarm to sound when reaching a specific distance to
the location.
[Phone No.] Registers a phone number of the location.
[Group] Registers a group of the entry.
[Entry Number] Registers an entry number for the location.
[Move Location] Adjusts the stored location information.
[Delete] Deletes the stored location information.
[OK] Confirms and saves the edited stored location information.
*: When home location has not been stored, [Home Location (None)] is displayed and a home location can be stored from the menu.
6. Navigation
&RQGLWLRQ
6-53


> (GLW    0RGHO 1&*1-1 @

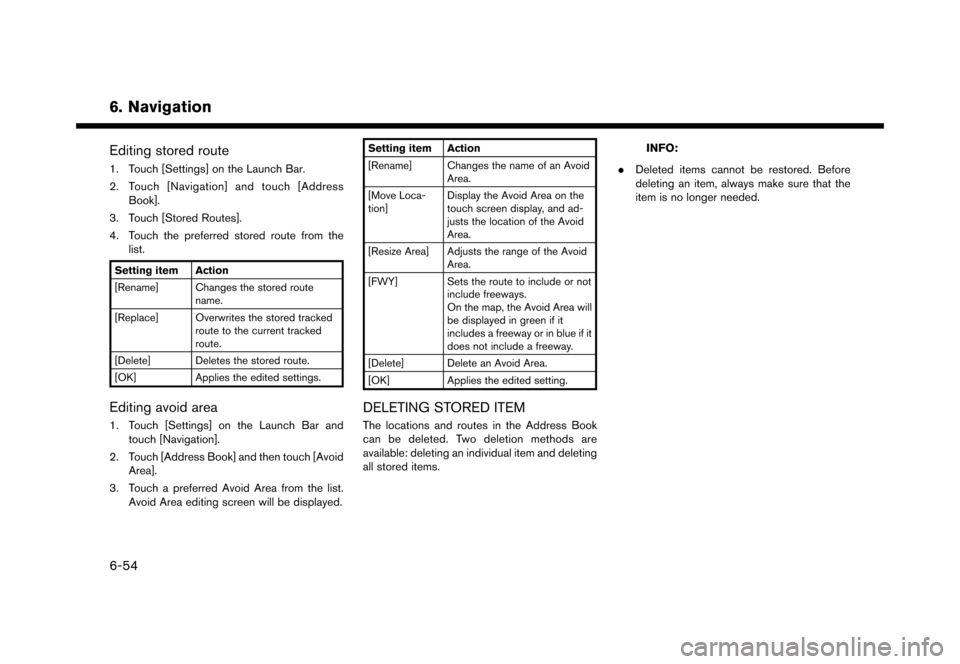

6. Navigation
Editing stored routeNCGNJN1402-120906-FA819EB7-2462-4CCA-9FCA-6945BF4DA07F1. Touch [Settings] on the Launch Bar.
2.Touch [Navigation] and touch [Address
Book].
3. Touch [Stored Routes].
4. Touch the preferred stored route from the list.
Setting item Action
[Rename] Changes the stored route
name.
[Replace] Overwrites the stored tracked route to the current tracked
route.
[Delete] Deletes the stored route.
[OK] Applies the edited settings.
Editing avoid areaNCGNJN1402-120906-7741D32C-748E-4BE2-9BE8-E72FF75E70C61. Touch [Settings] on the Launch Bar and
touch [Navigation].
2. Touch [Address Book] and then touch [Avoid Area].
3. Touch a preferred Avoid Area from the list. Avoid Area editing screen will be displayed.
Setting item Action
[Rename] Changes the name of an Avoid
Area.
[Move Loca-
tion] Display the Avoid Area on the
touch screen display, and ad-
justs the location of the Avoid
Area.
[Resize Area] Adjusts the range of the Avoid Area.
[FWY] Sets the route to include or not include freeways.
On the map, the Avoid Area will
be displayed in green if it
includes a freeway or in blue if it
does not include a freeway.
[Delete] Delete an Avoid Area.
[OK] Applies the edited setting.
DELETING STORED ITEMNCGNJN1402-120906-A49F7444-AEBA-437D-B1BF-DA7457A3F577The locations and routes in the Address Book
can be deleted. Two deletion methods are
available: deleting an individual item and deleting
all stored items.
INFO:
. Deleted items cannot be restored. Before
deleting an item, always make sure that the
item is no longer needed.
&RQGLWLRQ
6-54


> (GLW    0RGHO 1&*1-1 @

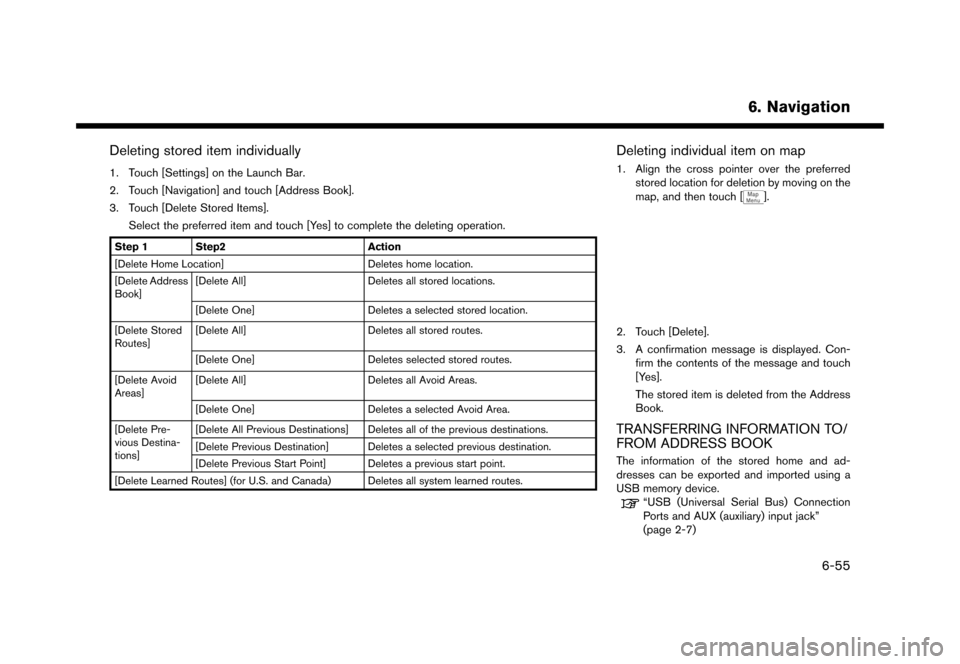

Deleting stored item individuallyNCGNJN1402-120906-B68C2A81-E5C0-4DB2-A740-FC904C09AB2A1. Touch [Settings] on the Launch Bar.
2. Touch [Navigation] and touch [Address Book].
3. Touch [Delete Stored Items].Select the preferred item and touch [Yes] to complete the deleting operation.
Step 1 Step2 Action
[Delete Home Location] Deletes home location.
[Delete Address
Book] [Delete All]
Deletes all stored locations.
[Delete One] Deletes a selected stored location.
[Delete Stored
Routes] [Delete All]
Deletes all stored routes.
[Delete One] Deletes selected stored routes.
[Delete Avoid
Areas] [Delete All]
Deletes all Avoid Areas.
[Delete One] Deletes a selected Avoid Area.
[Delete Pre-
vious Destina-
tions] [Delete All Previous Destinations] Deletes all of the previous destinations.
[Delete Previous Destination] Deletes a selected previous destination.
[Delete Previous Start Point] Deletes a previous start point.
[Delete Learned Routes] (for U.S. and Canada) Deletes all system learned routes.
Deleting individual item on mapNCGNJN1402-120906-62D39B7F-7242-4DA7-8F88-21A769ADE3F71. Align the cross pointer over the preferred stored location for deletion by moving on the
map, and then touch [
].
5GB0457X
2. Touch [Delete].
3. A confirmation message is displayed. Con-firm the contents of the message and touch
[Yes].
The stored item is deleted from the Address
Book.
TRANSFERRING INFORMATION TO/
FROM ADDRESS BOOK
NCGNJN1402-120906-B7873C71-598C-4932-8803-CBC69508D849The information of the stored home and ad-
dresses can be exported and imported using a
USB memory device.
ªUSB (Universal Serial Bus) Connection
Ports and AUX (auxiliary) input jackº
(page 2-7)
6. Navigation
&RQGLWLRQ
6-55


> (GLW    0RGHO 1&*1-1 @
6. Navigation
INFO:
5GB0458X
1. Touch [Settings] on the Launch Bar.
2. Touch [Navigation].
3. Touch [Address Book].
4. Touch [Transfer Address Book].
5. Touch [Export] or [Import].
6. Touch [Home Location] or [Stored Loca-tions].
7. Touch [Download].
NOTE:
Do not remove the USB memory device
until the system completely imports or
exports the data.
INFO:
. If the USB memory device already has the
data for a stored address, a confirmation
message will be displayed. Once overwrit-
ten, the original data cannot be recovered.
. Either of the two USB ports can be used for
information transfer.
. A USB memory device can be used to
transfer data but it is not possible to edit the
data using a personal computer, etc.
&RQGLWLRQ
