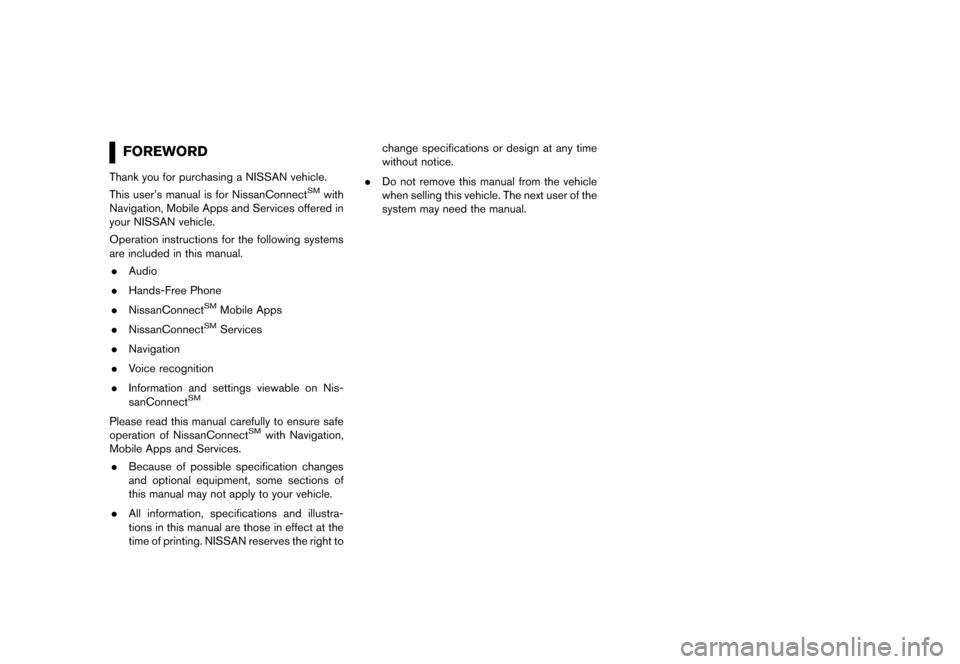

FOREWORDNCGNJN1402-120906-801B9B40-26BD-49A7-A3FA-A8D4A5112094Thank you for purchasing a NISSAN vehicle.
This user's manual is for NissanConnectSMwith
Navigation, Mobile Apps and Services offered in
your NISSAN vehicle.
Operation instructions for the following systems
are included in this manual.
. Audio
. Hands-Free Phone
. NissanConnect
SMMobile Apps
. NissanConnect
SMServices
. Navigation
. Voice recognition
. Information and settings viewable on Nis-
sanConnect
SM
Please read this manual carefully to ensure safe
operation of NissanConnectSMwith Navigation,
Mobile Apps and Services.
. Because of possible specification changes
and optional equipment, some sections of
this manual may not apply to your vehicle.
. All information, specifications and illustra-
tions in this manual are those in effect at the
time of printing. NISSAN reserves the right to change specifications or design at any time
without notice.
. Do not remove this manual from the vehicle
when selling this vehicle. The next user of the
system may need the manual.
&RQGLWLRQ


> (GLW    0RGHO 1&*1-1 @

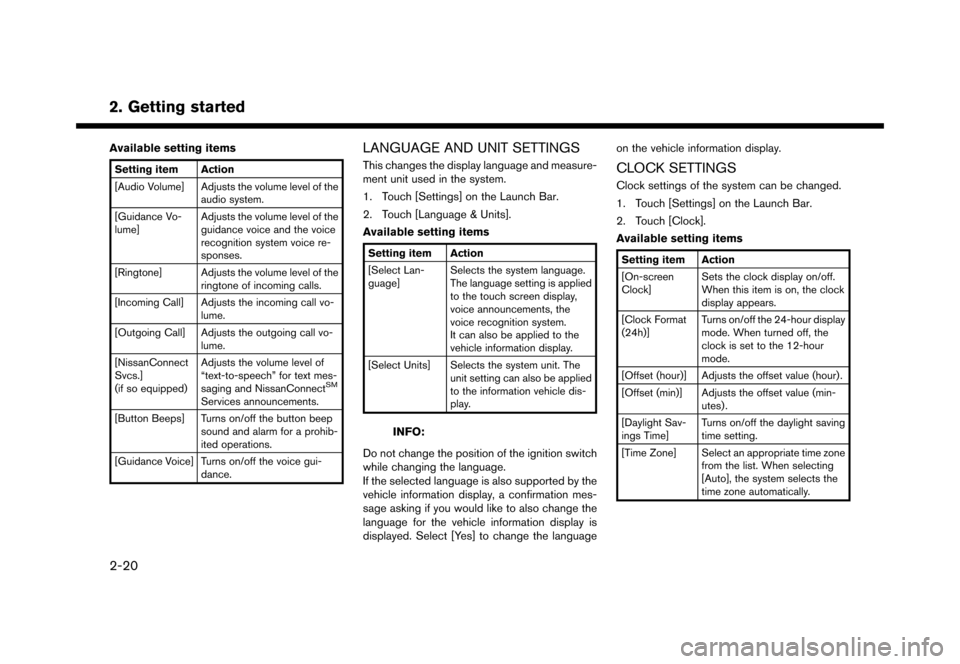

2. Getting started
Available setting items
Setting item Action
[Audio Volume] Adjusts the volume level of theaudio system.
[Guidance Vo-
lume] Adjusts the volume level of the
guidance voice and the voice
recognition system voice re-
sponses.
[Ringtone] Adjusts the volume level of the ringtone of incoming calls.
[Incoming Call] Adjusts the incoming call vo- lume.
[Outgoing Call] Adjusts the outgoing call vo- lume.
[NissanConnect
Svcs.]
(if so equipped) Adjusts the volume level of
ªtext-to-speechº for text mes-
saging and NissanConnect
SM
Services announcements.
[Button Beeps] Turns on/off the button beep sound and alarm for a prohib-
ited operations.
[Guidance Voice] Turns on/off the voice gui- dance.
LANGUAGE AND UNIT SETTINGSNCGNJN1402-120906-D7E9171E-3B1C-414A-AD30-925AD34D89F6This changes the display language and measure-
ment unit used in the system.
1. Touch [Settings] on the Launch Bar.
2. Touch [Language & Units].
Available setting items
Setting item Action
[Select Lan-
guage]Selects the system language.
The language setting is applied
to the touch screen display,
voice announcements, the
voice recognition system.
It can also be applied to the
vehicle information display.
[Select Units] Selects the system unit. The unit setting can also be applied
to the information vehicle dis-
play.
INFO:
Do not change the position of the ignition switch
while changing the language.
If the selected language is also supported by the
vehicle information display, a confirmation mes-
sage asking if you would like to also change the
language for the vehicle information display is
displayed. Select [Yes] to change the language on the vehicle information display.
CLOCK SETTINGSNCGNJN1402-120906-6FB05DB7-7A72-4B43-A7A5-4796C1370711Clock settings of the system can be changed.
1. Touch [Settings] on the Launch Bar.
2. Touch [Clock].
Available setting items
Setting item Action
[On-screen
Clock]
Sets the clock display on/off.
When this item is on, the clock
display appears.
[Clock Format
(24h)] Turns on/off the 24-hour display
mode. When turned off, the
clock is set to the 12-hour
mode.
[Offset (hour)] Adjusts the offset value (hour).
[Offset (min)] Adjusts the offset value (min- utes) .
[Daylight Sav-
ings Time] Turns on/off the daylight saving
time setting.
[Time Zone] Select an appropriate time zone from the list. When selecting
[Auto], the system selects the
time zone automatically.
&RQGLWLRQ
2-20


> (GLW    0RGHO 1&*1-1 @

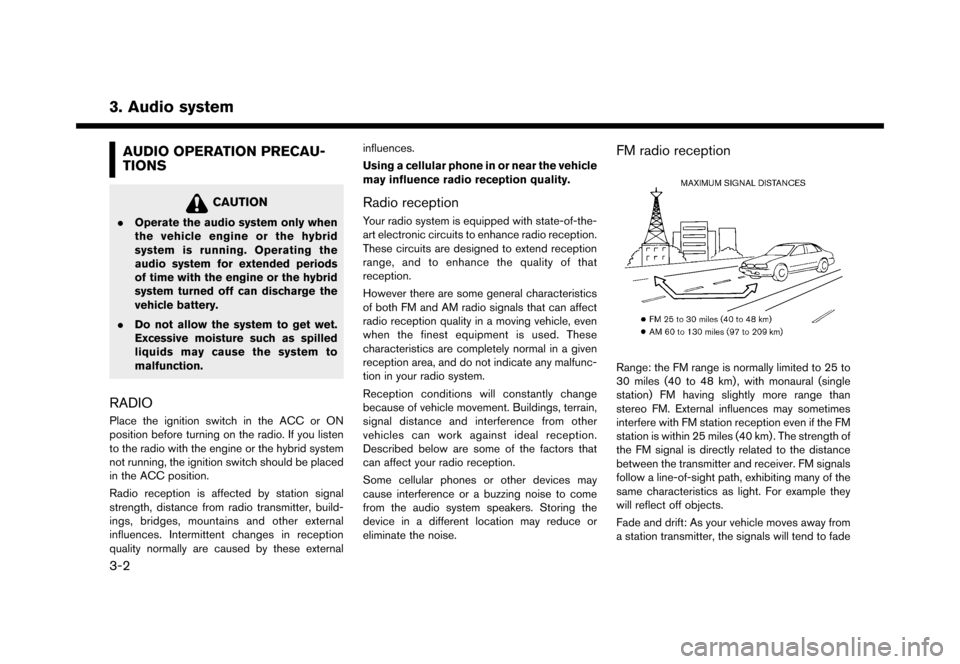

3. Audio system
AUDIO OPERATION PRECAU-
TIONS
NCGNJN1402-120906-B0DBBB37-B849-425F-902A-DDABE30FE9B4
CAUTION*8,'($)(($(&%$)&.Operate the audio system only when
the vehicle engine or the hybrid
system is running. Operating the
audio system for extended periods
of time with the engine or the hybrid
system turned off can discharge the
vehicle battery.
. Do not allow the system to get wet.
Excessive moisture such as spilled
liquids may cause the system to
malfunction.
RADIONCGNJN1402-120906-2E7BDA12-EFEE-40F2-BD7E-0C1AD5ECA109Place the ignition switch in the ACC or ON
position before turning on the radio. If you listen
to the radio with the engine or the hybrid system
not running, the ignition switch should be placed
in the ACC position.
Radio reception is affected by station signal
strength, distance from radio transmitter, build-
ings, bridges, mountains and other external
influences. Intermittent changes in reception
quality normally are caused by these external influences.
Using a cellular phone in or near the vehicle
may influence radio reception quality.
Radio receptionNCGNJN1402-120906-89FE3704-0B57-4447-88CD-7BD9D337A7DCYour radio system is equipped with state-of-the-
art electronic circuits to enhance radio reception.
These circuits are designed to extend reception
range, and to enhance the quality of that
reception.
However there are some general characteristics
of both FM and AM radio signals that can affect
radio reception quality in a moving vehicle, even
when the finest equipment is used. These
characteristics are completely normal in a given
reception area, and do not indicate any malfunc-
tion in your radio system.
Reception conditions will constantly change
because of vehicle movement. Buildings, terrain,
signal distance and interference from other
vehicles can work against ideal reception.
Described below are some of the factors that
can affect your radio reception.
Some cellular phones or other devices may
cause interference or a buzzing noise to come
from the audio system speakers. Storing the
device in a different location may reduce or
eliminate the noise.
FM radio receptionNCGNJN1402-120906-275BC1BF-3C52-437B-9A90-2B55439E4402
SAA0306
Range: the FM range is normally limited to 25 to
30 miles (40 to 48 km) , with monaural (single
station) FM having slightly more range than
stereo FM. External influences may sometimes
interfere with FM station reception even if the FM
station is within 25 miles (40 km) . The strength of
the FM signal is directly related to the distance
between the transmitter and receiver. FM signals
follow a line-of-sight path, exhibiting many of the
same characteristics as light. For example they
will reflect off objects.
Fade and drift: As your vehicle moves away from
a station transmitter, the signals will tend to fade
&RQGLWLRQ
3-2


> (GLW    0RGHO 1&*1-1 @

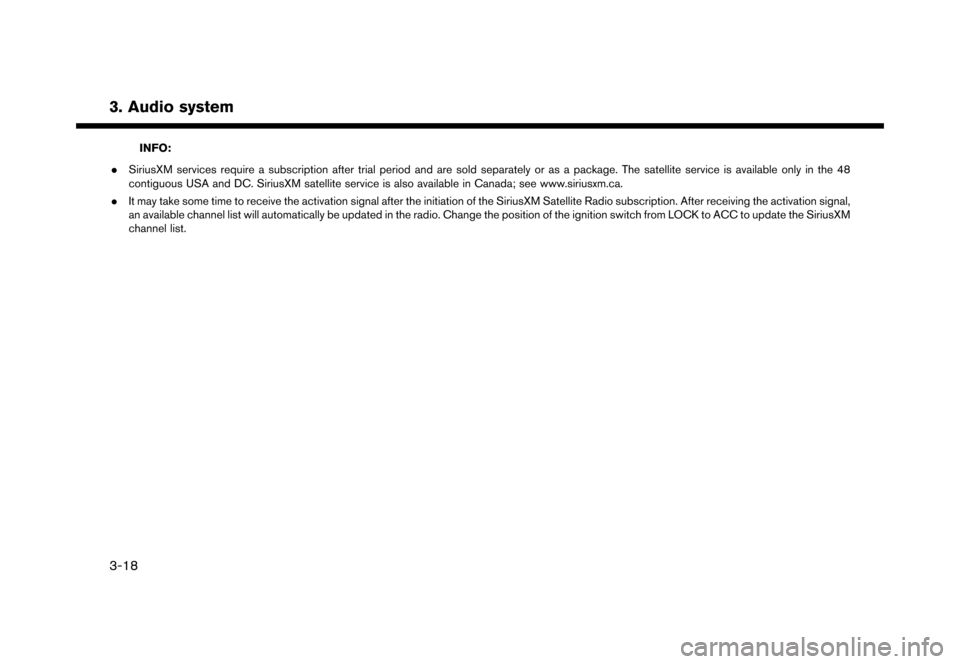

3. Audio system
INFO:
. SiriusXM services require a subscription after trial period and are sold separately or as a package. The satellite service is available only in the 48
contiguous USA and DC. SiriusXM satellite service is also available in Canada; see www.siriusxm.ca.
. It may take some time to receive the activation signal after the initiation of the SiriusXM Satellite Radio subscription. After receiving the activation signal,
an available channel list will automatically be updated in the radio. Change the position of the ignition switch from LOCK to ACC to update the SiriusXM
channel list.
&RQGLWLRQ
3-18


> (GLW    0RGHO 1&*1-1 @

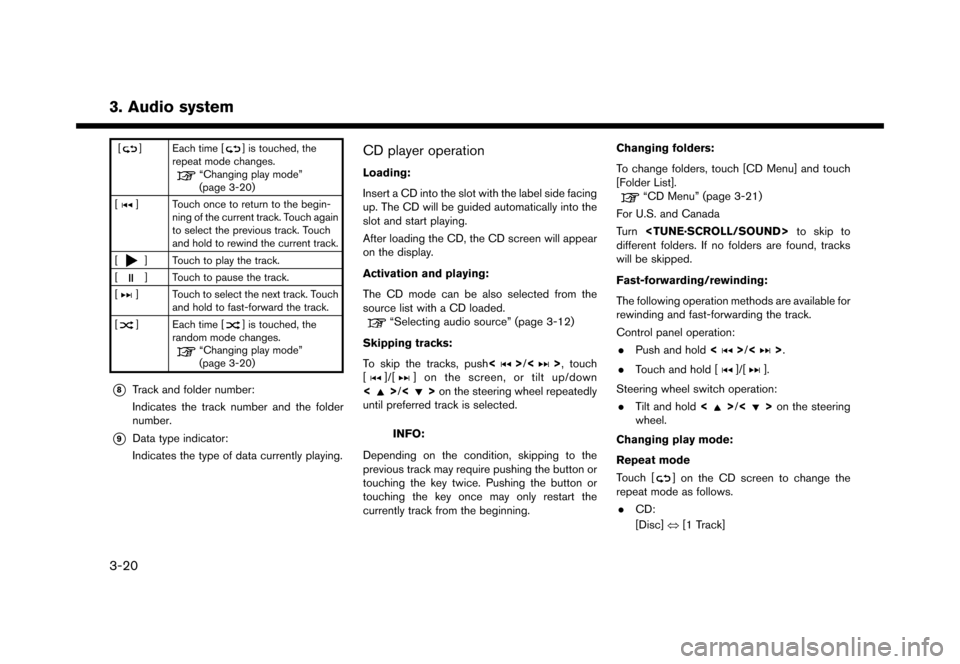

3. Audio system
[] Each time [] is touched, the
repeat mode changes.
ªChanging play modeº
(page 3-20)
[
] Touch once to return to the begin- ning of the current track. Touch again
to select the previous track. Touch
and hold to rewind the current track.
[
] Touch to play the track.
[
] Touch to pause the track.
[
] Touch to select the next track. Touch and hold to fast-forward the track.
[
] Each time [] is touched, the
random mode changes.
ªChanging play modeº
(page 3-20)
*8Track and folder number:
Indicates the track number and the folder
number.
*9Data type indicator:
Indicates the type of data currently playing.
CD player operationNCGNJN1402-28CAF061-63D9-4EF3-8A20-5A9D2E94AB19
Loading:
Insert a CD into the slot with the label side facing
up. The CD will be guided automatically into the
slot and start playing.
After loading the CD, the CD screen will appear
on the display.
Activation and playing:
The CD mode can be also selected from the
source list with a CD loaded.
ªSelecting audio sourceº (page 3-12)
Skipping tracks:
To skip the tracks, push<
>/<>, touch
[
]/[] on the screen, or tilt up/down
<
>/<> on the steering wheel repeatedly
until preferred track is selected.
INFO:
Depending on the condition, skipping to the
previous track may require pushing the button or
touching the key twice. Pushing the button or
touching the key once may only restart the
currently track from the beginning. Changing folders:
To change folders, touch [CD Menu] and touch
[Folder List].
ªCD Menuº (page 3-21)
For U.S. and Canada
Turn to skip to
different folders. If no folders are found, tracks
will be skipped.
Fast-forwarding/rewinding:
The following operation methods are available for
rewinding and fast-forwarding the track.
Control panel operation:
. Push and hold <
>/<>.
. Touch and hold [
]/[].
Steering wheel switch operation: . Tilt and hold <
>/<>on the steering
wheel.
Changing play mode:
Repeat mode
Touch [
] on the CD screen to change the
repeat mode as follows.
. CD:
[Disc] Û[1 Track]
&RQGLWLRQ
3-20


> (GLW    0RGHO 1&*1-1 @

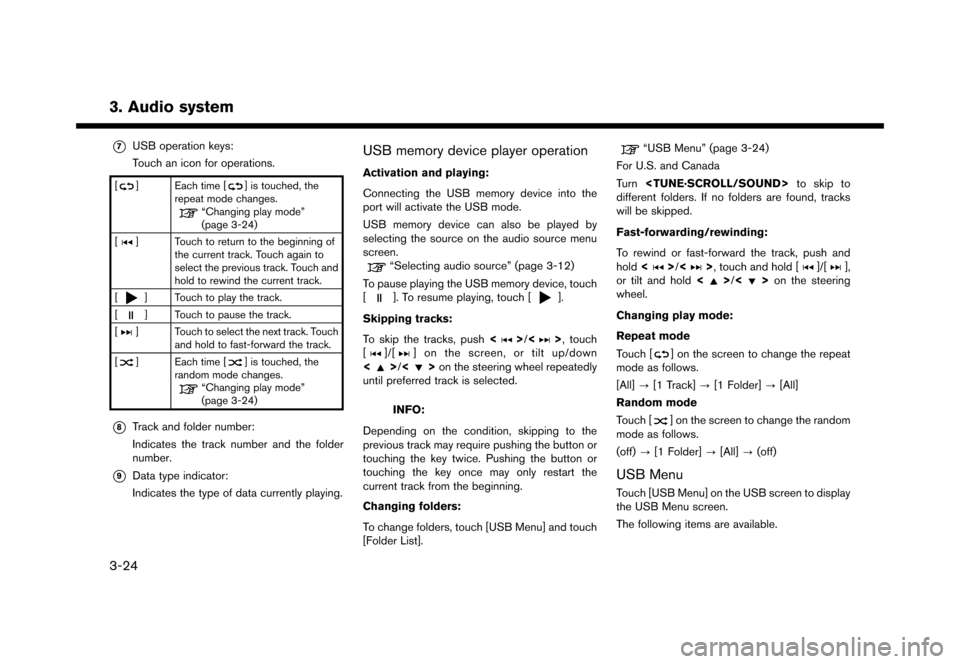

3. Audio system
*7USB operation keys:
Touch an icon for operations.
[] Each time [] is touched, the
repeat mode changes.
ªChanging play modeº
(page 3-24)
[
] Touch to return to the beginning of the current track. Touch again to
select the previous track. Touch and
hold to rewind the current track.
[
] Touch to play the track.
[
] Touch to pause the track.
[
] Touch to select the next track. Touch and hold to fast-forward the track.
[
] Each time [] is touched, the
random mode changes.
ªChanging play modeº
(page 3-24)
*8Track and folder number:
Indicates the track number and the folder
number.
*9Data type indicator:
Indicates the type of data currently playing.
USB memory device player operationNCGNJN1402-120906-D6F756B8-A874-4D4F-BD71-90C3D033F1C0
Activation and playing:
Connecting the USB memory device into the
port will activate the USB mode.
USB memory device can also be played by
selecting the source on the audio source menu
screen.
ªSelecting audio sourceº (page 3-12)
To pause playing the USB memory device, touch
[
]. To resume playing, touch [].
Skipping tracks:
To skip the tracks, push <
>/<>, touch
[
]/[] on the screen, or tilt up/down
<
>/<> on the steering wheel repeatedly
until preferred track is selected.
INFO:
Depending on the condition, skipping to the
previous track may require pushing the button or
touching the key twice. Pushing the button or
touching the key once may only restart the
current track from the beginning.
Changing folders:
To change folders, touch [USB Menu] and touch
[Folder List].
ªUSB Menuº (page 3-24)
For U.S. and Canada
Turn to skip to
different folders. If no folders are found, tracks
will be skipped.
Fast-forwarding/rewinding:
To rewind or fast-forward the track, push and
hold <
>/<>, touch and hold []/[],
or tilt and hold <
>/<>on the steering
wheel.
Changing play mode:
Repeat mode
Touch [
] on the screen to change the repeat
mode as follows.
[All] ?[1 Track] ?[1 Folder] ?[All]
Random mode
Touch [
] on the screen to change the random
mode as follows.
(off) ?[1 Folder] ?[All] ?(off)
USB MenuGUID-D7405901-8E6D-4B27-8B77-BD50EA7A85CFTouch [USB Menu] on the USB screen to display
the USB Menu screen.
The following items are available.
&RQGLWLRQ
3-24


> (GLW    0RGHO 1&*1-1 @
3. Audio system
[] Each time [] is touched, the
mode changes.
ªChanging play modeº
(page 3-28)
[

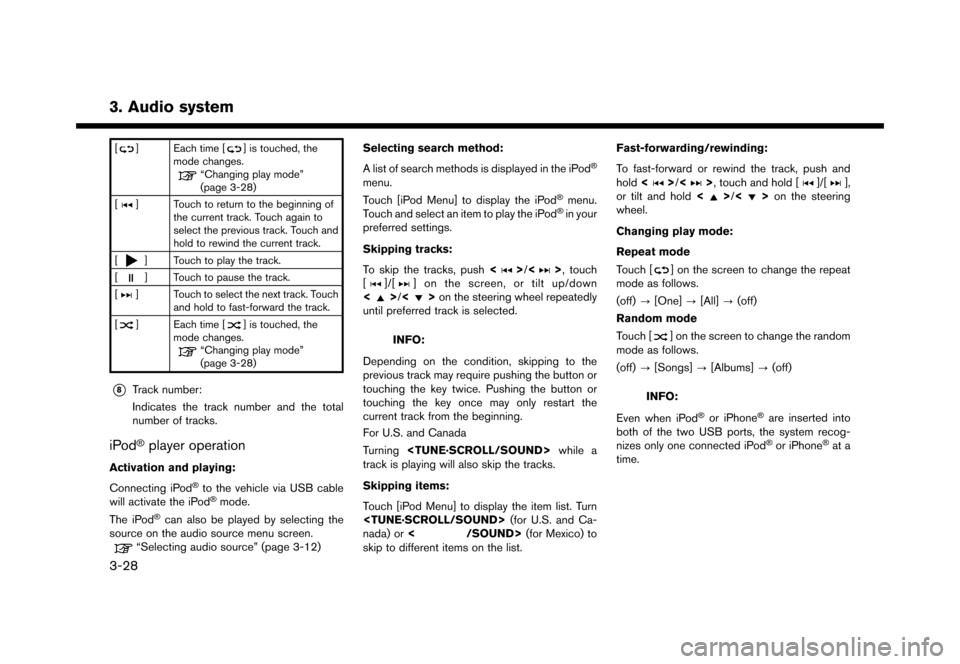

] Touch to return to the beginning of the current track. Touch again to
select the previous track. Touch and
hold to rewind the current track.
[
] Touch to play the track.
[
] Touch to pause the track.
[
] Touch to select the next track. Touch and hold to fast-forward the track.
[
] Each time [] is touched, the
mode changes.
ªChanging play modeº
(page 3-28)
*8Track number:
Indicates the track number and the total
number of tracks.
iPod


> (GLW    0RGHO 1&*1-1 @

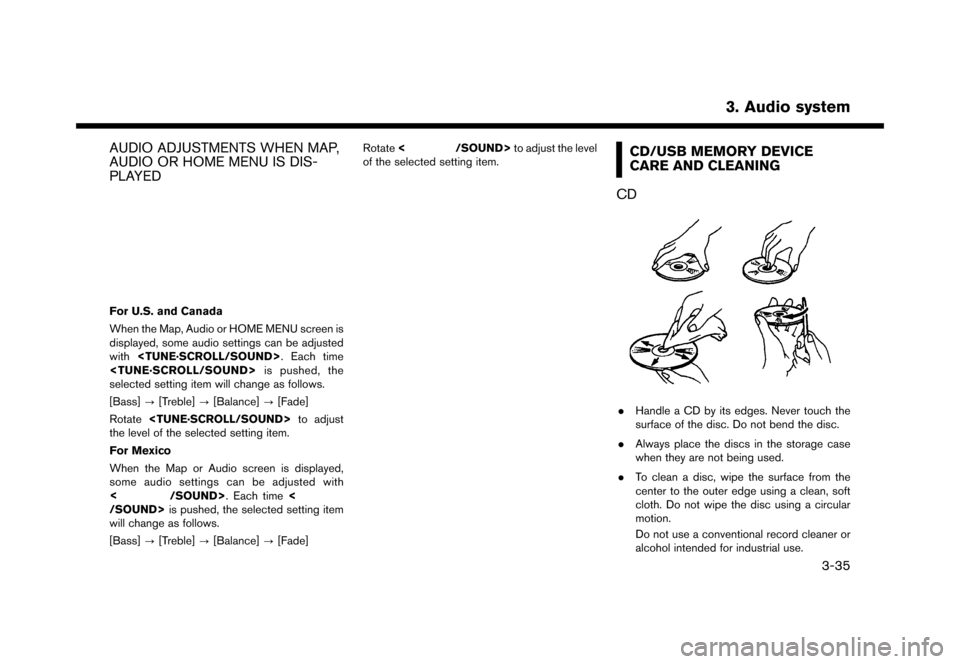

AUDIO ADJUSTMENTS WHEN MAP,
AUDIO OR HOME MENU IS DIS-
PLAYED
GUID-4037132B-707C-4A3D-B14B-B0CCB3B69C4B
5GA0082X
For U.S. and Canada
When the Map, Audio or HOME MENU screen is
displayed, some audio settings can be adjusted
with. Each time
is pushed, the
selected setting item will change as follows.
[Bass] ?[Treble] ?[Balance] ?[Fade]
Rotate to adjust
the level of the selected setting item.
For Mexico
When the Map or Audio screen is displayed,
some audio settings can be adjusted with
<
/SOUND>. Each time <
/SOUND>is pushed, the selected setting item
will change as follows.
[Bass] ?[Treble] ?[Balance] ?[Fade] Rotate
<
/SOUND> to adjust the level
of the selected setting item.CD/USB MEMORY DEVICE
CARE AND CLEANING
NCGNJN1402-382E2C0C-F95D-4F32-83DB-7AC976003DF3
CDNCGNJN1402-2435A350-AAE3-4957-A686-FFDF46B8AF14
SAA0451
. Handle a CD by its edges. Never touch the
surface of the disc. Do not bend the disc.
. Always place the discs in the storage case
when they are not being used.
. To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use.
3. Audio system
&RQGLWLRQ
3-35
