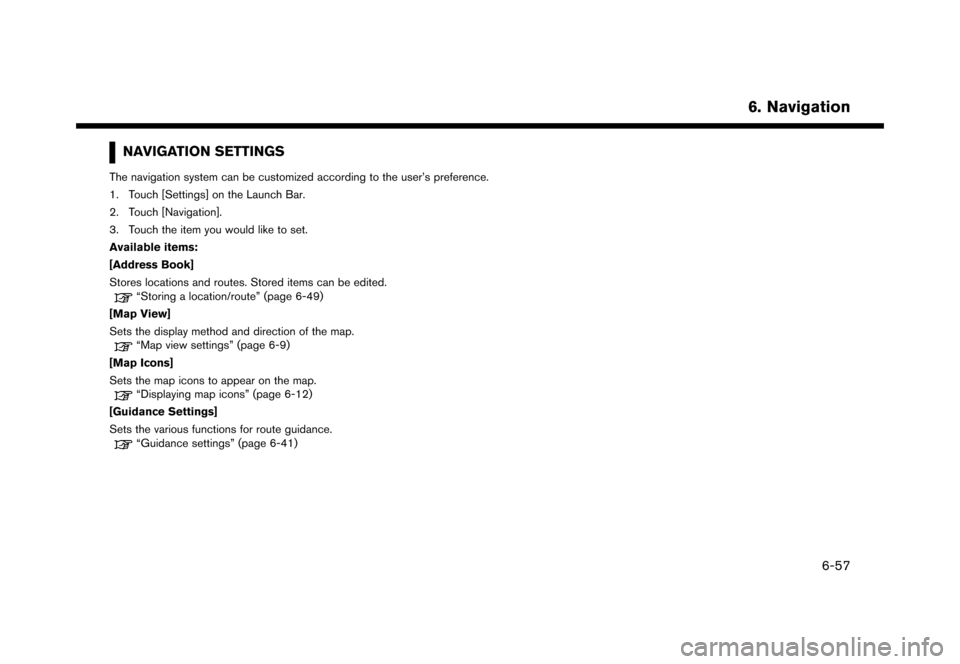

NAVIGATION SETTINGSNCGNJN1402-120906-9D8690FE-57C7-4383-A650-C4EAEDB9B2D7The navigation system can be customized according to the user's preference.
1. Touch [Settings] on the Launch Bar.
2. Touch [Navigation].
3. Touch the item you would like to set.
Available items:
[Address Book]
Stores locations and routes. Stored items can be edited.
ªStoring a location/routeº (page 6-49)
[Map View]
Sets the display method and direction of the map.
ªMap view settingsº (page 6-9)
[Map Icons]
Sets the map icons to appear on the map.
ªDisplaying map iconsº (page 6-12)
[Guidance Settings]
Sets the various functions for route guidance.
ªGuidance settingsº (page 6-41)
6. Navigation
&RQGLWLRQ
6-57


> (GLW    0RGHO 1&*1-1 @
6. Navigation
[Route Settings]
Changes the routing preferences.
ªRoute Settingsº (page 6-43)
[Traffic Info Setting] (for U.S. and Canada)
Sets the various functions of the SiriusXM Traffic information system.
ªTraffic information settingº (page 6-48)
[Speed Limit Indication on Map] (for U.S. and Canada)
Turns on/off the speed limit display function. When this item is turned on, speed limit indicator will appear on the map screen when available.
[Others]
Setting item Action
[Small Step Zoom With Dial] (if so equipped) Sets the free zoom function on/off. When this setting is on, it is possible to adjust the scale in
smaller steps than with normal scale adjustment.
[Map Scrolling Information] [Address Book Icons] Information about the location, on which the center of the cross pointer is placed by scrolling on the map, can be set to be displayed.
ªDisplaying map scrolling informationº (page 6-12)
[Destination/Waypoint Icons]
[Show pop-up for POIs]
[Latitude/Longitude Info]
[Customize Nearby POIs] Item 1 - Item 5
Customizes the nearby categories to show the categories that you frequently use.
[Reset] Resets the nearby categories to default.
[Keyboard Type] [QWERTY] The keyboard layout of the character input screens can be selected.
[ABC]
&RQGLWLRQ
6-58


> (GLW    0RGHO 1&*1-1 @

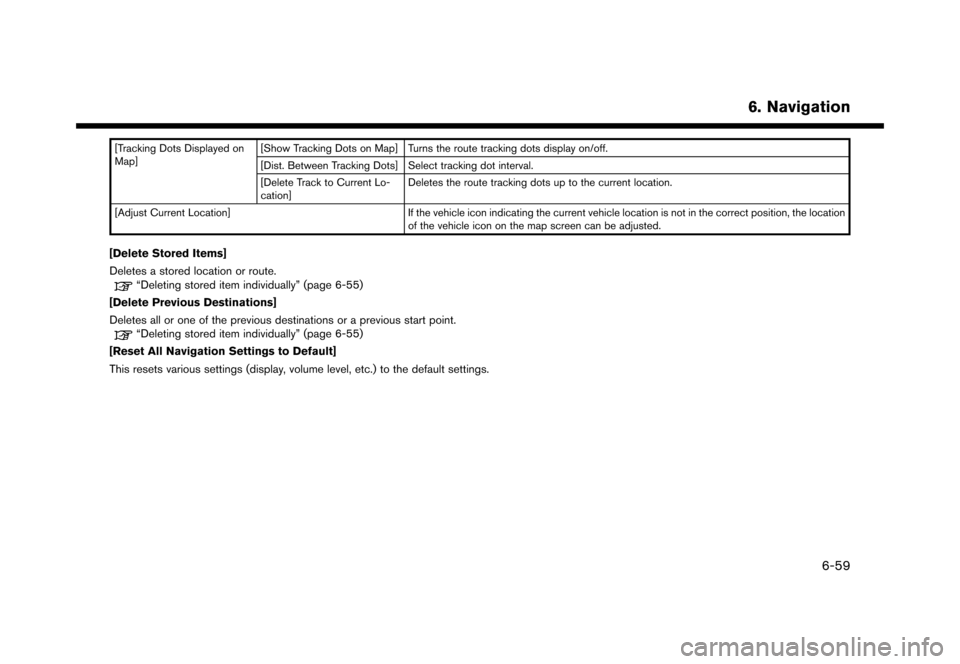

[Tracking Dots Displayed on
Map][Show Tracking Dots on Map] Turns the route tracking dots display on/off.
[Dist. Between Tracking Dots] Select tracking dot interval.
[Delete Track to Current Lo-
cation] Deletes the route tracking dots up to the current location.
[Adjust Current Location] If the vehicle icon indicating the current vehicle location is not in the correct position, the location
of the vehicle icon on the map screen can be adjusted.
[Delete Stored Items]
Deletes a stored location or route.
ªDeleting stored item individuallyº (page 6-55)
[Delete Previous Destinations]
Deletes all or one of the previous destinations or a previous start point.
ªDeleting stored item individuallyº (page 6-55)
[Reset All Navigation Settings to Default]
This resets various settings (display, volume level, etc.) to the default settings.
6. Navigation
&RQGLWLRQ
6-59


> (GLW    0RGHO 1&*1-1 @
6. Navigation
GENERAL INFORMATION FOR
NAVIGATION SYSTEM
NCGNJN1402-120906-53E79F5D-9AE6-4984-955E-CB2A39EB4D66
CURRENT VEHICLE LOCATIONNCGNJN1402-120906-3DB2B298-7959-42E7-A529-EBC2E6E1A510
Display of current vehicle locationNCGNJN1402-120906-AC334D4E-00C5-4F0B-889E-D50DC5D61202This navigation system combines the data
obtained from the vehicle (by gyro sensor) and
from GPS (Global Positioning System) satellites
to calculate the current location of the vehicle.
This position is then displayed throughout route
guidance to a destination.
What is GPS (Global Positioning Sys-
tem)?
NCGNJN1402-120906-A33AD639-F86B-4DA8-B59E-2726CD899634GPS is a position detecting system that uses
satellites deployed by the U.S. government. This
navigation system receives radio signals from
three or more different satellites that orbit
13,049 miles (21,000 km) above the earth in
space, and detect the position of the vehicle by
utilizing the principle of triangulation.
Positioning adjustment:
When the system judges that the vehicle position
is not accurate based on vehicle speed and gyro
sensor data calculations, the system will auto-
matically adjust the position of the vehicle icon
using GPS signals.Receiving signals from GPS satellites:
The reception of GPS signals can be weak,
depending on the environment. Vehicles in the
following areas/environments may not receive
GPS signals.NAI0422
*
Inside tunnels or parking garages
NAI0423
*
In areas with numerous tall buildings
NAI0424
*
Under multi-layered highways
&RQGLWLRQ
6-60


> (GLW    0RGHO 1&*1-1 @

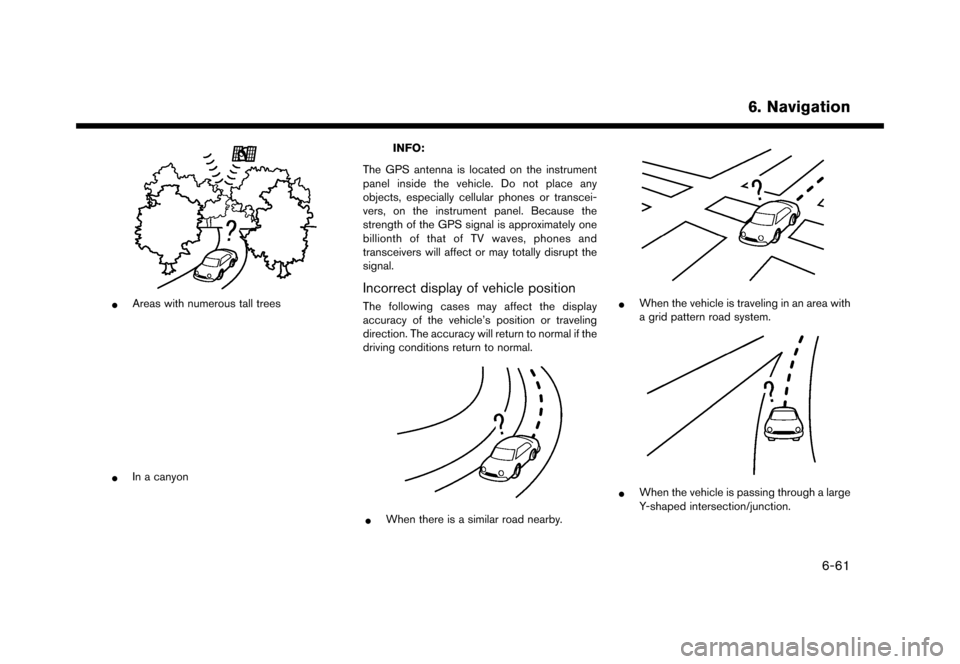

NAI0425
*
Areas with numerous tall trees
NAI0713
*
In a canyon
INFO:
The GPS antenna is located on the instrument
panel inside the vehicle. Do not place any
objects, especially cellular phones or transcei-
vers, on the instrument panel. Because the
strength of the GPS signal is approximately one
billionth of that of TV waves, phones and
transceivers will affect or may totally disrupt the
signal.
Incorrect display of vehicle positionNCGNJN1402-120906-B4EC1A08-66C4-4494-8E5E-6CB5C47F02B9The following cases may affect the display
accuracy of the vehicle's position or traveling
direction. The accuracy will return to normal if the
driving conditions return to normal.
NAI0426
*
When there is a similar road nearby.
NAI0427
*
When the vehicle is traveling in an area with
a grid pattern road system.
NAI0428
*
When the vehicle is passing through a large
Y-shaped intersection/junction.
6. Navigation
&RQGLWLRQ
6-61


> (GLW    0RGHO 1&*1-1 @
NAI0435
*
When driving on a road not displayed on the
map screen or a road that has been
changed due to additional construction or
other reasons.
NAI0436
*
When the GPS positioning accuracy is low.
INFO:
. The vehicle icon may be misaligned when
starting the vehicle just after starting the
engine or the hybrid system.
. The vehicle icon may also be misaligned if
different sized tires or tire chains are
installed.
. The system has a function that automatically
corrects the vehicle icon position when it is
misaligned from the actual position.
. Vehicle position correction by GPS may not
function when the vehicle is stopped.
. If the vehicle icon position does not return to
normal even after driving for a while, correct
the vehicle icon position manually.
Detailed Map Coverage Areas (MCA)
for navigation system
NCGNJN1402-120906-A7515219-FB6B-4303-A8B1-B6FF7C9DABCDThis system is designed to help guiding to the
destination, and it also performs other functions
as outlined in this manual. However, the system
must be used safely and properly. Information
concerning road conditions, traffic signs and the
availability of services may not always be up-to-
date. The system is not a substitute for safe,
proper and legal driving.
Map data covers select metropolitan areas. Map data includes two types of areas: ªDetailed
coverage areasº providing all detailed road data
and other areas showing ªMain roads onlyº.
INFO:
Detailed map data is not available in many areas
and is generally limited to select major metropo-
litan areas.
When gray/dark green road is dis-
played on map
NCGNJN1402-120906-B4E64482-6BC5-421A-8E74-FD830C019E3A. When you are driving on a road displayed in
gray after the vehicle has deviated from the
suggested route during route guidance,
automatic rerouting may not start immedi-
ately.
. The navigation system does not provide
route guidance for roads displayed in dark
green. Therefore, if the destination is set on a
road displayed in dark green, the enlarged
map display will return to the ordinary map
screen at some point on a suggested route
that is near the destination. Also, voice
guidance will stop at some point on a
suggested route that is near the destination.
. Places information and street names near
roads displayed in gray may not be contained
in the map data.
6. Navigation
&RQGLWLRQ
6-63


> (GLW    0RGHO 1&*1-1 @
6. Navigation

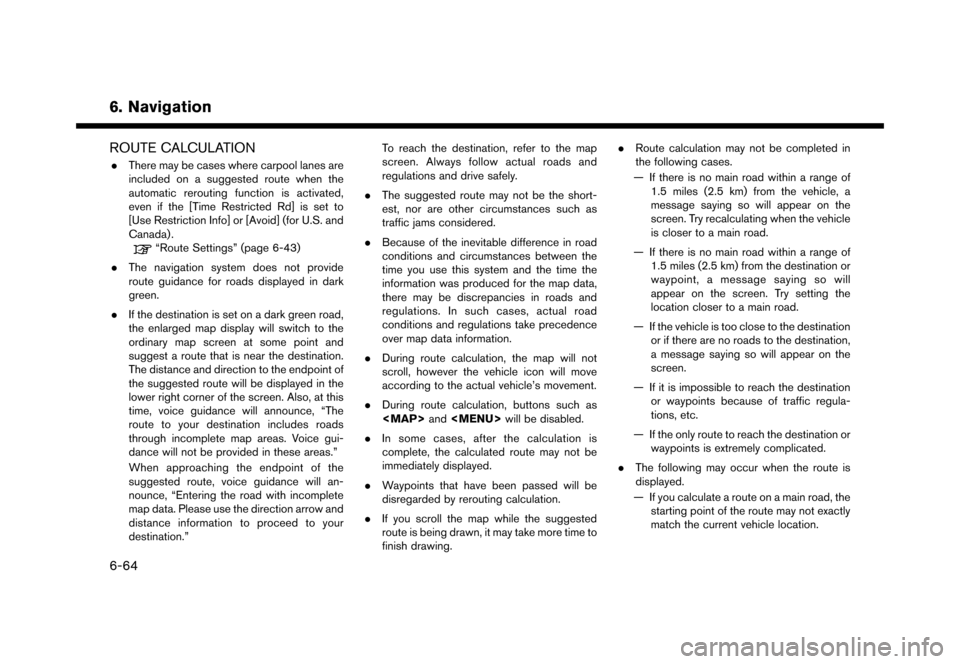

ROUTE CALCULATIONNCGNJN1402-120906-EE073CB3-3FAF-4421-BD08-BF04F3C95D6B.There may be cases where carpool lanes are
included on a suggested route when the
automatic rerouting function is activated,
even if the [Time Restricted Rd] is set to
[Use Restriction Info] or [Avoid] (for U.S. and
Canada) .
ªRoute Settingsº (page 6-43)
. The navigation system does not provide
route guidance for roads displayed in dark
green.
. If the destination is set on a dark green road,
the enlarged map display will switch to the
ordinary map screen at some point and
suggest a route that is near the destination.
The distance and direction to the endpoint of
the suggested route will be displayed in the
lower right corner of the screen. Also, at this
time, voice guidance will announce, ªThe
route to your destination includes roads
through incomplete map areas. Voice gui-
dance will not be provided in these areas.º
When approaching the endpoint of the
suggested route, voice guidance will an-
nounce, ªEntering the road with incomplete
map data. Please use the direction arrow and
distance information to proceed to your
destination.º To reach the destination, refer to the map
screen. Always follow actual roads and
regulations and drive safely.
. The suggested route may not be the short-
est, nor are other circumstances such as
traffic jams considered.
. Because of the inevitable difference in road
conditions and circumstances between the
time you use this system and the time the
information was produced for the map data,
there may be discrepancies in roads and
regulations. In such cases, actual road
conditions and regulations take precedence
over map data information.
. During route calculation, the map will not
scroll, however the vehicle icon will move
according to the actual vehicle's movement.
. During route calculation, buttons such as


> (GLW    0RGHO 1&*1-1 @

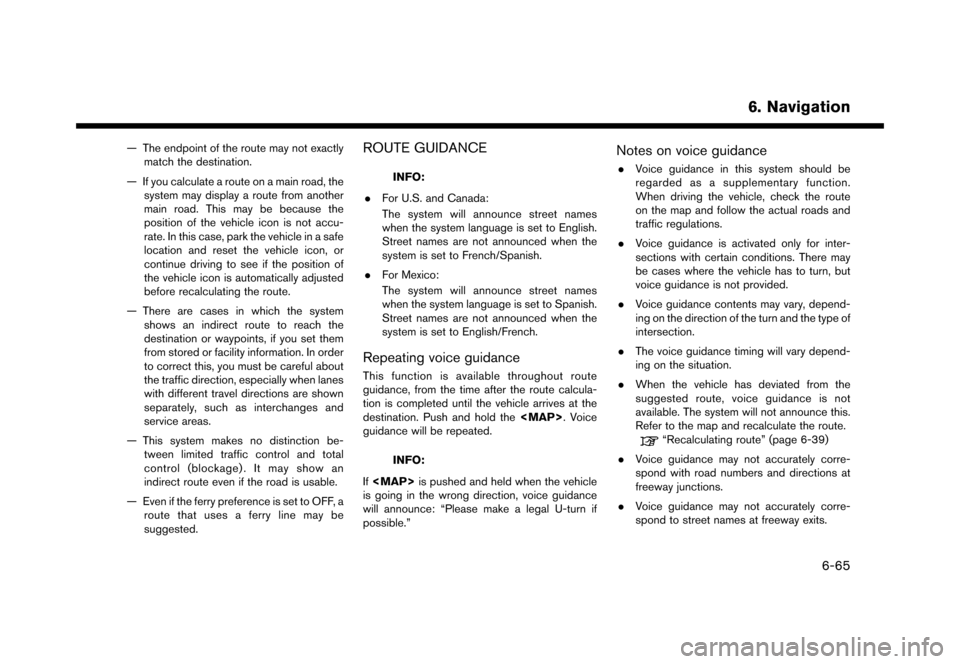

Ð The endpoint of the route may not exactlymatch the destination.
Ð If you calculate a route on a main road, the system may display a route from another
main road. This may be because the
position of the vehicle icon is not accu-
rate. In this case, park the vehicle in a safe
location and reset the vehicle icon, or
continue driving to see if the position of
the vehicle icon is automatically adjusted
before recalculating the route.
Ð There are cases in which the system shows an indirect route to reach the
destination or waypoints, if you set them
from stored or facility information. In order
to correct this, you must be careful about
the traffic direction, especially when lanes
with different travel directions are shown
separately, such as interchanges and
service areas.
Ð This system makes no distinction be- tween limited traffic control and total
control (blockage) . It may show an
indirect route even if the road is usable.
Ð Even if the ferry preference is set to OFF, a route that uses a ferry line may be
suggested.ROUTE GUIDANCENCGNJN1402-120906-D4460D59-8C4D-4A28-8361-F3C3C250F896
INFO:
. For U.S. and Canada:
The system will announce street names
when the system language is set to English.
Street names are not announced when the
system is set to French/Spanish.
. For Mexico:
The system will announce street names
when the system language is set to Spanish.
Street names are not announced when the
system is set to English/French.
Repeating voice guidanceNCGNJN1402-120906-43C350DF-CAB4-4E5D-8440-651D34A03D54This function is available throughout route
guidance, from the time after the route calcula-
tion is completed until the vehicle arrives at the
destination. Push and hold the
