2016 NISSAN MAXIMA display


> (GLW    0RGHO 1&*1-1 @
3. Audio system
[] Each time [] is touched, the
repeat mode changes.
ªChanging play modeº
(page 3-20)
[
] Touch once to return to the begin- ning of the current track. Touch again
to select the previous track. Touch
and hold to rewind the current track.
[
] Touch to play the track.
[
] Touch to pause the track.
[
] Touch to select the next track. Touch and hold to fast-forward the track.
[
] Each time [] is touched, the
random mode changes.
ªChanging play modeº
(page 3-20)
*8Track and folder number:
Indicates the track number and the folder
number.
*9Data type indicator:
Indicates the type of data currently playing.
CD player operationNCGNJN1402-28CAF061-63D9-4EF3-8A20-5A9D2E94AB19
Loading:
Insert a CD into the slot with the label side facing
up. The CD will be guided automatically into the
slot and start playing.
After loading the CD, the CD screen will appear
on the display.
Activation and playing:
The CD mode can be also selected from the
source list with a CD loaded.
ªSelecting audio sourceº (page 3-12)
Skipping tracks:
To skip the tracks, push<
>/<>, touch
[
]/[] on the screen, or tilt up/down
<
>/<> on the steering wheel repeatedly
until preferred track is selected.
INFO:
Depending on the condition, skipping to the
previous track may require pushing the button or
touching the key twice. Pushing the button or
touching the key once may only restart the
currently track from the beginning. Changing folders:
To change folders, touch [CD Menu] and touch
[Folder List].
ªCD Menuº (page 3-21)
For U.S. and Canada
Turn to skip to
different folders. If no folders are found, tracks
will be skipped.
Fast-forwarding/rewinding:
The following operation methods are available for
rewinding and fast-forwarding the track.
Control panel operation:
. Push and hold <
>/<>.
. Touch and hold [
]/[].
Steering wheel switch operation: . Tilt and hold <
>/<>on the steering
wheel.
Changing play mode:
Repeat mode
Touch [
] on the CD screen to change the
repeat mode as follows.
. CD:
[Disc] Û[1 Track]
&RQGLWLRQ
3-20


> (GLW    0RGHO 1&*1-1 @

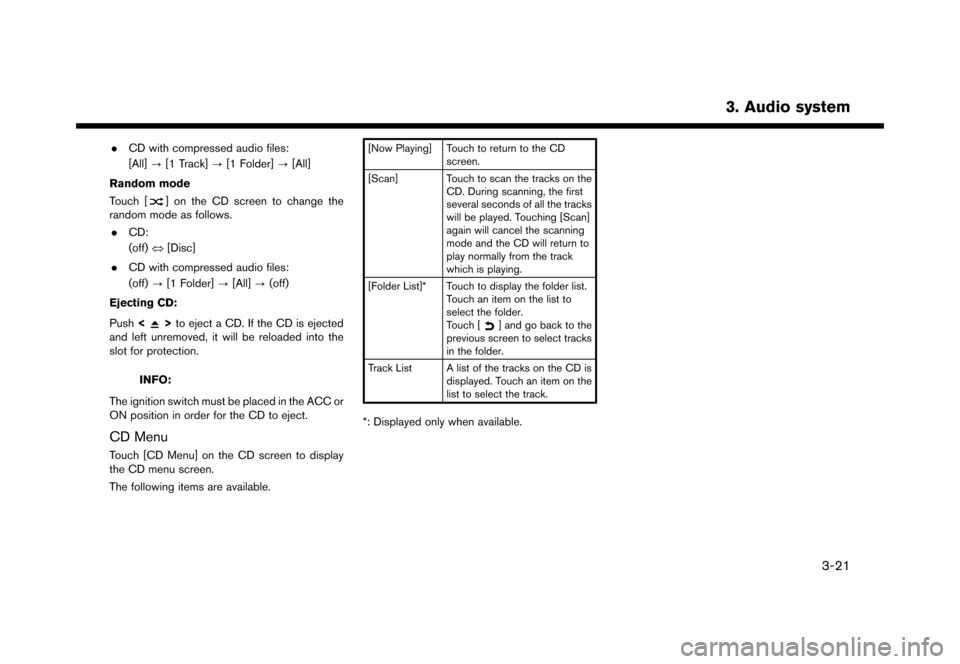

.CD with compressed audio files:
[All] ?[1 Track] ?[1 Folder] ?[All]
Random mode
Touch [
] on the CD screen to change the
random mode as follows.
. CD:
(off) Û[Disc]
. CD with compressed audio files:
(off) ?[1 Folder] ?[All] ?(off)
Ejecting CD:
Push <
>to eject a CD. If the CD is ejected
and left unremoved, it will be reloaded into the
slot for protection.
INFO:
The ignition switch must be placed in the ACC or
ON position in order for the CD to eject.
CD MenuGUID-BD38972D-E8A7-43E7-A28D-CE746107BE8DTouch [CD Menu] on the CD screen to display
the CD menu screen.
The following items are available.
[Now Playing] Touch to return to the CD screen.
[Scan] Touch to scan the tracks on the CD. During scanning, the first
several seconds of all the tracks
will be played. Touching [Scan]
again will cancel the scanning
mode and the CD will return to
play normally from the track
which is playing.
[Folder List]* Touch to display the folder list. Touch an item on the list to
select the folder.
Touch [
] and go back to the
previous screen to select tracks
in the folder.
Track List A list of the tracks on the CD is displayed. Touch an item on the
list to select the track.
*: Displayed only when available.
3. Audio system
&RQGLWLRQ
3-21


> (GLW    0RGHO 1&*1-1 @
How to view USB screenNCGNJN1402-120906-E9144E87-0DC7-4702-9C76-7699BDDE627E
5GA0063X
*1[USB Menu]:
Touch to switch to the USB Menu screen.
ªUSB Menuº (page 3-24)
*2[Source]:
Touch to switch to the source select screen.
ªSelecting audio sourceº (page 3-12)
*3Track information:
Track information such as the song title,
artist name and album name are displayed.
*4Audio source indicator:
Indicates which USB memory device
(USB1 or USB2) is currently selected. To
switch to the USB1 and USB2, touch
[Source] on the audio screen.
ªSelecting audio sourceº (page 3-12)
*5Album artwork/Turn direction indicator:
Image of an album artwork is displayed
when available if the setting is turned on.
ªUSB Menuº (page 3-24)
When the album artwork display setting is
turned off, the turn direction and the
distance to the next turn are displayed when
a route is set with the navigation system.
*6Play time and progress bar:
The play time of the track is displayed. The
bar indicates the progress in playing a track.
3. Audio system
&RQGLWLRQ
3-23


> (GLW    0RGHO 1&*1-1 @
3. Audio system
*7USB operation keys:
Touch an icon for operations.
[] Each time [] is touched, the
repeat mode changes.
ªChanging play modeº
(page 3-24)
[
] Touch to return to the beginning of the current track. Touch again to
select the previous track. Touch and
hold to rewind the current track.
[
] Touch to play the track.
[
] Touch to pause the track.
[
] Touch to select the next track. Touch and hold to fast-forward the track.
[
] Each time [] is touched, the
random mode changes.
ªChanging play modeº
(page 3-24)
*8Track and folder number:
Indicates the track number and the folder
number.
*9Data type indicator:
Indicates the type of data currently playing.
USB memory device player operationNCGNJN1402-120906-D6F756B8-A874-4D4F-BD71-90C3D033F1C0
Activation and playing:
Connecting the USB memory device into the
port will activate the USB mode.
USB memory device can also be played by
selecting the source on the audio source menu
screen.
ªSelecting audio sourceº (page 3-12)
To pause playing the USB memory device, touch
[
]. To resume playing, touch [].
Skipping tracks:
To skip the tracks, push <
>/<>, touch
[
]/[] on the screen, or tilt up/down
<
>/<> on the steering wheel repeatedly
until preferred track is selected.
INFO:
Depending on the condition, skipping to the
previous track may require pushing the button or
touching the key twice. Pushing the button or
touching the key once may only restart the
current track from the beginning.
Changing folders:
To change folders, touch [USB Menu] and touch
[Folder List].
ªUSB Menuº (page 3-24)
For U.S. and Canada
Turn to skip to
different folders. If no folders are found, tracks
will be skipped.
Fast-forwarding/rewinding:
To rewind or fast-forward the track, push and
hold <
>/<>, touch and hold []/[],
or tilt and hold <
>/<>on the steering
wheel.
Changing play mode:
Repeat mode
Touch [
] on the screen to change the repeat
mode as follows.
[All] ?[1 Track] ?[1 Folder] ?[All]
Random mode
Touch [
] on the screen to change the random
mode as follows.
(off) ?[1 Folder] ?[All] ?(off)
USB MenuGUID-D7405901-8E6D-4B27-8B77-BD50EA7A85CFTouch [USB Menu] on the USB screen to display
the USB Menu screen.
The following items are available.
&RQGLWLRQ
3-24


> (GLW    0RGHO 1&*1-1 @

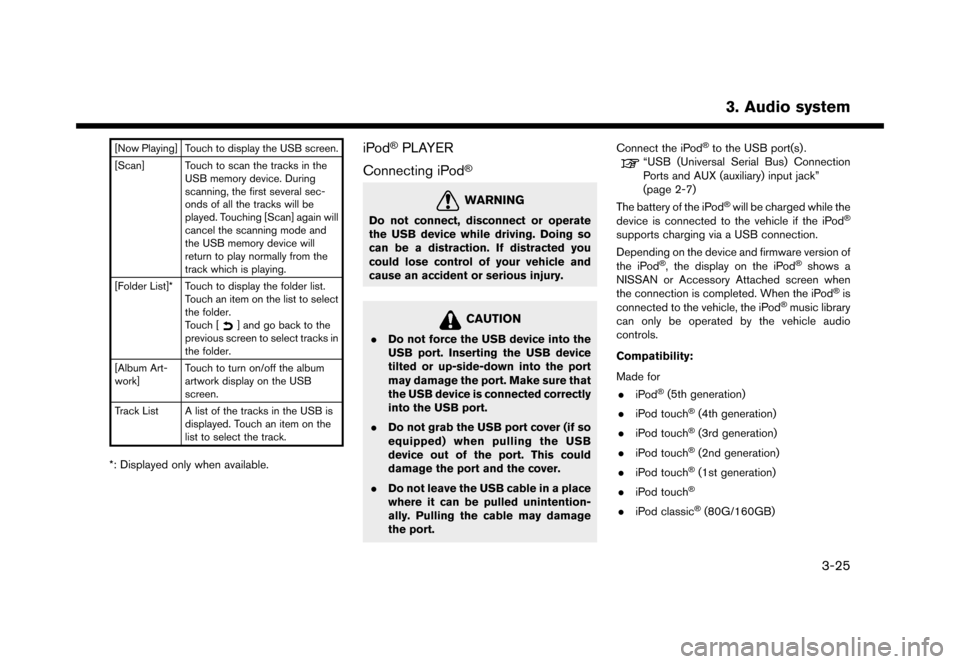

[Now Playing] Touch to display the USB screen.
[Scan] Touch to scan the tracks in theUSB memory device. During
scanning, the first several sec-
onds of all the tracks will be
played. Touching [Scan] again will
cancel the scanning mode and
the USB memory device will
return to play normally from the
track which is playing.
[Folder List]* Touch to display the folder list. Touch an item on the list to select
the folder.
Touch [
] and go back to the
previous screen to select tracks in
the folder.
[Album Art-
work] Touch to turn on/off the album
artwork display on the USB
screen.
Track List A list of the tracks in the USB is displayed. Touch an item on the
list to select the track.
*: Displayed only when available.
iPod


> (GLW    0RGHO 1&*1-1 @
*1[BT Menu]:
Touch to display the Bluetooth


> (GLW    0RGHO 1&*1-1 @
AUXILIARY (AUX) DEVICESNCGNJN1402-7E4C982E-CE83-4819-8396-9601FE8561DB
Connecting auxiliary devicesNCGNJN1402-120906-9776C08E-803B-4D3E-857D-1723F8FE9887The auxiliary input jack is located in the media
pocket.
ªUSB (Universal Serial Bus) Connection
Ports and AUX (auxiliary) input jackº
(page 2-7)
The auxiliary input jack accepts any standard
analog audio input such as from a portable
cassette player, CD player or MP3 player.
INFO:
Insert a 1/8 in (3.5 mm) stereo mini plug in the
audio input jack. If a cable with a mono plug is
used, the audio output may not function normally.
AUX operationGUID-8467D2B9-7D28-4DAB-8F80-11B9ACDD5164
Activation and playing:
Turn on an AUX device.
Connect an AUX cable to the AUX device and
the AUX jack. Select AUX mode from the audio
source menu screen.
ªSelecting audio sourceº (page 3-12)
How to view AUX screenNCGNJN1402-120906-3A8A4717-B982-4AEC-B5FA-083909A32A94
5GA0066X
*1[Source]:
Touch to switch to the source list screen.
ªSelecting audio sourceº (page 3-12)
*2Audio source indicator:
Indicates that an AUX device is currently
selected among other sources.
*3Turn direction indicator:
When a route to the destination is set, the
turn direction and the distance to the next
turn are displayed.
*4Volume Setting keys:
Touch one of the keys to select the sound
output gain from [Low], [Medium] and
[High].
3. Audio system
&RQGLWLRQ
3-33


> (GLW    0RGHO 1&*1-1 @
AUDIO ADJUSTMENTS WHEN MAP,
AUDIO OR HOME MENU IS DIS-
PLAYED
GUID-4037132B-707C-4A3D-B14B-B0CCB3B69C4B
5GA0082X
For U.S. and Canada
When the Map, Audio or HOME MENU screen is
displayed, some audio settings can be adjusted
with. Each time
is pushed, the
selected setting item will change as follows.
[Bass] ?[Treble] ?[Balance] ?[Fade]
Rotate to adjust
the level of the selected setting item.
For Mexico
When the Map or Audio screen is displayed,
some audio settings can be adjusted with
<
/SOUND>. Each time <
/SOUND>is pushed, the selected setting item
will change as follows.
[Bass] ?[Treble] ?[Balance] ?[Fade] Rotate
<
/SOUND> to adjust the level
of the selected setting item.CD/USB MEMORY DEVICE
CARE AND CLEANING
NCGNJN1402-382E2C0C-F95D-4F32-83DB-7AC976003DF3
CDNCGNJN1402-2435A350-AAE3-4957-A686-FFDF46B8AF14
SAA0451
. Handle a CD by its edges. Never touch the
surface of the disc. Do not bend the disc.
. Always place the discs in the storage case
when they are not being used.
. To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use.
