2016 MITSUBISHI LANCER Owners Manual

Indicator light, warning light, an
d information screen display list Features and controls 5-115
5
 There is a fault in the F.A.S.T.-key.
Refer to “F.A.S.T.-key” on page 5-12.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0230300US.book
115 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Indicator light, warning light, an
d information screen display list
5-116 Features and controls
5
N00558101352
Warning display list (With ignition switch in the “ON” position)
Screen type1
Screen type 2
Cause
Do this (Reference)
 There is a fault in the electric power steering system (EPS).
 Have the vehicle inspected by an autho- rized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible. Refer to “Electric power steering sys- tem (EPS)” on page 5-79.
BK0230300US.book
116 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Indicator light, warning light, an
d information screen display list Features and controls 5-117
5
 There is a fault in the F.A.S.T.-key.
Refer to “F.A.S.T.-key” on page 5-12.
 Immobilizer is registered.
Refer to “Electronic immobilizer (Anti- theft starting system)” on page 5-4, 5-27.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0230300US.book
117 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Indicator light, warning light, an
d information screen display list
5-118 Features and controls
5
 The brake fluid level is low.  There is a fault in the brake system.
 Park the vehicle in a safe place and con- tact an authorized Mitsubishi Motors dealer or a repair facility of your choice for assistance. Refer to “Brake warning display” on page 5-125.
 There is a fault in the Anti-lock braking system.
 Avoid sudden braking and high-speed driving, park the vehicle in a safe place, and take corrective measures. Refer to “Anti-lock braking system warning light/display” on page 5-74.
 The tire pressure in one of the tires (except spare tire) is low.
 Refer to “Tire Pressure Monitoring Sys- tem” on page 5-84.
 There is a fault in the Tire Pressure Monitoring System.
 Refer to “Tire Pressure Monitoring Sys- tem” on page 5-84.
 One of the doors or the trunk lid is not completely closed. The open door or open trunk lid is dis- played.
 Close the door or trunk lid. Refer to “Door ajar warning display (With ignition switch in the “OFF” position)” on page 5-96.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0230300US.book
118 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Indicator light, warning light, an
d information screen display list Features and controls 5-119
5
 The engine hood is open.
Close the engine hood. Refer to “Engine hood” on page 9-3.
 The engine is overheated.
Park the vehicle in a safe place and take corrective measures.Refer to “Engine overheating” on page 8-4.
 The continuously variable transmission (CVT) fluid temperature is increased.
 Park the vehicle in a safe place and take corrective measures.Refer to “Continuously variable trans- mission (CVT)” on page 5-59.
 The seat belt is not fastened when the ignition switch is in the “ON” position.
 Fasten your seat belt properly. Refer to “Driver’s seat belt reminder/warning light and display” on page 4-10.
 There is a fault in the fuel system.
Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.
 The vehicle is being driven with the parking brake still applied.
 Release the parking brake. Refer to “Brake warning display” on page 5-125.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0230300US.book
119 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Indicator light, warning light, an
d information screen display list
5-120 Features and controls
5
 There is a fault in the engine oil circula- tion system.
 Park your vehicle in a safe place as soon as possible and contact an autho- rized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked. Refer to “Oil pressure warning display” on page 5-126.
 There is a fault in the charging system.
Park your vehicle in a safe place as soon as possible and contact an autho- rized Mitsubishi Motors dealer or a repair facility of your choice for assis- tance. Refer to “Charging system warning dis-play” on page 5-126.
 There is a fault in the SRS airbag or the seat belt pre-tensioner system.
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked, immediately. Refer to “SRS warning light/display” on page 4-26.
 There is a fault in the Active Stability Control (ASC).
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked. Refer to “Active Stability Control (ASC)” on page 5-76.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0230300US.book
120 ページ ２０１５年７月３０日　木曜日　午後８時３８分

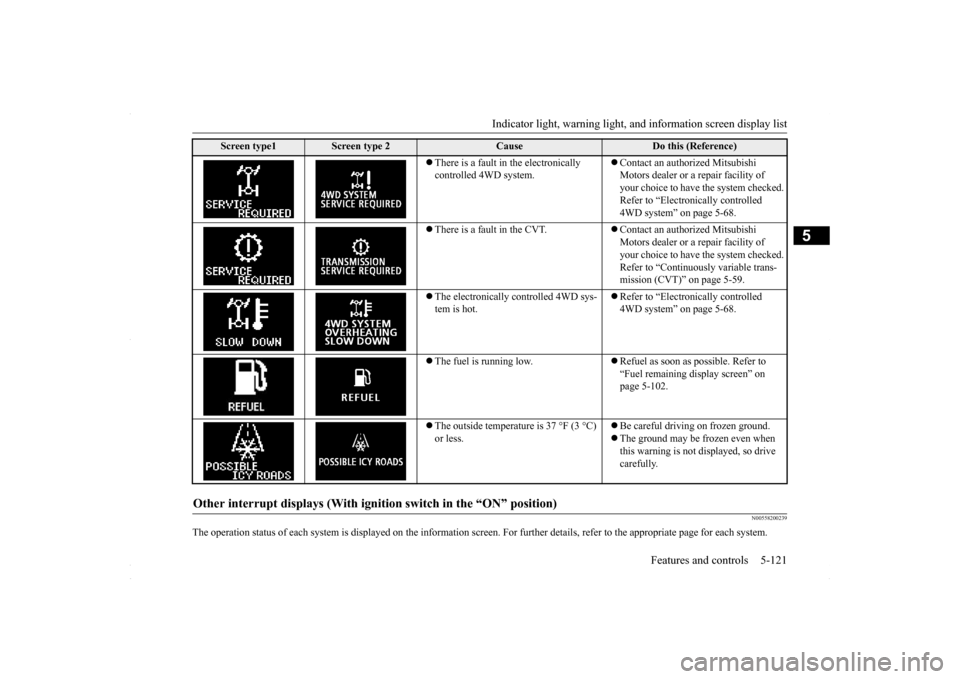

Indicator light, warning light, an
d information screen display list Features and controls 5-121
5
N00558200239
The operation status of each system is displayed on the information screen. For further details, refer to the appropriate page
for each system.
 There is a fault in the electronically controlled 4WD system.
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.Refer to “Electronically controlled 4WD system” on page 5-68.
 There is a fault in the CVT.
Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked. Refer to “Continuously variable trans- mission (CVT)” on page 5-59.
 The electronically controlled 4WD sys- tem is hot.
 Refer to “Electronically controlled 4WD system” on page 5-68.
 The fuel is running low.
Refuel as soon as possible. Refer to “Fuel remaining display screen” on page 5-102.
 The outside temperature is 37 °F (3 °C)
 Be careful driving on frozen ground.  The ground may be frozen even when this warning is not displayed, so drive carefully.
Other interrupt displays (With igniti
on switch in the “ON” position)
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0230300US.book
121 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Indicator light, warning light, an
d information screen display list
5-122 Features and controls
5
This informs you that a periodic inspection is due.
Screen type 1
Screen type 2
System operation status
Reference
 When “2WD” drive mode is selected with the drive mode selector.
 Refer to “Electronically controlled 4WD system” on page 5-68.
 When “4WD AUTO” mode is selected with the drive mode selector.  When “4WD LOCK” mode is selected with the drive mode selector.  When the Active Stability Control (ASC) is operating.
 Refer to “Active Stability Control (ASC) ”on page 5-76.
Screen type 1
Screen type 2
Do this
Have an inspection made by an authorized M
itsubishi Motors dealer. For further details,
refer to “Service reminder” on page 5-103.
