2016 KIA CEED Owners Manual

Features of your vehicle
286
4
✽✽
NOTICE
To turn Bluetooth®
Wireless
Technology back on, go to
[Phone] and press “Yes”.System Setting
Memory Information
Press the key Select
[System] Select [Memory Information]
This feature displays information
related to system memory.
(1) Using : Displays capacity current- ly in use
(2) Capacity : Displays total capacity❈ May differ depending on the
selected audio.
Voice Recognition Mode Setting
(If equipped)
Press the key Select
[System] Select [Voice RecognitionSystem]
This feature is used to select the
desired prompt feedback option from
Normal and Expert.
(1) Normal : When using voice recog- nition, provides detailed guidance prompts
(2) Expert : When using voice recog- nition, omits some guidanceprompts
✽✽NOTICE
Voice Recognition is depend on the
Audio System.
SETUP
SETUP
SETUP
CAUTION
Bluetooth ®
Wireless Technology
audio streaming may not be sup- ported in some Bluetooth ®
Wireless Technology phones.
JD PE eng 4b (Audio).qxp 9/9/2015 5:13 PM Page 286

Features of your vehicle
4287
Language
Press the key Select
[System] Select [Language]
This feature is used to change the
system and voice recognition lan-
guage. If the language is changed, the sys-
tem will restart and apply the select-
ed language. ❈Language support by region REAR VIEW CAMERA (If equipped)
The system has been equipped
with a rear view camera for user
safety by allowing a wider rear
range of vision.
The rear view camera will automat- ically operate when the ignition key
is turned ON and the transmission
lever is set to R.
The rear view camera will automat- ically stop operating when set to a
different lever.SETUP
CAUTION
The rear view camera has been
equipped with an optical lens toprovide a wider range of vision and may appear different fromthe actual distance. For safety,directly check the rear andleft/right sides.
JD PE eng 4b (Audio).qxp 9/9/2015 5:13 PM Page 287

Features of your vehicle
288

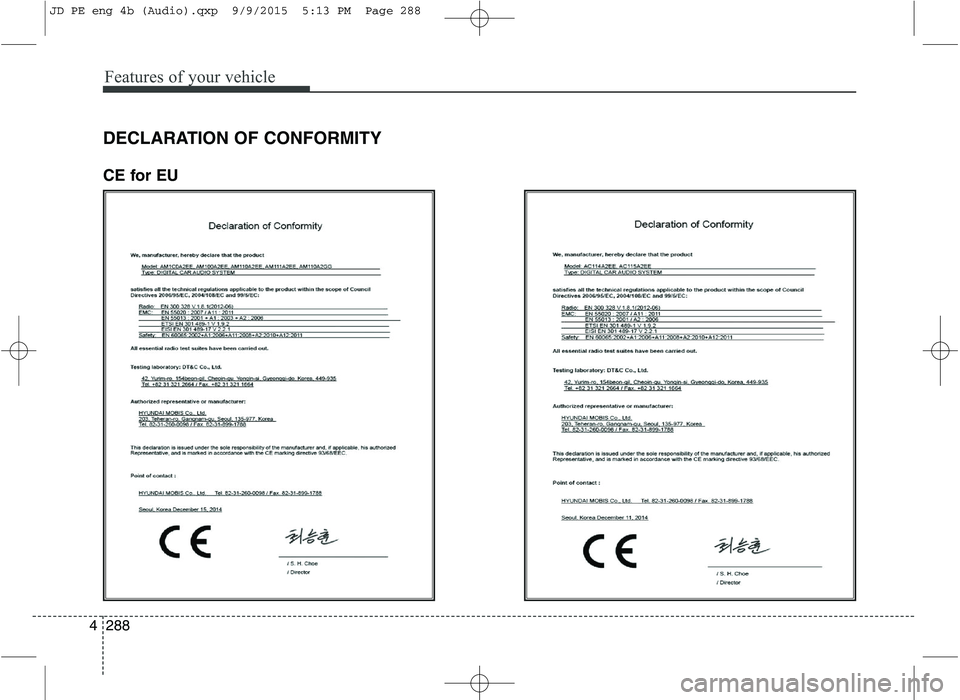

4 DECLARATION OF CONFORMITY
CE for EU
JD PE eng 4b (Audio).qxp 9/9/2015 5:13 PM Page 288

Features of your vehicle
4289

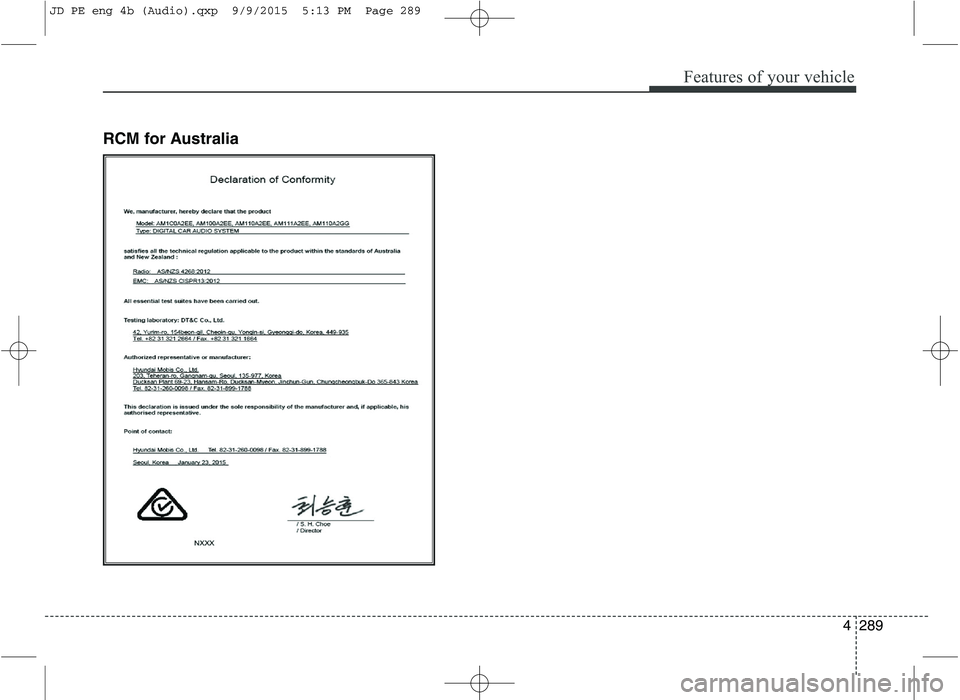

RCM for Australia
JD PE eng 4b (Audio).qxp 9/9/2015 5:13 PM Page 289

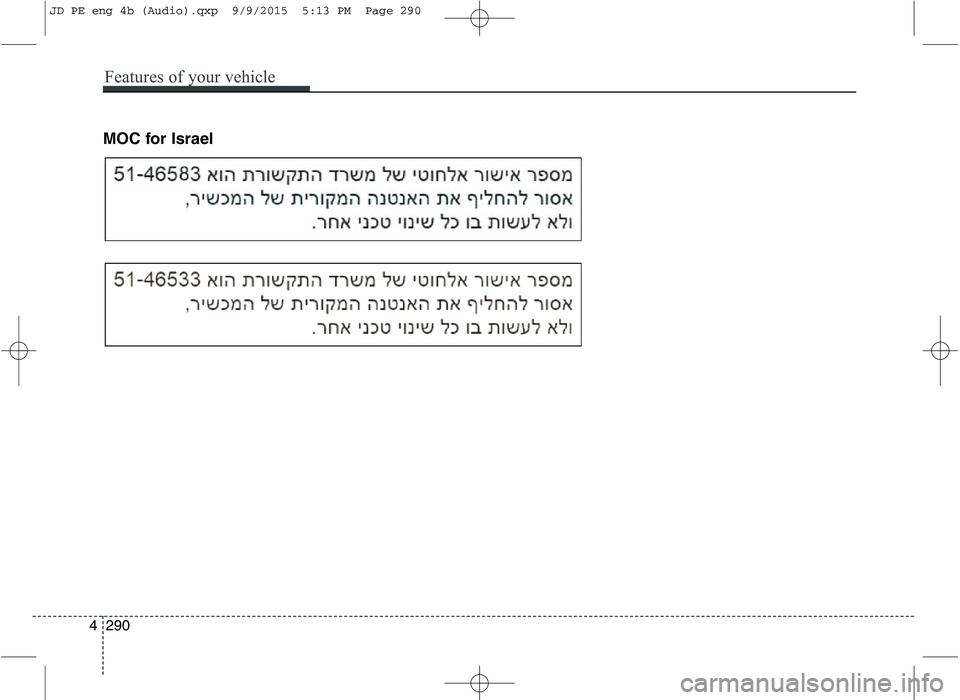

MOC for Israel
Features of your vehicle
290
4
JD PE eng 4b (Audio).qxp 9/9/2015 5:13 PM Page 290

Driving your vehicle
Before driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4 Before entering vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
 Necessary inspections . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
 Before starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Key positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5  Illuminated ignition switch . . . . . . . . . . . . . . . . . . . . . . 5-5
 Ignition switch position . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
 Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
Engine start/stop button . . . . . . . . . . . . . . . . . . . . . 5-9  Illuminated engine start/stop button . . . . . . . . . . . . . . 5-9
 Engine start/stop button position. . . . . . . . . . . . . . . . . 5-9
 Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
ISG (Idle Stop and Go) system . . . . . . . . . . . . . . . 5-15  Auto stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-15
 Auto Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-17
 Condition of ISG system operation . . . . . . . . . . . . . . 5-18
 ISG system deactivation . . . . . . . . . . . . . . . . . . . . . . . 5-18
 ISG system malfunction . . . . . . . . . . . . . . . . . . . . . . . 5-19
Manual Transaxle . . . . . . . . . . . . . . . . . . . . . . . . . . 5-20  Manual transaxle operation . . . . . . . . . . . . . . . . . . . . 5-20
 Good driving practices . . . . . . . . . . . . . . . . . . . . . . . . 5-22
Automatic transaxle . . . . . . . . . . . . . . . . . . . . . . . . 5-23  Automatic transaxle operation. . . . . . . . . . . . . . . . . . 5-23
 Good driving practices . . . . . . . . . . . . . . . . . . . . . . . . 5-28 Dual Clutch Transmission (DCT) . . . . . . . . . . . . . 5-30
 Dual clutch transmission operation . . . . . . . . . . . . . 5-30
 Good driving practices . . . . . . . . . . . . . . . . . . . . . . . . 5-37
Active ECOsystem . . . . . . . . . . . . . . . . . . . . . . . . . 5-39
 Active ECO operation . . . . . . . . . . . . . . . . . . . . . . . . . 5-39
 When Active ECO is activated . . . . . . . . . . . . . . . . . . 5-39
 Limitation of Active ECO operation . . . . . . . . . . . . . 5-39
Brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-40  Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-40
 Parking brake - Hand type. . . . . . . . . . . . . . . . . . . . . 5-42
 Electric parking brake (EPB) . . . . . . . . . . . . . . . . . . 5-44
 Anti-lock brake system (ABS) . . . . . . . . . . . . . . . . . . 5-48
 Electronic stability control (ESC) . . . . . . . . . . . . . . . 5-51
 Vehicle stability management (VSM) . . . . . . . . . . . . 5-54
 Hill-start assist control (HAC) . . . . . . . . . . . . . . . . . . 5-55
 Emergency Stop Signal (ESS) . . . . . . . . . . . . . . . . . . 5-56
 Good braking practices. . . . . . . . . . . . . . . . . . . . . . . . 5-56
Cruise Control system . . . . . . . . . . . . . . . . . . . . . . 5-58
Speed limit control system. . . . . . . . . . . . . . . . . . . 5-63
Lane departure warning system (LDWS) . . . . . . 5-66
Speed Limit Information Function (SLIF) . . . . . 5-69  SLIF activation / deactivation . . . . . . . . . . . . . . . . . . 5-69
 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-70
 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-70
 Warning message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-72
5
JD PE eng 5.QXP 9/30/2015 5:30 PM Page 1

 Driver's attention. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-73
Blind Spot Detection system (BSD) . . . . . . . . . . . 5-74  BSD (Blind Spot Detection) / LCA (Lane Change Assist) . . . . . . . . . . . . . . . . . . . . 5-74
 RCTA (Rear cross traffic alert) . . . . . . . . . . . . . . . . . 5-78
 Driver's Attention . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-80
Economical operation . . . . . . . . . . . . . . . . . . . . . . 5-81
Special driving conditions . . . . . . . . . . . . . . . . . . 5-83  Hazardous driving conditions . . . . . . . . . . . . . . . . . 5-83
 Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . 5-83
 Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-84
 Driving at night . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-84
 Driving in the rain . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-84
 Driving in flooded areas . . . . . . . . . . . . . . . . . . . . . . 5-85
 Driving off-road . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-85
 Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-85
Winter driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-86  Snowy or Icy conditions . . . . . . . . . . . . . . . . . . . . . . . 5-86
 Use high quality ethylene glycol coolant . . . . . . . . . . 5-88
 Check battery and cables . . . . . . . . . . . . . . . . . . . . . . 5-88
 Change to "winter weight" oil if necessary . . . . . . . 5-88
 Check spark plugs and ignition system. . . . . . . . . . . 5-88
 To keep locks from freezing . . . . . . . . . . . . . . . . . . . . 5-89
 Use approved window washer anti-freeze in system . . . . . . . . . . . . . . . . . . . . . . . . . 5-89  Don't let your parking brake freeze . . . . . . . . . . . . . 5-89
 Don't let ice and snow accumulate underneath . . . . 5-89
 Carry emergency equipment . . . . . . . . . . . . . . . . . . . 5-89
Trailer Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-90  Hitches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-91
 Safety chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-92
 Trailer brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-92
 Driving with a trailer . . . . . . . . . . . . . . . . . . . . . . . . 5-92
 Maintenance when trailer towing . . . . . . . . . . . . . . 5-96
 If you do decide to pull a trailer . . . . . . . . . . . . . . . 5-97
Vehicle weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-100  Base curb weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-100
 Vehicle curb weight . . . . . . . . . . . . . . . . . . . . . . . . . . 5-100
 Cargo weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-100
 GAW (Gross axle weight) . . . . . . . . . . . . . . . . . . . . . 5-100
 GAWR (Gross axle weight rating) . . . . . . . . . . . . . . 5-100
 GVW (Gross vehicle weight) . . . . . . . . . . . . . . . . . . 5-100
 GVWR (Gross vehicle weight rating) . . . . . . . . . . . 5-100
 Overloading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-100
5
JD PE eng 5.QXP 9/30/2015 5:30 PM Page 2

53
Driving your vehicle
WARNING- ENGINE EXHAUST CAN BE DANGEROUS!
Engine exhaust fumes can be extremely dangerous. If, at any time, you smell exhaust fumes inside the vehicle, open the win-
dows immediately.
• Do not inhale exhaust fumes.
Exhaust fumes contain carbon monoxide, a colorless, odorless gas that can cause unconsciousness and death by asphyxia- tion.
The exhaust system should be checked whenever the vehicle is raised to change the oil or for any other purpose. If you hear
a change in the sound of the exhaust or if you drive over something that strikes the underneath side of the vehicle, we rec-
ommend that the system be checked by an authorized Kia dealer.
Letting the engine idle in your garage, even with the garage door open, is a hazardous practice. Never run the engine in your
garage any longer than it takes to start the engine and back the vehicle out.
If it is necessary to idle the engine for a prolonged period with people inside the vehicle, be sure to do so only in an open a rea
with the air intake set at "Fresh" and fan operating at one of the higher speeds so fresh air is drawn into the interior.
If you must drive with the tailgate/trunk open because you are carrying objects that make this necessary:
1. Close all windows.
2. Open side vents.
3. Set the air intake control at "Fresh", the air flow control at "Floor" or "Face" and the fan at one of the higher speeds.
To assure proper operation of the ventilation system, be sure the ventilation air intakes located just in front of the windshie ld are
kept clear of snow, ice, leaves or other obstructions.
