Maintenance
Aiming point
OJD075051
< Ground Height >< Distance between lamps >
H1 : Height between the head lamp bulb center and ground (Low beam)
H2 : Height between the head lamp bulb center and ground (High beam)
H3 : Height between the fog lamp bulb center and ground
W1 : Distance between the two head lamp bulbs centers (Low beam)
W2 : Distance between the two head lamp bulbs centers (High beam)
W3 : Distance between the two fog lamp bulbs centers
JD PE eng 7.QXP 1/28/2016 5:40 PM Page 87

Maintenance
88
7
Vehicle

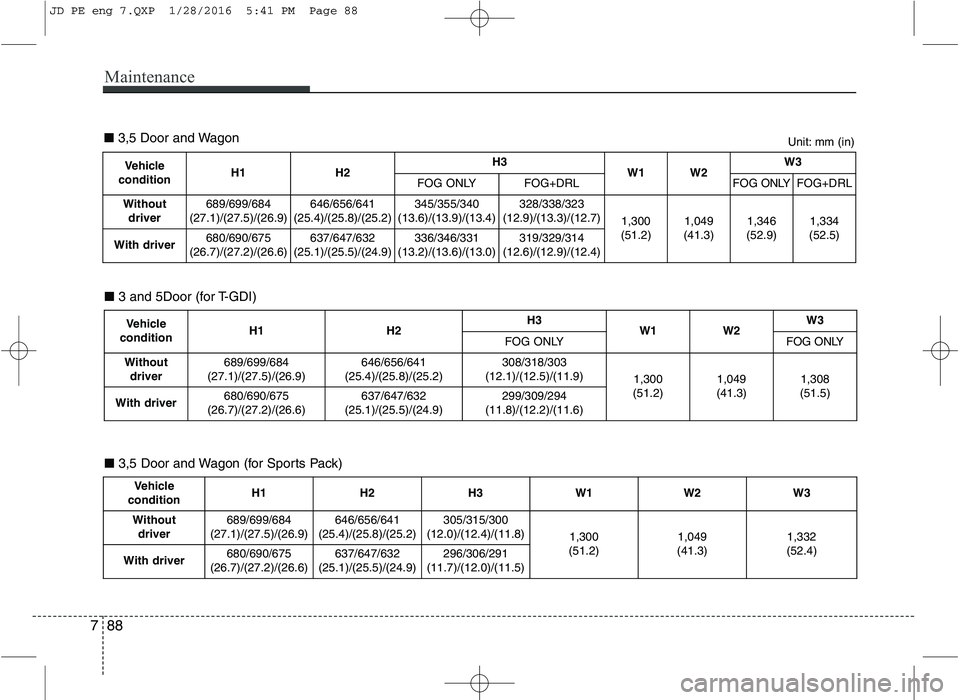

condition H1H2 H3W1W2W3
FOG ONLYFOG+DRL FOG ONLYFOG+DRL
Without driver 689/699/684
(27.1)/(27.5)/(26.9)
646/656/641
(25.4)/(25.8)/(25.2) 345/355/340
(13.6)/(13.9)/(13.4)328/338/323
(12.9)/(13.3)/(12.7)
1,300
(51.2)1,049
(41.3) 1,346
(52.9) 1,334
(52.5)
With driver 680/690/675
(26.7)/(27.2)/(26.6)
637/647/632
(25.1)/(25.5)/(24.9) 336/346/331
(13.2)/(13.6)/(13.0)319/329/314
(12.6)/(12.9)/(12.4)
■ 3,5 Door and Wagon
■ 3 and 5Door (for T-GDI)
Vehicle
condition H1
H2 H3W1W2 W3
Without driver 689/699/684
(27.1)/(27.5)/(26.9)
646/656/641
(25.4)/(25.8)/(25.2) 305/315/300
(12.0)/(12.4)/(11.8)
1,300
(51.2)1,049
(41.3) 1,332
(52.4)
With driver 680/690/675
(26.7)/(27.2)/(26.6)
637/647/632
(25.1)/(25.5)/(24.9) 296/306/291
(11.7)/(12.0)/(11.5)
■ 3,5 Door and Wagon (for Sports Pack) Unit: mm (in)
Vehicle
condition H1
H2 H3W1W2W3
FOG ONLY FOG ONLY
Without driver 689/699/684
(27.1)/(27.5)/(26.9)
646/656/641
(25.4)/(25.8)/(25.2) 308/318/303
(12.1)/(12.5)/(11.9)
1,300
(51.2)1,049
(41.3) 1,308
(51.5)
With driver 680/690/675
(26.7)/(27.2)/(26.6)
637/647/632
(25.1)/(25.5)/(24.9) 299/309/294
(11.8)/(12.2)/(11.6)
JD PE eng 7.QXP 1/28/2016 5:41 PM Page 88

789
Maintenance
OMD051054L
Head lamp low beam (driver’s side)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.■
Based on 10m screen
JD PE eng 7.QXP 1/28/2016 5:41 PM Page 89

Maintenance
90
7
OXM073102
Head lamp low beam (LHD)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions. ■
Based on 10m screen
JD PE eng 7.QXP 1/28/2016 5:41 PM Page 90

791
Maintenance
OXM073103
Head lamp low beam (RHD)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.
JD PE eng 7.QXP 1/28/2016 5:41 PM Page 91

Maintenance
92
7

OGDE071056-JD
Front fog light
1. Turn the front fog lamp on without the driver aboard.
2. The cut-off line should be projected in the allowable range (shaded region). ■
Based on 10m screen
JD PE eng 7.QXP 1/28/2016 5:41 PM Page 92

793
Maintenance
Side repeater light bulb replace- ment
If the light bulb does not operate, we rec-
ommend that the system be checked by
an authorized Kia dealer.(1) Rear turn signal light (2) Stop/tail light
(3) Back-up light (for 3 Door and 5 Door)
(4) Tail light or stop/tail light (for LED type) (5) Rear fog light (for 5 Door), Rear fog
light (Driver’s side) or back-up light
(Passenger’s side), (for wagon)
(6) Rear fog light (for 3 Door)
(7) Stop light (for 3 Door)
(8) Tail light (for 3 Door)
OJD072029
Rear combination light bulb replacement
■5 Door
■Wagon
■ 3 Door


OJD075030/OJD075063/OJD073072/OJD073072
JD PE eng 7.QXP 1/28/2016 5:41 PM Page 93

Maintenance
94
7
❈ The actual rear combination lamp shape in
the vehicle may differ from illustration.
Outside light
Rear turn signal light and stop/tail light
1. Turn off the engine.
2. Open the tailgate.
3. Loosen the light assembly retaining screws with a cross-tip screwdriver.
4. Remove the rear combination light assembly from the body of the vehicle. 5. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
6. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
7. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
8. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
9. Reinstall the light assembly to the body of the vehicle.
OJD072057
OJD072064
■
5 Door
■Wagon
OJD073073
■ 3 Door
Turn signal light
Stop/tail light
Stop or Stop/tail light
Turn signal light
Stop/tail light
OJD072045
Turn signal light
