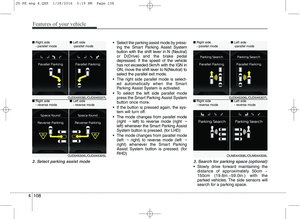

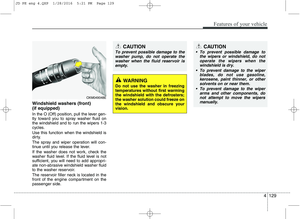

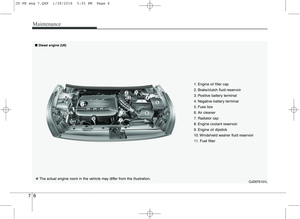

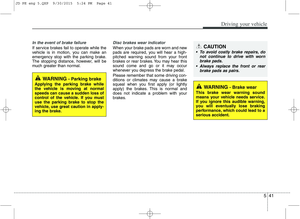

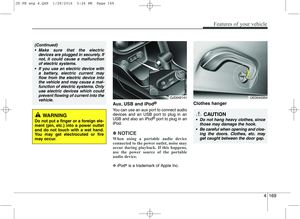

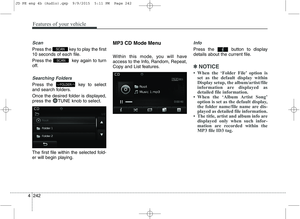

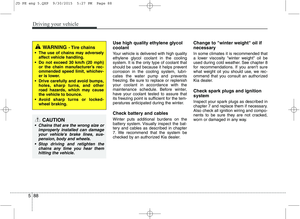

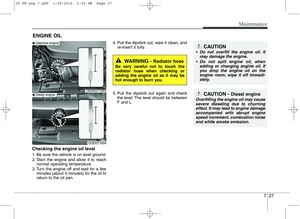

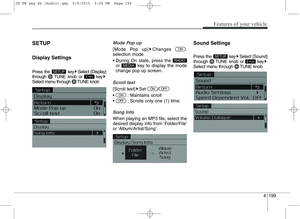

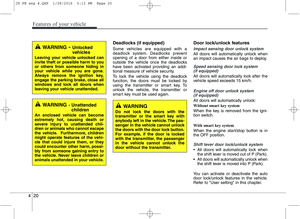

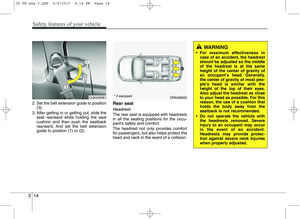

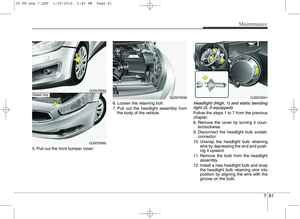

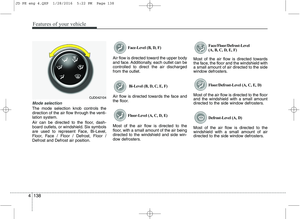

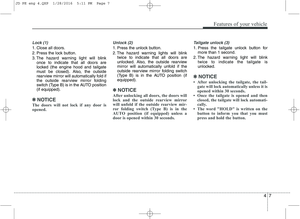

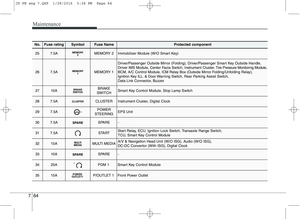

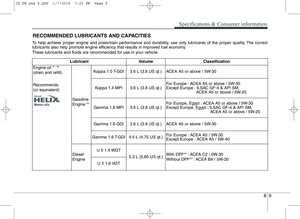

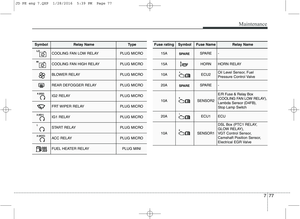

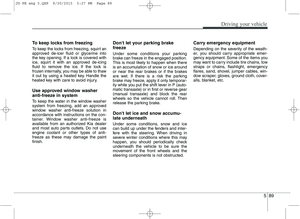

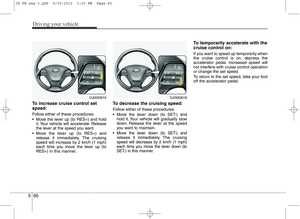

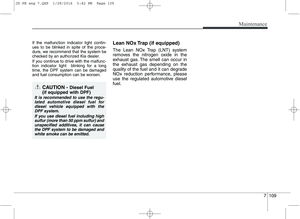

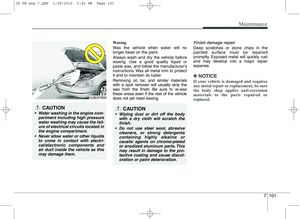

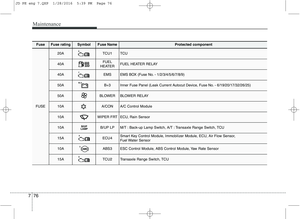

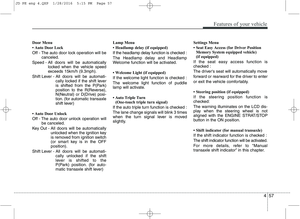

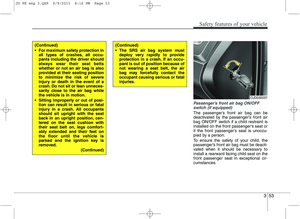

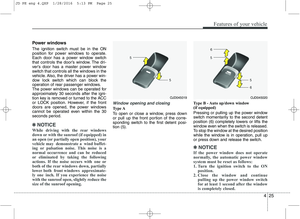

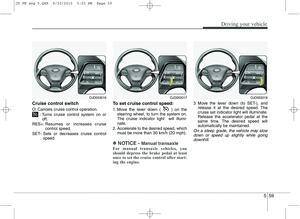

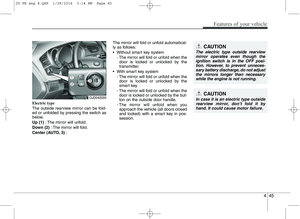

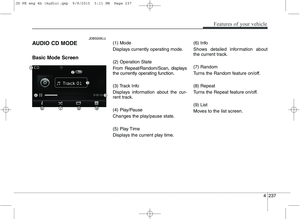

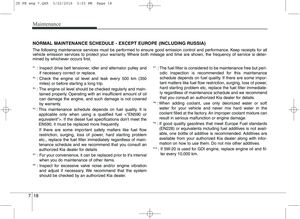

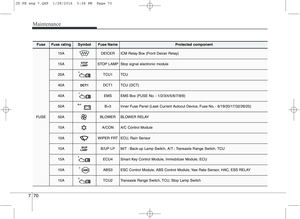

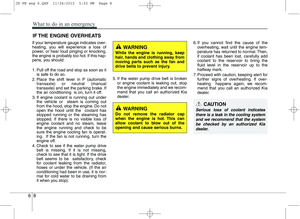

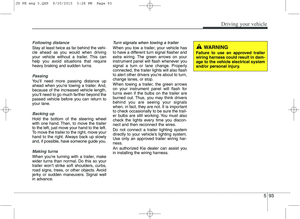

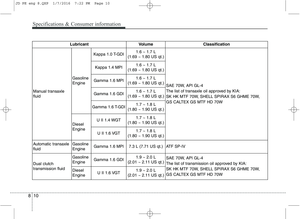

2016 KIA CEED Owners Manual

Specifications & Consumer information
10
8

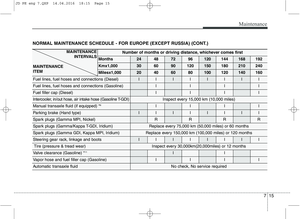

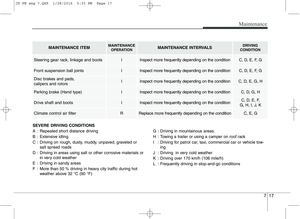

Lubricant Volume Classification
Manual transaxle fluid
Gasoline Engine
Kappa 1.0 T-GDI1.6 ~ 1.7 L
(1.69 ~ 1.80 US qt.)
SAE 70W, API GL-4
The list of transaxle oil approved by KIA:
SK HK MTF 70W, SHELL SPIRAX S6 GHME 70W,
GS CALTEX GS MTF HD 70W
Kappa 1.4 MPI1.6 ~ 1.7 L
(1.69 ~ 1.80 US qt.)
Gamma 1.6 MPI1.6 ~ 1.7 L
(1.69 ~ 1.80 US qt.)
Gamma 1.6 GDI1.6 ~ 1.7 L
(1.69 ~ 1.80 US qt.)
Gamma 1.6 T-GDI1.7 ~ 1.8 L
(1.80 ~ 1.90 US qt.)
Diesel EngineU II 1.4 WGT1.7 ~ 1.8 L
(1.80 ~ 1.90 US qt.)
U II 1.6 VGT1.7 ~ 1.8 L
(1.80 ~ 1.90 US qt.)
Automatic transaxle fluidGasoline Engine Gamma 1.6 MPI7.3 L (7.71 US qt.)ATF SP-IV
Dual clutch
transmission fluid
Gasoline Engine Gamma 1.6 GDI1.9 ~ 2.0 L
(2.01 ~ 2.11 US qt.)SAE 70W, API GL-4
The list of transmission oil approved by KIA:
SK HK MTF 70W, SHELL SPIRAX S6 GHME 70W,
GS CALTEX GS MTF HD 70W
Diesel EngineU II 1.6 VGT1.9 ~ 2.0 L
(2.01 ~ 2.11 US qt.)
JD PE eng 8.QXP 1/7/2016 7:22 PM Page 10

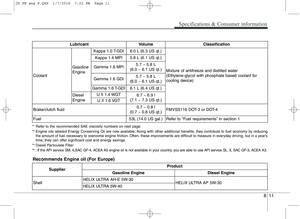

811
Specifications & Consumer information
Recommends Engine oil (For Europe)
*
1
Refer to the recommended SAE viscosity numbers on next page.
* 2
Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
* 3
Diesel Particulate Filter
* 4
: If the API service SM, ILSAC GF-4, ACEA A5 engine oil is not available in your country, you are able to use API service SL, IL SAC GF-3, ACEA A3.
Supplier Product
Gasoline Engine Diesel Engine
Shell HELIX ULTRA AH-E 5W-30
HELIX ULTRA AP 5W-30
HELIX ULTRA 5W-40
Lubricant Volume Classification

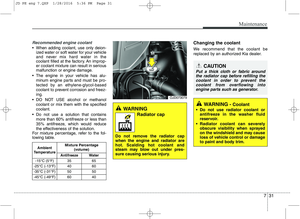

Coolant
Gasoline Engine
Kappa 1.0 T-GDI6.0 L (6.3 US qt.)
Mixture of antifreeze and distilled water
(Ethylene-glycol with phosphate based coolant for
cooling device)
Kappa 1.4 MPI5.8 L (6.1 US qt.)
Gamma 1.6 MPI5.7 ~ 5.8 L
(6.0 ~ 6.1 US qt.)
Gamma 1.6 GDI5.7 ~ 5.8 L
(6.0 ~ 6.1 US qt.)
Gamma 1.6 T-GDI6.1 L (6.4 US qt.)
Diesel EngineU II 1.4 WGT6.7 ~ 6.9 l
(7.1 ~ 7.3 US qt.)
U II 1.6 VGT

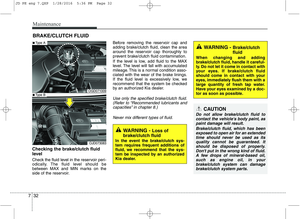

Brake/clutch fluid0.7 ~ 0.8 l
(0.7 ~ 0.8 US qt.)FMVSS116 DOT-3 or DOT-4

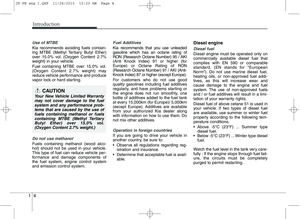

Fuel53L (14.0 US gal.)Refer to “Fuel requirements” in section 1
JD PE eng 8.QXP 1/7/2016 7:22 PM Page 11

Specifications & Consumer information
12
8

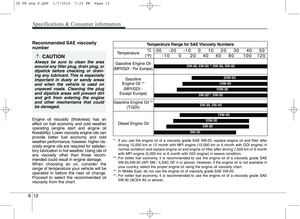

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils can
provide better fuel economy and cold
weather performance, however, higher vis-
cosity engine oils are required for satisfac-
tory lubrication in hot weather. Using oils of
any viscosity other than those recom-
mended could result in engine damage.When choosing an oil, consider the
range of temperature your vehicle will be
operated in before the next oil change.Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, or dipstick before checking or drain-ing any lubricant. This is especially
important in dusty or sandy areasand when the vehicle is used on unpaved roads. Cleaning the plugand dipstick areas will prevent dirt
and grit from entering the engineand other mechanisms that could be damaged.
* 1
: If you use the engine oil of a viscosity grade SAE 5W-20, replace engine oil and filter after
driving 15,000 km or 12 month with MPI engine (10,000 km or 6 month with GDI engine) in
normal condition and replace engine oil and engine oil filter after driving 7,500 km or 6 month
with MPI engine (5,000 km or 6 month with GDI engine) in severe condition.
* 2
: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
5W-20,5W-30 (API SM / ILSAC GF 4 or above). However, if the engine oil is not available in
your country, select the proper engine oil using the engine oil viscosity chart.
* 3
: In Middle East, do not use the engine oil of viscosity grade SAE 5W-20.
* 4
: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
5W-30 (ACEA A5 or above).
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline Engine Oil
(MPI/GDI - For Europe) °C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
0W-40, 5W-20 * 1
,5W-30, 5W-40
Gasoline
Engine Oil * 2
(MPI/GDI -
Except Europe)20W-50
10W-30
15W-40
5W-20* 3
, 5W-30
Diesel Engine Oil5W-30
15W-40
10W-30
0W-30
Gasoline Engine Oil * 4
(T-GDI)5W-30, 5W-40
JD PE eng 8.QXP 1/7/2016 7:22 PM Page 12

813
Specifications & Consumer information

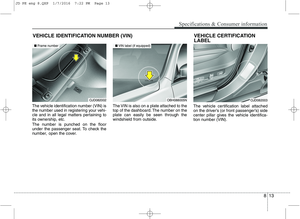

The vehicle identification number (VIN) is
the number used in registering your vehi-
cle and in all legal matters pertaining to
its ownership, etc.
The number is punched on the floor
under the passenger seat. To check the
number, open the cover.The VIN is also on a plate attached to the
top of the dashboard. The number on theplate can easily be seen through the
windshield from outside.
The vehicle certification label attached
on the driver’s (or front passenger’s) side
center pillar gives the vehicle identifica-
tion number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)
OJD082002
■
Frame number VEHICLE CERTIFICATION LABEL
OBH088005N
■
VIN label (if equipped)
OJD082003
JD PE eng 8.QXP 1/7/2016 7:22 PM Page 13

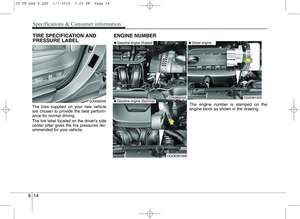

Specifications & Consumer information
14
8
The tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your vehicle. TIRE SPECIFICATION AND PRESSURE LABEL
ENGINE NUMBER
OJD082005
■
Gasoline engine (Kappa)
■Gasoline engine (Gamma)OTA080004L
■Diesel engine
OGD081005
OGDE081006 The engine number is stamped on the
engine block as shown in the drawing.
JD PE eng 8.QXP 1/7/2016 7:22 PM Page 14

815
Specifications & Consumer information

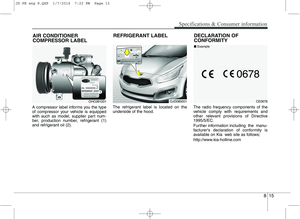

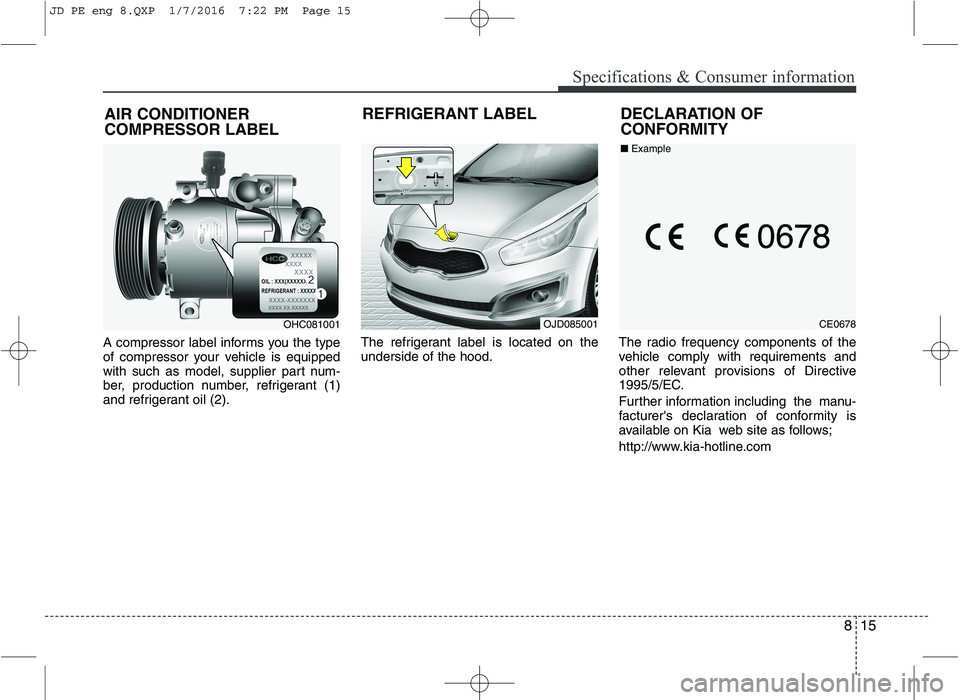

A compressor label informs you the type
of compressor your vehicle is equipped
with such as model, supplier part num-
ber, production number, refrigerant (1)
and refrigerant oil (2).The refrigerant label is located on theunderside of the hood.
The radio frequency components of the
vehicle comply with requirements and
other relevant provisions of Directive
1995/5/EC.
Further information including the manu-
facturer's declaration of conformity is
available on Kia web site as follows;
http://www.kia-hotline.comDECLARATION OF CONFORMITY

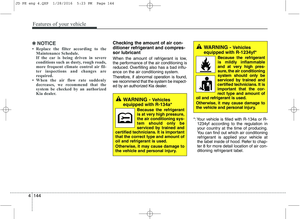

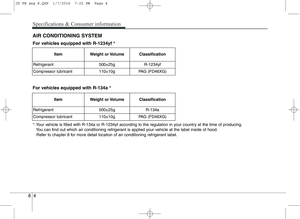

REFRIGERANT LABEL
AIR CONDITIONER COMPRESSOR LABEL
OHC081001OJD085001CE0678
■
Example
