2016 KIA CEED Owners Manual

Specifications & Consumer information
2
8
DIMENSIONS
Itemmm (in)
3 Door 5 DoorWagon
Overall length4,310 (169.7)4,310 (169.7)4,505 (177.4)
Overall width1,780 (70.1)
2,035 (80.1) * 11,780 (70.1)
2,035 (80.1) * 11,780 (70.1)
2,035 (80.1) * 1
Overall height Except Russia1,430 (56.3)
1,425 (56.1) * 21,470 (57.9)
1,465 (57.7) * 21,485 (58.5)
1,480 (58.3) * 2
For Russia1,440 (56.7)1,480 (58.3)1,495 (58.9)
Front tread
195/65R15Steel wheel1,563 (61.5)1,563 (61.5)1,563 (61.5)
205/55R16Steel wheel1,553 (61.1)1,553 (61.1)1,553 (61.1)
Aluminum wheel1,555 (61.2)1,555 (61.2)1,555 (61.2)
225/45R17Aluminum wheel1,549 (61.0)1,549 (61.0)1,549 (61.0)
225/40R18Aluminum wheel1,545 (60.8)1,545 (60.8)-
Rear tread
195/65R15Steel wheel1,571 (61.9)1,571 (61.9)1,571 (61.9)
205/55R16Steel wheel1,561 (61.5)1,561 (61.5)1,561 (61.5)
Aluminum wheel1,563 (61.5)1,563 (61.5)1,563 (61.5)
225/45R17Aluminum wheel1,557 (61.3)1,557 (61.3)1,557 (61.3)
225/40ZR18Aluminum wheel1,553 (61.1)1,553 (61.1)-
Wheelbase2,650 (104.3)
*
1
: Width including outside mirrors (except T-GDI engine)
* 2
: Emission Package
JD PE eng 8.QXP 1/7/2016 7:22 PM Page 2

83
Specifications & Consumer information
ENGINEItem Gasoline 1.0 Gasoline 1.4 Gasoline 1.6 Diesel 1.4
Diesel 1.6
Displacement cc (cu. in) 998 (60.9) 1,368 (83.48) 1,591 (97.09) 1,396 (85.12)
1,582 (96.53)
Bore x Stroke mm (in.)71 x 84
(2.80 x 3.31) 72x84
(2.83x3.31) 77x85.44
(3.03x3.36) 75x79
(2.95x3.11)
77.2x84.5
(3.03x3.32)
Firing order 1-2-3 1-3-4-2 1-3-4-2 1-3-4-2
1-3-4-2
No. of cylinders 3, In-line 4, in-line 4, In-line 4, In-line
4, In-line
JD PE eng 8.QXP 1/7/2016 7:22 PM Page 3

Specifications & Consumer information
4
8

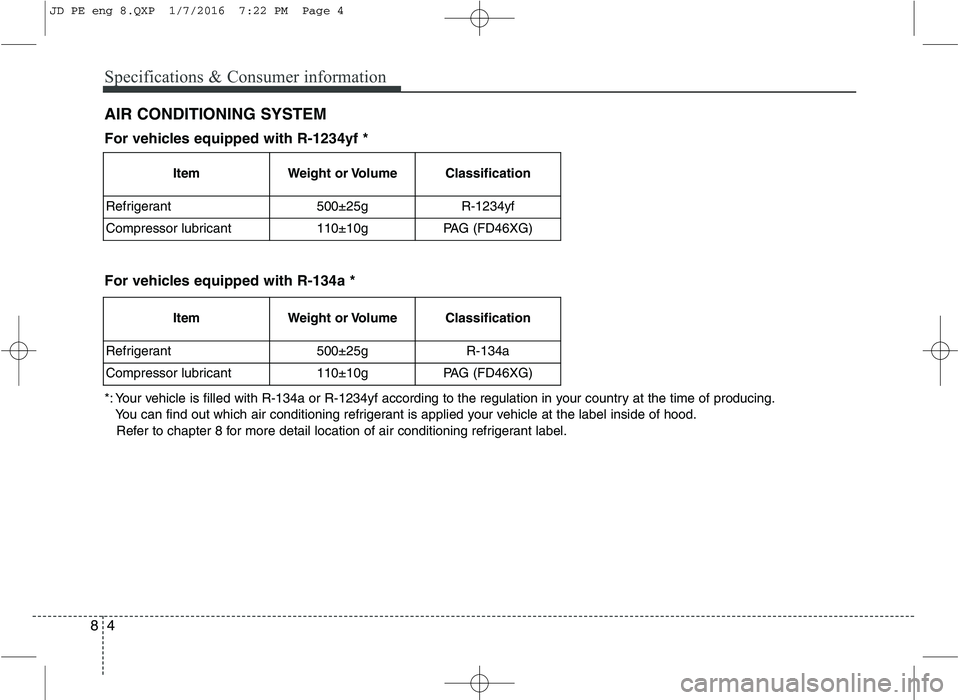

AIR CONDITIONING SYSTEM
Item Weight or Volume Classification
Refrigerant 500±25g R-1234yf
Compressor lubricant 110±10g PAG (FD46XG)
For vehicles equipped with R-1234yf *
For vehicles equipped with R-134a *
Item Weight or Volume Classification
Refrigerant 500±25g R-134a
Compressor lubricant 110±10g PAG (FD46XG)
*: Your vehicle is filled with R-134a or R-1234yf according to the regulation in your country at the time of producing. You can find out which air conditioning refrigerant is applied your vehicle at the label inside of hood.Refer to chapter 8 for more detail location of air conditioning refrigerant label.
JD PE eng 8.QXP 1/7/2016 7:22 PM Page 4

85
Specifications & Consumer information

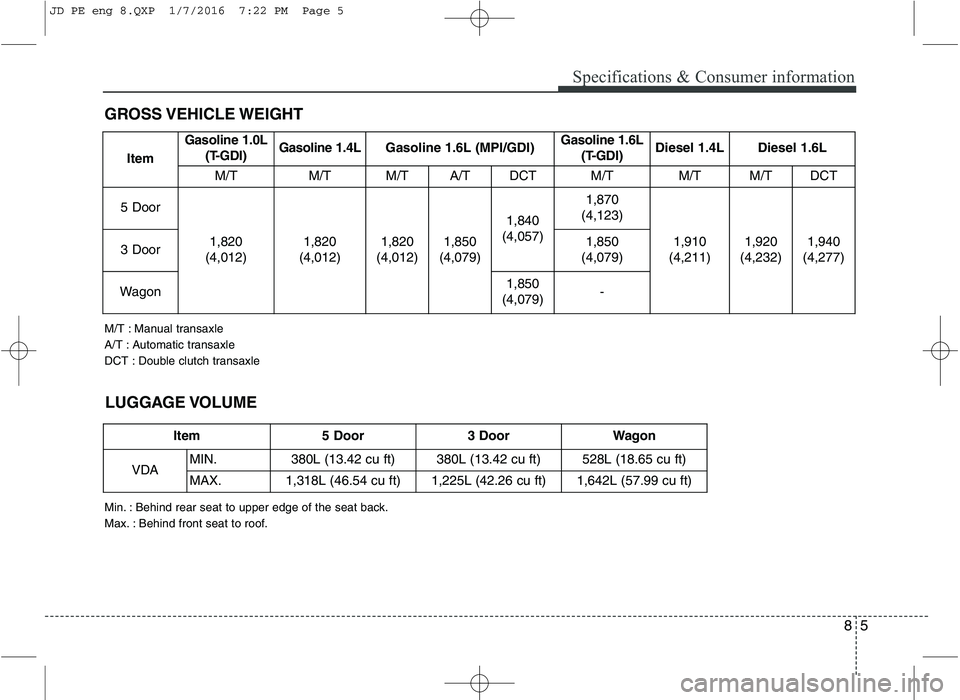

Item 5 Door 3 Door Wagon
VDA MIN. 380L (13.42 cu ft) 380L (13.42 cu ft) 528L (18.65 cu ft)
MAX. 1,318L (46.54 cu ft) 1,225L (42.26 cu ft) 1,642L (57.99 cu ft)
GROSS VEHICLE WEIGHT
M/T : Manual transaxle
A/T : Automatic transaxle
DCT : Double clutch transaxle
Min. : Behind rear seat to upper edge of the seat back.
Max. : Behind front seat to roof.Item
Gasoline 1.0L
(T-GDI) Gasoline 1.4L
Gasoline 1.6L (MPI/GDI) Gasoline 1.6L
(T-GDI) Diesel 1.4L Diesel 1.6L
M/T M/T M/T A/T DCT M/T M/T M/T DCT
5 Door
1,820
(4,012) 1,820
(4,012) 1,820
(4,012) 1,850
(4,079) 1,840
(4,057) 1,870
(4,123)
1,910
(4,211) 1,920
(4,232) 1,940
(4,277)
3 Door1,850
(4,079)
Wagon 1,850
(4,079) -
LUGGAGE VOLUME
JD PE eng 8.QXP 1/7/2016 7:22 PM Page 5

Specifications & Consumer information
6
8
BULB WATTAGE
Light Bulb5 Door3 DoorWagon
Wattage (W)Bulb typeWattage (W)Bulb typeWattage (W)Bulb type
Front
HeadlightsLow55 or 35
(AFLS with HID)H7LL or D1S*55 or 35
(AFLS with HID)H7LL or D1S*55 or 35
(AFLS with HID)H7LL or D1S*
High55H7LL55H7LL55H7LL
Static bending light*55H7LL55H7LL55H7LL
Daytime running light at
bumper (GTI)21 (LED)P21/5WXL
(LED)21 (LED)P21/5WXL (LED)21(LED)P21/5WXL(LED)
Daytime running light +
Position lights* at h/lampLEDLEDLEDLEDLEDLED
Front turn signal lights21PY21WLL21PY21WLL21PY21WLL
Position lights5/LEDW5WLL/LED5/LEDW5WLL/LED5/LEDW5WLL/LED
Side repeater lights55W55W55W
Puddle lamps*LEDLEDLEDLEDLEDLED
Front fog lights(GTI)51W(35W)9006(H8L)51W(35W)9006(H8L)51W(35W)9006(H8L)
Rear
Rear fog light21P21WL21P21WL21P21WL
Stop and tail lights 21P21/5WL21/5 or LEDP21/5WL or LED21P21/5WL
Rear turn signal lights 21P21WL21P21WL21P21WL
Tail light 5 or LEDP21/5WL or LED5 or LEDP21/5WL or
LED5 or LEDP21WL orLED
Back-up lights 16W16W16W16W16W16W
High mounted stop lightLEDLEDLEDLEDLEDLED
License plate lights5W5W5W5W5W5W
JD PE eng 8.QXP 1/7/2016 7:22 PM Page 6

87
Specifications & Consumer information

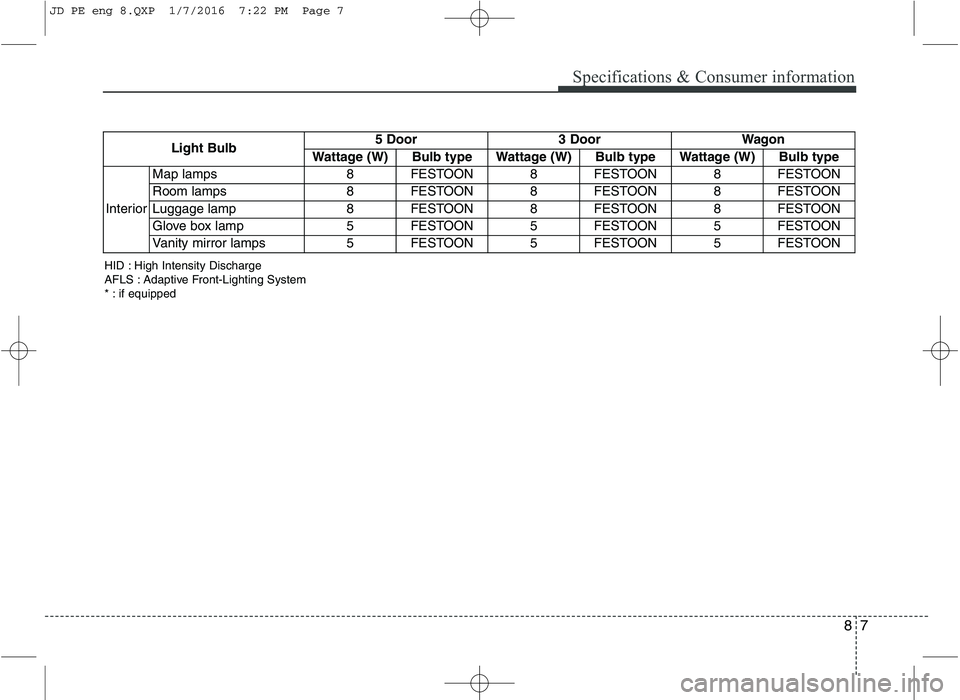

Light Bulb5 Door3 DoorWagon
Wattage (W)Bulb typeWattage (W)Bulb typeWattage (W)Bulb type
Interior
Map lamps8FESTOON8FESTOON8FESTOON
Room lamps8FESTOON8FESTOON8FESTOON
Luggage lamp8FESTOON8FESTOON8FESTOON
Glove box lamp5FESTOON5FESTOON5FESTOON
Vanity mirror lamps5FESTOON5FESTOON5FESTOON
HID : High Intensity Discharge
AFLS : Adaptive Front-Lighting System
* : if equipped
JD PE eng 8.QXP 1/7/2016 7:22 PM Page 7

Specifications & Consumer information
8
8
TIRES AND WHEELS * 1
: Load Index
* 2
: Speed Symbol
* 3
: For 1.0 T-GDI Low Power Engine
ItemTire sizeWheel
sizeLoad CapacitySpeed capacityInflation pressure bar(psi, kPa)Wheel lug nuttorque Kgf·m (lbf·ft, N·m)
Normal loadMaximum load
LI * 1KgSS * 2Km/hFrontRear FrontRear
Full size
tire
195/65R15 * 36.0J×15 91615H2102.6
(38,260)2.6
(38,260)2.6
(38,260)2.6
(38,260)
9~11
(65~79, 88~107)
195/65R156.0J×1591615H2102.5
(36,250)2.5
(36,250)2.5
(36,250)2.5
(36,250)
205/55R166.5J×16 91615H2102.2
(32,220)2.2
(32,220)2.2
(32,220)2.2
(32,220)
225/45R177.0J×1791615V2402.2
(32,220)2.2
(32,220)2.2
(32,220)2.2
(32,220)
225/40ZR187.5J×1892630Y3002.35
(34,235)2.35
(34,235)2.35
(34,235)2.35
(34,235)
Compact
spare tireT125/80D154.0T×1595690M1304.2
(60, 420)4.2
(60, 420)4.2
(60, 420)4.2
(60, 420)
T125/80D164.0T×1697730M1304.2
(60, 420)4.2
(60, 420)4.2
(60, 420)4.2
(60, 420)
✽✽ NOTICE
 We recommend that when replacing tires, use the same originally supplied with the vehicles.
If not, that affects driving performance.
 When driving in high altitude grades, it is natural for the atmospheric pressure to dec rease. Therefore, please check the tire
pressure and add more air when necessary.
Additionally required tire air pressure per km above sea level: 1.5psi/km
JD PE eng 8.QXP 1/7/2016 7:22 PM Page 8

89
Specifications & Consumer information
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.RECOMMENDED LUBRICANTS AND CAPACITIES
Lubricant Volume Classification
Engine oil * 1
*2
(drain and refill) Recommends
(or equivalent)
GasolineEngine *4Kappa 1.0 T-GDI 3.6 L (3.8 US qt.) ACEA A5 or above / 5W-30
Kappa 1.4 MPI 3.6 L (3.8 US qt.) For Europe : ACEA A5 or above / 5W-30
Except Europe : ILSAC GF-4 & API SM,
ACEA A5 or above / 5W-20
Gamma 1.6 MPI 3.6 L (3.8 US qt.) For Europe, Egypt : ACEA A5 or above / 5W-30
Except Europe, Egypt : ILSAC GF-4 & API SM,
ACEA A5 or above / 5W-20
Gamma 1.6 GDI 3.6 L (3.8 US qt.) ACEA A5 or above / 5W-30
Gamma 1.6 T-GDI 4.5 L (4.75 US qt.) For Europe : ACEA A5 / 5W-30
Except Europe : ACEA A5 / 5W-40
Diesel Engine U II 1.4 WGT
5.3 L (5.60 US qt.) With DPF*
3
: ACEA C2 / 0W-30
Without DPF* 3
: ACEA B4 / 5W-30
U II 1.6 VGT
