2016 KIA CEED Owners Manual

Safety features of your vehicle
64
3
SRS Care
The SRS is virtually maintenance-free
and so there are no parts you can safely
service by yourself. If the SRS air bag
warning light does not illuminate, or con-
tinuously remains on, we recommend
that the system be inspected by an
authorized Kia dealer.
WARNING
Modification to SRS components or wiring, including the addition
of any kind of badges to the pad
covers or modifications to the
body structure, can adversely
affect SRS performance and lead
to possible injury.
For cleaning the air bag pad cov- ers, use only a soft, dry cloth or
one which has been moistened
with plain water. Solvents or
cleaners could adversely affect
the air bag covers and proper
deployment of the system.
No objects should be placed over or near the air bag modules on
the steering wheel, instrument
panel, and the front passenger's
panel above the glove box,
because any such object could
cause harm if the vehicle is in a
crash severe enough to cause
the air bags to inflate.
(Continued)(Continued)
If the air bags inflate, we recom-mend that the system be replaced
by an authorized Kia dealer.
Do not tamper with or disconnect SRS wiring, or other components
of the SRS system. Doing so
could result in injury, due to acci-
dental inflation of the air bags or
by rendering the SRS inopera-
tive.
If components of the air bag sys- tem must be discarded, or if the
vehicle must be scrapped, certain
safety precautions must be
observed. An authorized Kia
dealer knows these precautions
and can give you the necessary
information. Failure to follow
these precautions and proce-dures could increase the risk of
personal injury.
If your car was flooded and has soaked carpeting or water on floor-
ing, you shouldn't try to start the
engine; we recommend that you
contact an authorized Kia dealer.
JD PE eng 3.QXP 9/9/2015 4:17 PM Page 64

365
Safety features of your vehicle

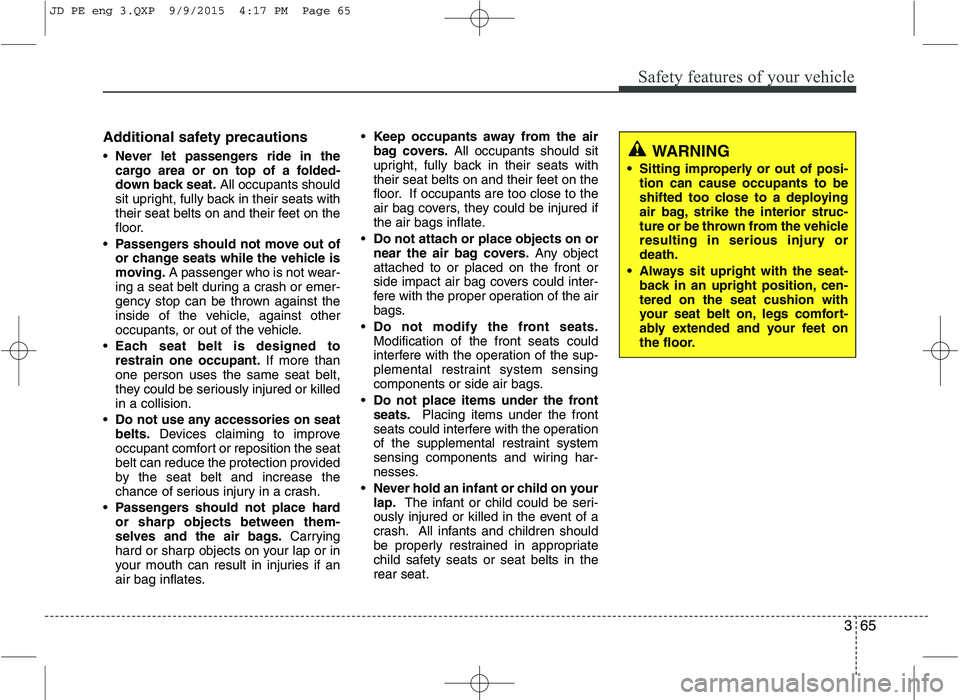

Additional safety precautions Never let passengers ride in the
cargo area or on top of a folded-
down back seat. All occupants should
sit upright, fully back in their seats with
their seat belts on and their feet on the
floor.
Passengers should not move out of
or change seats while the vehicle is
moving. A passenger who is not wear-
ing a seat belt during a crash or emer-
gency stop can be thrown against the
inside of the vehicle, against other
occupants, or out of the vehicle.
Each seat belt is designed torestrain one occupant. If more than
one person uses the same seat belt,
they could be seriously injured or killedin a collision.
Do not use any accessories on seatbelts. Devices claiming to improve
occupant comfort or reposition the seat
belt can reduce the protection provided
by the seat belt and increase the
chance of serious injury in a crash.
Passengers should not place hardor sharp objects between them-
selves and the air bags. Carrying
hard or sharp objects on your lap or in
your mouth can result in injuries if an
air bag inflates.
Keep occupants away from the air
bag covers. All occupants should sit
upright, fully back in their seats with
their seat belts on and their feet on the
floor. If occupants are too close to the
air bag covers, they could be injured if
the air bags inflate.
Do not attach or place objects on or
near the air bag covers. Any object
attached to or placed on the front or
side impact air bag covers could inter-
fere with the proper operation of the air
bags.
Do not modify the front seats.Modification of the front seats could
interfere with the operation of the sup-
plemental restraint system sensing
components or side air bags.
Do not place items under the frontseats. Placing items under the front
seats could interfere with the operation
of the supplemental restraint system
sensing components and wiring har-
nesses.
Never hold an infant or child on yourlap. The infant or child could be seri-
ously injured or killed in the event of a
crash. All infants and children should
be properly restrained in appropriate
child safety seats or seat belts in therear seat.
WARNING
Sitting improperly or out of posi- tion can cause occupants to be
shifted too close to a deploying
air bag, strike the interior struc-
ture or be thrown from the vehicle
resulting in serious injury ordeath.
Always sit upright with the seat- back in an upright position, cen-tered on the seat cushion with
your seat belt on, legs comfort-
ably extended and your feet on
the floor.
JD PE eng 3.QXP 9/9/2015 4:17 PM Page 65

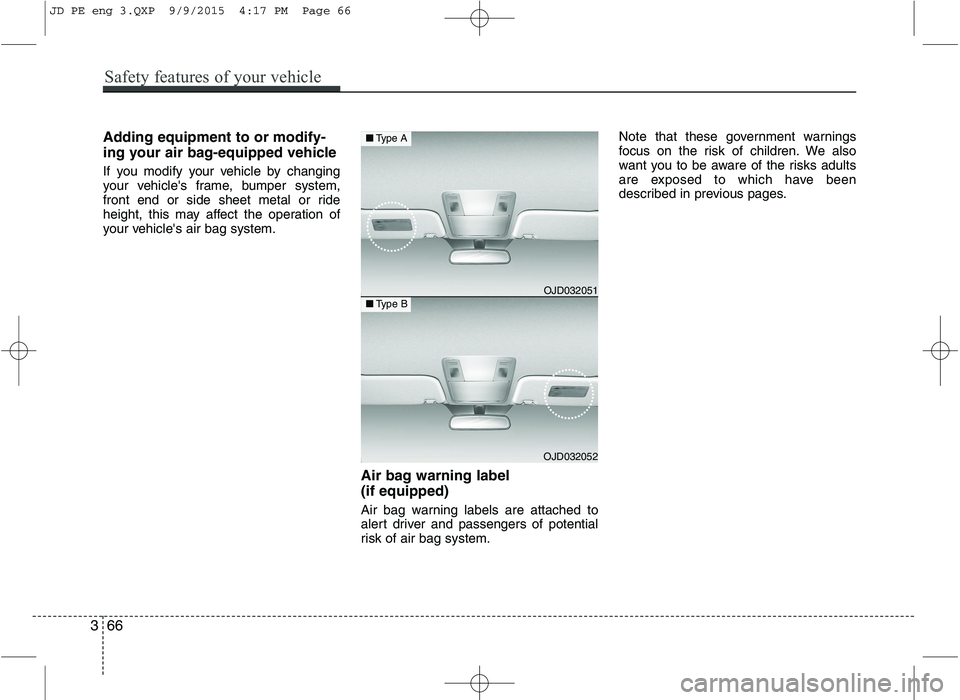

Adding equipment to or modify-
ing your air bag-equipped vehicle
If you modify your vehicle by changing
your vehicle's frame, bumper system,
front end or side sheet metal or ride
height, this may affect the operation of
your vehicle's air bag system.Air bag warning label (if equipped)
Air bag warning labels are attached to
alert driver and passengers of potential
risk of air bag system.Note that these government warnings
focus on the risk of children. We also
want you to be aware of the risks adults
are exposed to which have been
described in previous pages.
■
Type B OJD032051
■
Type A
OJD032052
366
Safety features of your vehicle
JD PE eng 3.QXP 9/9/2015 4:17 PM Page 66

Features of your vehicle
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4 Record your key number . . . . . . . . . . . . . . . . . . . . . . . 4-4
 Key operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
 Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Remote keyless entry . . . . . . . . . . . . . . . . . . . . . . . . 4-6  Remote keyless entry system operations . . . . . . . . . . . 4-6
 Transmitter precautions . . . . . . . . . . . . . . . . . . . . . . . . 4-8
 Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11  Smart key function . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
 Smart key precautions . . . . . . . . . . . . . . . . . . . . . . . . 4-13
 Door lock/unlock in an emergency situation . . . . . . 4-13
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . 4-14  Armed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
 Theft-alarm stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
 Disarmed stage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17  From outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
 From inside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18
 Deadlocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
 Door lock/unlock features. . . . . . . . . . . . . . . . . . . . . . 4-20
 Child-protector rear door lock. . . . . . . . . . . . . . . . . . 4-21
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22  Opening the tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
 Closing the tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
 Emergency tailgate safety release . . . . . . . . . . . . . . . 4-23
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24  Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25  Manual windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27
Hood. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28  Opening the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28
 Closing the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-30  Opening the fuel filler lid . . . . . . . . . . . . . . . . . . . . . . 4-30
 Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . 4-30
Panorama sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-33  Sunroof open warning. . . . . . . . . . . . . . . . . . . . . . . . . 4-33
 Sunshade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-34
 Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-34
 Tilting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-34
 Closing the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-35
 Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-36
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37  Electronic power steering . . . . . . . . . . . . . . . . . . . . . . 4-37
 Tilt and telescopic steering . . . . . . . . . . . . . . . . . . . . . 4-38
 Heated steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . 4-38
 Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-39
 Flex steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-42  Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 4-42
 Outside rearview mirror. . . . . . . . . . . . . . . . . . . . . . . 4-43
Instrument cluster (Normal vision) . . . . . . . . . . . 4-46  Instrument panel illumination . . . . . . . . . . . . . . . . . . 4-47
 Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-47
 Manual transaxle shift indicator . . . . . . . . . . . . . . . . 4-49
 Automatic transaxle shift position indicator . . . . . . 4-49
4
JD PE eng 4.QXP 1/28/2016 5:11 PM Page 1

 Dual clutch transmission shift indicator . . . . . . . . . . 4-50
 Speed limiter indicator . . . . . . . . . . . . . . . . . . . . . . . . 4-51
 Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-51
 Trip computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-51
Instrument cluster (Super vision) . . . . . . . . . . . . . 4-59  Instrument panel illumination . . . . . . . . . . . . . . . . . . 4-61
 Cluster display mode conversion . . . . . . . . . . . . . . . . 4-61
 Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-61
 Manual transaxle shift indicator . . . . . . . . . . . . . . . . 4-64
 Automatic transaxle shift position indicator . . . . . . 4-65
 Dual clutch transmission shift indicator . . . . . . . . . . 4-65
 Speed limiter indicator . . . . . . . . . . . . . . . . . . . . . . . 4-66
 Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-66
 Trip computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-67
 LCD display information . . . . . . . . . . . . . . . . . . . . . . 4-74
 Warnings and indicators. . . . . . . . . . . . . . . . . . . . . . . 4-80
LCD display warnings and indicators (instrument panel display) . . . . . . . . . . . . . . . . . 4-91
Rear parking assist system . . . . . . . . . . . . . . . . . . 4-93  Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-93
 Non-operational conditions . . . . . . . . . . . . . . . . . . . . 4-95
 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-95
 Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-96
Parking assist system . . . . . . . . . . . . . . . . . . . . . . . 4-97  Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-98
 Non-operational conditions . . . . . . . . . . . . . . . . . . . 4-100
 Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-101 Smart Parking Assist System (SPAS) . . . . . . . . . 4-102
 Operating condition . . . . . . . . . . . . . . . . . . . . . . . . . 4-103
 Non-operating condition . . . . . . . . . . . . . . . . . . . . . . 4-104
 How the system works (Parking mode) . . . . . . . . . 4-107
 How the system works (Exit mode) . . . . . . . . . . . . . 4-113
 Additional instructions (messages). . . . . . . . . . . . . . 4-116
 System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . 4-117
Rearview camera . . . . . . . . . . . . . . . . . . . . . . . . . 4-118
Hazard warning flasher . . . . . . . . . . . . . . . . . . . . 4-118
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-119  Battery saver function . . . . . . . . . . . . . . . . . . . . . . . . 4-119
 Headlamp delay function . . . . . . . . . . . . . . . . . . . . . 4-119
 Headlight (Headlamp) welcome function . . . . . . . . 4-119
 Static bending light . . . . . . . . . . . . . . . . . . . . . . . . . . 4-120
 Lighting control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-120
 High - beam operation . . . . . . . . . . . . . . . . . . . . . . . 4-122
 Turn signals and lane change signals . . . . . . . . . . . 4-123
 Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-124
 Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-124
 Daytime running light . . . . . . . . . . . . . . . . . . . . . . . . 4-124
 Headlight leveling device . . . . . . . . . . . . . . . . . . . . . 4-125
 Adaptive Front Lighting System (AFLS) . . . . . . . . 4-126
Wipers and washers . . . . . . . . . . . . . . . . . . . . . . . 4-127  Windshield wipers (front) . . . . . . . . . . . . . . . . . . . . . 4-127
 Windshield washers (front) . . . . . . . . . . . . . . . . . . . 4-129
 Rear window wiper and washer switch. . . . . . . . . . 4-130
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-131  Interior lamp AUTO cut . . . . . . . . . . . . . . . . . . . . . . 4-131
4
JD PE eng 4.QXP 1/28/2016 5:11 PM Page 2

 Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-131
 Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-132
 Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 4-132
 Luggage room lamp . . . . . . . . . . . . . . . . . . . . . . . . . 4-133
 Glove box lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-133
Welcome system . . . . . . . . . . . . . . . . . . . . . . . . . . 4-134  Headlamp welcome . . . . . . . . . . . . . . . . . . . . . . . . . . 4-134
 Interior light. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-134
 Puddle lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-134
Defroster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-135  Rear window defroster . . . . . . . . . . . . . . . . . . . . . . . 4-135
Manual climate control system . . . . . . . . . . . . . . 4-136  Heating and air conditioning . . . . . . . . . . . . . . . . . . 4-137
 System operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-141
 Climate control air filter. . . . . . . . . . . . . . . . . . . . . . 4-143
 Checking the amount of air conditioner refrigerant and compressor lubricant . . . . . . . . . . 4-144
Automatic climate control system . . . . . . . . . . . 4-145  Automatic heating and air conditioning . . . . . . . . . 4-146
 Manual heating and air conditioning . . . . . . . . . . . 4-148
 System operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-153
 Climate control air filter. . . . . . . . . . . . . . . . . . . . . . 4-155
 Checking the amount of air conditioner refrigerant and compressor lubricant . . . . . . . . . . 4-156
Windshield defrosting and defogging . . . . . . . . . 4-157  Manual climate control system . . . . . . . . . . . . . . . . 4-157
 Automatic climate control system . . . . . . . . . . . . . . 4-158 Clean air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-159
Storage compartment . . . . . . . . . . . . . . . . . . . . . . 4-160
 Center console storage . . . . . . . . . . . . . . . . . . . . . . . 4-160
 Sliding armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-160
 Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-161
 Cool box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-161
 Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-162
 Luggage tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-162
 Luggage side tray . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-163
Interior features . . . . . . . . . . . . . . . . . . . . . . . . . . 4-164  Cigarette lighter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-164
 Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-164
 Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-164
 Bottle holder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-165
 Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-167
 Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-168
 Aux, USB and iPod . . . . . . . . . . . . . . . . . . . . . . . . . . 4-169
 Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-169
 Floor mat anchor(s). . . . . . . . . . . . . . . . . . . . . . . . . . 4-170
 Luggage net (holder) . . . . . . . . . . . . . . . . . . . . . . . . . 4-171
 Cargo area cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-171
 Barrier net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-172
 Cargo security screen . . . . . . . . . . . . . . . . . . . . . . . . 4-174
 Luggage rail system. . . . . . . . . . . . . . . . . . . . . . . . . . 4-176
 Shopping bag holder . . . . . . . . . . . . . . . . . . . . . . . . . 4-177
Exterior features . . . . . . . . . . . . . . . . . . . . . . . . . . 4-178  Mounting bracket for roof carrier . . . . . . . . . . . . . 4-178
 Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-179
4
JD PE eng 4.QXP 1/28/2016 5:11 PM Page 3

Features of your vehicle
4
4
Record your key number
The key code number is
stamped on the keycode tag attached to the
key set. Should you lose
your keys, we recom-
mend that you contact an authorized Kia
dealer. Remove the key code tag and
store it in a safe place. Also, record the
code number and keep it in a safe and
handy place, but not in the vehicle.
Key operations
• Used to start the engine.
Used to lock and unlock the doors. Immobilizer system
Your vehicle may be equipped with an
electronic engine immobilizer system to
reduce the risk of unauthorized vehicle
use.
Your immobilizer system is comprised of
a small transponder in the key and elec-
tronic devices inside the vehicle.
Vehicles without smart key system
With the immobilizer system, whenever
you insert your ignition key into the igni-
tion switch and turn it to ON, it checks
and determines and verifies if the ignition
key is valid or not.
If the key is valid, the engine will start.
If the key is invalid, the engine will not
start.
To deactivate the immobilizer system:
Insert the ignition key into the key cylin-
der and turn it to the ON position.
To activate the immobilizer system:
Turn the ignition key to the OFF position.
The immobilizer system activates auto-
matically. Without a valid ignition key for
your vehicle, the engine will not start.
KEYS
WARNING
- Ignition key
(Smart key)
Leaving children unattended in a
vehicle with the ignition key (Smart
key) is dangerous even if the key is
not in the ignition or start button is
ACC or ON position. Children copy
adults and they could place the key
in the ignition or press the start but-
ton. The ignition key (Smart key)
would enable children to operate
power windows or other controls, or
even make the vehicle move, which
could result in serious bodily injury
or even death. Never leave the keys
in your vehicle with unsupervised
children, when the engine is running.
WARNING
We recommend that you use parts
for replacement from an authorized
Kia dealer. If an aftermarket key is
used, the ignition switch may not
return to ON after START. If this
happens, the starter will continue
to operate causing damage to the
starter motor and possible fire due
to excessive current in the wiring.
JD PE eng 4.QXP 1/28/2016 5:11 PM Page 4

45
Features of your vehicle
Vehicles with smart key system
Whenever the engine start/stop button is changed to the ON position, the immobi-
lizer system checks and verifies if the key
is valid or not.
If the key is valid, the engine will start.
If the key is invalid, the engine will not
start.
To deactivate the immobilizer system
Change the engine start/stop button to the ON position.
To activate the immobilizer system
Change the engine start/stop button to
the OFF position. The immobilizer sys-
tem activates automatically. Without a
valid smart key for your vehicle, the
engine will not start.
✽✽NOTICE
When starting the engine, do not use the
key with other immobilizer keys around.
Otherwise the engine may not start or
may stop soon after it starts. Keep each
key separate in order to avoid a starting
malfuntioin. ✽
✽
NOTICE
If you need additional keys or lose your
keys, we recommend that you consult an
authorized Kia dealer.
CAUTION
The transponder in your ignition key is an important part of theimmobilizer system. It is designedto give years of trouble-free service, however you should avoid expo-
sure to moisture, static electricity and rough handling. Immobilizersystem malfunction could occur.
CAUTION
Do not change, alter or adjust the immobilizer system because itcould cause the immobilizer sys-
tem to malfunction. We recommend that the system be serviced by anauthorized Kia dealer.
Malfunctions caused by improperalterations, adjustments or modifi-cations to the immobilizer system are not covered by your vehiclemanufacturer warranty.
WARNING
In order to prevent theft of your vehi-
cle, do not leave spare keys any-
where in your vehicle. Your immobi-
lizer password is a customer unique
password and should be kept confi-
dential. Do not leave this number
anywhere in your vehicle.
CAUTION
Do not put metal accessories near the ignition switch.
The engine may not start becausethe metal accessories may interruptthe transponder signal from nor-mally transmitting.
JD PE eng 4.QXP 1/28/2016 5:11 PM Page 5
