2016 KIA CEED Owners Manual

Features of your vehicle
166
4

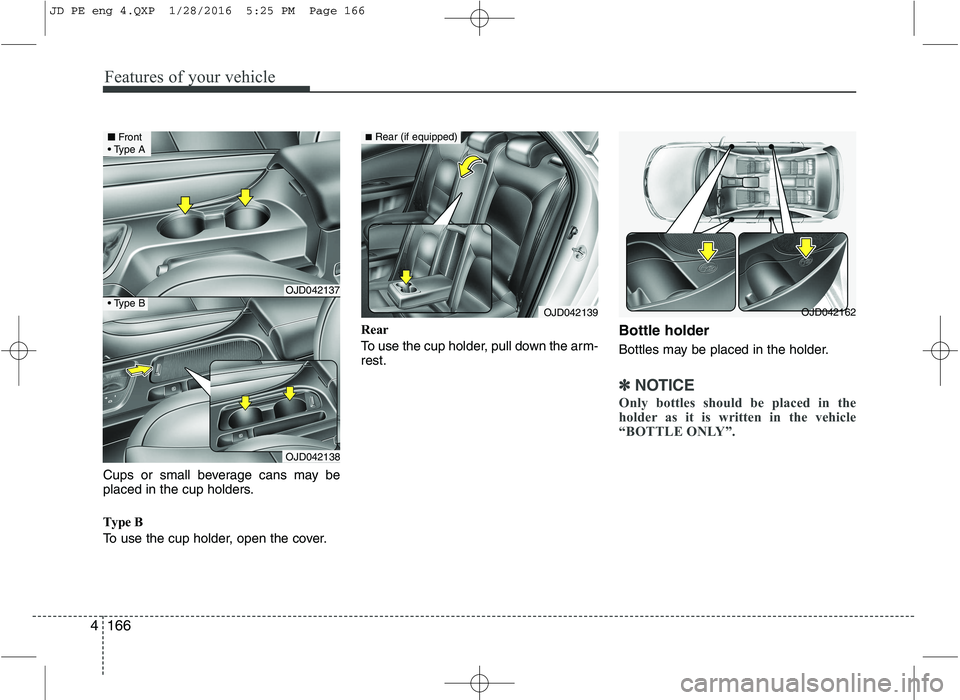

Cups or small beverage cans may be
placed in the cup holders.
Type B
To use the cup holder, open the cover. Rear
To use the cup holder, pull down the arm- rest.
Bottle holder
Bottles may be placed in the holder.
✽✽
NOTICE
Only bottles should be placed in the
holder as it is written in the vehicle
“BOTTLE ONLY”.
OJD042137
OJD042138
■ Front

OJD042139
■ Rear (if equipped)
OJD042162
JD PE eng 4.QXP 1/28/2016 5:25 PM Page 166

4167
Features of your vehicle

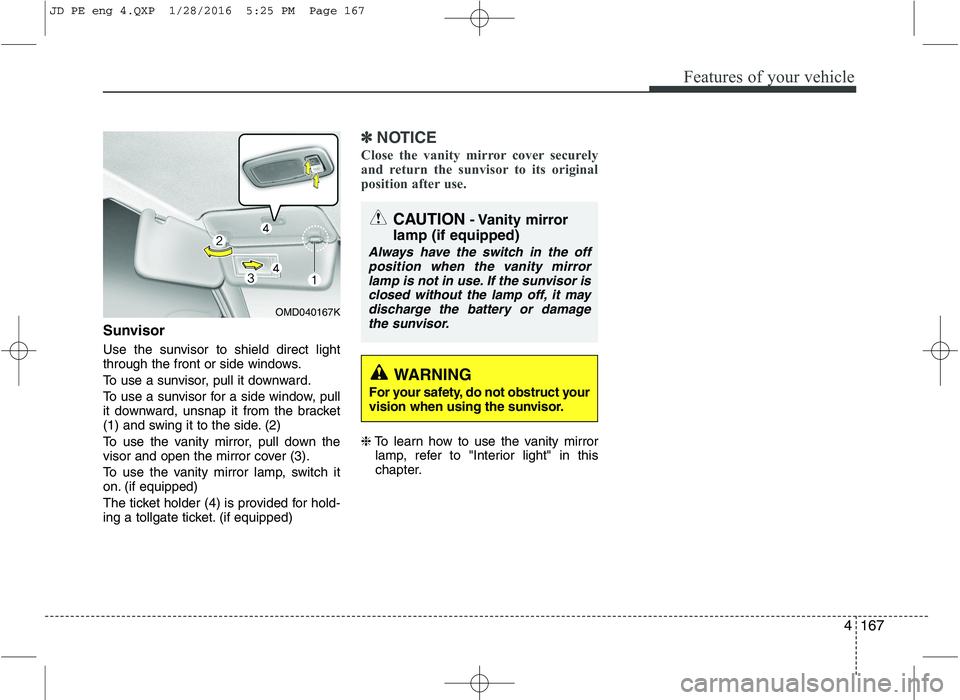

Sunvisor
Use the sunvisor to shield direct light
through the front or side windows.
To use a sunvisor, pull it downward.
To use a sunvisor for a side window, pull
it downward, unsnap it from the bracket
(1) and swing it to the side. (2)
To use the vanity mirror, pull down the
visor and open the mirror cover (3).
To use the vanity mirror lamp, switch it
on. (if equipped)
The ticket holder (4) is provided for hold-
ing a tollgate ticket. (if equipped)
✽✽NOTICE
Close the vanity mirror cover securely
and return the sunvisor to its original
position after use.
❈ To learn how to use the vanity mirror
lamp, refer to "Interior light" in this
chapter.
OMD040167K
CAUTION - Vanity mirror
lamp (if equipped)
Always have the switch in the off position when the vanity mirror
lamp is not in use. If the sunvisor isclosed without the lamp off, it maydischarge the battery or damagethe sunvisor.
WARNING
For your safety, do not obstruct your
vision when using the sunvisor.
JD PE eng 4.QXP 1/28/2016 5:25 PM Page 167

Features of your vehicle
168
4
OJD042140
OJD042154
■ Front


OJD042155
OJD042243
■Rear (if equipped)


Power outlet
The power outlet is designed to provide power for mobile telephones or other
devices designed to operate with vehicle electrical systems. The devices should
draw less than 10 amps with the engine running.
CAUTION
Use power outlet only when the
engine is running and remove theaccessory plug after use. Usingthe accessory plug for prolonged
periods of time with the engineoff could cause the battery to dis- charge.
Do not use an electric accessory or equipment the power con-
sumption of which is greater than12V (10A). It may cause damage to the power outlet or vehiclewiring harness.
Only use 12V electric accessories which are less than 10A in elec-tric capacity.
Adjust the air-conditioner or heater to the lowest operating
level when using the power outlet.
Close the cover when not in use. Some electronic devices can cause electronic interferencewhen plugged into a vehicle’s power outlet. These devices may
cause excessive audio static and malfunctions in other electronicsystems or devices used in your vehicle.
(Continued)
JD PE eng 4.QXP 1/28/2016 5:26 PM Page 168

4169
Features of your vehicle
Aux, USB and iPod®
You can use an aux port to connect audio
devices and an USB port to plug in an
USB and also an iPod ®
port to plug in an
iPod.
✽✽ NOTICE
When using a portable audio device
connected to the power outlet, noise may
occur during playback. If this happens,
use the power source of the portable
audio device.
❈ iPod ®
is a trademark of Apple Inc. Clothes hanger
OJD042141
WARNING
Do not put a finger or a foreign ele-
ment (pin, etc.) into a power outlet
and do not touch with a wet hand.
You may get electrocuted or fire
may occur.
(Continued)
Make sure that the electric devices are plugged in securely. If
not, it could cause a malfunctionof electric systems.
If you use an electric device with a battery, electric current mayflow from the electric device into
the vehicle and may cause a mal-function of electric systems. Only use electric devices which could
prevent flowing of current into thevehicle.
OED040354
CAUTION
Do not hang heavy clothes, since those may damage the hook.
Be careful when opening and clos- ing the doors. Clothes, etc. mayget caught between the door gap.
JD PE eng 4.QXP 1/28/2016 5:26 PM Page 169

Features of your vehicle
170
4
Floor mat anchor(s) (if equipped) When using a floor mat on the front floor
carpet, make sure it attaches to the floor
mat anchor(s) in your vehicle. This keeps
the floor mat from sliding forward.
WARNING
The following must be observed when installing ANY floor mat to
the vehicle.
Ensure that the floor mats are securely attached to the vehicle’s
floor mat anchor(s) before driving
the vehicle.
Do not use ANY floor mat that cannot be firmly attached to the
vehicle’s floor mat anchors.
Do not stack floor mats on top of one another (e.g. all-weather rub-ber mat on top of a carpeted floor
mat). Only a single floor mat
should be installed in each posi-tion.
IMPORTANT – Your vehicle was manufactured with driver’s side
floor mat anchors that are
designed to securely hold the
floor mat in place. To avoid any
interference with pedal operation,Kia recommends that the Kia
floor mat designed for use in your
vehicle be installed.
OGDE041219
■
Type A ■Type B
OJD042152
OJD043051
■Type A
■Type B (for wagon)

OJD043502-1

JD PE eng 4.QXP 1/28/2016 5:26 PM Page 170

4171
Features of your vehicle

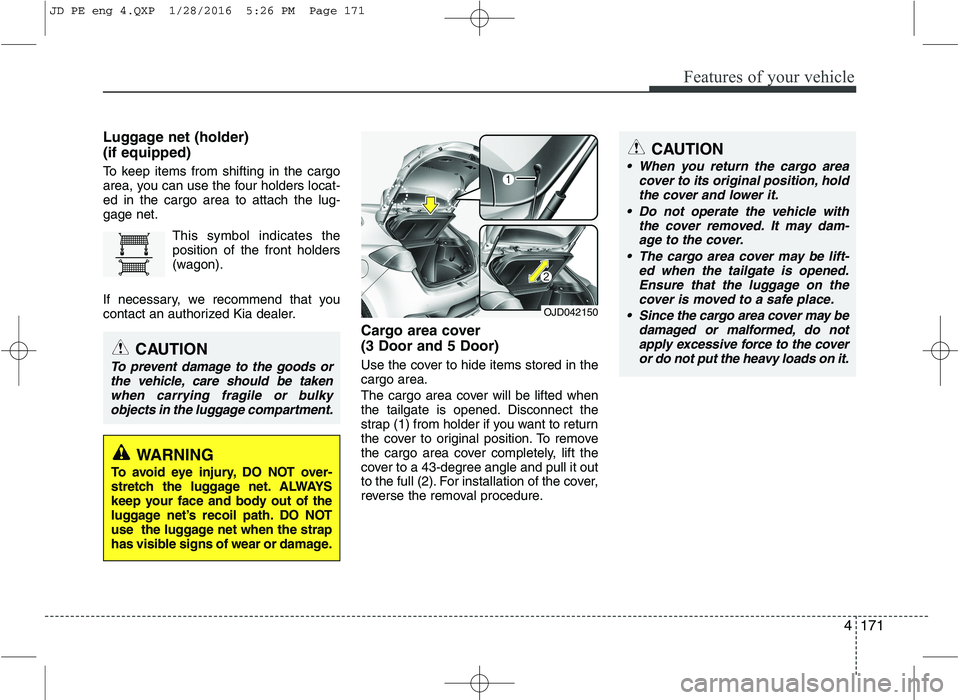

Luggage net (holder) (if equipped)
To keep items from shifting in the cargo
area, you can use the four holders locat-ed in the cargo area to attach the lug-gage net.This symbol indicates theposition of the front holders
(wagon).
If necessary, we recommend that you
contact an authorized Kia dealer. Cargo area cover (3 Door and 5 Door)
Use the cover to hide items stored in the cargo area.
The cargo area cover will be lifted when
the tailgate is opened. Disconnect the
strap (1) from holder if you want to return
the cover to original position. To remove
the cargo area cover completely, lift the
cover to a 43-degree angle and pull it out
to the full (2). For installation of the cover,
reverse the removal procedure.
CAUTION
To prevent damage to the goods orthe vehicle, care should be takenwhen carrying fragile or bulky
objects in the luggage compartment.
WARNING
To avoid eye injury, DO NOT over-
stretch the luggage net. ALWAYS
keep your face and body out of the
luggage net’s recoil path. DO NOT
use the luggage net when the strap
has visible signs of wear or damage.
OJD042150
CAUTION
When you return the cargo area cover to its original position, holdthe cover and lower it.
Do not operate the vehicle with the cover removed. It may dam-
age to the cover.
The cargo area cover may be lift- ed when the tailgate is opened.Ensure that the luggage on the cover is moved to a safe place.
Since the cargo area cover may be damaged or malformed, do notapply excessive force to the coveror do not put the heavy loads on it.
JD PE eng 4.QXP 1/28/2016 5:26 PM Page 171

Features of your vehicle
172
4
Barrier net (wagon) (if equipped)
Your vehicle is equipped with a barrier net.
When you load some cargoes on the rear
seat or rear cargo area, you must install
the barrier net behind front seatback or
rear seatback. It is designed to help protect the heads of
the occupants by obstructing objects fly-
ing forward in frontal collisions. There are eight hook holders on both
side of the headliner over the headrests
for upper side fixation and on the floor
behind the front seats or rear seats for
lower side fixation.To install the barrier net
1. Open the cover (if equipped) for the
holder position (1) or (2) you want to install.
2. Compress the one side net upper shaft to length direction before insert the netupper shaft into the large hole (3) and
then secure by sliding into the smallhole (4).
WARNING
Do not place objects on the cargo area cover while driving. Such
objects may be thrown about
inside the vehicle and possibly
injure vehicle occupants duringan accident or when braking.
Never allow anyone to ride in the luggage compartment. It is
designed for luggage only.
Maintain the balance of the vehi- cle and locate the weight as far
forward as possible.
OGDE042299OJD043500
JD PE eng 4.QXP 1/28/2016 5:26 PM Page 172

4173
Features of your vehicle

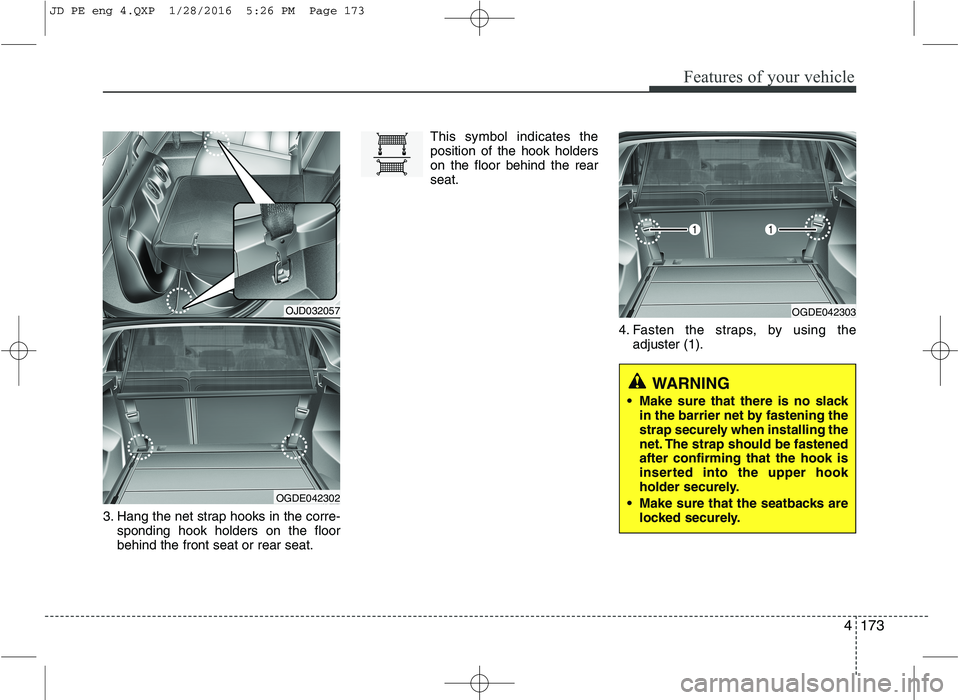

3. Hang the net strap hooks in the corre-sponding hook holders on the floor behind the front seat or rear seat. This symbol indicates theposition of the hook holderson the floor behind the rearseat.
4. Fasten the straps, by using theadjuster (1).
OJD032057
OGDE042302
OGDE042303
WARNING
Make sure that there is no slack in the barrier net by fastening the
strap securely when installing the
net. The strap should be fastenedafter confirming that the hook is
inserted into the upper hook
holder securely.
Make sure that the seatbacks are locked securely.
JD PE eng 4.QXP 1/28/2016 5:26 PM Page 173
