2016 Hyundai Sonata Owner's Manual - RHD (UK, Australia)

7-54
Maintenance
Information
If the main fuse is blown, even
though the engine compartment
panel fuse and inner fuse are not
blown, if the electrical system is
not operating, the main fuse may
be blown. The main fuse is con-
nected with other parts and sys-
tems. We recommend that you con-
tact an authorised HYUNDAI deal-
er.

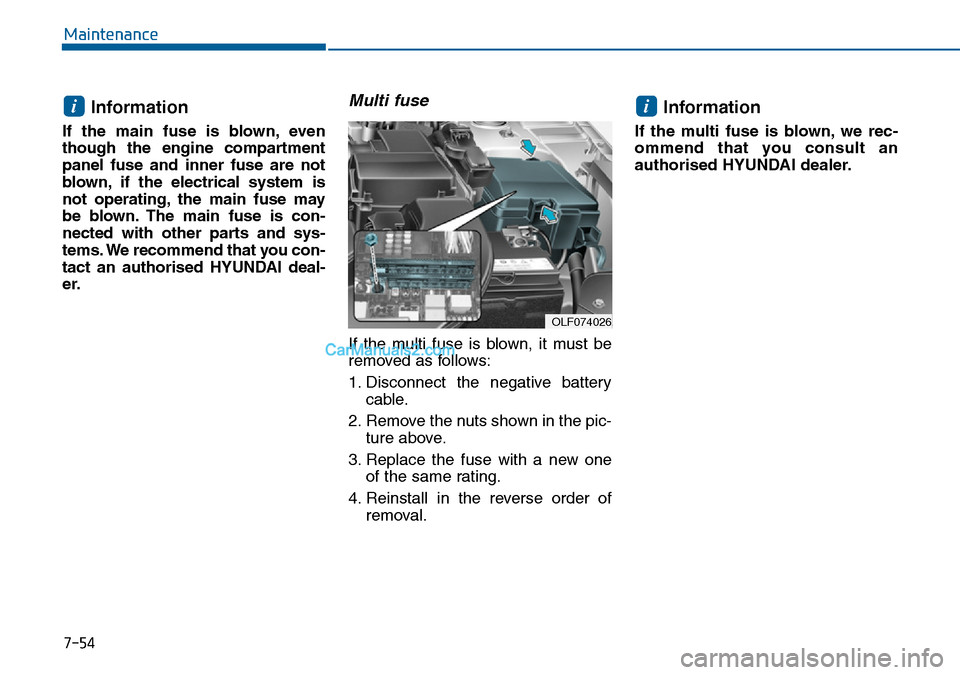

Multi fuse
If the multi fuse is blown, it must be
removed as follows:
1. Disconnect the negative battery
cable.
2. Remove the nuts shown in the pic-
ture above.
3. Replace the fuse with a new one
of the same rating.
4. Reinstall in the reverse order of
removal.
Information
If the multi fuse is blown, we rec-
ommend that you consult an
authorised HYUNDAI dealer.
ii
OLF074026

7-55
7
Maintenance

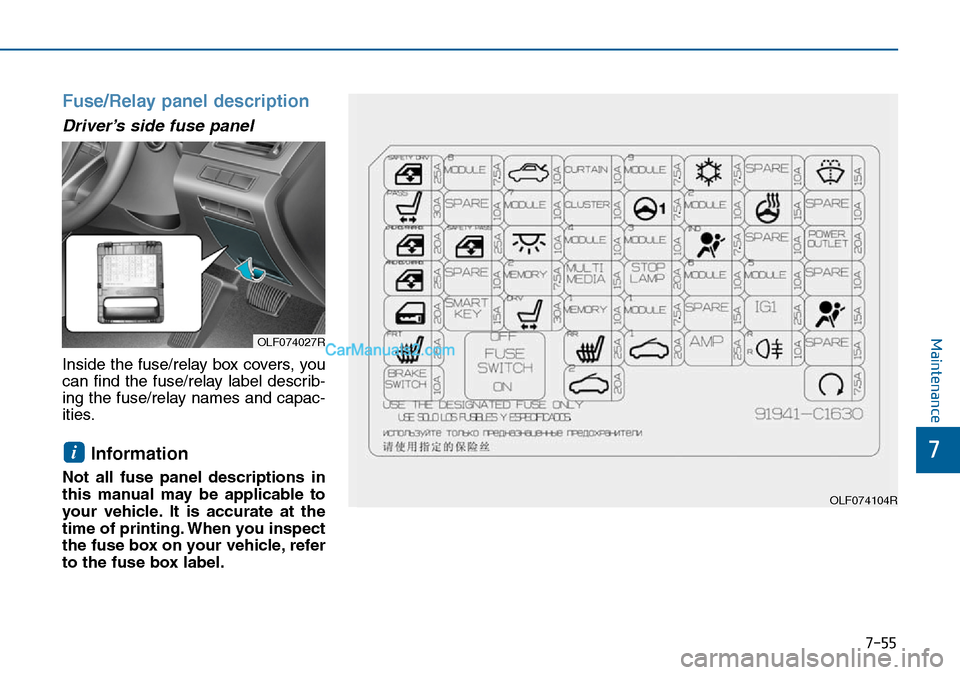

Fuse/Relay panel description
Driver’s side fuse panel
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing the fuse/relay names and capac-
ities.
Information
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse box on your vehicle, refer
to the fuse box label.
i
OLF074027R
OLF074104R

7-56
Maintenance

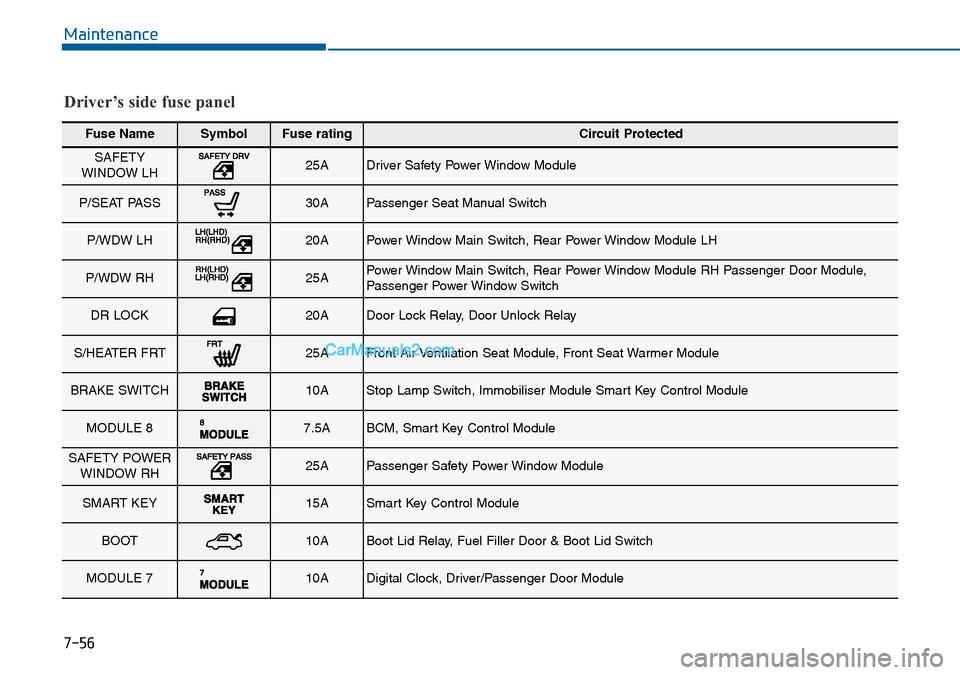

Fuse NameSymbolFuse ratingCircuit Protected
SAFETY
WINDOW LH 25A Driver Safety Power Window Module
P/SEAT PASS 30A Passenger Seat Manual Switch
P/WDW LH 20A Power Window Main Switch, Rear Power Window Module LH
P/WDW RH 25A Power Window Main Switch, Rear Power Window Module RH Passenger Door Module,
Passenger Power Window Switch
DR LOCK 20A Door Lock Relay, Door Unlock Relay
S/HEATER FRT 25A Front Air Ventilation Seat Module, Front Seat Warmer Module
BRAKE SWITCH 10A Stop Lamp Switch, Immobiliser Module Smart Key Control Module
MODULE 8 7.5A BCM, Smart Key Control Module
SAFETY POWER
WINDOW RH 25A Passenger Safety Power Window Module
SMART KEY 15A Smart Key Control Module
BOOT 10A Boot Lid Relay, Fuel Filler Door & Boot Lid Switch
MODULE 7 10A Digital Clock, Driver/Passenger Door Module
Driver’s side fuse panel

7-57
7
Maintenance

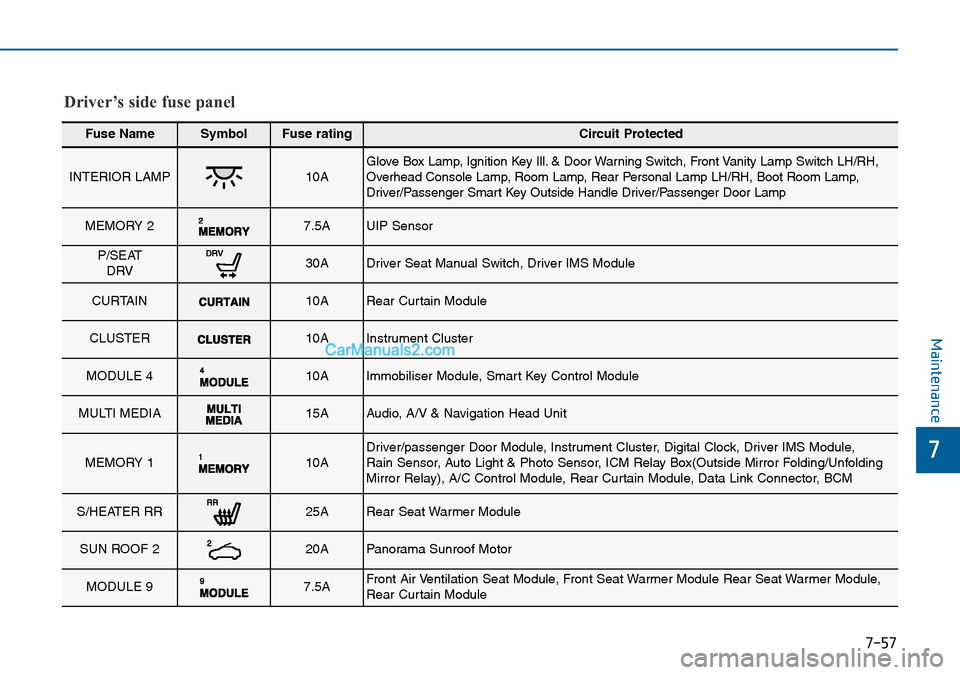

Fuse NameSymbolFuse ratingCircuit Protected
INTERIOR LAMP 10A Glove Box Lamp, Ignition Key Ill. & Door Warning Switch, Front Vanity Lamp Switch LH/RH,
Overhead Console Lamp, Room Lamp, Rear Personal Lamp LH/RH, Boot Room Lamp,
Driver/Passenger Smart Key Outside Handle Driver/Passenger Door Lamp
MEMORY 2 7.5A UIP Sensor
P/SEAT
DRV 30A Driver Seat Manual Switch, Driver IMS Module
CURTAIN 10A Rear Curtain Module
CLUSTER 10A Instrument Cluster
MODULE 4 10A Immobiliser Module, Smart Key Control Module
MULTI MEDIA 15A Audio, A/V & Navigation Head Unit
MEMORY 1 10A Driver/passenger Door Module, Instrument Cluster, Digital Clock, Driver IMS Module,
Rain Sensor, Auto Light & Photo Sensor, ICM Relay Box(Outside Mirror Folding/Unfolding
Mirror Relay), A/C Control Module, Rear Curtain Module, Data Link Connector, BCM
S/HEATER RR 25A Rear Seat Warmer Module
SUN ROOF 2 20A Panorama Sunroof Motor
MODULE 9 7.5A Front Air Ventilation Seat Module, Front Seat Warmer Module Rear Seat Warmer Module,
Rear Curtain Module
Driver’s side fuse panel

7-58
Maintenance
Fuse NameSymbolFuse ratingCircuit Protected
MDPS 17.5A MDPS Unit
MODULE 3 10A BCM, Sport Mode Switch, Stop Lamp Switch
STOP LAMP 20A Stop Signal Electronic Module
MODULE 1 MODULE17.5A Key Solenoid, Driver/Passenger Door Module
SUN ROOF 1 120A Panorama Sunroof Motor
A/CON 7.5A A/C Control Module, E/R Junction Block (RLY. 3 - Blower Relay)
2MODULE 10A AMP, Power Outside Mirror Switch, Digital Clock, Audio, A/V & Navigation Head Unit,
Smart Key Control Module, Overhead Console Lamp, BCM,
E/R Junction Block (RLY. 5 - Power Outlet Relay)
A/BAG IND 7.5A Instrument Cluster
6MODULE 10A
Multipurpose Check Connector, A/C Control Module, A/V & Navigation Head Unit,
Electro Chromic Mirror, Front Air Ventilation Seat Module, Front Seat Warmer Module,
Rear Seat Warmer Module, Driver IMS Module, A/T Shift Lever IND,
Auto Head Lamp Levelling Device Module, Head Lamp Levelling Device Actuator LH/RH
AMP 25A AMP (JBL/MOBIS)
HTD STRG 15A BCM
Driver’s side fuse panel

7-59
7
Maintenance

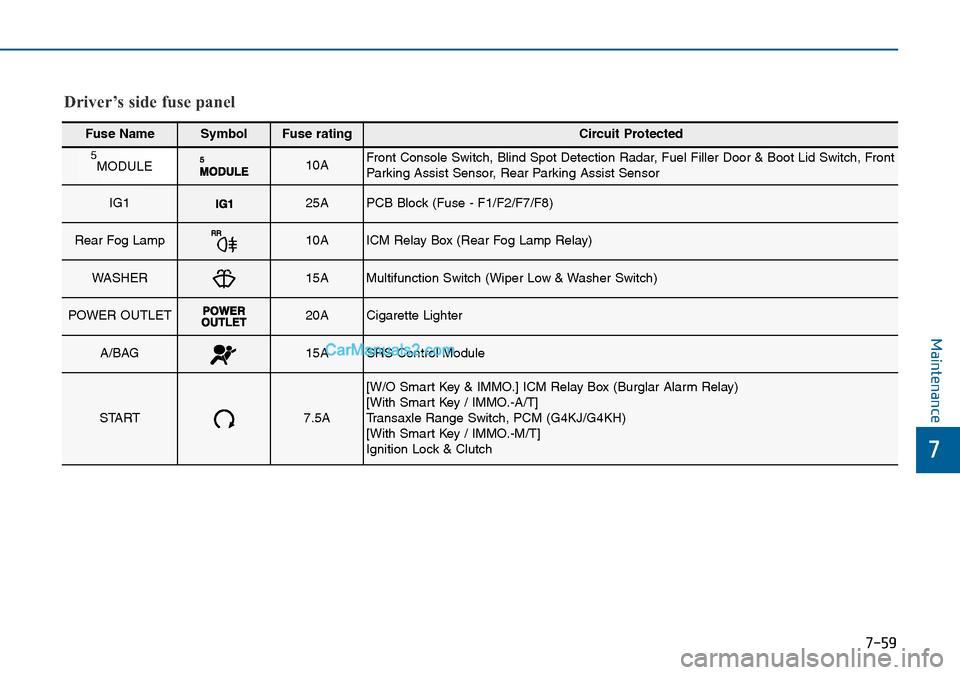

Fuse NameSymbolFuse ratingCircuit Protected
5MODULE10A Front Console Switch, Blind Spot Detection Radar, Fuel Filler Door & Boot Lid Switch, Front
Parking Assist Sensor, Rear Parking Assist Sensor
IG1 25A PCB Block (Fuse - F1/F2/F7/F8)
Rear Fog Lamp 10A ICM Relay Box (Rear Fog Lamp Relay)
WASHER 15A Multifunction Switch (Wiper Low & Washer Switch)
POWER OUTLET 20A Cigarette Lighter
A/BAG 15A SRS Control Module
START 7.5A
[W/O Smart Key & IMMO.] ICM Relay Box (Burglar Alarm Relay)
[With Smart Key / IMMO.-A/T]
Transaxle Range Switch, PCM (G4KJ/G4KH)
[With Smart Key / IMMO.-M/T]
Ignition Lock & Clutch
Driver’s side fuse panel

7-60
Maintenance

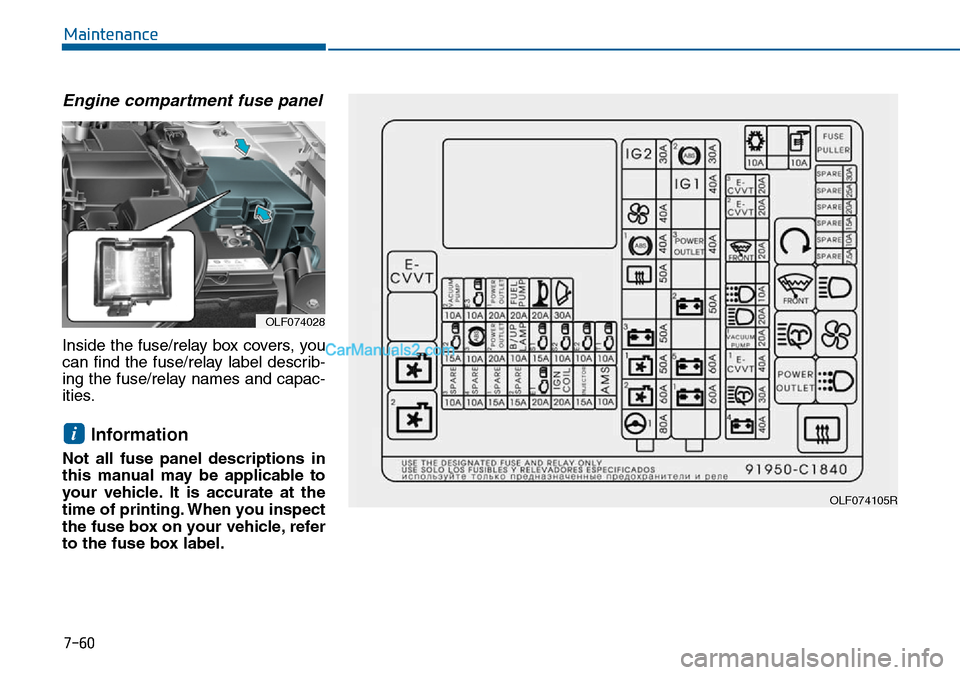

Engine compartment fuse panel
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing the fuse/relay names and capac-
ities.
Information
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse box on your vehicle, refer
to the fuse box label.
i
OLF074028
OLF074105R

7-61
7
Maintenance

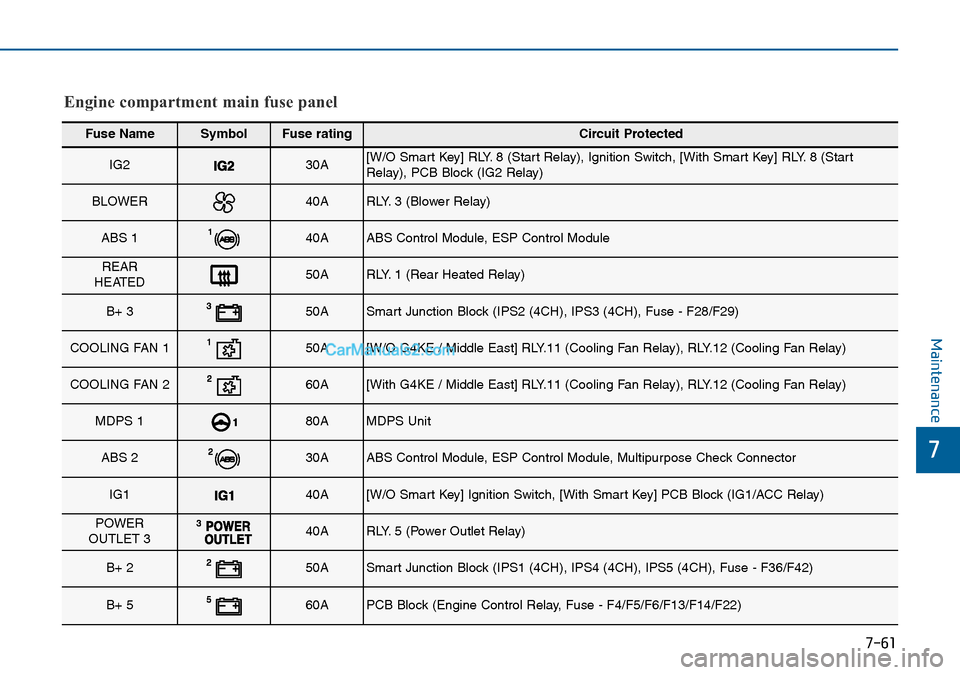

Fuse NameSymbolFuse ratingCircuit Protected
IG230A[W/O Smart Key] RLY. 8 (Start Relay), Ignition Switch, [With Smart Key] RLY. 8 (Start
Relay), PCB Block (IG2 Relay)
BLOWER40ARLY. 3 (Blower Relay)
ABS 140AABS Control Module, ESP Control Module
REAR
HEATED50ARLY. 1 (Rear Heated Relay)
B+ 350ASmart Junction Block (IPS2 (4CH), IPS3 (4CH), Fuse - F28/F29)
COOLING FAN 150A[W/O G4KE / Middle East] RLY.11 (Cooling Fan Relay), RLY.12 (Cooling Fan Relay)
COOLING FAN 260A[With G4KE / Middle East] RLY.11 (Cooling Fan Relay), RLY.12 (Cooling Fan Relay)
MDPS 180AMDPS Unit
ABS 230AABS Control Module, ESP Control Module, Multipurpose Check Connector
IG140A[W/O Smart Key] Ignition Switch, [With Smart Key] PCB Block (IG1/ACC Relay)
POWER
OUTLET 340ARLY. 5 (Power Outlet Relay)
B+ 250ASmart Junction Block (IPS1 (4CH), IPS4 (4CH), IPS5 (4CH), Fuse - F36/F42)
B+ 560APCB Block (Engine Control Relay, Fuse - F4/F5/F6/F13/F14/F22)
Engine compartment main fuse panel
