2016 Hyundai Sonata Owner's Manual - RHD (UK, Australia)

7-62
Maintenance

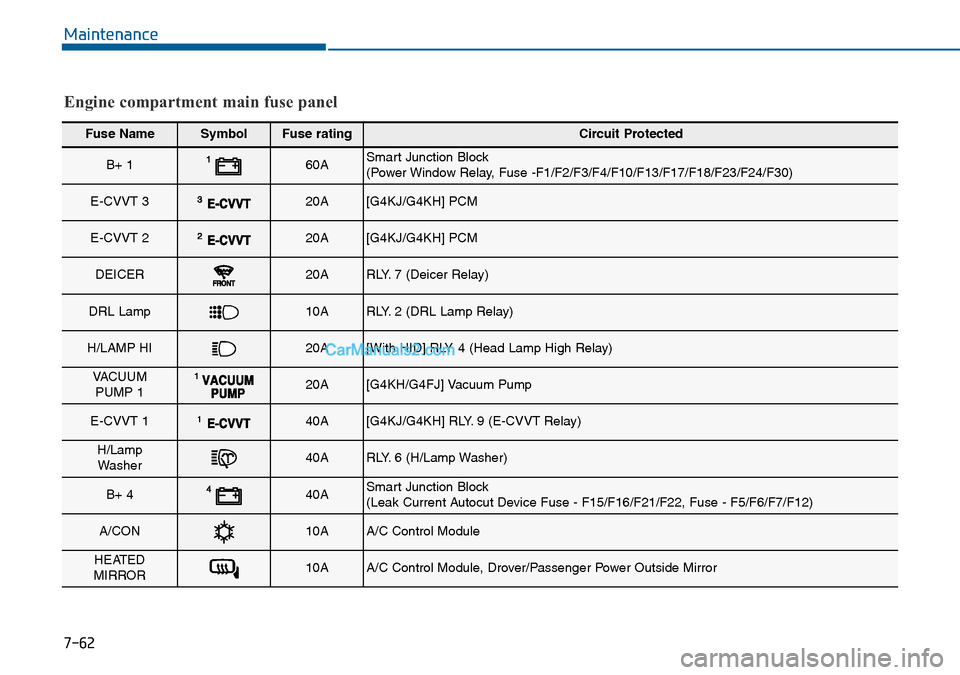

Fuse NameSymbolFuse ratingCircuit Protected
B+ 160ASmart Junction Block
(Power Window Relay, Fuse -F1/F2/F3/F4/F10/F13/F17/F18/F23/F24/F30)
E-CVVT 320A[G4KJ/G4KH] PCM
E-CVVT 220A[G4KJ/G4KH] PCM
DEICER20ARLY. 7 (Deicer Relay)
DRL Lamp10ARLY. 2 (DRL Lamp Relay)
H/LAMP HI20A[With HID] RLY. 4 (Head Lamp High Relay)
VACUUM
PUMP 120A[G4KH/G4FJ] Vacuum Pump
E-CVVT 140A[G4KJ/G4KH] RLY. 9 (E-CVVT Relay)
H/Lamp
Washer40ARLY. 6 (H/Lamp Washer)
B+ 440ASmart Junction Block
(Leak Current Autocut Device Fuse - F15/F16/F21/F22, Fuse - F5/F6/F7/F12)
A/CON10AA/C Control Module
HEATED
MIRROR10AA/C Control Module, Drover/Passenger Power Outside Mirror
Engine compartment main fuse panel

7-63
7
Maintenance

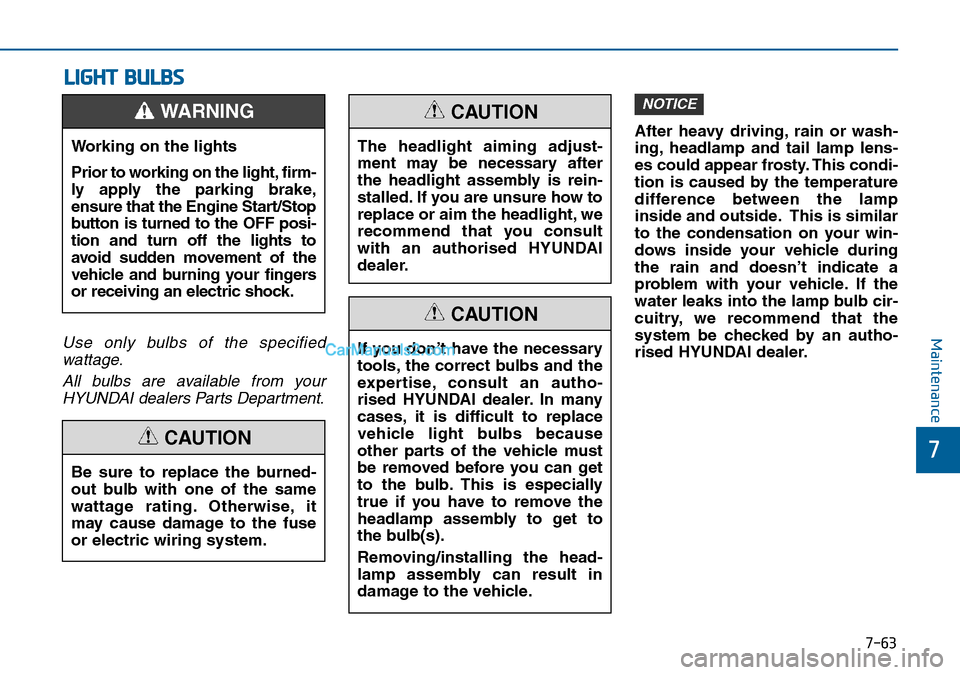

LIGHT BULBS
Use only bulbs of the specified
wattage.
All bulbs are available from your
HYUNDAI dealers Parts Department.
After heavy driving, rain or wash-
ing, headlamp and tail lamp lens-
es could appear frosty. This condi-
tion is caused by the temperature
difference between the lamp
inside and outside. This is similar
to the condensation on your win-
dows inside your vehicle during
the rain and doesn’t indicate a
problem with your vehicle. If the
water leaks into the lamp bulb cir-
cuitry, we recommend that the
system be checked by an autho-
rised HYUNDAI dealer.
NOTICE
Be sure to replace the burned-
out bulb with one of the same
wattage rating. Otherwise, it
may cause damage to the fuse
or electric wiring system.
CAUTION
If you don’t have the necessary
tools, the correct bulbs and the
expertise, consult an autho-
rised HYUNDAI dealer. In many
cases, it is difficult to replace
vehicle light bulbs because
other parts of the vehicle must
be removed before you can get
to the bulb. This is especially
true if you have to remove the
headlamp assembly to get to
the bulb(s).
Removing/installing the head-
lamp assembly can result in
damage to the vehicle.
CAUTION
Working on the lights
Prior to working on the light, firm-
ly apply the parking brake,
ensure that the Engine Start/Stop
button is turned to the OFF posi-
tion and turn off the lights to
avoid sudden movement of the
vehicle and burning your fingers
or receiving an electric shock.
WARNING
The headlight aiming adjust-
ment may be necessary after
the headlight assembly is rein-
stalled. If you are unsure how to
replace or aim the headlight, we
recommend that you consult
with an authorised HYUNDAI
dealer.
CAUTION

7-64
Maintenance

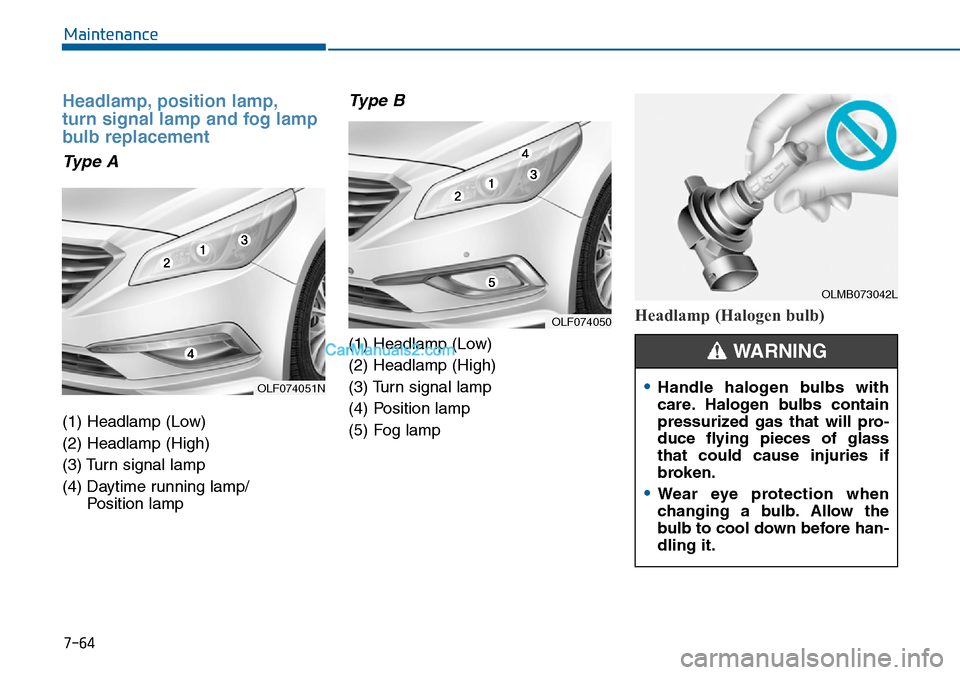

Headlamp, position lamp,
turn signal lamp and fog lamp
bulb replacement
Type A
(1) Headlamp (Low)
(2) Headlamp (High)
(3) Turn signal lamp
(4) Daytime running lamp/
Position lamp
Type B
(1) Headlamp (Low)
(2) Headlamp (High)
(3) Turn signal lamp
(4) Position lamp
(5) Fog lamp
Headlamp (Halogen bulb)
OLMB073042L
•Handle halogen bulbs with
care. Halogen bulbs contain
pressurized gas that will pro-
duce flying pieces of glass
that could cause injuries if
broken.
•Wear eye protection when
changing a bulb. Allow the
bulb to cool down before han-
dling it.
WARNING
OLF074051N
OLF074050

7-65
7
Maintenance

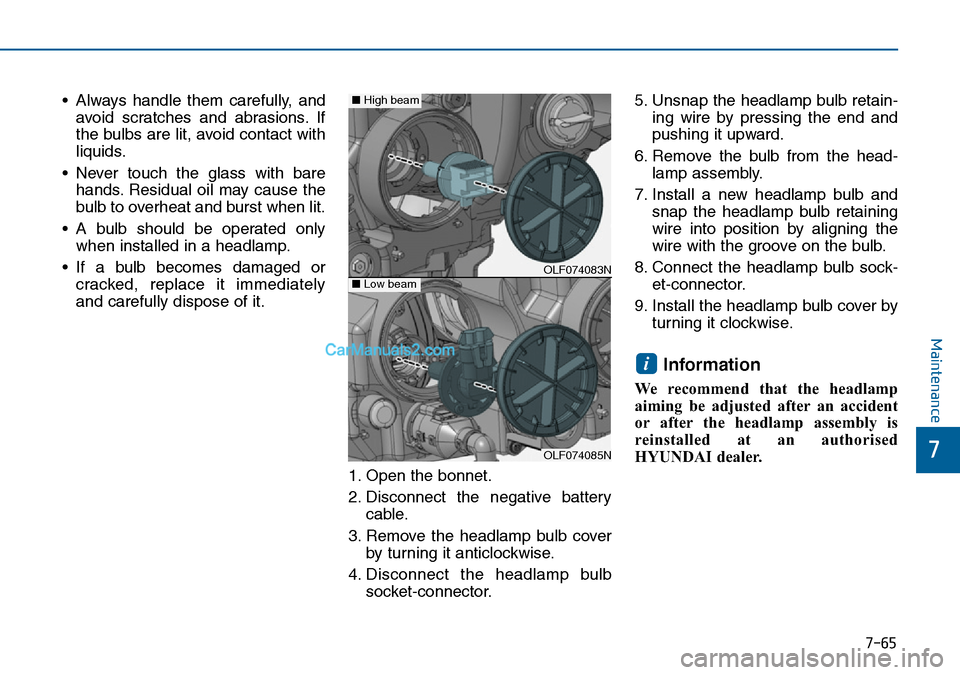

• Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.
• Never touch the glass with bare
hands. Residual oil may cause the
bulb to overheat and burst when lit.
• A bulb should be operated only
when installed in a headlamp.
• If a bulb becomes damaged or
cracked, replace it immediately
and carefully dispose of it.
1. Open the bonnet.
2. Disconnect the negative battery
cable.
3. Remove the headlamp bulb cover
by turning it anticlockwise.
4. Disconnect the headlamp bulb
socket-connector.5. Unsnap the headlamp bulb retain-
ing wire by pressing the end and
pushing it upward.
6. Remove the bulb from the head-
lamp assembly.
7. Install a new headlamp bulb and
snap the headlamp bulb retaining
wire into position by aligning the
wire with the groove on the bulb.
8. Connect the headlamp bulb sock-
et-connector.
9. Install the headlamp bulb cover by
turning it clockwise.
Information
We recommend that the headlamp
aiming be adjusted after an accident
or after the headlamp assembly is
reinstalled at an authorised
HYUNDAI dealer.
i
OLF074083N
OLF074085N
■Low beam
■High beam

7-66
Maintenance

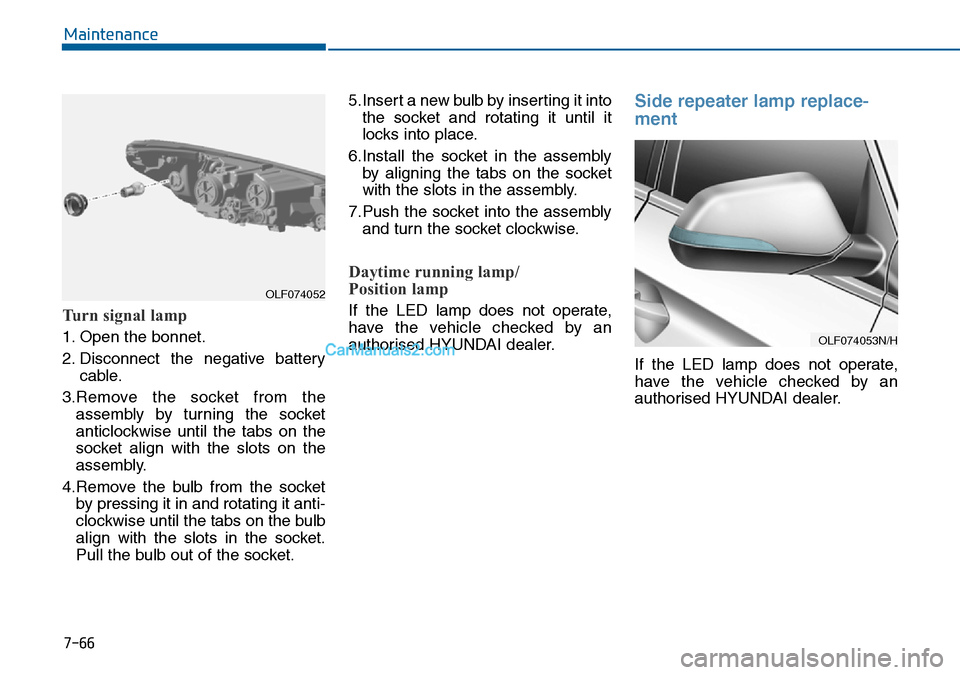

Turn signal lamp
1. Open the bonnet.
2. Disconnect the negative battery
cable.
3.Remove the socket from the
assembly by turning the socket
anticlockwise until the tabs on the
socket align with the slots on the
assembly.
4.Remove the bulb from the socket
by pressing it in and rotating it anti-
clockwise until the tabs on the bulb
align with the slots in the socket.
Pull the bulb out of the socket.5.Insert a new bulb by inserting it into
the socket and rotating it until it
locks into place.
6.Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
7.Push the socket into the assembly
and turn the socket clockwise.
Daytime running lamp/
Position lamp
If the LED lamp does not operate,
have the vehicle checked by an
authorised HYUNDAI dealer.
Side repeater lamp replace-
ment
If the LED lamp does not operate,
have the vehicle checked by an
authorised HYUNDAI dealer.
OLF074053N/H
OLF074052

7-67
7
Maintenance

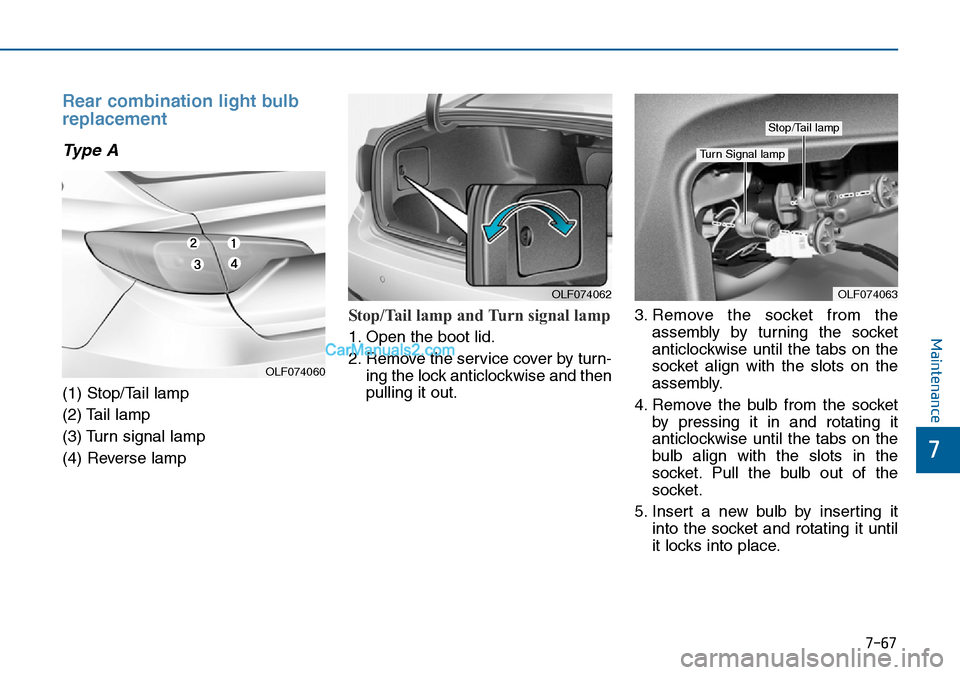

Rear combination light bulb
replacement
Type A
(1) Stop/Tail lamp
(2) Tail lamp
(3) Turn signal lamp
(4) Reverse lamp
Stop/Tail lamp and Turn signal lamp
1. Open the boot lid.
2. Remove the service cover by turn-
ing the lock anticlockwise and then
pulling it out.3. Remove the socket from the
assembly by turning the socket
anticlockwise until the tabs on the
socket align with the slots on the
assembly.
4. Remove the bulb from the socket
by pressing it in and rotating it
anticlockwise until the tabs on the
bulb align with the slots in the
socket. Pull the bulb out of the
socket.
5. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
OLF074063OLF074062
Stop/Tail lamp
Turn Signal lamp
OLF074060

7-68
Maintenance
6. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.

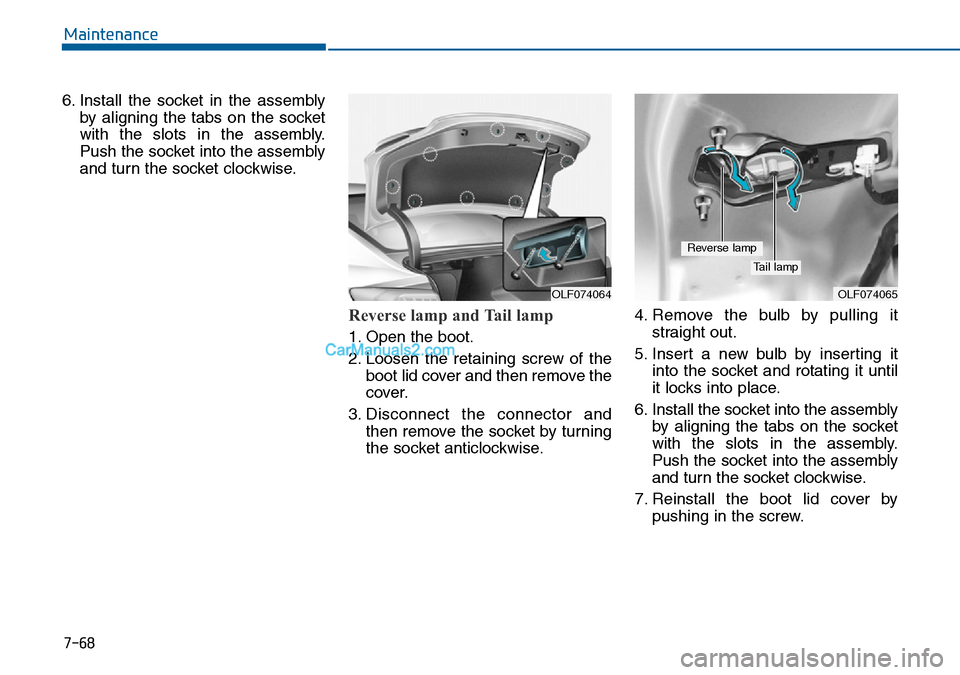

Reverse lamp and Tail lamp
1. Open the boot.
2. Loosen the retaining screw of the
boot lid cover and then remove the
cover.
3. Disconnect the connector and
then remove the socket by turning
the socket anticlockwise.4. Remove the bulb by pulling it
straight out.
5. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
6. Install the socket into the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7. Reinstall the boot lid cover by
pushing in the screw.
OLF074065OLF074064
Reverse lamp
Tail lamp

7-69
7
Maintenance

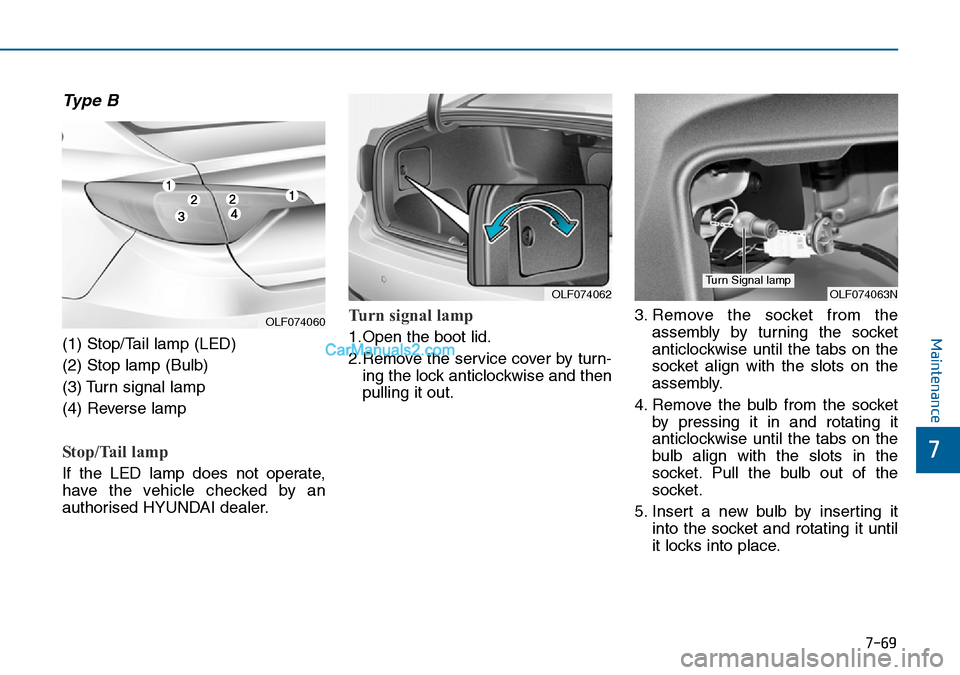

Type B
(1) Stop/Tail lamp (LED)
(2) Stop lamp (Bulb)
(3) Turn signal lamp
(4) Reverse lamp
Stop/Tail lamp
If the LED lamp does not operate,
have the vehicle checked by an
authorised HYUNDAI dealer.
Turn signal lamp
1.Open the boot lid.
2.Remove the service cover by turn-
ing the lock anticlockwise and then
pulling it out.3. Remove the socket from the
assembly by turning the socket
anticlockwise until the tabs on the
socket align with the slots on the
assembly.
4. Remove the bulb from the socket
by pressing it in and rotating it
anticlockwise until the tabs on the
bulb align with the slots in the
socket. Pull the bulb out of the
socket.
5. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
OLF074062OLF074063NTurn Signal lamp
OLF074060
