2016 Hyundai Sonata Owner's Manual - RHD (UK, Australia)

8-2
Specifications & Consumer information
DIMENSIONS
ENGINE
ItemTheta 2.0 Theta 2.4
Displacement
cc (cu. in)
1,998 (121.9) 2,359 (143.95)
Bore x Stroke
mm (in.)
86x86 (3.39x3.39) 88x97 (3.46x3.82)
Firing order
1-3-4-2 1-3-4-2
No. of cylinders
4, in-line 4, in-line
Itemsmm (in)
Overall length4,885 (192.3)
Overall width1,865 (73.4)
Overall height1,475 (58.1)
Front tread
205/65R161,614 (63.5)
215/55R171,602 (63.0)
235/45R181,597 (62.8)
Rear tread
205/65R161,621 (63.8)
215/55R171,609 (63.3)
235/45R181,604 (63.1)
Wheelbase2,805 (110.4)

8-3
8
Specifications & Consumer information

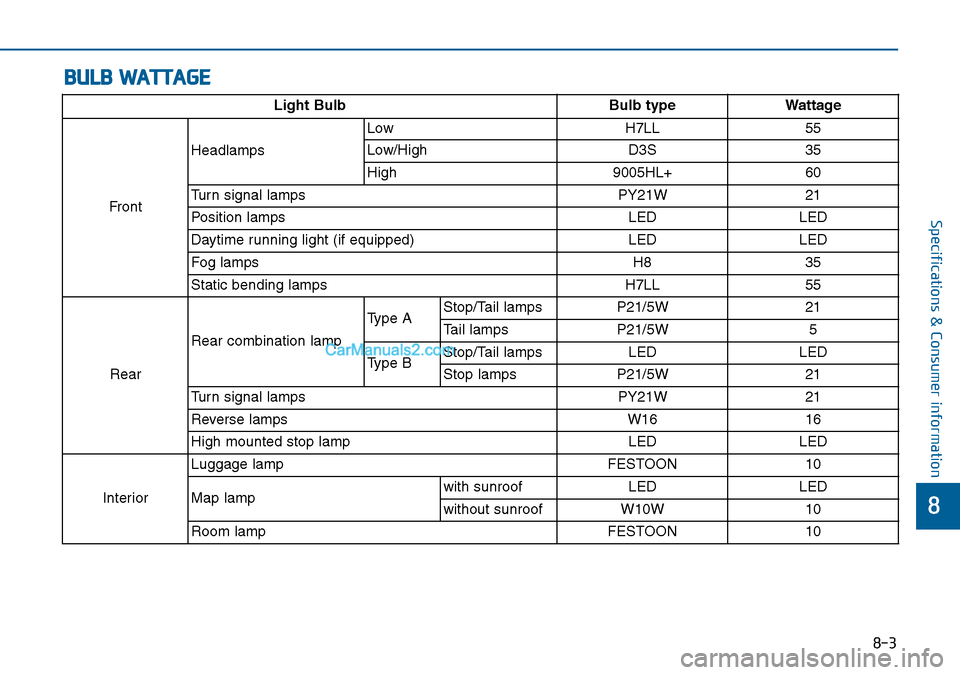

BULB WATTAGE
Light Bulb Bulb type Wattage
FrontHeadlamps
Low H7LL 55
Low/High D3S 35
High 9005HL+ 60
Turn signal lamps PY21W 21
Position lamps LED LED
Daytime running light (if equipped)LEDLED
Fog lamps H8 35
Static bending lamps H7LL 55
RearRear combination lamp
Type AStop/Tail lamps P21/5W 21
Tail lamps P21/5W 5
Type BStop/Tail lamps LED LED
Stop lamps P21/5W 21
Turn signal lamps PY21W 21
Reverse lamps W16 16
High mounted stop lamp LED LED
InteriorLuggage lamp FESTOON 10
Map lamp
with sunroof LED LED
without sunroof W10W 10
Room lamp FESTOON 10

8-4
Specifications & Consumer information

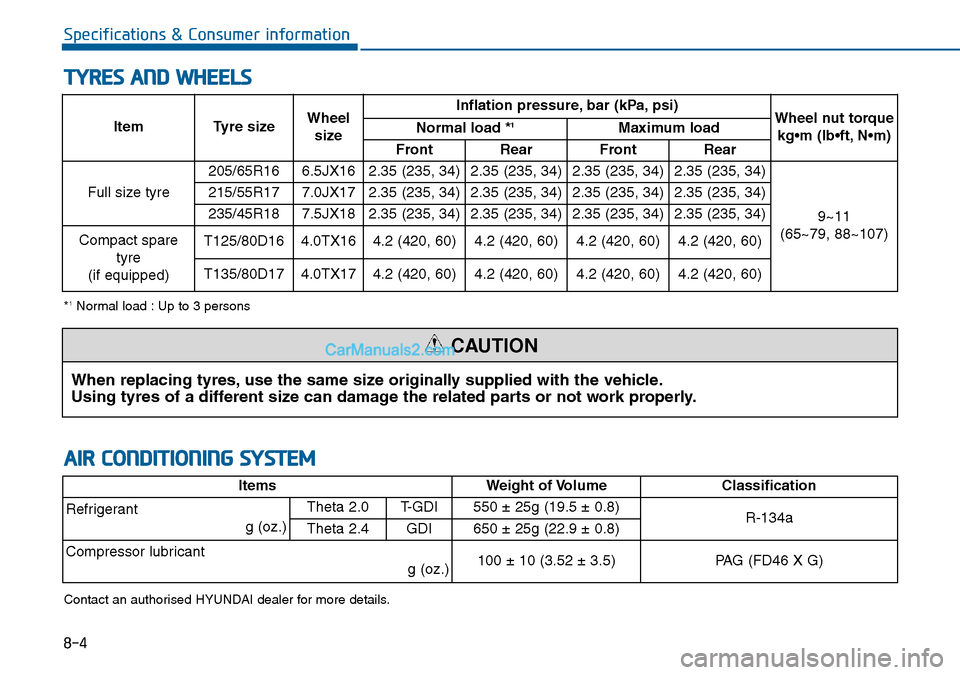

TYRES AND WHEELS
Item Tyre sizeWheel
sizeInflation pressure, bar (kPa, psi)
Wheel nut torque
kg•m (lb•ft, N•m) Normal load *1Maximum load
Front Rear Front Rear
Full size tyre205/65R16 6.5JX16 2.35 (235, 34) 2.35 (235, 34) 2.35 (235, 34) 2.35 (235, 34)
9~11
(65~79, 88~107) 215/55R17 7.0JX17 2.35 (235, 34) 2.35 (235, 34) 2.35 (235, 34) 2.35 (235, 34)
235/45R18 7.5JX18 2.35 (235, 34) 2.35 (235, 34) 2.35 (235, 34) 2.35 (235, 34)
Compact spare
tyre
(if equipped)T125/80D164.0TX164.2 (420, 60)4.2 (420, 60)4.2 (420, 60)4.2 (420, 60)
T135/80D174.0TX174.2 (420, 60)4.2 (420, 60)4.2 (420, 60)4.2 (420, 60)
When replacing tyres, use the same size originally supplied with the vehicle.
Using tyres of a different size can damage the related parts or not work properly.
CAUTION
*1Normal load : Up to 3 persons
AIR CONDITIONING SYSTEM
ItemsWeight of Volume Classification
Refrigerant
g (oz.) Theta 2.0T-GDI550 ± 25g (19.5 ± 0.8)R-134aTheta 2.4GDI650 ± 25g (22.9 ± 0.8)
Compressor lubricant
g (oz.) 100 ± 10 (3.52 ± 3.5)PAG (FD46 X G)
Contact an authorised HYUNDAI dealer for more details.

8-5
8
Specifications & Consumer information

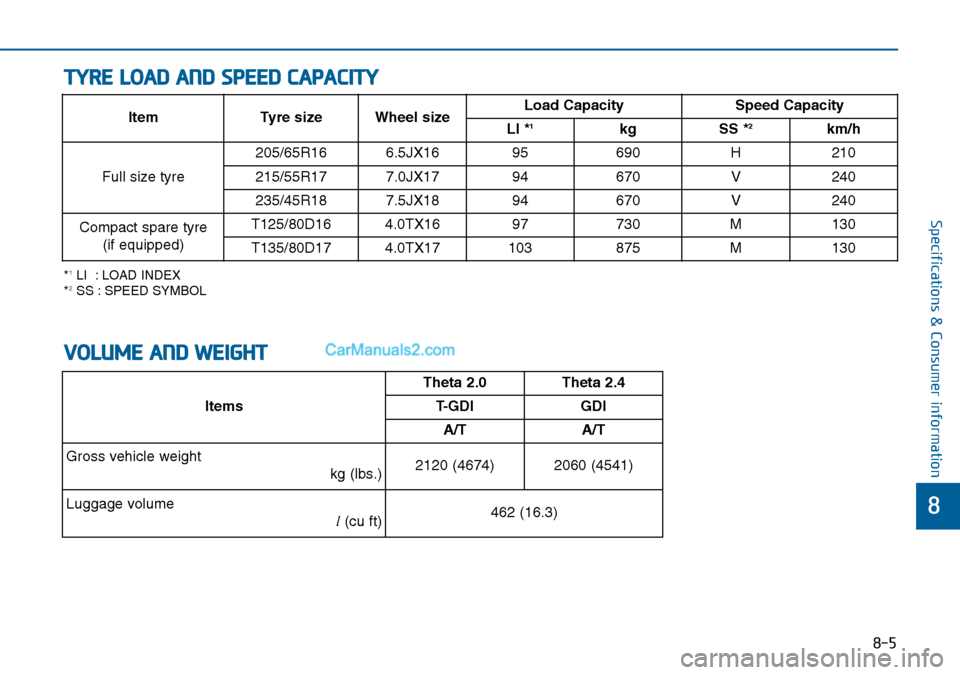

TYRE LOAD AND SPEED CAPACITY
*1LI : LOAD INDEX
*2SS : SPEED SYMBOL
Item Tyre size Wheel sizeLoad Capacity Speed Capacity
LI *1kg SS *2km/h
Full size tyre205/65R16 6.5JX16 95 690 H 210
215/55R17 7.0JX17 94 670 V 240
235/45R187.5JX1894670V240
Compact spare tyre
(if equipped)T125/80D164.0TX1697730M130
T135/80D174.0TX17103875M130
VOLUME AND WEIGHT
Items
Theta 2.0Theta 2.4
T-GDIGDI
A/TA/T
Gross vehicle weight
kg (lbs.)2120 (4674)2060 (4541)
Luggage volume
l(cu ft)462 (16.3)

8-6
Specifications & Consumer information
*1: Refer to the recommended SAE viscosity numbers on the next page.
*2: Engine oils labelled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3: If the ACEA A5 engine oil is not available in your country, you are able to use ILSAC GF-4 (or above) or API SM (or above).
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolume Classification
Engine oil *
1*2(drain and refill)
RecommendsTheta 2.0 T-GDI4.8l
ACEA A5 *3or above
Theta 2.4GDI4.8lACEA A5 *3or above
Automatic transaxle fluidTheta 2.0 T-GDI
7.1l
MICHANG ATF SP-IV, SK ATF SP-IV
NOCA ATF SP-IV, HYUNDAI genuine ATF & SP-IV
Theta 2.4GDI7.8l
CoolantTheta 2.0 T-GDI
9.7 l
Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminium radiator)
Theta 2.4GDI7.1 l
Brake fluid0.7~0.8 lFMVSS116 DOT-3 or DOT-4
Fuel70 lRefer to “Fuel Requirements” in the Foreword chapter.

8-7
8
Specifications & Consumer information

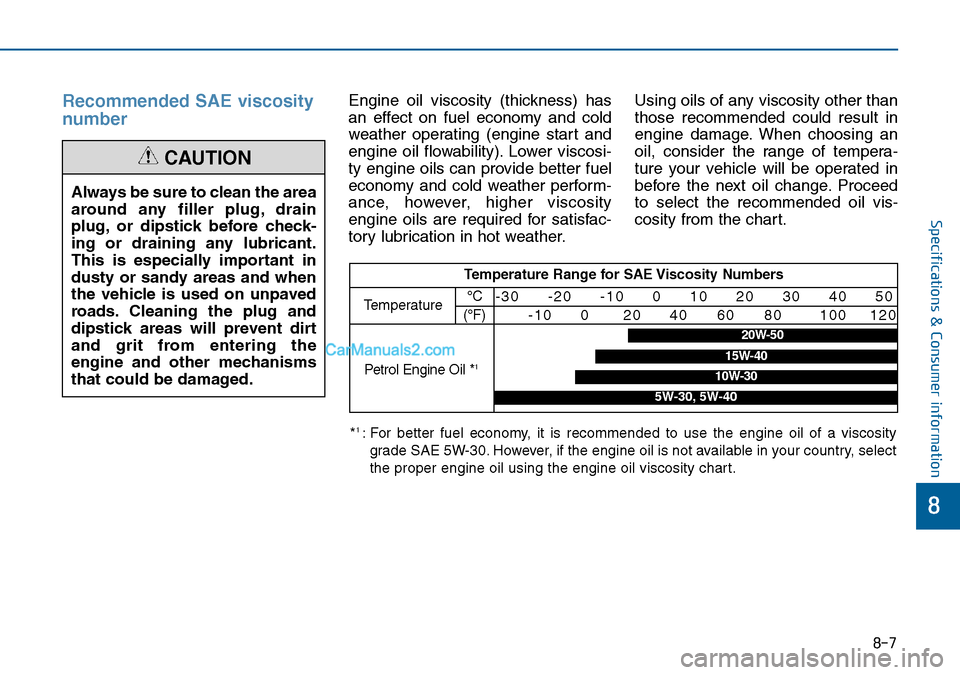

Recommended SAE viscosity
numberEngine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather.Using oils of any viscosity other than
those recommended could result in
engine damage. When choosing an
oil, consider the range of tempera-
ture your vehicle will be operated in
before the next oil change. Proceed
to select the recommended oil vis-
cosity from the chart. Always be sure to clean the area
around any filler plug, drain
plug, or dipstick before check-
ing or draining any lubricant.
This is especially important in
dusty or sandy areas and when
the vehicle is used on unpaved
roads. Cleaning the plug and
dipstick areas will prevent dirt
and grit from entering the
engine and other mechanisms
that could be damaged.
CAUTION
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
*1 : For better fuel economy, it is recommended to use the engine oil of a viscosity
grade SAE 5W-30. However, if the engine oil is not available in your country, select
the proper engine oil using the engine oil viscosity chart.
20W-50
10W-30
15W-40
5W-30, 5W-40
Petrol Engine Oil *1

8-8
Specifications & Consumer information

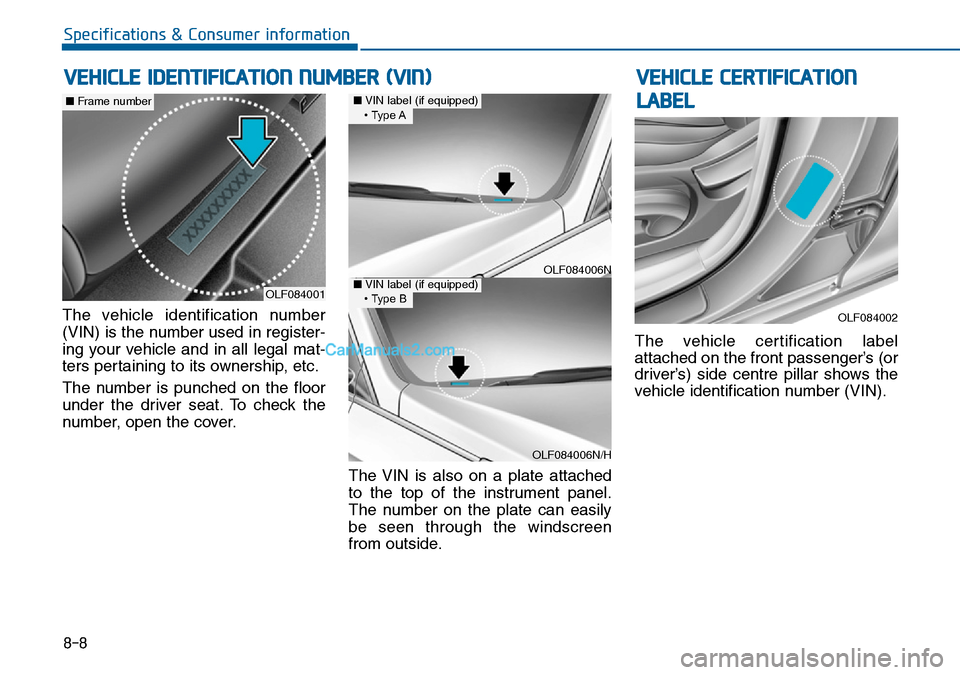

The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the floor
under the driver seat. To check the
number, open the cover.
The VIN is also on a plate attached
to the top of the instrument panel.
The number on the plate can easily
be seen through the windscreen
from outside.The vehicle certification label
attached on the front passenger’s (or
driver’s) side centre pillar shows the
vehicle identification number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)VEHICLE CERTIFICATION
LABEL
OLF084001
■Frame number
OLF084002
OLF084006N
■VIN label (if equipped)
OLF084006N/H
• Type A
• Type B■VIN label (if equipped)

8-9
8
Specifications & Consumer information
The tyres supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tyre label located on the driver's
side centre pillar gives the tyre pres-
sures recommended for your vehicle.
The engine number is stamped on
the engine block as shown in the
drawing.A compressor label provides details
of the type of compressor your vehi-
cle is equipped with such as; model,
supplier part number, production
number, refrigerant (1) and refriger-
ant oil (2).

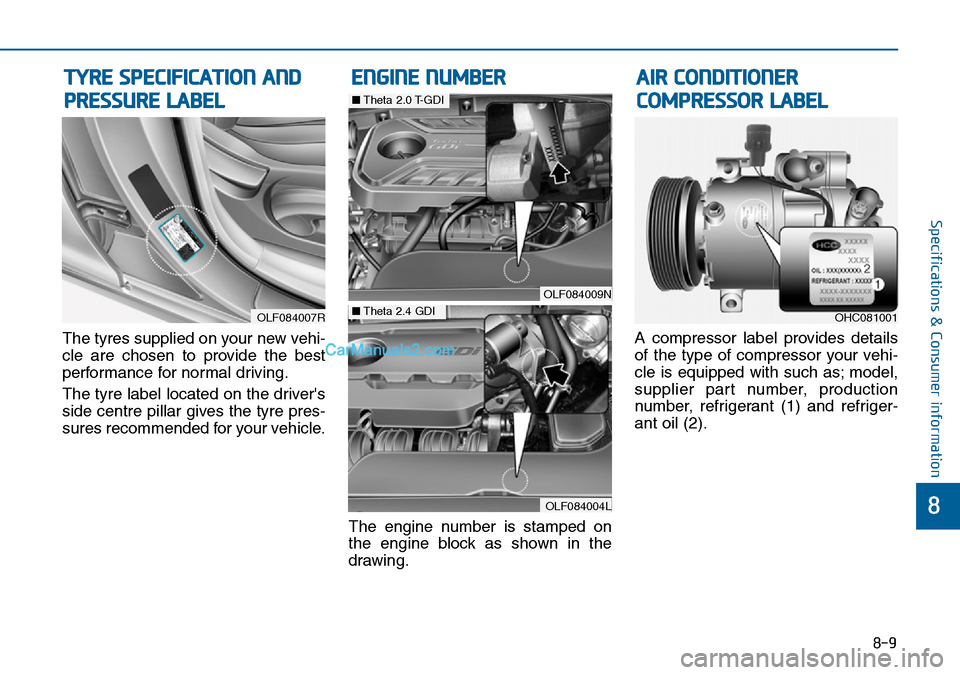

TYRE SPECIFICATION AND
PRESSURE LABELENGINE NUMBER
OLF084007R
OLF084004L
■Theta 2.4 GDI
OLF084009N
■Theta 2.0 T-GDI
OHC081001
AIR CONDITIONER
COMPRESSOR LABEL
