2016 Hyundai Sonata Owner's Manual - RHD (UK, Australia)

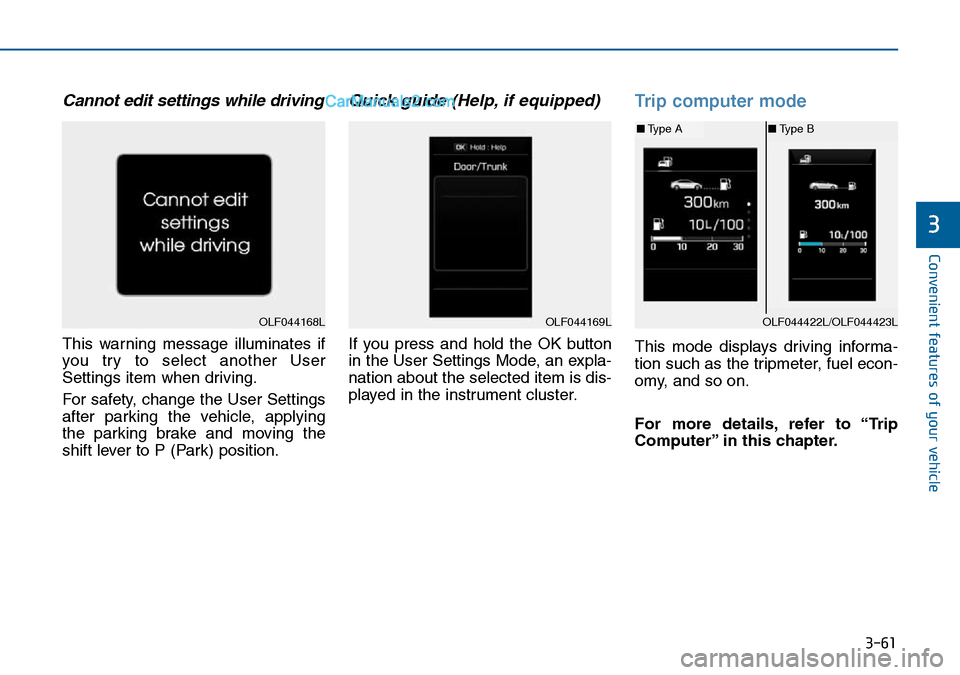

3-61
Convenient features of your vehicle
3
Cannot edit settings while driving
This warning message illuminates if
you try to select another User
Settings item when driving.
For safety, change the User Settings
after parking the vehicle, applying
the parking brake and moving the
shift lever to P (Park) position.
Quick guide (Help, if equipped)
If you press and hold the OK button
in the User Settings Mode, an expla-
nation about the selected item is dis-
played in the instrument cluster.
Trip computer mode
This mode displays driving informa-
tion such as the tripmeter, fuel econ-
omy, and so on.
For more details, refer to “Trip
Computer” in this chapter.
OLF044168LOLF044169LOLF044422L/OLF044423L
■Type A■Type B

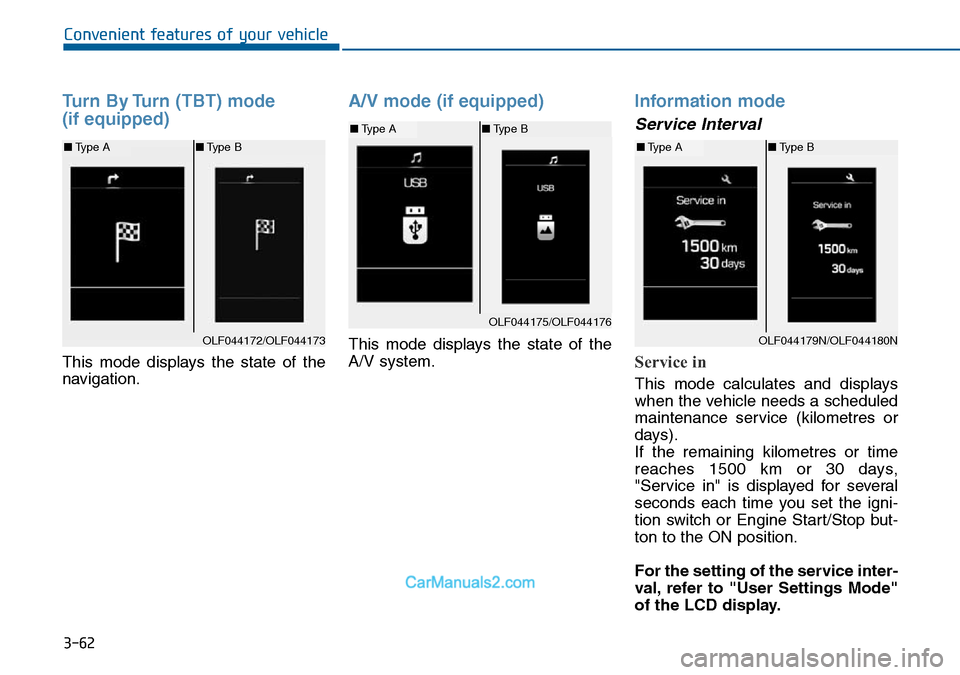

3-62
Convenient features of your vehicle
Turn By Turn (TBT) mode
(if equipped)
This mode displays the state of the
navigation.
A/V mode (if equipped)
This mode displays the state of the
A/V system.
Information mode
Service Interval
Service in
This mode calculates and displays
when the vehicle needs a scheduled
maintenance service (kilometres or
days).
If the remaining kilometres or time
reaches 1500 km or 30 days,
"Service in" is displayed for several
seconds each time you set the igni-
tion switch or Engine Start/Stop but-
ton to the ON position.
For the setting of the service inter-
val, refer to "User Settings Mode"
of the LCD display.
OLF044172/OLF044173
■Type A■Type B
OLF044175/OLF044176
■Type A■Type B
OLF044179N/OLF044180N
■Type A■Type B

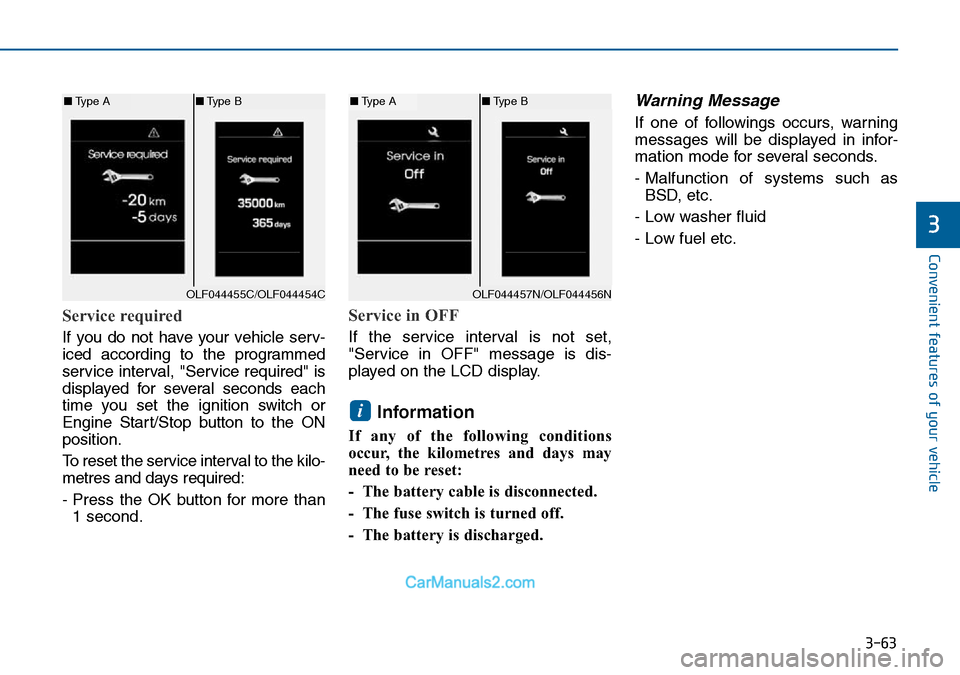

3-63
Convenient features of your vehicle
3
Service required
If you do not have your vehicle serv-
iced according to the programmed
service interval, "Service required" is
displayed for several seconds each
time you set the ignition switch or
Engine Start/Stop button to the ON
position.
To reset the service interval to the kilo-
metres and days required:
- Press the OK button for more than
1 second.
Service in OFF
If the service interval is not set,
"Service in OFF" message is dis-
played on the LCD display.
Information
If any of the following conditions
occur, the kilometres and days may
need to be reset:
- The battery cable is disconnected.
- The fuse switch is turned off.
- The battery is discharged.
Warning Message
If one of followings occurs, warning
messages will be displayed in infor-
mation mode for several seconds.
- Malfunction of systems such as
BSD, etc.
- Low washer fluid
- Low fuel etc.
i
OLF044455C/OLF044454C
■Type A■Type B
OLF044457N/OLF044456N
■Type A■Type B

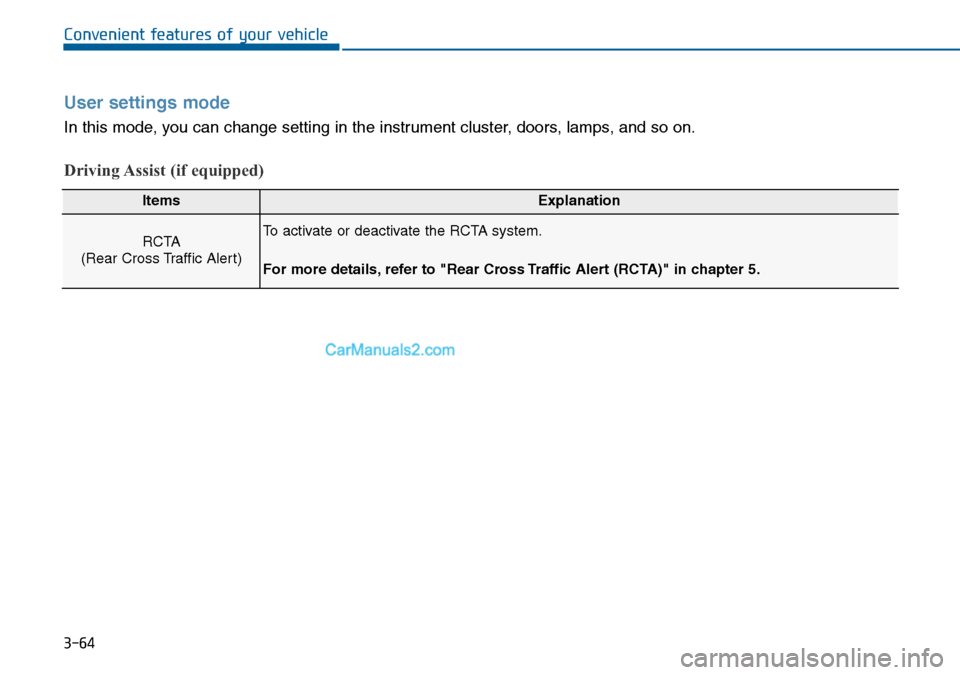

3-64
Convenient features of your vehicle
User settings mode
In this mode, you can change setting in the instrument cluster, doors, lamps, and so on.
Driving Assist (if equipped)
ItemsExplanation
RCTA
(Rear Cross Traffic Alert)To activate or deactivate the RCTA system.
For more details, refer to "Rear Cross Traffic Alert (RCTA)" in chapter 5.

3-65
Convenient features of your vehicle
3
Door/Trunk (Boot)
ItemsExplanation
Automatic Lock
• Off : The auto door lock operation will be deactivated.
• Enable on Speed: All doors will be automatically locked when the vehicle speed exceeds 15
km/h.
• Enable on Shift: All doors will be automatically locked if the automatic transaxle shift lever is shift-
ed from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position.
Automatic Unlock
• Off : The auto door unlock operation will be cancelled.
• Vehicle Off: All doors will be automatically unlocked when the ignition key is removed from the
ignition switch or the Engine Start/Stop button is set to the OFF position.
• Driver Door Unlock: All doors will be automatically unlocked if the driver's door is unlocked.
• On Shift to P: All doors will be automatically unlocked if the automatic transaxle shift lever is shift-
ed to the P (Park) position.
Door Lock SoundTo activate or deactivate the lock sound when locking doors.
Smart Trunk (Boot)To activate or deactivate the Smart Boot system.
For more details, refer to "Smart Boot" in this chapter.

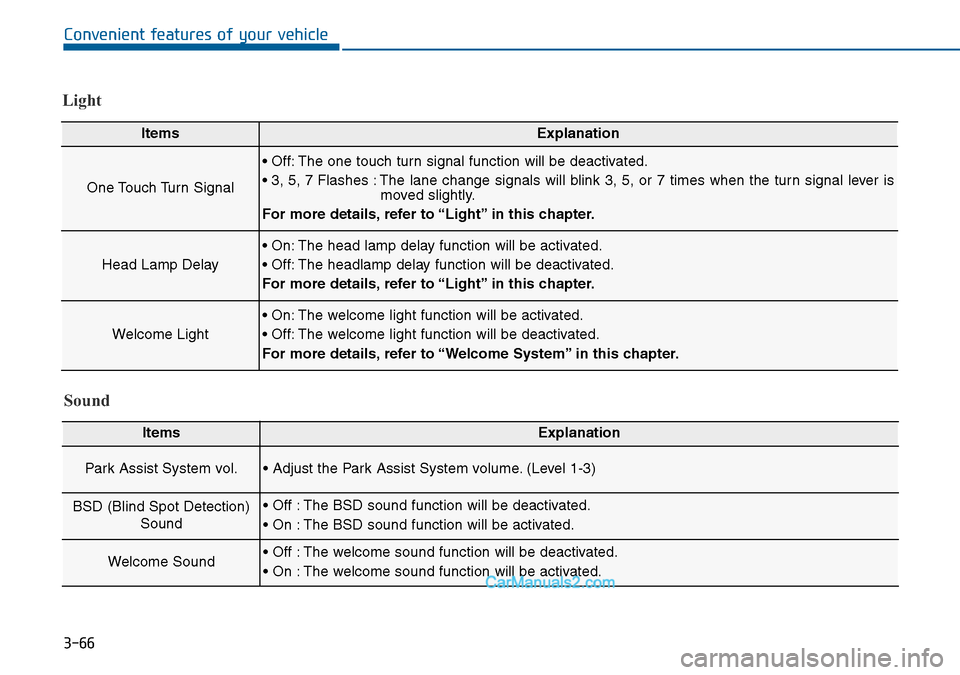

3-66
Convenient features of your vehicle
Light
ItemsExplanation
One Touch Turn Signal
• Off: The one touch turn signal function will be deactivated.
• 3, 5, 7 Flashes : The lane change signals will blink 3, 5, or 7 times when the turn signal lever is
moved slightly.
For more details, refer to “Light” in this chapter.
Head Lamp Delay
• On: The head lamp delay function will be activated.
• Off: The headlamp delay function will be deactivated.
For more details, refer to “Light” in this chapter.
Welcome Light
• On: The welcome light function will be activated.
• Off: The welcome light function will be deactivated.
For more details, refer to “Welcome System” in this chapter.
Sound
ItemsExplanation
Park Assist System vol.• Adjust the Park Assist System volume. (Level 1-3)
BSD (Blind Spot Detection)
Sound• Off : The BSD sound function will be deactivated.
• On : The BSD sound function will be activated.
Welcome Sound• Off : The welcome sound function will be deactivated.
• On : The welcome sound function will be activated.

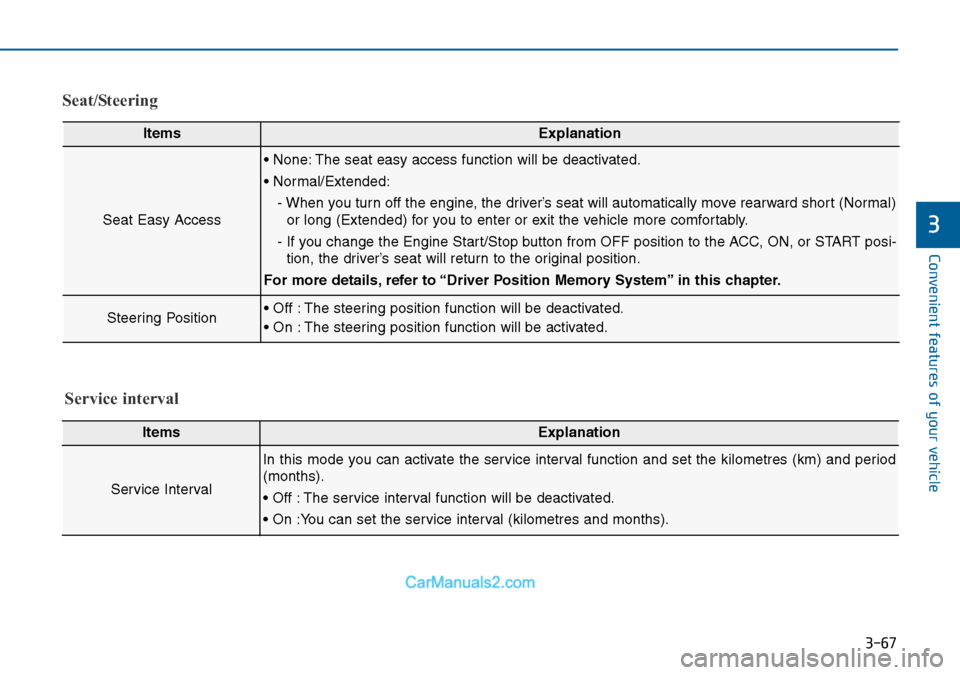

3-67
Convenient features of your vehicle
3
Seat/Steering
ItemsExplanation
Seat Easy Access
• None: The seat easy access function will be deactivated.
• Normal/Extended:
- When you turn off the engine, the driver’s seat will automatically move rearward short (Normal)
or long (Extended) for you to enter or exit the vehicle more comfortably.
- If you change the Engine Start/Stop button from OFF position to the ACC, ON, or START posi-
tion, the driver’s seat will return to the original position.
For more details, refer to “Driver Position Memory System” in this chapter.
Steering Position• Off : The steering position function will be deactivated.
• On : The steering position function will be activated.
ItemsExplanation
Service Interval
In this mode you can activate the service interval function and set the kilometres (km) and period
(months).
• Off : The service interval function will be deactivated.
• On :You can set the service interval (kilometres and months).
Service interval

3-68
Convenient features of your vehicle
Other features
ItemsExplanation
Fuel Economy Auto Reset
• Off : The average fuel economy will not reset automatically whenever refuelling.
• On (Auto Reset) : The average fuel economy will reset automatically when refuelling.
For more details, refer to “Trip Computer” in this chapter.
Shift gear Pop-up
If you select this function, the current shift gear position is displayed in the instrument cluster for about
2 seconds when shifting into other positions (P/R/N/D).
If you do not select this function, the shift gear Pop-up is not displayed in the instrument cluster.
Fuel Economy UnitChoose the fuel economy unit. (Km/L, L/100)
Temperature UnitChoose the temperature unit. (°C,°F)
LanguageChoose the language.
