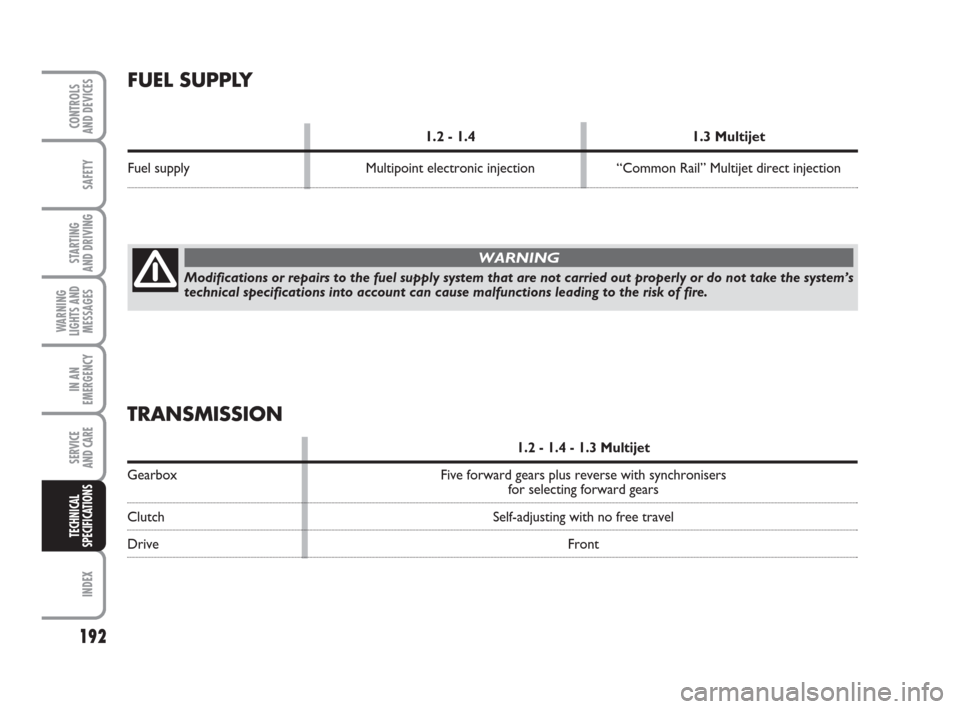

FUEL SUPPLY
1.2 - 1.4 1.3 Multijet
Fuel supply Multipoint electronic injection “Common Rail” Multijet direct injection
Modifications or repairs to the fuel supply system that are not carried out properly or do not take the system’s
technical specifications into account can cause malfunctions leading to the risk of fire.
WARNING
TRANSMISSION
1.2 - 1.4 - 1.3 Multijet
Gearbox Five forward gears plus reverse with synchronisersfor selecting forward gears
Clutch Self-adjusting with no free travel
Drive Front
187-204 ACTUAL 1ed EN 26-07-2010 16:08 Pagina 192

torsion beam with interconnected wheels
193
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS

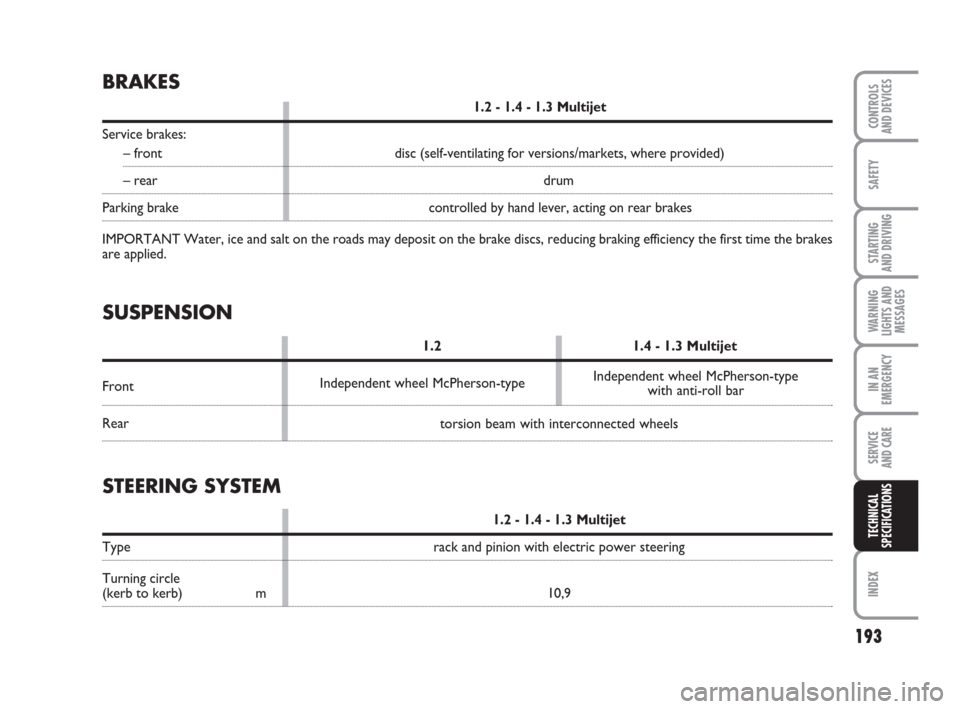

BRAKES
1.2 - 1.4 - 1.3 Multijet
Service brakes:
– front disc (self-ventilating for versions/markets, where provided)
– rear drum
Parking brake controlled by hand lever, acting on rear brakes
IMPORTANT Water, ice and salt on the roads may deposit on the brake discs, reducing braking efficiency the first time the brakes
are applied.
STEERING SYSTEM
1.2 - 1.4 - 1.3 Multijet
Type rack and pinion with electric power steering
Turning circle
(kerb to kerb) m 10,9
Independent wheel McPherson-typeIndependent wheel McPherson-type
with anti-roll bar
SUSPENSION
1.2 1.4 - 1.3 Multijet
Front
Rear
187-204 ACTUAL 1ed EN 26-07-2010 16:08 Pagina 193

194
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
Maximum speed index
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
Maximum speed index
for snow tyres
QM + S= up to 160 km/h.
TM + S= up to 190 km/h.
HM + S= up to 210 km/h.WHEELS

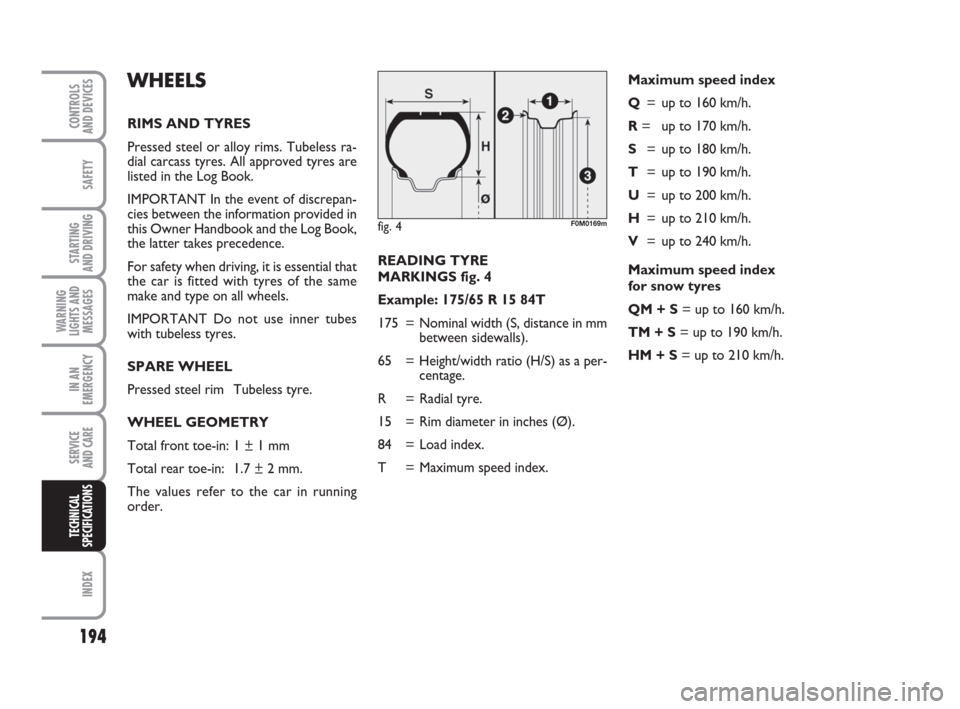

RIMS AND TYRES
Pressed steel or alloy rims. Tubeless ra-
dial carcass tyres. All approved tyres are
listed in the Log Book.
IMPORTANT In the event of discrepan-
cies between the information provided in
this Owner Handbook and the Log Book,
the latter takes precedence.
For safety when driving, it is essential that
the car is fitted with tyres of the same
make and type on all wheels.
IMPORTANT Do not use inner tubes
with tubeless tyres.
SPARE WHEEL
Pressed steel rim Tubeless tyre.
WHEEL GEOMETRY
Total front toe-in: 1 ± 1 mm
Total rear toe-in: 1.7 ± 2 mm.
The values refer to the car in running
order.
fig. 4F0M0169m
READING TYRE
MARKINGS fig. 4
Example: 175/65 R 15 84T
175 = Nominal width (S, distance in mm
between sidewalls).
65 = Height/width ratio (H/S) as a per-
centage.
R = Radial tyre.
15 = Rim diameter in inches (Ø).
84 = Load index.
T = Maximum speed index.
187-204 ACTUAL 1ed EN 26-07-2010 16:08 Pagina 194

195
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS

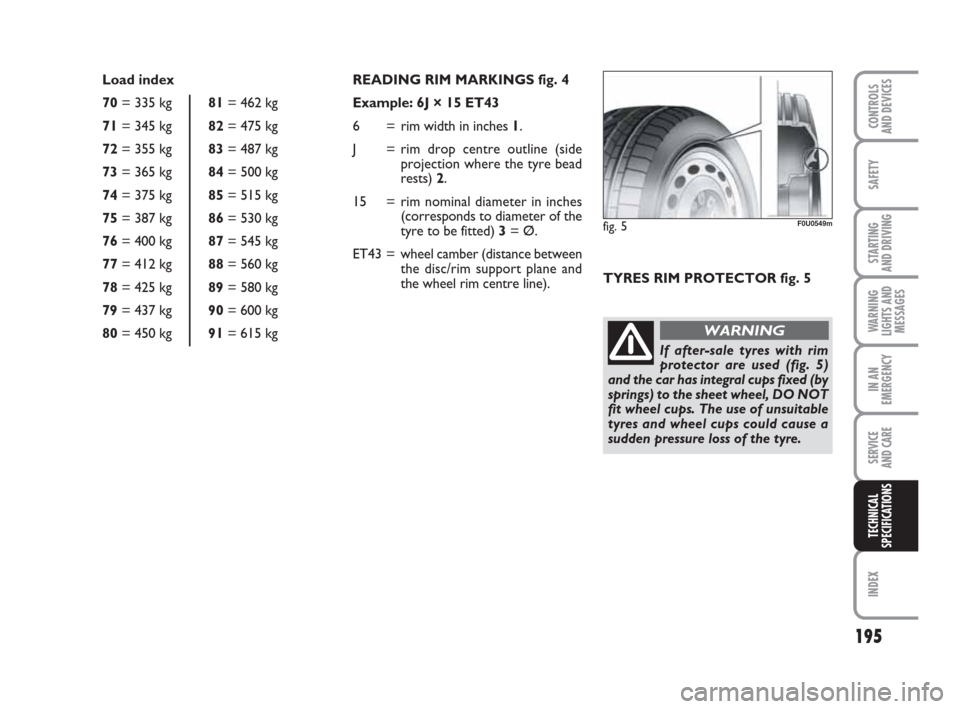

READING RIM MARKINGS fig. 4
Example: 6J × 15 ET43
6 = rim width in inches 1.
J = rim drop centre outline (side
projection where the tyre bead
rests) 2.
15 = rim nominal diameter in inches
(corresponds to diameter of the
tyre to be fitted) 3= Ø.
ET43 = wheel camber (distance between
the disc/rim support plane and
the wheel rim centre line). Load index
70= 335 kg 81= 462 kg
71= 345 kg 82= 475 kg
72= 355 kg 83= 487 kg
73= 365 kg 84= 500 kg
74= 375 kg 85= 515 kg
75= 387 kg 86= 530 kg
76= 400 kg 87= 545 kg
77= 412 kg 88= 560 kg
78= 425 kg 89= 580 kg
79= 437 kg 90= 600 kg
80= 450 kg 91= 615 kg
TYRES RIM PROTECTOR fig. 5
fig. 5F0U0549m
If after-sale tyres with rim
protector are used (fig. 5)
and the car has integral cups fixed (by
springs) to the sheet wheel, DO NOT
fit wheel cups. The use of unsuitable
tyres and wheel cups could cause a
sudden pressure loss of the tyre.
WARNING
187-204 ACTUAL 1ed EN 26-07-2010 16:08 Pagina 195

196
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
2.2 2.1
2.2 2.2
2.2 2.0
2.2 2.22.2 2.1
2.2 2.2
2.2 2.0
2.2 2.22.4 2.1
2.5 2.2
2.3 2.1
2.3 2.3

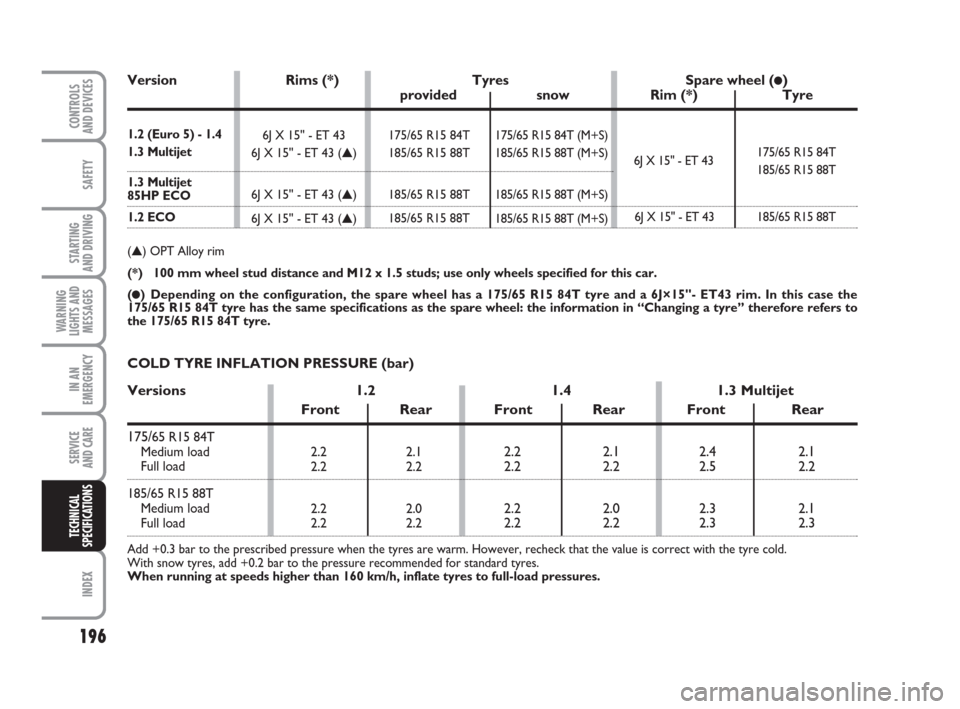

Version Rims (*) Tyres Spare wheel (ç)provided snow Rim (*) Tyre
1.2 (Euro 5) - 1.4
1.3 Multijet
1.3 Multijet
85HP ECO
1.2 ECO
(▲) OPT Alloy rim
(*) 100 mm wheel stud distance and M12 x 1.5 studs; use only wheels specified for this car.
(
ç) Depending on the configuration, the spare wheel has a 175/65 R15 84T tyre and a 6J×15''- ET43 rim. In this case the
175/65 R15 84T tyre has the same specifications as the spare wheel: the information in “Changing a tyre” therefore refers to
the 175/65 R15 84T tyre.
COLD TYRE INFLATION PRESSURE (bar)
Versions 1.2 1.4 1.3 Multijet
Front Rear Front Rear Front Rear
175/65 R15 84T
Medium load
Full load
185/65 R15 88T
Medium load
Full load
Add +0.3 bar to the prescribed pressure when the tyres are warm. However, recheck that the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure recommended for standard tyres.
When running at speeds higher than 160 km/h, inflate tyres to full-load pressures.175/65 R15 84T (M+S)
185/65 R15 88T (M+S)
185/65 R15 88T (M+S)
185/65 R15 88T (M+S) 175/65 R15 84T
185/65 R15 88T
185/65 R15 88T
185/65 R15 88T6J X 15'' - ET 43175/65 R15 84T
185/65 R15 88T
185/65 R15 88T 6J X 15'' - ET 43
6J X 15'' - ET 43 (▲)
6J X 15'' - ET 43 (▲)
6J X 15'' - ET 43 (▲)6J X 15'' - ET 43
187-204 ACTUAL 1ed EN 26-07-2010 16:08 Pagina 196

197
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS

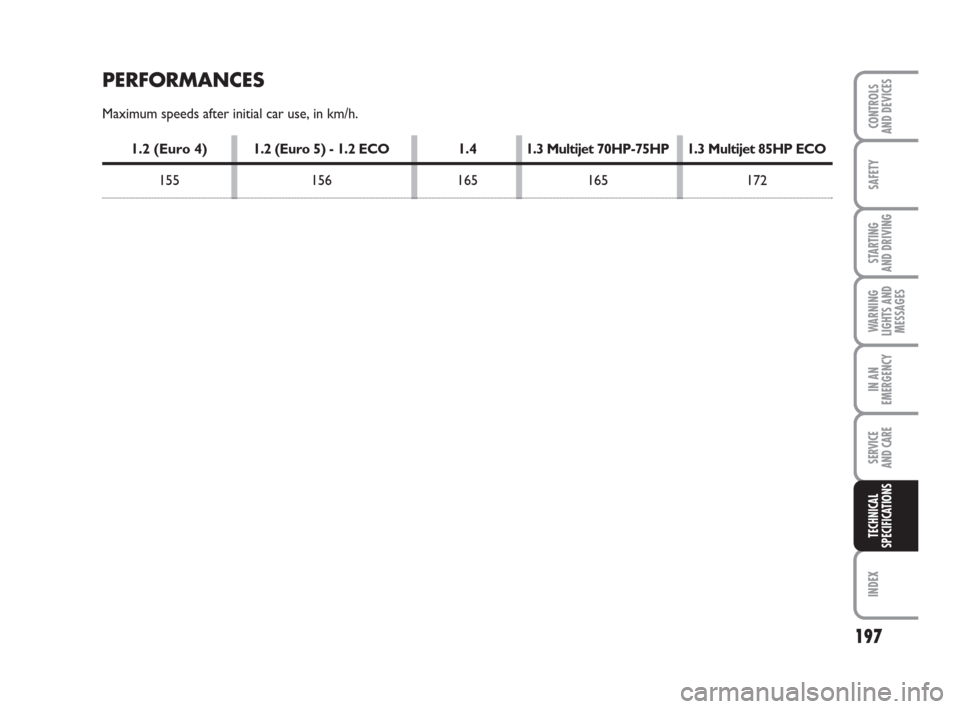

PERFORMANCES
