INFLATION PROCEDURE
The cylinder contains ethyl-
ene glycol. It contains latex,
which may cause an allergic reaction.
Harmful if swallowed. Irritates the
eyes. There could be a reaction in
case of inhalation or contact. Avoid
contact with your eyes, skin and
clothes. In the event of contact, wash
immediately with plenty of water. Do
not induce vomiting if swallowed.
Rinse your mouth out and drink plen-
ty of water. Call a doctor immedi-
ately. Keep out of the reach of chil-
dren. The product must not be used
by asthmatics. Do not breathe in the
vapours during insertion and suction.
Call a doctor immediately if allergic
reactions are noted. Store the cylin-
der in its proper compartment, away
from sources of heat. The sealant flu-
id has an expiry date.
WARNINGReplace the cylinder contain-
ing out-of-date sealant fluid.
Dispose of the cylinder and
the sealant liquid properly.
Dispose according to the national and
local laws in force.
Put on the protective gloves
provided with the quick tyre
repair kit.
WARNING
❒Ensure that the handbrake is on.
Unscrew the tyre valve cap, remove the
flexible filler tube A-fig. 9and fasten
the nozzle Bonto the tyre valve;
fig. 9F0M0363m
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 144

145
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY

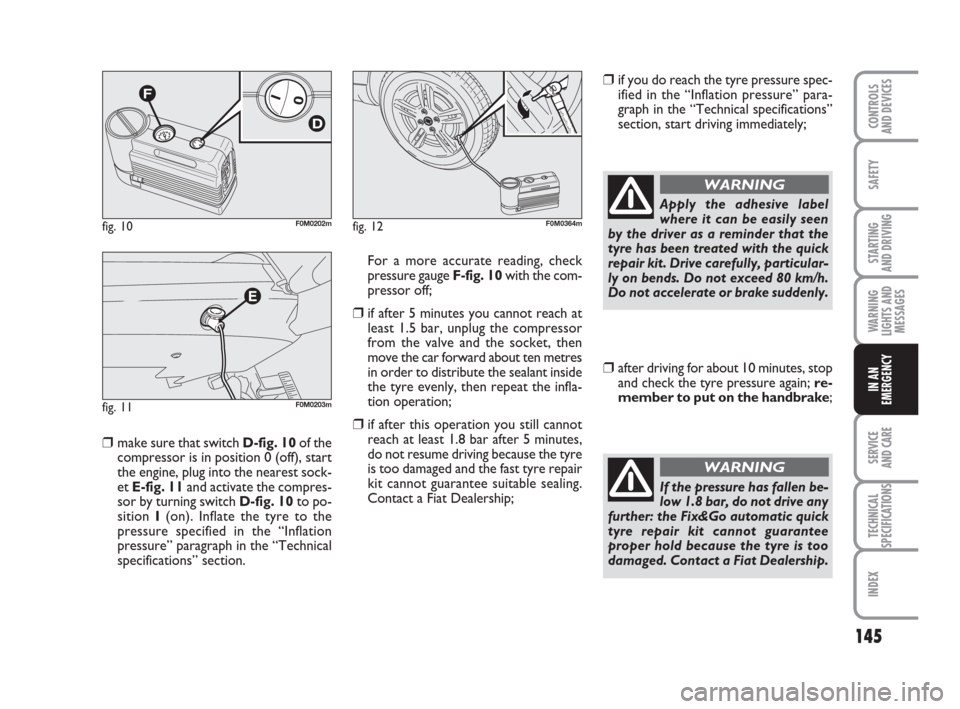

❒ make sure that switch D-fig. 10of the
compressor is in position 0 (off), start
the engine, plug into the nearest sock-
et E-fig. 11and activate the compres-
sor by turning switch D-fig. 10to po-
sition I(on). Inflate the tyre to the
pressure specified in the “Inflation
pressure” paragraph in the “Technical
specifications” section. For a more accurate reading, check
pressure gauge F-fig. 10with the com-
pressor off;
❒if after 5 minutes you cannot reach at
least 1.5 bar, unplug the compressor
from the valve and the socket, then
move the car forward about ten metres
in order to distribute the sealant inside
the tyre evenly, then repeat the infla-
tion operation;
❒if after this operation you still cannot
reach at least 1.8 bar after 5 minutes,
do not resume driving because the tyre
is too damaged and the fast tyre repair
kit cannot guarantee suitable sealing.
Contact a Fiat Dealership;
❒if you do reach the tyre pressure spec-
ified in the “Inflation pressure” para-
graph in the “Technical specifications”
section, start driving immediately;
fig. 10F0M0202m
fig. 11F0M0203m
fig. 12F0M0364m
Apply the adhesive label
where it can be easily seen
by the driver as a reminder that the
tyre has been treated with the quick
repair kit. Drive carefully, particular-
ly on bends. Do not exceed 80 km/h.
Do not accelerate or brake suddenly.
WARNING
❒after driving for about 10 minutes, stop
and check the tyre pressure again; re-
member to put on the handbrake;
If the pressure has fallen be-
low 1.8 bar, do not drive any
further: the Fix&Go automatic quick
tyre repair kit cannot guarantee
proper hold because the tyre is too
damaged. Contact a Fiat Dealership.
WARNING
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 145

146
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
❒if you get a pressure reading of at least
1.8 bar, restore the proper pressure
(with engine running and handbrake on)
and restart;
❒drive with the utmost care to the near-
est Fiat Dealership.
FOR CHECKING AND
RESTORING PRESSURE ONLY
The compressor may also be used for
restoring pressure only. Release the fast
coupling and connect it directly to the tyre
valve fig. 13; in this way, the cylinder will
not be connected to the compressor and
no sealant will be injected. CYLINDER REPLACEMENT
PROCEDURE
To replace the cylinder, proceed as fol-
lows:
❒disconnect A-fig. 14;
❒turn the cylinder anticlockwise to lift
it out;
❒insert the new cylinder and turn it
clockwise;
❒connect Ato the cylinder and fit the
transparent tube Binto its allocated
space.
Remember to inform the
workshop that the tyre has
been treated with a quick repair kit.
Give the instruction booklet to the
personnel charged with handling the
treated tyre.
WARNING
fig. 13F0M0365mfig. 14F0M0206m
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 146

147
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
CHANGING A BULB
GENERAL INSTRUCTIONS
❒When a light is not working, check that
the corresponding fuse is intact before
changing the bulb. For the location of
fuses, refer to the “Changing a fuse”
paragraph in this section;
❒before changing a bulb check the con-
tacts for rusting;
❒burnt bulbs must be replaced by others
of the same type and wattage;
❒for safety reasons, always check the di-
rection of the headlight beam after
changing a bulb.
IMPORTANT The internal surface of the
light may appear slightly misty: this does
not indicate a fault, and is actually caused
by low temperature and the degree of hu-
midity in the air. Misting will rapidly dis-
appear when the headlights are switched
on. The presence of drops inside the head-
lights indicates infiltration of water. Go to
a Fiat Dealership.
TYPES OF BULBS
Various types of bulbs are fitted to your
car:
AGlass bulbs: clipped into position. Pull
to remove.BBayonet-type bulbs: to remove from
its holder, press the bulb in and turn
it anti-clockwise.
CTubular bulbs: release them from
their contacts to remove.
D-EHalogen bulbs: to remove the bulb,
release the clip holding the bulb in
place. Halogen bulbs must be han-
dled holding the metallic part
only. Touching the transpar-
ent part of the bulb with your
fingers may reduce the intensity of the
light emitted and even compromise the
longevity of the bulb itself. In the event
of accidental contact, wipe the bulb
with an alcohol-soaked cloth and leave
to dry.
Modifications or repairs to
the electrical system (ECUs)
that are not carried out properly or
do not take the system’s technical
specifications into account can cause
malfunctions leading to the risk of fire.
WARNING
Halogen bulbs contain pres-
surised gas which may cause
small fragments of glass to be pro-
jected outwards if the bulb is broken.
WARNING
fig. 15F0M0207m
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 147

148
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
Bulbs Figure ref. Type Power
Main beams
Dipped beams
Front sidelights
Front fog lights (for versions/markets, where provided)
Front direction indicators
Side direction indicators
Rear direction indicators
Tailights
Brake lights
Third brake light
Reverse lights
Rear fog lights
Number plate lights
Front ceiling light with movable lens
Front ceiling light with spot lights H4
H4
W5W
H3
PY21W
WY5W
P21W
R5W
P21/5W
–
P21W
P21W
W5W
C10W
C10W D
D
A
–
B
A
B
B
B
B
–
–
A
C
C55 W
60 W
5 W
55 W
21 W
5 W
21 W
5 W
5 W
2,3 W
21 W
21 W
5 W
10 W
10 W
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 148

149
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
CHANGING AN
EXTERIOR BULB
For the type of bulb and relative power
rating, see “Changing a bulb”.

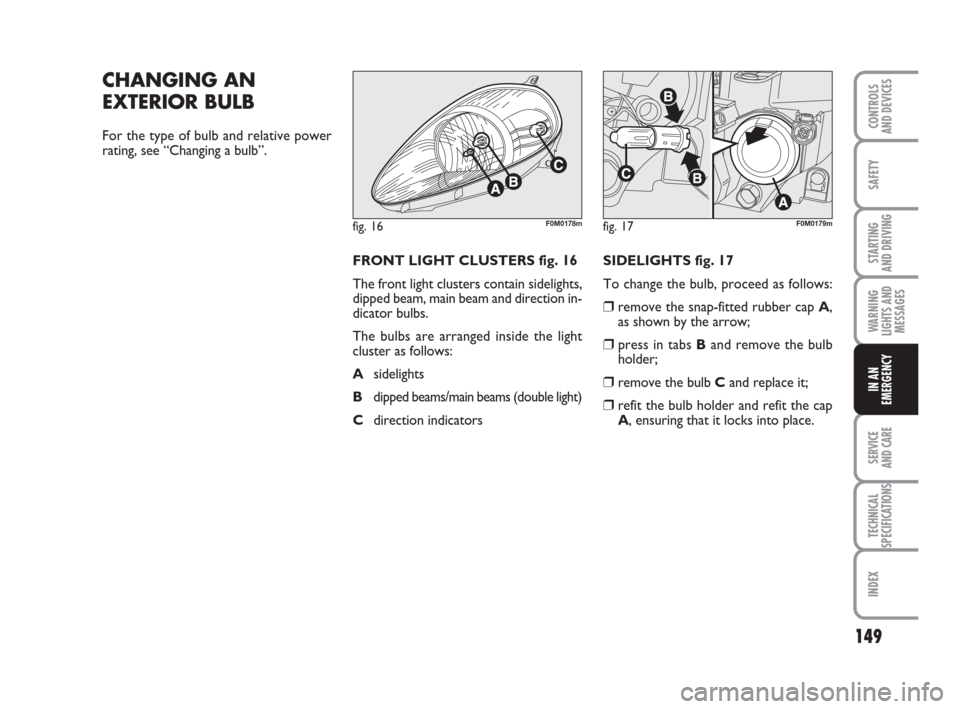

FRONT LIGHT CLUSTERS fig. 16
The front light clusters contain sidelights,
dipped beam, main beam and direction in-
dicator bulbs.
The bulbs are arranged inside the light
cluster as follows:
Asidelights
B
dipped beams/main beams (double light)
Cdirection indicatorsSIDELIGHTS fig. 17
To change the bulb, proceed as follows:
❒remove the snap-fitted rubber cap A,
as shown by the arrow;
❒press in tabs Band remove the bulb
holder;
❒remove the bulb Cand replace it;
❒refit the bulb holder and refit the cap
A, ensuring that it locks into place.
fig. 16F0M0178mfig. 17F0M0179m
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 149

150
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY

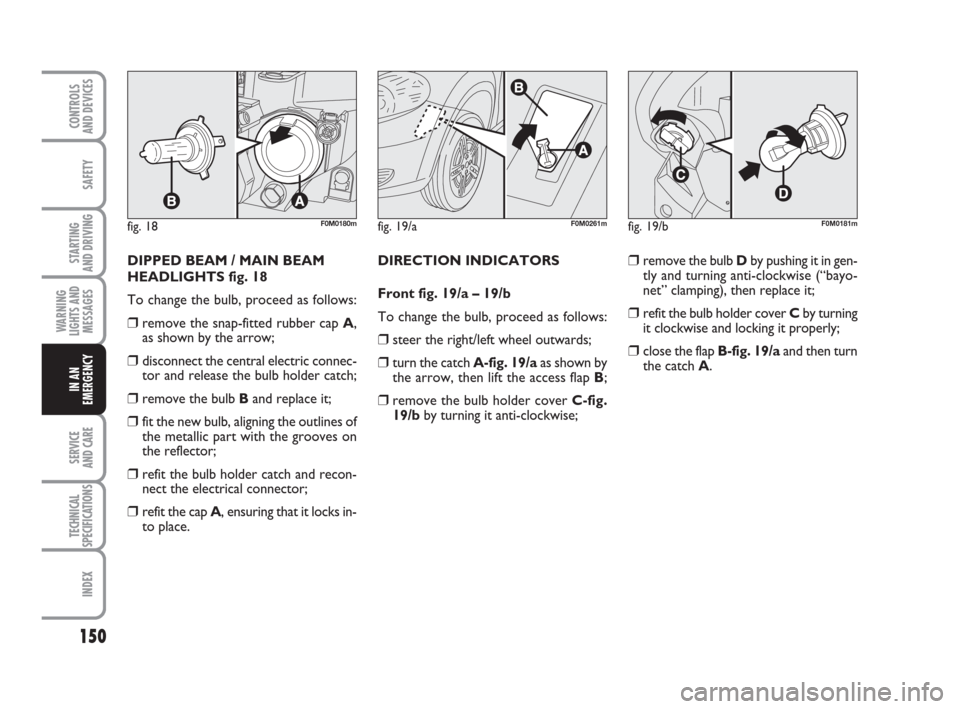

DIPPED BEAM / MAIN BEAM
HEADLIGHTS fig. 18
To change the bulb, proceed as follows:
❒remove the snap-fitted rubber cap A,
as shown by the arrow;
❒disconnect the central electric connec-
tor and release the bulb holder catch;
❒remove the bulb Band replace it;
❒fit the new bulb, aligning the outlines of
the metallic part with the grooves on
the reflector;
❒refit the bulb holder catch and recon-
nect the electrical connector;
❒refit the cap A, ensuring that it locks in-
to place.DIRECTION INDICATORS
Front fig. 19/a – 19/b
To change the bulb, proceed as follows:
❒steer the right/left wheel outwards;
❒turn the catch A-fig. 19/aas shown by
the arrow, then lift the access flap B;
❒remove the bulb holder cover C-fig.
19/bby turning it anti-clockwise;
❒remove the bulb Dby pushing it in gen-
tly and turning anti-clockwise (“bayo-
net” clamping), then replace it;
❒refit the bulb holder cover Cby turning
it clockwise and locking it properly;
❒close the flap B-fig. 19/aand then turn
the catch A.
fig. 18F0M0180mfig. 19/bF0M0181mfig. 19/aF0M0261m
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 150

151
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY

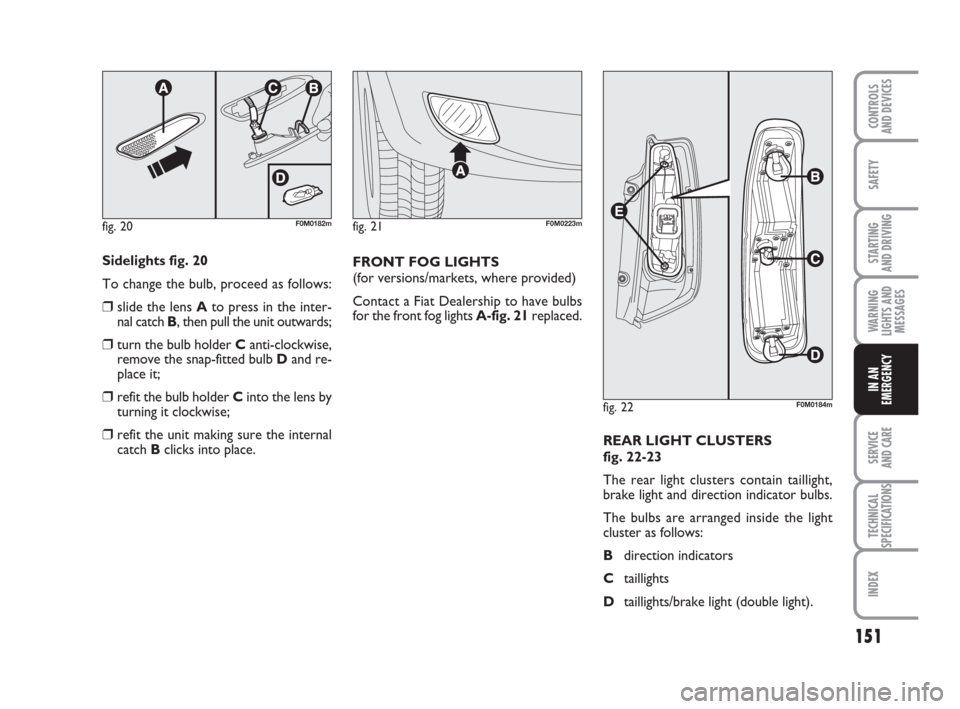

Sidelights fig. 20
To change the bulb, proceed as follows:
❒slide the lens Ato press in the inter-
nal catch B, then pull the unit outwards;
❒turn the bulb holder Canti-clockwise,
remove the snap-fitted bulb Dand re-
place it;
❒refit the bulb holder Cinto the lens by
turning it clockwise;
❒refit the unit making sure the internal
catch Bclicks into place.FRONT FOG LIGHTS
(for versions/markets, where provided)
Contact a Fiat Dealership to have bulbs
for the front fog lights A-fig. 21replaced.
REAR LIGHT CLUSTERS
fig. 22-23
The rear light clusters contain taillight,
brake light and direction indicator bulbs.
The bulbs are arranged inside the light
cluster as follows:
Bdirection indicators
Ctaillights
Dtaillights/brake light (double light).
fig. 20F0M0182m
fig. 22F0M0184m
fig. 21F0M0223m
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 151
