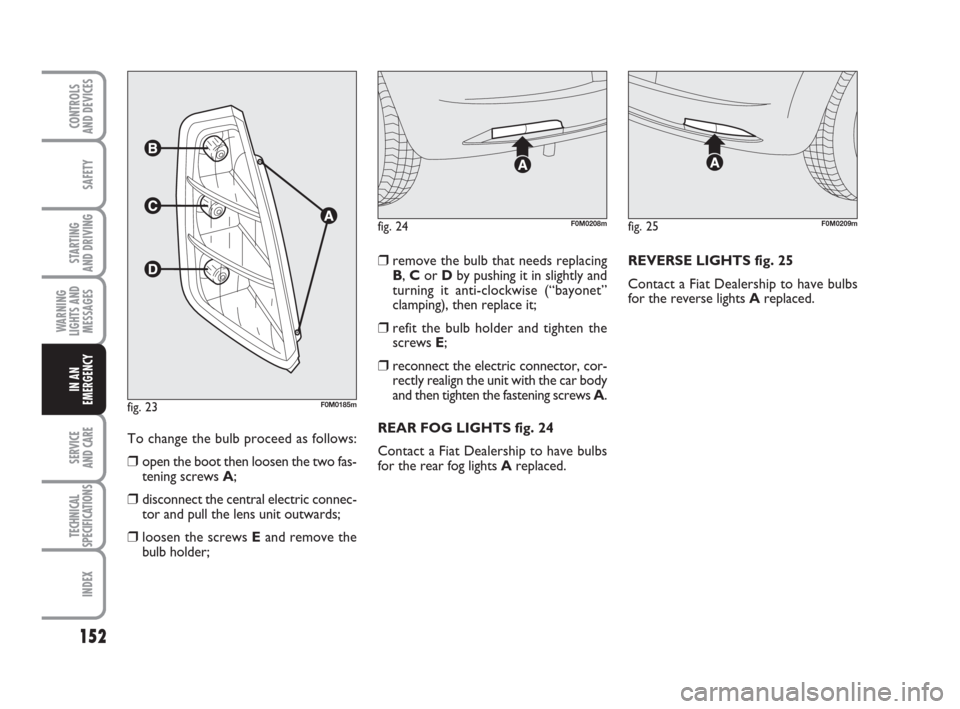

To change the bulb proceed as follows:
❒open the boot then loosen the two fas-
tening screws A;
❒disconnect the central electric connec-
tor and pull the lens unit outwards;
❒loosen the screws Eand remove the
bulb holder;
❒remove the bulb that needs replacing
B, Cor Dby pushing it in slightly and
turning it anti-clockwise (“bayonet”
clamping), then replace it;
❒refit the bulb holder and tighten the
screws E;
❒reconnect the electric connector, cor-
rectly realign the unit with the car body
and then tighten the fastening screws A.
REAR FOG LIGHTS fig. 24
Contact a Fiat Dealership to have bulbs
for the rear fog lights Areplaced.REVERSE LIGHTS fig. 25
Contact a Fiat Dealership to have bulbs
for the reverse lights Areplaced.
fig. 24F0M0208mfig. 25F0M0209m
fig. 23F0M0185m
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 152

153
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY

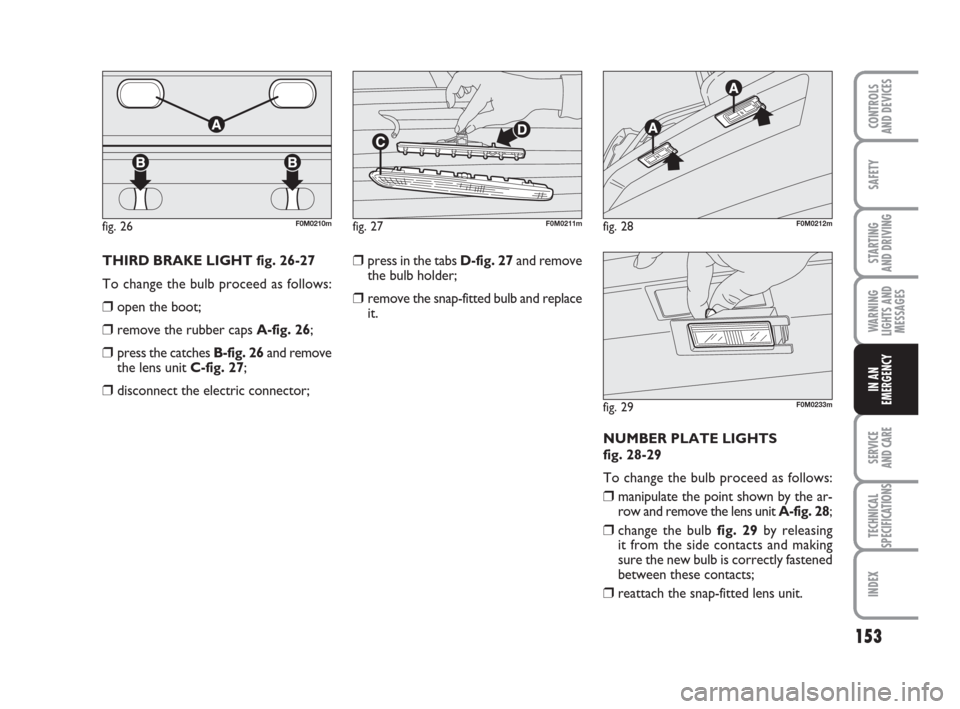

THIRD BRAKE LIGHT fig. 26-27
To change the bulb proceed as follows:
❒open the boot;
❒remove the rubber caps A-fig. 26;
❒press the catches B-fig. 26and remove
the lens unit C-fig. 27;
❒disconnect the electric connector;
❒press in the tabs D-fig. 27and remove
the bulb holder;
❒remove the snap-fitted bulb and replace
it.
NUMBER PLATE LIGHTS
fig. 28-29
To change the bulb proceed as follows:
❒manipulate the point shown by the ar-
row and remove the lens unit A-fig. 28;
❒change the bulb fig. 29by releasing
it from the side contacts and making
sure the new bulb is correctly fastened
between these contacts;
❒reattach the snap-fitted lens unit.
fig. 26F0M0210mfig. 27F0M0211mfig. 28F0M0212m
fig. 29F0M0233m
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 153

154
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
CHANGING
AN INTERIOR BULB
For the type of bulb and relevant power
rating, see “Changing a bulb”.
FRONT CEILING LIGHT
(for versions/markets, where provided)
Proceed as follows to replace the bulbs:
❒manipulate the points shown by the ar-
rows and remove the light D-fig. 30;
❒open the protective flap E-fig. 31;
❒replace bulb F-fig. 33by releasing it
from the side contacts and making sure
that the new bulb is correctly clamped
between these contacts;
❒close the protective flap E-fig. 31and
secure light D-fig. 30into its housing
making sure that it locks into place.
FRONT CEILING LIGHT
WITH SPOT LIGHTS
(for versions/markets, where available)
Proceed as follows to replace the bulbs:
❒manipulate the points shown by the
arrows and remove light A-fig. 32;
❒open the protective flap B;
❒replace bulbs C-fig. 33by releasing
them from the side contacts and mak-
ing sure that new bulbs are correctly
clamped between these contacts;
❒close the lid B-fig. 33and secure light
A-fig. 32into its housing making sure
that it locks into place.
fig. 32F0M0213m
fig. 33F0M0234m
fig. 30F0M0214m
fig. 31F0M0235m
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 154

155
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
CHANGING A FUSE
GENERAL INFORMATION
The fuse is a protective device for the
electric system: it comes into action if
there is a fault or improper action on the
system.
Check the state of the corresponding fuse
when a device does not work: the filament
A-fig. 34must be intact. If it is not, re-
place the blown fuse with a new one of the
same amperage (same colour).
B undamaged fuse fig. 34
Cfuse with damaged filament fig. 34.
fig. 34F0M0236m
Do not replace one fuse with
another of greater amper-
age; FIRE HAZARD.
WARNING
Never replace a damaged fuse
with metal wires or other
recycled material.
If a general protection fuse
(MEGA-FUSE, MIDI-FUSE,
MAXI-FUSE) is activated, contact
a Fiat Dealership.
WARNING
If the same fuse blows again,
contact a Fiat Dealership.
WARNING
Remove the key from the ig-
nition and switch off or dis-
connect all devices before replacing
a fuse.
WARNING
If a general protection fuse
for safety systems (air bag
system, braking system), power unit
systems (engine system, transmission
system) or steering system is triggered,
contact a Fiat Dealership.
WARNING
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 155

156
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
ACCESSING THE FUSES
The fuses are grouped in three control
units: on the dashboard, in the engine
compartment and in the left-hand side of
the boot.
Dashboard fusebox fig. 36
To access the dashboard fusebox, loosen
the screws A-fig. 35and remove the
cover.
fig. 36F0M0415m
3 4 5 6 7
8 9 10 11 12
13 141 2
fig. 35F0M0016m
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 156

157
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
Engine compartment fusebox
fig. 38
To access the fusebox located next to
the battery, remove the protective cover
fig. 37.
fig. 38F0M0417m
fig. 37F0M0416m
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 157

158
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY

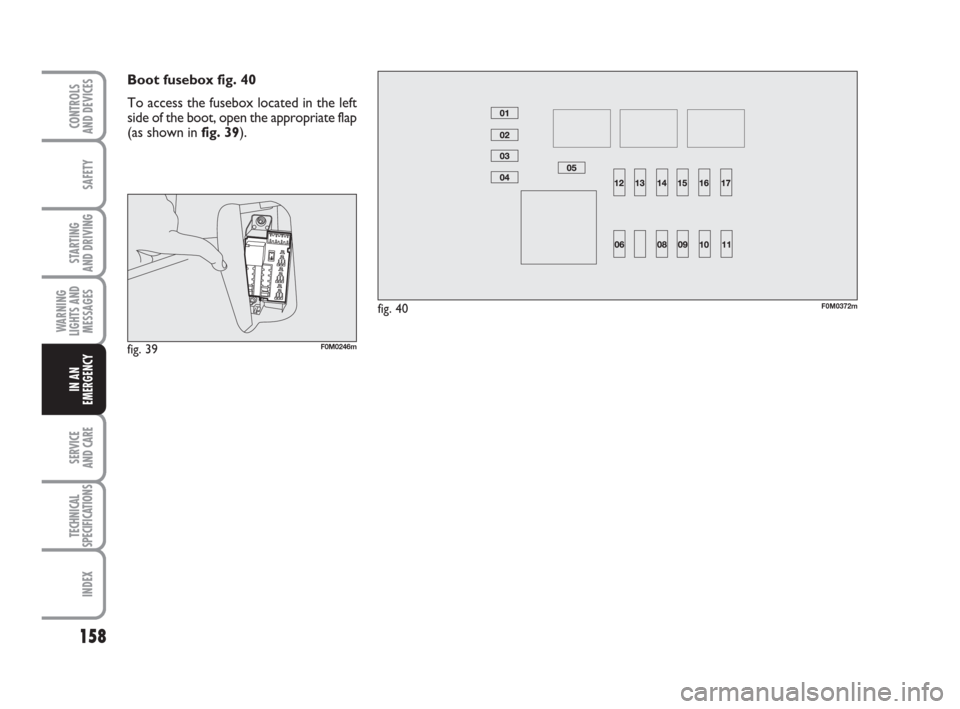

Boot fusebox fig. 40
To access the fusebox located in the left
side of the boot, open the appropriate flap
(as shown infig. 39).
fig. 40F0M0372m
fig. 39F0M0246m
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 158

159
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
1
8
13
2
5
11
4
6
14
7
12
3
107,5
7,5
5
5
10
5
20
20
20
20
5
5
7,5 FUSE TABLE
Dashboard fusebox fig. 36
DEVICESFUSE AMPS
Right dipped beam headlight
Left dipped beam headlight, corrector, headlamp alignment corrector
INT/A supply for switch coils on engine fusebox
and switch coils on body computer control unit
Front ceiling light, rear ceiling light (VAN version)
Supply and battery for EOBD diagnostic plug, alarm, sound system,
Blue&Me control unit
INT supply for instrument panel, switch on brake pedal
(N.O. contact), third brake light
Door locking/unlocking motors, dead lock activation motors,
boot unlocking motor
Windscreen/rear window washer pump
Electric window motor on driver-side front door
Electric window motor on passenger-side front door
INT supply for dashboard control lights, mirror movement exterior electrics,
sunroof control unit, My Port infotelematic system socket
Instrument panel
INT supply for brake pedal switch (NC contact), clutch pedal switch,
interior heating unit, Blue&Me control unit, sound system capabilities,
voltage stabiliser control unit, reverse light on rear bumper,
water sensor on diesel filter, glow plug heating control unit, airflow meter,
brake booster sensor, switch coils on engine compartment fusebox
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 159
