❒spraying protective plastic materials in
the most exposed areas: underdoor, in-
ner mudguard parts, edges, etc.;
❒using “open” boxed sections to prevent
condensation and pockets of moisture
from triggering rust inside.
BODY AND UNDERBODY
WARRANTY
Your car is covered by warranty against
perforation due to corrosion of any origi-
nal element of the structure or bodywork.
For the general terms of this warranty, re-
fer to your Warranty Booklet.
ADVICE FOR PRESERVING
THE BODYWORK
Paint
Paintwork does not only serve an aes-
thetic purpose, but also protects the un-
derlying sheet metal.
Touch up abrasions and scratches immedi-
ately to prevent the formation of rust. Use
only original paint products for touch-ups
(see “Bodywork paint identification” in the
“Technical specifications” section).
BODYWORK
PROTECTION FROM
ATMOSPHERIC AGENTS
The main causes of corrosion are the fol-
lowing:
❒atmospheric pollution;
❒salty air and humidity (coastal areas or
hot and humid climates);
❒seasonal environmental conditions.
The abrasive action of wind-borne at-
mospheric dust and sand, as well as mud
and gravel raised by other cars, should not
be underestimated either.
Fiat used the best manufacturing tech-
nologies on your car to effectively protect
the bodywork against corrosion.
These are the most important:
❒painting products and systems which
give the car particular resistance to cor-
rosion and abrasion;
❒use of galvanised (or pre-treated) steel
sheets with high resistance to corro-
sion;
❒spraying the underbody, engine com-
partment, wheelhouse internal parts
and other elements with highly protec-
tive wax-based products; Rear window washer fig. 12
The rear window washer jets are fixed.
The nozzle holder is located above the
rear window.
fig. 12F0M0164m
167-186 ACTUAL 1ed EN 27-07-2010 10:30 Pagina 184

185
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SERVICE
AND CARE
Standard upkeep of the paintwork consists
of washing the vehicle: the frequency de-
pends on the conditions and environment
where the vehicle is used. For example, it
is advisable to wash the car more often in
areas with high atmospheric pollution or
on gritted roads.
To wash the car properly, proceed as fol-
lows:
❒if taking your car through an automat-
ic car wash, remove the aerial from the
roof;
❒wash the body using a low-pressure jet
of water;
❒use a sponge to wipe a slightly soapy so-
lution over the bodywork, frequently
rinsing the sponge;
❒rinse with plenty of water and dry with
a jet of air or a chamois leather.
Take particular care when drying the less
visible parts, such as the door, bonnet and
headlight frames, where water can stagnate
more easily. It is a good idea to leave the
car in the open for a while after washing
it to give time for the water to evaporate.Do not wash the car after it has been left
in the sun or with the bonnet hot: this may
alter the shine of the paintwork.
Exterior plastic parts must be cleaned in
the same way as the rest of the car.
Where possible, do not park under trees;
the resinous substances that fall off many
species give the paint a dull appearance
and increase the possibility of triggering
rust processes.
IMPORTANT Bird droppings should be
washed off immediately and thoroughly
as the acid they contain is particularly
aggressive.Detergents pollute water. The
vehicle should be washed only
in areas equipped for collect-
ing and purifying the liquids
used in the washing process.
Windows
Use specific detergents to clean the win-
dows.
Also use clean cloths to avoid scratching
the glass or altering the transparency.
IMPORTANT Wipe the rear window
gently with a cloth in the direction of the
filaments to avoid damaging the heating
device.
Engine compartment
Wash the engine compartment thor-
oughly at the end of every winter. Be care-
ful not to direct the jet of water onto elec-
tronic control units. Adequately protect
the upper air vents to prevent damage to
the windscreen wiper motor. Have this
operation performed at a specialised
workshop.
IMPORTANT Washing should take place
with a cold engine and with the key at
STOP. After the wash, make sure that
the various protective devices (e.g. rubber
caps and guards) have not been removed
or damaged.
Front headlights
IMPORTANT Never use aromatic sub-
stances (e.g. petrol) or ketenes (e.g. ace-
tone) for cleaning the plastic lenses of the
front headlights.
167-186 ACTUAL 1ed EN 27-07-2010 10:30 Pagina 185

186
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SERVICE
AND CARE

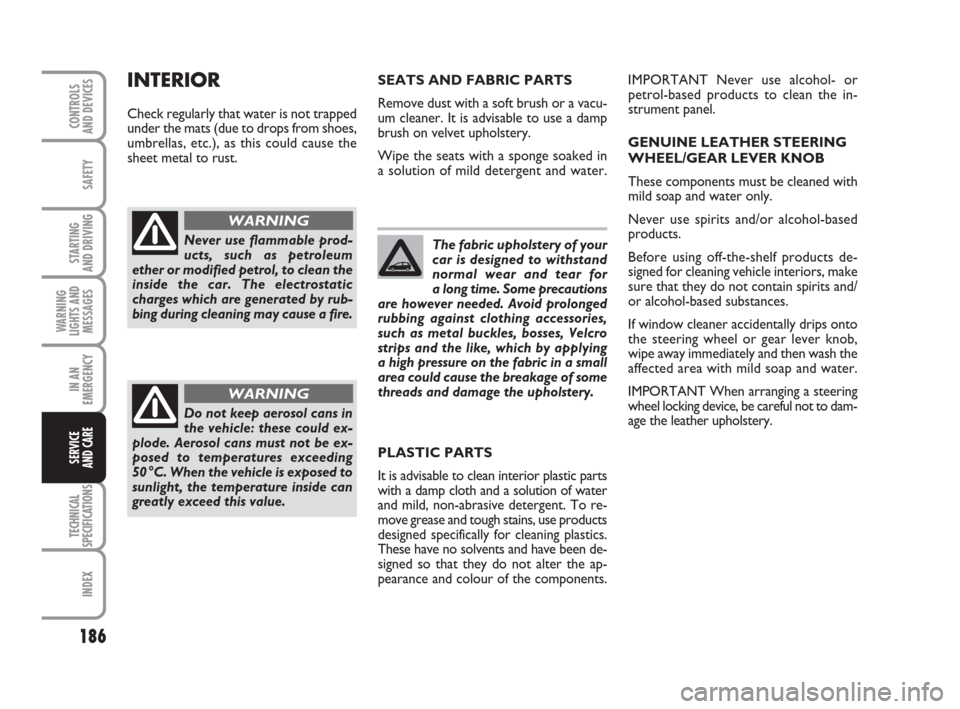

The fabric upholstery of your
car is designed to withstand
normal wear and tear for
a long time. Some precautions
are however needed. Avoid prolonged
rubbing against clothing accessories,
such as metal buckles, bosses, Velcro
strips and the like, which by applying
a high pressure on the fabric in a small
area could cause the breakage of some
threads and damage the upholstery. SEATS AND FABRIC PARTS
Remove dust with a soft brush or a vacu-
um cleaner. It is advisable to use a damp
brush on velvet upholstery.
Wipe the seats with a sponge soaked in
a solution of mild detergent and water.
Never use flammable prod-
ucts, such as petroleum
ether or modified petrol, to clean the
inside the car. The electrostatic
charges which are generated by rub-
bing during cleaning may cause a fire.
WARNING
Do not keep aerosol cans in
the vehicle: these could ex-
plode. Aerosol cans must not be ex-
posed to temperatures exceeding
50 °C. When the vehicle is exposed to
sunlight, the temperature inside can
greatly exceed this value.
WARNING
INTERIOR
Check regularly that water is not trapped
under the mats (due to drops from shoes,
umbrellas, etc.), as this could cause the
sheet metal to rust.IMPORTANT Never use alcohol- or
petrol-based products to clean the in-
strument panel.
GENUINE LEATHER STEERING
WHEEL/GEAR LEVER KNOB
These components must be cleaned with
mild soap and water only.
Never use spirits and/or alcohol-based
products.
Before using off-the-shelf products de-
signed for cleaning vehicle interiors, make
sure that they do not contain spirits and/
or alcohol-based substances.
If window cleaner accidentally drips onto
the steering wheel or gear lever knob,
wipe away immediately and then wash the
affected area with mild soap and water.
IMPORTANT When arranging a steering
wheel locking device, be careful not to dam-
age the leather upholstery.
PLASTIC PARTS
It is advisable to clean interior plastic parts
with a damp cloth and a solution of water
and mild, non-abrasive detergent. To re-
move grease and tough stains, use products
designed specifically for cleaning plastics.
These have no solvents and have been de-
signed so that they do not alter the ap-
pearance and colour of the components.
167-186 ACTUAL 1ed EN 27-07-2010 10:30 Pagina 186

187
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
IDENTIFICATION DATA ................................................. 188
ENGINE CODES – BODYWORK VERSIONS ............. 184
ENGINE .................................................................................. 191
FUEL SUPPLY ........................................................................ 192
TRANSMISSION .................................................................. 192
BRAKES .................................................................................. 193
SUSPENSIONS ...................................................................... 193
STEERING SYSTEM ............................................................. 193
WHEELS ................................................................................. 194
PERFORMANCES ................................................................ 197
DIMENSIONS ....................................................................... 198
WEIGHTS .............................................................................. 199
CAPACITIES .......................................................................... 201
FLUIDS AND LUBRICANTS ............................................. 202
FUEL CONSUMPTION ...................................................... 204
CO
2EMISSIONS .................................................................. 204
T T
E E
C C
H H
N N
I I
C C
A A
L L

S S
P P
E E
C C
I I
F F
I I
C C
A A
T T
I I
O O
N N
S S
187-204 ACTUAL 1ed EN 26-07-2010 16:08 Pagina 187

188
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
VIN PLATE fig. 1
The plate can be found on the left side of
the boot floor and it bears the following
identification data:
BType-approval number.
CVehicle type code.
DChassis number.
EMaximum vehicle weight fully loaded.
FMaximum vehicle weight fully loaded
with trailer.
GMaximum weight on front axle.HMaximum weight on rear axle.
IEngine type.
LBody version code.
MNumber for spare parts.
NCorrect smoke opacity index (for
diesel engines).
IDENTIFICATION DATA
We recommend taking note of the iden-
tification codes. The following identifica-
tion codes are printed and shown on the
plates:
❒Vehicle identification number (VIN)
plate.
❒Chassis marking.
❒Bodywork paint identification plate.
❒Engine marking.
fig. 1F0M0368m
187-204 ACTUAL 1ed EN 26-07-2010 16:08 Pagina 188

189
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS

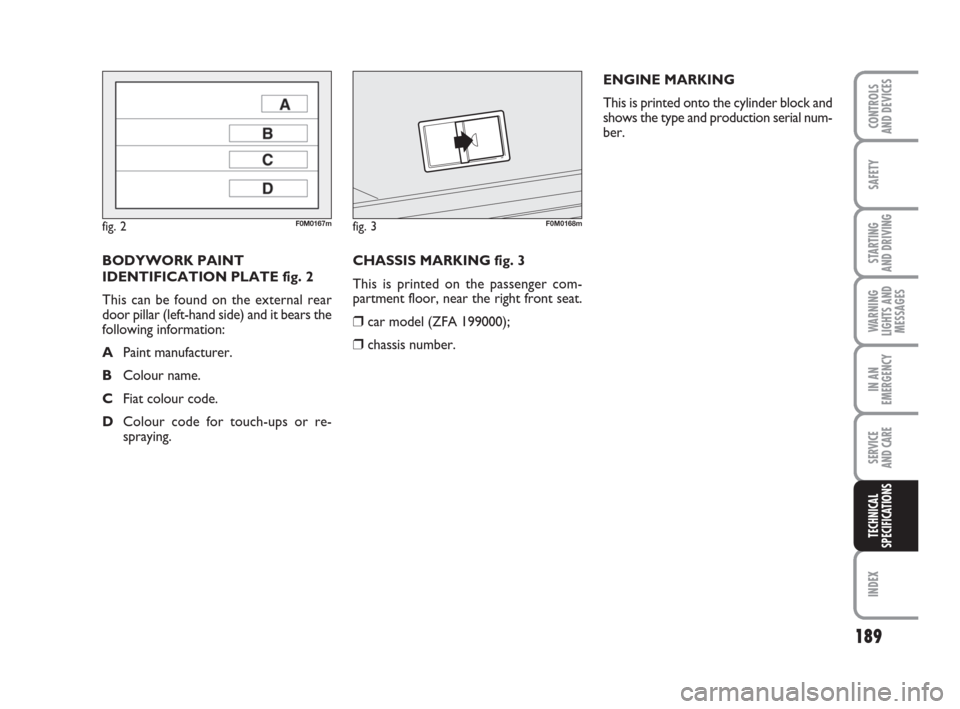

CHASSIS MARKING fig. 3
This is printed on the passenger com-
partment floor, near the right front seat.
❒car model (ZFA 199000);
❒chassis number.ENGINE MARKING
This is printed onto the cylinder block and
shows the type and production serial num-
ber.
BODYWORK PAINT
IDENTIFICATION PLATE fig. 2
This can be found on the external rear
door pillar (left-hand side) and it bears the
following information:
APaint manufacturer.
BColour name.
CFiat colour code.
DColour code for touch-ups or re-
spraying.
fig. 2F0M0167mfig. 3F0M0168m
187-204 ACTUAL 1ed EN 26-07-2010 16:08 Pagina 189

190
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS

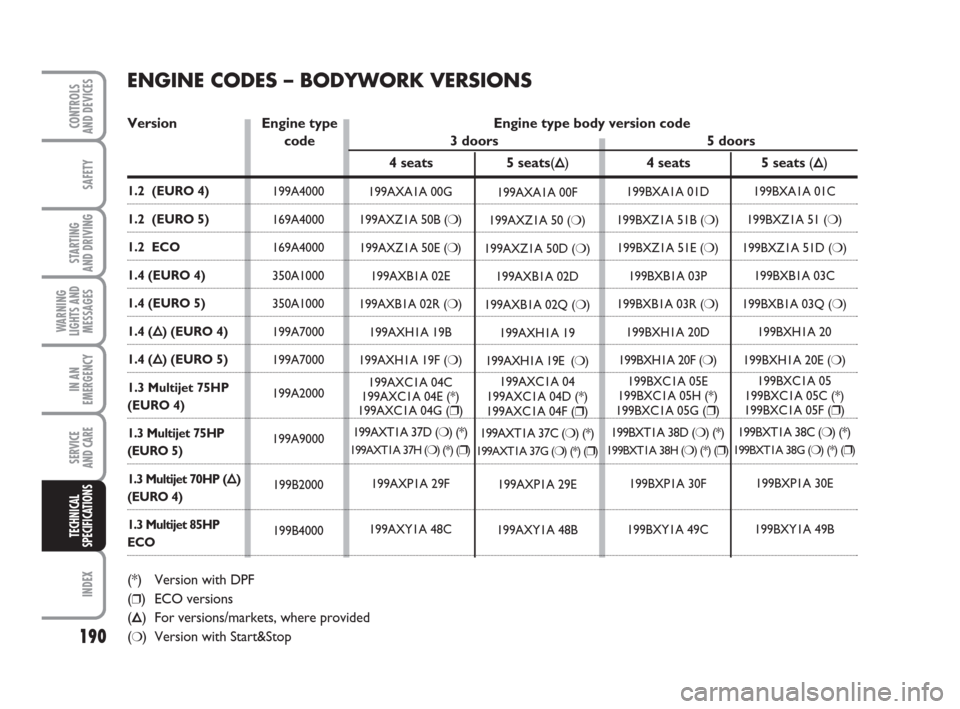

ENGINE CODES – BODYWORK VERSIONS
Version Engine type Engine type body version code
code 3 doors 5 doors
4 seats 5 seats(Õ)4 seats 5 seats(Õ)
1.2 (EURO 4)
1.2 (EURO 5)
1.2 ECO
1.4 (EURO 4)
1.4 (EURO 5)
1.4 (Õ) (EURO 4)
1.4 (Õ) (EURO 5)
1.3 Multijet 75HP
(EURO 4)
1.3 Multijet 75HP
(EURO 5)
1.3 Multijet 70HP (Õ)
(EURO 4)
1.3 Multijet 85HP
ECO
(*) Version with DPF
(
❒) ECO versions
(
Õ) For versions/markets, where provided
(
❍) Version with Start&Stop
199A4000
169A4000
169A4000
350A1000
350A1000
199A7000
199A7000
199A2000
199A9000
199B2000
199B4000199BXA1A 01D
199BXZ1A 51B (❍)
199BXZ1A 51E (❍)
199BXB1A 03P
199BXB1A 03R (❍)
199BXH1A 20D
199BXH1A 20F (❍)
199BXC1A 05E
199BXC1A 05H (*)
199BXC1A 05G (❒)
199BXT1A 38D (❍) (*)
199BXT1A 38H (❍) (*) (❒)
199BXP1A 30F
199BXY1A 49C199BXA1A 01C
199BXZ1A 51 (❍)
199BXZ1A 51D (❍)
199BXB1A 03C
199BXB1A 03Q (❍)
199BXH1A 20
199BXH1A 20E (❍)
199BXC1A 05
199BXC1A 05C (*)
199BXC1A 05F (❒)
199BXT1A 38C (❍) (*)
199BXT1A 38G (❍) (*) (❒)
199BXP1A 30E
199BXY1A 49B 199AXA1A 00G
199AXZ1A 50B (❍)
199AXZ1A 50E (❍)
199AXB1A 02E
199AXB1A 02R (❍)
199AXH1A 19B
199AXH1A 19F (❍)
199AXC1A 04C
199AXC1A 04E (*)
199AXC1A 04G (❒)
199AXT1A 37D (❍) (*)
199AXT1A 37H (❍) (*) (❒)
199AXP1A 29F
199AXY1A 48C199AXA1A 00F
199AXZ1A 50 (❍)
199AXZ1A 50D (❍)
199AXB1A 02D
199AXB1A 02Q (❍)
199AXH1A 19
199AXH1A 19E (❍)
199AXC1A 04
199AXC1A 04D (*)
199AXC1A 04F (❒)
199AXT1A 37C (❍) (*)
199AXT1A 37G (❍) (*) (❒)
199AXP1A 29E
199AXY1A 48B
187-204 ACTUAL 1ed EN 26-07-2010 16:08 Pagina 190

191
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
ENGINE
INFORMATION
Type code
Cycle
Number and layout of cylinders
Piston bore and stroke mm
Total capacity cm3
Compression ratio
Max power (EEC) kW
HP
corresponding speed rpm
Max torque (EEC) Nm
kgm
corresponding speed rpm
Spark plugs
Fuel
(Õ) For versions/markets, where provided
(*) EURO 5
1.3 Multijet
199A2000
199B2000 (Õ)
199A9000 (*)
Diesel
4 in line
69.6 × 82
1248
17.6:1/16.8:1 (*)
55
75/70 (
Õ)
4000
190
19.4
1750/1500 (*)
–
Diesel for
motor vehicles
(EN590
specifications)
1.4
350A1000
199A7000 (Õ)
Otto
4 in line
72 × 84
1368
11.1:1
57
77/75 (
Õ)
6000
115
11.7
3000
NGK
ZKR7A-10
Unleaded petrol
95 RON
(Specification
EN228)
1.2 (Euro 4)
199A4000
Otto
4 in line
70.8 × 78.86
1242
11.1:1
48
65
5500
102
10.4
3000
NGK
ZKR7A-10
Unleaded petrol
95 RON
(Specification
EN228)
1.3 Multijet
85HP ECO
199B4000
Diesel
4 in line
69.6 x 82
1248
16.8:1
62
85
3500
200
20.4
1500
–
Diesel for
motor vehicles
(EN590
specifications)
1.2 (Euro 5)
169A4000
Otto
4 in line
70.8 x 78.86
1242
11.1:1
51
69
5500
102
10.4
3000
NGK
ZKR7A-10
Unleaded petrol
95 RON
(Specification
EN228)
187-204 ACTUAL 1ed EN 26-07-2010 16:08 Pagina 191
