2016 FIAT GRANDE PUNTO ACTUAL Owners Manual

8
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
KEY WITH REMOTE CONTROL
fig. 4
(for versions/markets, where provided)
The metal insert Aenables:
❒the ignition;
❒the door locks;
❒the fuel cap lock/release (for versions/
markets, where provided).
To open/close the metal insert, press
button B.
Button Ëis used for unlocking the doors
and the boot.
Button
Áis used for locking the doors and
the boot.
Button
Ris used to open the boot re-
motely.
When unlocking the doors, the passenger
compartment lights will come on for
a preset time.
THE KEYS
CODE CARD fig. 3
(for versions/markets, where provided)
The car is delivered with two copies of the
ignition key and with the CODE card
which bears the following:
Athe electronic code;
Bthe mechanical key code to be given to
the Fiat Dealership when ordering du-
plicate keys.
You should have the electronic code A-
fig. 3with you at all times.
IMPORTANT In order to ensure com-
plete efficiency of the electronic devices
inside the keys, they should never be ex-
posed to direct sunlight.
All the keys and the CODE
card must be handed over to
the new owner when selling
the car.
fig. 3F0M0351m
Press button B only with the
key away from your body,
specifically from your eyes and from
objects which could get damaged (e.g.
your clothes). Do not leave the key
unattended to avoid the button being
accidentally pressed while it is being
handled, e.g. by a child.
WARNING
fig. 4F0M0394mfig.
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 8

9
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Dashboard LED indications
When locking the doors, LED A-fig. 5
switches on for about 3 seconds and than
starts flashing (deterrence function).
Once doors are locked, if one or more
doors or the boot are not closed cor-
rectly, the LED and direction indicators
start flashing quickly.
fig. 5F0M0013m
fig. 7
fig. 6F0M0395m
F0M0396m
REPLACING THE BATTERY
OF THE KEY WITH REMOTE
CONTROL fig. 6
To replace the battery, proceed as fol-
lows:
❒press button Aand open the metal in-
sert B;
❒turn the screw Cto :using a fine
screwdriver;
❒take out the battery case Dand replace
the battery E, respecting its polarity;
❒refit the battery case Dinside the key
and lock it turning the screw Cto Á.REPLACEMENT OF REMOTE
CONTROL COVER fig. 7
To replace the remote control cover, fol-
low the procedure shown in the diagram.
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 9

10
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
KEY WITHOUT REMOTE
CONTROL fig. 8
The metal insert of the key Ais fixed.
The key operates:
❒the ignition;
❒the door locks;
❒the fuel tank cap lock (for versions/
markets, where provided).
fig. 8F0M0352m
ALARM
The car alarm system is available at Lin-
eaccessori Fiat.
Used batteries are harmful to
the environment. You can dis-
pose of them either in the
correct containers as speci-
fied by law or by taking them to a Fiat
Dealership, which will deal with their
disposal.
Requesting additional
remote controls
The system acknowledges up to 8 remote
controls. Should a new remote control be
necessary, contact a Fiat Dealership, tak-
ing with you the CODE card, a personal
identity document and the car’s owner-
ship documents.
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 10

11
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
The main functions that can be activated with the keys (with or without remote control) are the following:
Type of key
Key without remote control
Key with remote control
Visual indication
Direction indicators flashing
(only for key with
remote control)
Deterrence LED
Unlocking
the doors
Turn key
anticlockwise
(driver’s side)
Turn key
anticlockwise
(driver’s side)
Press briefly
b
utton Ë
blinks twice
OffDoor locking
from
the outside
Turn key
clockwise
(driver’s side)
Turn key
clockwise
(driver’s side)
Press briefly
button
Á
blinks once
Lit for about
3 seconds followed
by deterrence LED
flashingDead Lock
activation
(*)
–
–
Press twice
button
Á
blinks three times
Double flash,
followed by
deterrence
flashingUnlocking
the boot
–
–
Press briefly
button
R
blinks twice
Deterrence
LED
(*) For versions/markets, where provided.
IMPORTANT Window opening operation is a consequence of a door unlocking control; window closing operation is a consequence
of a door locking control.
Opening
windows
(*)
–
–
Hold downbutton Ëfor more
than two seconds)
blinks twice
OffClosing
windows
(*)
–
–Hold downbutton Áfor more
than two seconds)
blinks once
Deterrence
LED
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 11

12
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

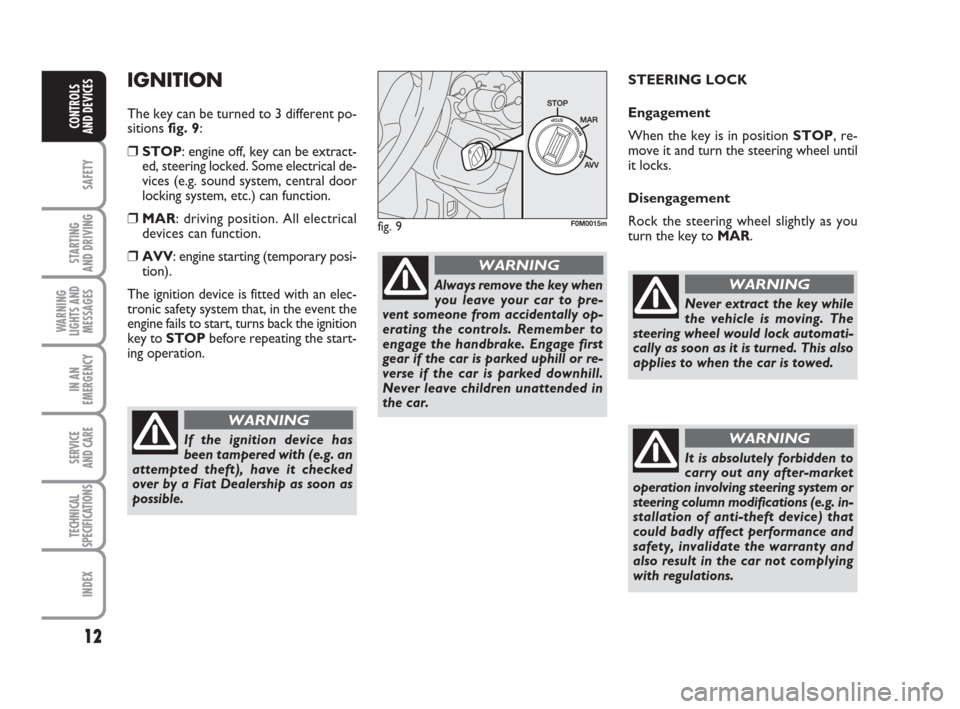

IGNITION
The key can be turned to 3 different po-
sitions fig. 9:
❒STOP: engine off, key can be extract-
ed, steering locked. Some electrical de-
vices (e.g. sound system, central door
locking system, etc.) can function.
❒MAR: driving position. All electrical
devices can function.
❒AVV: engine starting (temporary posi-
tion).
The ignition device is fitted with an elec-
tronic safety system that, in the event the
engine fails to start, turns back the ignition
key to STOPbefore repeating the start-
ing operation.STEERING LOCK
Engagement
When the key is in position STOP, re-
move it and turn the steering wheel until
it locks.
Disengagement
Rock the steering wheel slightly as you
turn the key to MAR.
If the ignition device has
been tampered with (e.g. an
attempted theft), have it checked
over by a Fiat Dealership as soon as
possible.
WARNING
Always remove the key when
you leave your car to pre-
vent someone from accidentally op-
erating the controls. Remember to
engage the handbrake. Engage first
gear if the car is parked uphill or re-
verse if the car is parked downhill.
Never leave children unattended in
the car.
WARNING
fig. 9F0M0015m
Never extract the key while
the vehicle is moving. The
steering wheel would lock automati-
cally as soon as it is turned. This also
applies to when the car is towed.
WARNING
It is absolutely forbidden to
carry out any after-market
operation involving steering system or
steering column modifications (e.g. in-
stallation of anti-theft device) that
could badly affect performance and
safety, invalidate the warranty and
also result in the car not complying
with regulations.
WARNING
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 12

13
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

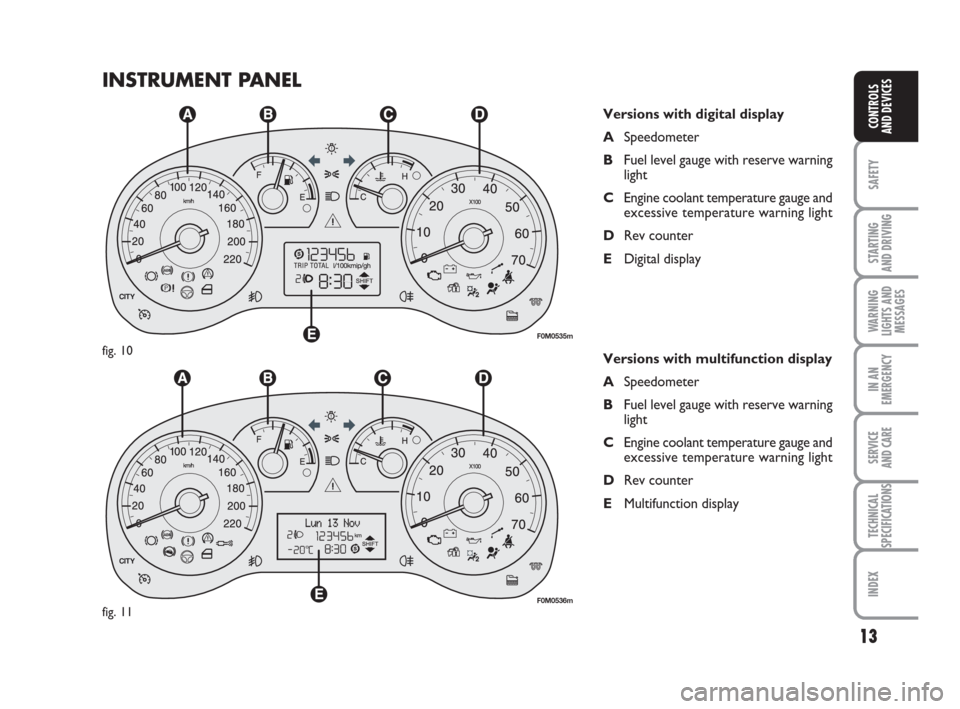

INSTRUMENT PANEL
Versions with digital display
ASpeedometer
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EDigital display
Versions with multifunction display
ASpeedometer
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EMultifunction display
F0M0535m
fig. 10
F0M0536mfig. 11
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 13

14
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

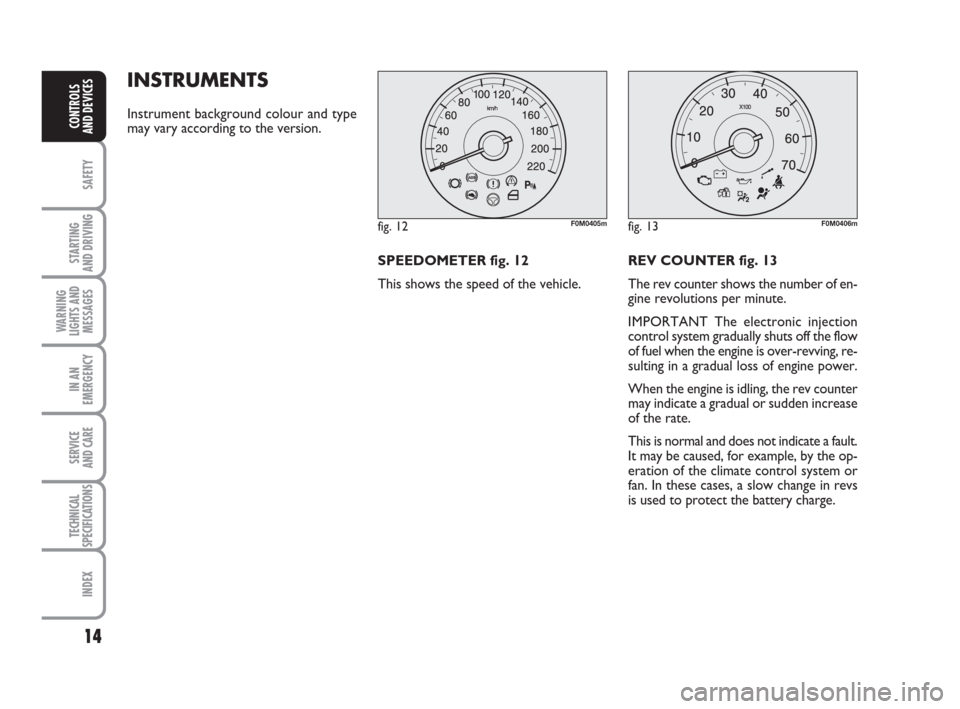

INSTRUMENTS
Instrument background colour and type
may vary according to the version.
SPEEDOMETER fig. 12
This shows the speed of the vehicle.REV COUNTER fig. 13
The rev counter shows the number of en-
gine revolutions per minute.
IMPORTANT The electronic injection
control system gradually shuts off the flow
of fuel when the engine is over-revving, re-
sulting in a gradual loss of engine power.
When the engine is idling, the rev counter
may indicate a gradual or sudden increase
of the rate.
This is normal and does not indicate a fault.
It may be caused, for example, by the op-
eration of the climate control system or
fan. In these cases, a slow change in revs
is used to protect the battery charge.
fig. 12F0M0405mfig. 13F0M0406m
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 14

15
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

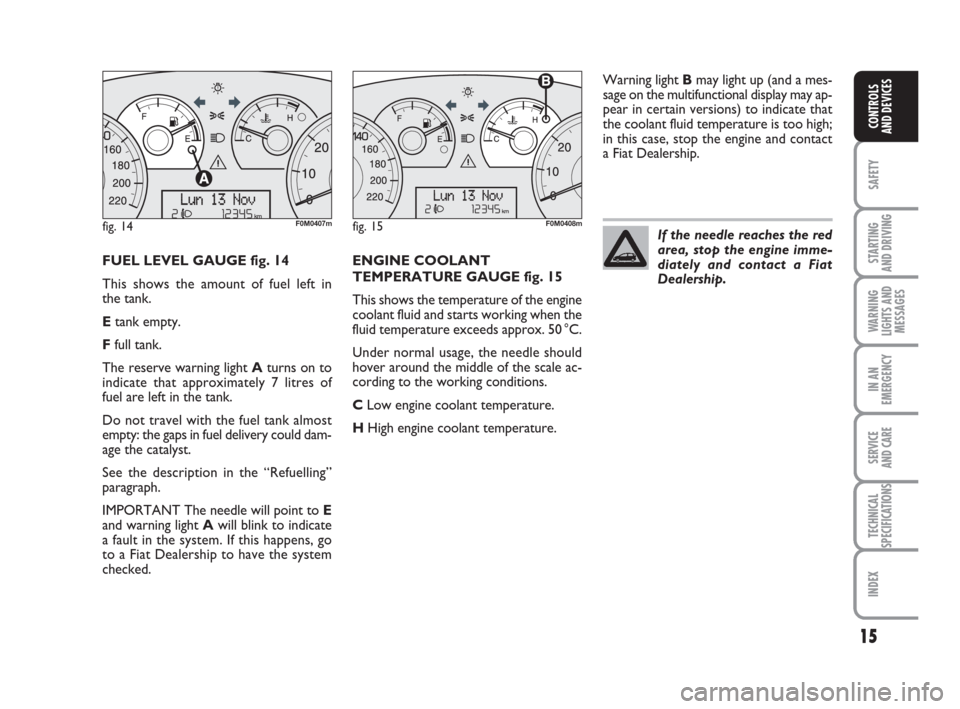

FUEL LEVEL GAUGE fig. 14
This shows the amount of fuel left in
the tank.
Etank empty.
Ffull tank.
The reserve warning light Aturns on to
indicate that approximately 7 litres of
fuel are left in the tank.
Do not travel with the fuel tank almost
empty: the gaps in fuel delivery could dam-
age the catalyst.
See the description in the “Refuelling”
paragraph.
IMPORTANT The needle will point to E
and warning light Awill blink to indicate
a fault in the system. If this happens, go
to a Fiat Dealership to have the system
checked.ENGINE COOLANT
TEMPERATURE GAUGE fig. 15
This shows the temperature of the engine
coolant fluid and starts working when the
fluid temperature exceeds approx. 50 °C.
Under normal usage, the needle should
hover around the middle of the scale ac-
cording to the working conditions.
CLow engine coolant temperature.
HHigh engine coolant temperature.Warning light Bmay light up (and a mes-
sage on the multifunctional display may ap-
pear in certain versions) to indicate that
the coolant fluid temperature is too high;
in this case, stop the engine and contact
a Fiat Dealership.
If the needle reaches the red
area, stop the engine imme-
diately and contact a Fiat
Dealership.
fig. 14F0M0407mfig. 15F0M0408m
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 15
