FUEL CONSUMPTION
The fuel consumption figures given in the tables below are determined on the basis of the type-approval tests laid down by
specific European Directives.
These consumption values refer to basic vehicles without optionals.
The procedures below are followed for measuring consumption:
❒urban cycle: begins with cold starting, followed by driving simulating the use of the vehicle in town;
❒extra-urban cycle: driving that simulates using the vehicle out of town with frequent acceleration in all gears; the speed varies
from 0 to 120 km/h;
❒combined consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the extra-urban
cycle.
IMPORTANT The type of route, traffic situations, weather conditions, driving style, general conditions of the vehicle, trim
level/equipment/accessories, climate control system, vehicle load, roof rack, other situations that affect aerodynamics or air
drag may lead to different fuel consumption levels than those measured.
333

Fuel consumption (according to the current European Directive - litres/100 km)
VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
110 (°)/130/
150 MultiJet
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Cab chassis with load platform
- CH1 - MH1 - LH1
3000 - 3150(**)8.4 6.3 7.1
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH17,0 5,1 5,8
Van - CH1 - CH2 - MH1 - MH2 - Combi -
MH1 - MH28,6 6,5 7,3
Flatbed CH1 - MH1 - MDH1 7,7 5,7 6,4
Panorama - CH1 8,6 6,0 7,0
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Long cab flatbed - MH1 - LH1
33008,4 6,3 7,1
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH17,0 5,1 5,8
Cab chassis with load platform - CH1 -
MH1 - LH1 - - Long cab chassis - LH1 -
MH1 - Panorama - MH1 - MH28,6 6,5 7,3
Flatbed CH1 - MH1 - MDH1 - LH1 - Van
- CH1 - CH2 - MH1 - MH2 - LH2 - LH37,7 5,7 6,4
Combi CH1 - MH1 - MH2 8,2 5,5 6,5
(°)Version for specific markets
(**) Panorama versions
334
TECHNICAL SPECIFICATIONS

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
110 (°)/130/
150 MultiJet
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Cab chassis with load platform
- CH1 - MH1 - LH1 - - Long cab chassis
- LH1 - MH1
35008,6 6,5 7,3
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH17,0 5,1 5,8
Flatbed CH1 - MH1 - MDH1 - LH1 -
XLH1 - Van - CH1 - CH2 - MH1 - MH2 -
LH2 - LH3 - XLH2 - XLH37,7 5,7 6,4
Long cab flatbed MH1 - LH1 - XLH1 8,4 6,3 7,1
Combi MH1 - MH2 - LH2 8,4 5,8 6,8
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Chassis without cab - CH1 -
MH1 - LH1 - MLH1 - XXLH1 - Cab
chassis with load platform - CH1 - MH1 -
LH1 - Long cab chassis - LH1 - MH1 -
Long cab flatbed - MH1 - LH1 - XLH1
3995 - 4005 - 42508,4 6,3 7,1
Van - CH1 - MH2 - LH2 - LH3 -XLH2 -
XLH3 - Flatbed - LH1 MDH1 - MH1
-XLH18,2 6,3 7,0
Minibus LH2 8,6 6,0 7,0
(°)Version for specific markets
335

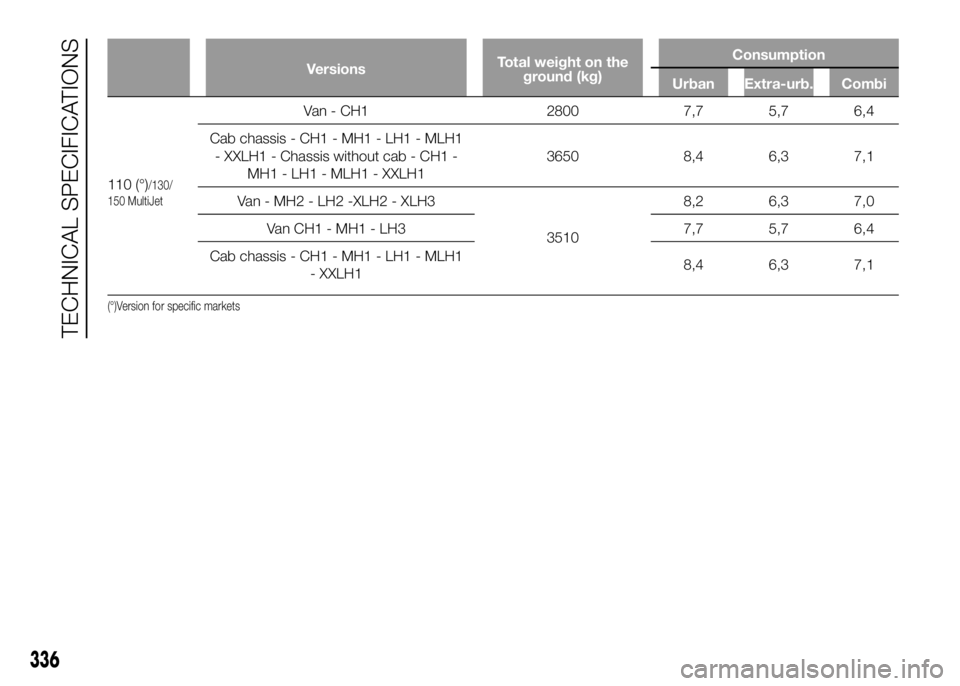

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
110 (°)/130/
150 MultiJet
Van - CH1 2800 7,7 5,7 6,4
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Chassis without cab - CH1 -
MH1 - LH1 - MLH1 - XXLH13650 8,4 6,3 7,1
Van - MH2 - LH2 -XLH2 - XLH3
35108,2 6,3 7,0
Van CH1 - MH1 - LH3 7,7 5,7 6,4
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH18,4 6,3 7,1
(°)Version for specific markets
336
TECHNICAL SPECIFICATIONS

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
150 Multijet
Euro6Combi - CH1 3000 - 3150(**)
/ 33006.2 5.4 5.7
Combi - MH1 - MH2 3300 - 3500 6.4 5.4 5.8
Combi - MH2 3500 Heavy 6.6 5.4 5.8
Panorama / Combi - CH1 - MH1 - MH2 -
LH23000 - 3150 - 3300 -
35006.7 5.5 5.9
Minibus LH2 - XLH2 4250 - 4300 6.8 5.5 6.0
(**) Panorama versions
337

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
115 MultiJetV
an - CH1 2800 8,5 6,5 7,2
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1
30008,0 6,1 6,8
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH17,4 4,6 5,6
Cab chassis with load platform - CH1 -
MH1 - LH18,2 6,3 7,0
Van - CH1 - CH2 - MH1 - MH2 8,5 6,5 7,2
Flatbed - CH1 - MH1 - MDH1 7,6 5,5 6,3
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1
33008,2 6,3 7,0
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH17,6 5,2 6,1
Cab chassis with load platform - CH1 -
MH1 - LH1 - Van - CH1 - CH2 - MH1 -
MH2 - LH2 -LH38,5 6,5 7,2
Long cab chassis - LH1 - MH1 8,5 6,5 7,2
Flatbed - CH1 - MH1 - LH1 - MDH1 7,6 5,5 6,3
Long cab flatbed - MH1 - LH1 8,0 6,1 6,8
338
TECHNICAL SPECIFICATIONS

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
115 MultijetPanorama- Combi - CH1 3000 -3150(**)
/ 33008.0 5.4 6.4
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1
35008,5 6,5 7,2
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH17,6 5,2 6,1
Cab chassis with load platform - CH1 -
MH1 - LH1 - Van - CH1 - CH2 - MH1 -
MH2 - Long cab chassis - LH1 - MH18,5 6,5 7,2
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1
3650 8,5 6,5 7,2
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH1
(**) Panorama versions
339

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
180 MultijetCab
chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Cab chassis with load platform
- CH1 - MH1 - LH1 - Van - CH1 - CH2 -
MH1 - MH2
3000 - 3150(**)11 7.1 8.5
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH19,1 6,1 7,2
Flatbed - CH1 MH1 - Van - CH1 - CH2 -
MH1 - MH29,7 6,5 7,7
Panorama CH1 10,7 6,4 8,0
Combi CH1 9,5 5,5 7,0
(**) Panorama versions
340
