2016 FIAT DUCATO BASE CAMPER Owner handbook (in English)

WEIGHTS OF CHASSIS WITHOUT CAB
3500 kg GVW versions
115 MultiJet (*)110 (*)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1245 ÷ 1360 1260 ÷ 1375 1340 ÷ 1455
Maximum permitted loads (***)
– front axle: 1850 1850 1850
– rear axle: 2000 2000 2000
– total: 3500 3500 3500
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
309

WEIGHTS OF CHASSIS WITHOUT CAB
3650 kg GVW versions
115 MultiJet (*)110 (*)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1245 ÷ 1360 1260 ÷ 1375 1340 ÷ 1455
Maximum permitted loads (***)
– front axle: 1850 1850 1850
– rear axle: 2000 2000 2000
– total: 3650 3650 3650
Towable loads
– braked trailer: 2000 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
310
TECHNICAL SPECIFICATIONS

WEIGHTS OF CHASSIS WITHOUT CAB (MAXI versions)
3500 kg GVW versions3995 kg - 4005 kg - 4250
kg GVW versions4400 kg
GVW
versions
110 (*)
/130/
150 MultiJet180
MultiJet
Power110 (*)/130/
150 MultiJet180
MultiJet
Power180
MultiJet
Power
Unladen weight (with all fluids, fuel tank filled to
90%and without optional equipment)1300 ÷ 1415 1380 ÷ 1495 1300 ÷ 1415 1380 ÷ 1495 1380 ÷ 1495
Maximum permitted loads (***)
– front axle: 2100 2100 2100 2100 2100
– rear axle: 2400 ÷ 2500 2400 ÷ 2500 2400 ÷ 2500 2400 ÷ 2500 2500
– total: 3500 3500 4005 ÷ 4250 4005 ÷ 4250 4400
Towable loads
– braked trailer: 2500 ÷ 3000 2500 ÷ 3000 2000 ÷ 2500 2000 ÷ 2500 2000
– non-braked trailer: 750 750 750 750 750
Maximum load on ball joint (braked trailer): 100 ÷ 120 100 ÷ 120 100 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
311

CAB CHASSIS WEIGHTS
3000 kg GVW versions
115 MultiJet (*)110 (*)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1545 ÷ 1660 1605 ÷ 1675 1685 ÷ 1755
Maximum permitted loads (**)
– front axle: 1630 1630 1630
– rear axle: 1650 1650 1650
– total: 3000 3000 3000
Towable loads
– braked trailer: 2000 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
312
TECHNICAL SPECIFICATIONS

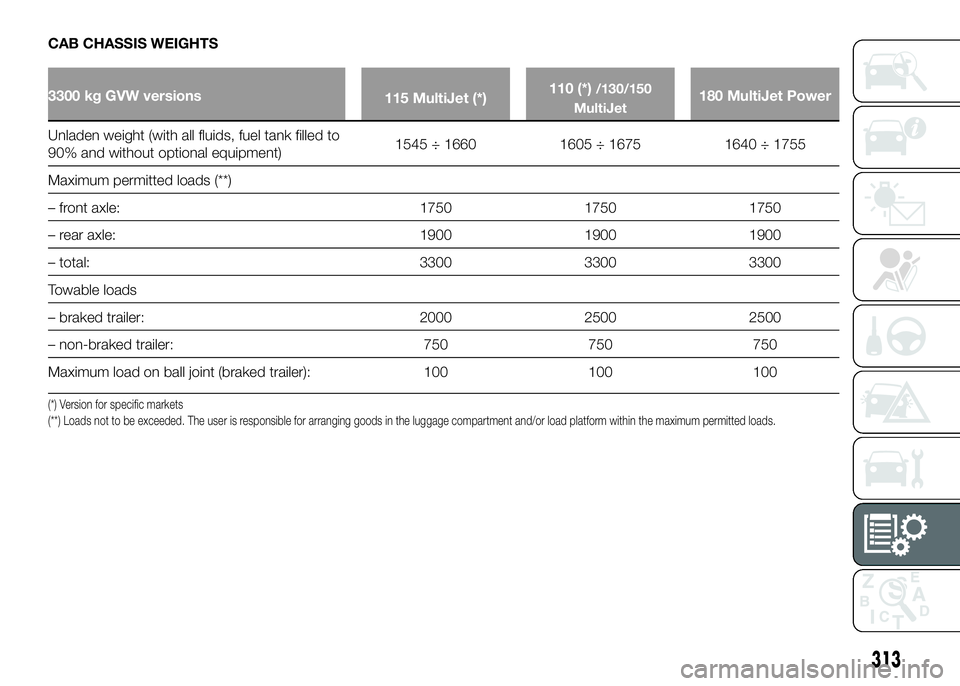

CAB CHASSIS WEIGHTS
3300 kg GVW versions
115 MultiJet (*)110 (*)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1545 ÷ 1660 1605 ÷ 1675 1640 ÷ 1755
Maximum permitted loads (**)
– front axle: 1750 1750 1750
– rear axle: 1900 1900 1900
– total: 3300 3300 3300
Towable loads
– braked trailer: 2000 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
313

CAB CHASSIS WEIGHTS
3500 kg GVW versions
115 MultiJet (*)110 (*)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1545 - 1660 1605 ÷ 1675 1640 ÷ 1675
Maximum permitted loads (**)
– front axle: 1850 1850 1850
– rear axle: 2000 2000 2000
– total: 3500 3500 3500
Towable loads
– braked trailer: 2000 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
314
TECHNICAL SPECIFICATIONS

CAB CHASSIS WEIGHTS
3510 kg GVW
versions3650 kg GVW versions
110 (*)
/130/150
MultiJet115 MultiJet (*)110 (*)/130/150
MultiJet180 MultiJet
Power
Unladen weight (with all fluids, fuel tank
filled
to 90% and without optional
equipment)1605 ÷ 1675 1545 ÷ 1660 1560 ÷ 1675 1640 ÷ 1755
Maximum permitted loads (**)
– front axle: 1850 1850 1850 1850
– rear axle: 2000 2000 2000 2000
– total: 3510 3650 3650 3650
Towable loads
– braked trailer: 2500 2000 2500 2500
– non-braked trailer: 750 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100 100
(*) Version for specific markets
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
315

MAXI CAB CHASSIS WEIGHTS (MAXI versions)
3500 kg GVW versions3995 kg - 4005 kg - 4250
kg GVW versions4400 kg
GVW
versions
110 (*)
/130/
150 MultiJet180
MultiJet
Power110 (*)/130/
150 MultiJet180
MultiJet
Power180
MultiJet
Power
Unladen weight (with all fluids, fuel tank filled to
90%and without optional equipment)1600 ÷ 1715 1680 ÷ 1795 1600 ÷ 1715 1680 ÷ 1795 1680 ÷ 1795
Maximum permitted loads (**)
– front axle: 2100 2100 2100 2100 2100
– rear axle: 2400 ÷ 2500 2400 - 2500 2400 - 2500 2400 - 2500 2500
– total: 3500 3500 3995 - 4250 3995 - 4250 4400
Towable loads
– braked trailer: 2500 ÷ 3000 2500 - 3000 2000 - 500 2000 - 2500 2000
– non-braked trailer: 750 750 750 750 750
Maximum load on ball joint (braked trailer): 100 ÷ 120 100 - 120 100 - 120 100 100
(*) Version for specific markets
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
316
