2016 FIAT DUCATO BASE CAMPER Owner handbook (in English)

VAN
CH1 - CH2 MH1 - MH2 LH2 - LH3 XLH2 - XLH3
A948948 948 948
B3000 3450 4035 4035
C1015 1015 1015 1380
D4963 5413 5998 6363
E2254 - 2524 2254 - 2524 (*) 2524 - 2764 (**) 2524 - 2764
F1810 1810 1810 1810
G2050 2050 2050 2050
I1790 1790 1790 1790
(*) MAXI 2269 - 2539 version
(**) MAXI 2539 - 2774 version
The sizes vary according to the various versions within the limits indicated above
277

TRUCK VERSION
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
The height refers to the unladen vehicle.
260F1A0329
278
TECHNICAL SPECIFICATIONS

BOX CHASSIS CAB
CH1 MH1 LH1 XLH1 CH1MH1-
MLH1LH1 XLH1 XXLH1
A948 948 948 948 948 948 948 948 948
B3000 3450 4035 4035 30003450 -
38004035 4035 4300
C1345 1345 1345 1710 960 960 960 1325 1590
D5293 5743 6328 6693 49085358 -
57085943 6308 6573
E2798 3248 3833 4198-----
F2424 2424 2424 2424 2254 2254 2254 2254 2519
G1810 1810 1810 1810 1810 1810 1810 1810 1810
H1790 1790 1790 17901790 -
19801790 -
19801790 -
19801790 -
19801790 -
1980
L2100 2100 2100 2100 2050 2050 2050 2050 2050
The sizes vary according to the various versions within the limits indicated above
279

CHASSIS COWL SPECIAL CAB VAN
CH1MH1-
MLH1LH1 XLH1 XXLH1 CH1MH1-
MLH1LH1 XLH1 XXLH1
A925 925 925 925 925 948 948 948 948 948
B30003450 -
38004035 4035 4300 30003450 -
38004035 4035 4300
C860 860 860 1225 1490 880 880 880 1245 1510
D47855235 -
55855820 6125 6390 48285278 -
56285863 6228 6493
E----------
F-----2254 2254 2254 2254 2254
G1810 1810 1810 1810 1810 1810 1810 1810 1810 1810
H1790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
19801790 -
1980
L2050 2050 2050 2050 2050 2050 2050 2050 2050 2050
The sizes vary according to the various versions within the limits indicated above
280
TECHNICAL SPECIFICATIONS

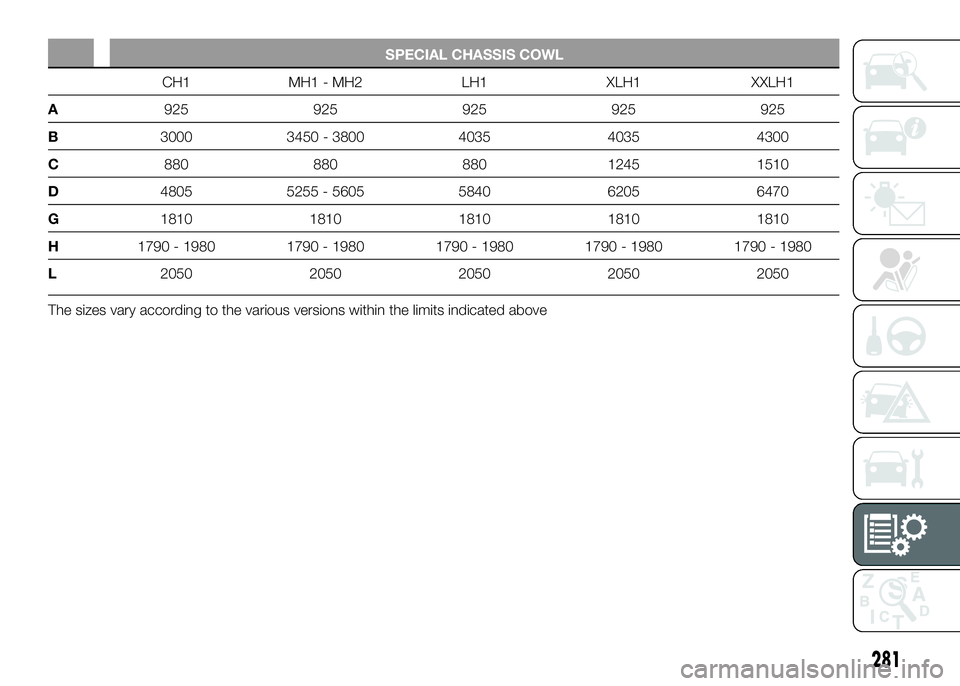

SPECIAL CHASSIS COWL
CH1 MH1 - MH2 LH1 XLH1 XXLH1
A925925 925 925 925
B3000 3450 - 3800 4035 4035 4300
C880 880 880 1245 1510
D4805 5255 - 5605 5840 6205 6470
G1810 1810 1810 1810 1810
H1790 - 1980 1790 - 1980 1790 - 1980 1790 - 1980 1790 - 1980
L2050 2050 2050 2050 2050
The sizes vary according to the various versions within the limits indicated above
281

CREW CAB VERSION
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
The height refers to the unladen vehicle.
261F1A0368
282
TECHNICAL SPECIFICATIONS

CREW CAB
MH1 LH1 XLH1
A948948 948
B3450 4035 4035
C1340 1245 1695
D5798 6228 6678
E2424 2424 2424
F1810 1810 1810
G2100 2100 2100
I1790 1790 1790
The sizes vary according to the various versions within the limits indicated above
283

PERFORMANCE
Top permitted speed after initial vehicle use in km/h.
110 MultiJet (#)115 MultiJet
(#)130 MultiJet 150 MultiJet180 MultiJet
Power
VAN
(excluding
r
ecreational
version)CH1 - MH1 145 148 155 161161 (*)
/ 171(**)
MH2-LH2-
XLH2142 143 150 157160 (*)
/ 166(**)
MH3 - LH3 -
XLH3137 138 145 152 155 (*)
/ 161
TRAILER
TRUCK /
CAB
CHASSIS /
CHASSIS
COWLS /
PLATFORMS
(excluding
recreational
version)CH1
145 148 155 157161 (*)
/ 171(**)
MH1 - MLH1 -
LH1 - XLH1 -
XXLH1
(#) Version for specific markets
(*) Maxi range
(**) 161 km/h for 16" tyres
284
