22) If thewarning light switches on when driving, stop the engine immediately and contact an Fiat Dealership.
Warning lights on
panelWhat it means What to do
amberINJECTION/EOBD SYSTEM FAILURE
In normal conditions, when the ignition key is turned to
MAR-ON the warning light switches on, but it should
switch off as soon as the engine is started.
The operation of warning light
may be checked by
the traffic police using specific devices. Comply with the
laws and regulations of the country where you are
driving.23)
If the warning light stays on or switches on when driving,
it means that the injection system is not working
properly; in particular, if the warning light comes on
constantly, this indicates a malfunction in the supply/
ignition system that could cause excessive exhaust
emissions, a possible loss of performance, poor
driveability and high fuel consumption.
On some versions, the display shows the dedicated
message.
The warning light switches off if the malfunction
disappears, but it is still stored by the system.Under these conditions, you may continue
travelling at a moderate speed without
demanding excessive effort from the
engine. Prolonged use of the car with the
warning light on constantly may cause
damage.
Contact a Fiat Dealership as soon as
possible.
141

Warning lights on
panelWhat it means What to do
amberUREA INJECTION SYSTEM FAILURE
The warning light switches on, together with a
dedicated message on the display (for versions/
markets, where provided) if a fluid not conforming
with the nominal characteristics is inserted o if an
average consumption of UREA over 50% is
detected.Contact a Fiat Dealership as soon as possible.
If the fault is not resolved, a further warning will be
given at the following remaining km before the
vehicle restart will be prevented:
❒400 km
❒320 km
❒240 km
When 200 km will remain to prevent the engine
restart, a continuous dedicated message will
appear on the dashboard (for versions/markets
where provided) accompanied by a buzzer sound
amberABS FAILURE
When the key is turned to MAR-ON, the warning
light switches on but should switch off after a few
seconds.
The warning light switches on to indicate a
system fault. In this case the braking system
maintains its efficiency unaltered but without the
advantage of the ABS system. The display shows
the dedicated message.Drive carefully and contact a Fiat Dealership as
soon as possible.
142
KNOWING THE INSTRUMENT PANEL

Warning lights on
panelWhat it means What to do
amberFUEL RESERVE
When the key is turned to MAR-ON, the warning
light switches on but should switch off after a few
seconds. The warning light switches on when
there are about 10-12 litres of fuel (for versions
with tank capacity 90-120 l) or 10 l (for versions
with tank capacity 60 l) remaining in the tank.
IMPORTANT The warning light will blink to
indicate a system fault. If this is the case, go to a
Fiat Dealership to have the system checked.
Warning lights on
panelWhat it means What to do
amberGLOW PLUG PREHEATING / GLOW PLUG
PREHEATING FAILURE
Glow plug preheating
This warning light switches on when the key is
turned to MAR-ON. It will switch off as soon as the
glow plugs have reached a preset temperature.
IMPORTANT At high ambient temperatures the
warning light may stay on for an extremely short
time.Start the engine as soon as the warning light
switches off.
Glow plug preheating failure
The warning light flashes if there is a fault in the
preheating system.
On some versions, the display shows the
dedicated message.Contact a Fiat Dealership as soon as possible.
143

Warning lights on
panelWhat it means What to do
amberINDICATION OF DIESEL EMISSIONS
ADDITIVE LOW LEVEL (UREA)
(for versions/markets, where provided)
The Diesel Emissions Additive (UREA) low level
warning lightlights up if the vehicle has a low
level of UREA.
amberVEHICLE PROTECTION SYSTEM FAILURE -
FIAT CODE
When the key is turned to MAR-ON the warning
light will flash only once and then switch off.
When the warning light comes on constantly, with
key at MAR-ON, this indicates:
❒a potential failure (refer to "The Fiat CODE
system" in the chapter "Knowing your vehicle").
❒a possible break-in attempt with an alarm; in
this case the warning light switches off after
approximately 10 seconds.
If, with the engine running, the
warning light
flashes, it means that the vehicle is not protected
by the engine immobiliser device.Contact a Fiat Dealership to have all the keys
stored in the memory.
amberREAR FOG LIGHTS
The warning light comes on when the rear fog
lights are turned on.
144
KNOWING THE INSTRUMENT PANEL

Warning lights on
panelWhat it means What to do

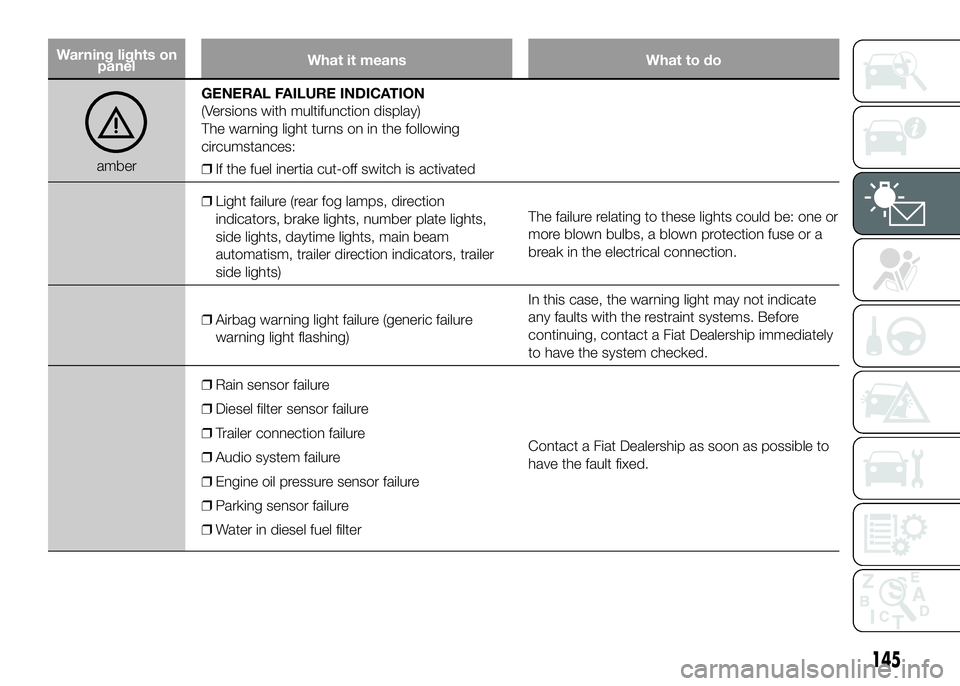

amberGENERAL FAILURE INDICATION
(Versions with multifunction display)
The warning light turns on in the following
circumstances:
❒If the fuel inertia cut-off switch is activated
❒Light failure (rear fog lamps, direction
indicators, brake lights, number plate lights,
side lights, daytime lights, main beam
automatism, trailer direction indicators, trailer
side lights)The failure relating to these lights could be: one or
more blown bulbs, a blown protection fuse or a
break in the electrical connection.
❒Airbag warning light failure (generic failure
warning light flashing)In this case, the warning light may not indicate
any faults with the restraint systems. Before
continuing, contact a Fiat Dealership immediately
to have the system checked.
❒Rain sensor failure
❒Diesel filter sensor failure
❒Trailer connection failure
❒Audio system failure
❒Engine oil pressure sensor failure
❒Parking sensor failure
❒Water in diesel fuel filterContact a Fiat Dealership as soon as possible to
have the fault fixed.
145

Warning lights on
panelWhat it means What to do
amberDPF (PARTICULATE FILTER) CLEANING
UNDERWAY
(for versions/markets, where provided)
When the key is turned to MAR-ON, the warning
light switches on but should switch off after a few
seconds.
The warning light switches on constantly to
inform the driver that the DPF system needs to
eliminate the trapped pollutants (particulate)
through the regeneration process.
A dedicated message will appear on the display
when the warning light switches on (for versions/
markets, where provided).The warning light does not come on during every
DPF regeneration, but only when driving
conditions require that the driver is notified. The
warning light will switch off if the vehicle remains
in motion until regeneration has been completed.
On average, the process lasts 15 minutes.
The best conditions to complete the regeneration
process are reached by driving the vehicle
constantly at 60 km/h with engine speed above
2000 rpm. When this warning light comes on, it
does not indicate a vehicle failure and it should
not therefore be taken to a workshop.
24)
102)
Warning lights on
panelWhat it means What to do
amberESC-ASR SYSTEM / TRACTION PLUS FAILURE
On certain versions a dedicated message is
displayed.
Flashing of the warning light while driving
indicates the intervention of the ESC system.If the warning light does not switch off, or stays
on when travelling, contact a Fiat Dealership.
Hill Holder system failure
The warning light will turn on when the Hill Holder
system is faulty.
On certain versions a dedicated message is
displayed.In this case, contact a Fiat Dealership as soon as
possible.
146
KNOWING THE INSTRUMENT PANEL

Warning lights on
panelWhat it means What to do
amberWORN BRAKE PADS
The warning light switches on if the front or rear
brake pads are worn.
On certain versions a dedicated message is
displayed.Have them replaced as soon as possible.
Warning lights on
panelWhat it means What to do
amberDRIVING ADVISOR
The two warning lights on indicate that the system has started
recognising the operating conditions.
When the system recognises the operating conditions, it becomes active,
i.e. it can assist the driver with visual and acoustic warnings. Therefore,
the warning lights switch off.
IMPORTANT If the operating conditions are no longer present, the
system is engaged but inactive, and therefore the two warning lights on
the panel switch on.
When the system is active, if the vehicle gets close to one of the side limit
lines or one of the two demarcation lines of the lane, the driver is warned
with an acoustic signal along with the direction warning light (right or left)
on the panel lighting up.
The system failure is indicated by the two direction warning lights
and
lighting up on the panel, along with an acoustic signal and a dedicated
message.
147

Warning lights on
panelWhat it means What to do
amberTPMS
TPMS failure
The warning light switches on when a fault is
detected in the TPMS.In this case, contact a Fiat Dealership as soon as
possible.
Tyre pressure low
The warning light switches on to indicate that the
tyre pressure is lower than the recommended
value and/or that slow pressure loss is occurring.
In these circumstances, optimal tyre duration and
fuel consumption may not be guaranteed.
IMPORTANT
23) Go to a Fiat Dealership as soon as possible if warning lighteither does not light up when the key is turned to
MAR to if while travelling the warning lights comes on either steady or blinking (along with a message on the display).
24) During regeneration, the fan could be operated.
