2016 FIAT DUCATO BASE CAMPER Owner handbook (in English)

CREW CAB VAN WEIGHTS
3500 kg GVW versions
115 MultiJet (*)130 MultiJet 180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%and without optional equipment)2011 ÷ 2171 2026 ÷ 2186 2106 ÷ 2171
Maximum permitted loads (***)
– front axle: 1850 1850 1850
– rear axle: 2000 2000 2000
– total: 3500 3500 3500
Towable loads
– braked trailer: 2000 2000 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
325

CREW CAB VAN WEIGHTS (MAXI versions)
3500 kg GVW versions 130 MultiJet 180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%and without optional equipment)2066 - 2226 2146 - 2306
Maximum permitted loads (°)
– front axle: 2100 2100
– rear axle: 2400 2400
– total: 3500 3500
Towable loads
– braked trailer: 3000 3000
– non-braked trailer: 750 750
Maximum load on ball joint (braked trailer): 100 100
(°) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
326
TECHNICAL SPECIFICATIONS

SUPPLIES
115
MultiJet (°)110 (°)/130
MultiJet150
MultiJet180
MultiJet
PowerPrescribed fuels and original
lubricants
Fuel tank (litres): 90 (*) 90 (*) 90 (*) 90 (*)
Dieselfor motor vehicles
(EN590 specification)
including a reserve of (litres): 10/12 10/12 10/12 10/12
UREA tank (litres)
(for versions markets, where
provided)- - 15 -AdBlue (urea-water solution)
according to DIN 70 070 and
ISO 22241-1
207) ,208)
Engine cooling system
(litres):8 (**) 9,6 (**) 9,6 (**) 10 (**)Mixture of demineralised water
and 50% PARAFLUUP(***)
Engine sump (litres): 4.9 5.3 5.3 8
SELENIA WR P.E.
Engine sump and filter (litres): 5.7 5.9 5.9 9
(°)Version for specific markets
(*) A 120 litre tank is available on request for all versions (with reserve of 12 litres). With the "Recreational" option a 60 litre tank is available on request (with reserve of 10 litres).
(**) With Webasto: + 1/4 litre - Underseat heater 600 cc: + 1 litre - Rear heater 900 cc: + 1.5 litres
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UPand demineralised water.
327

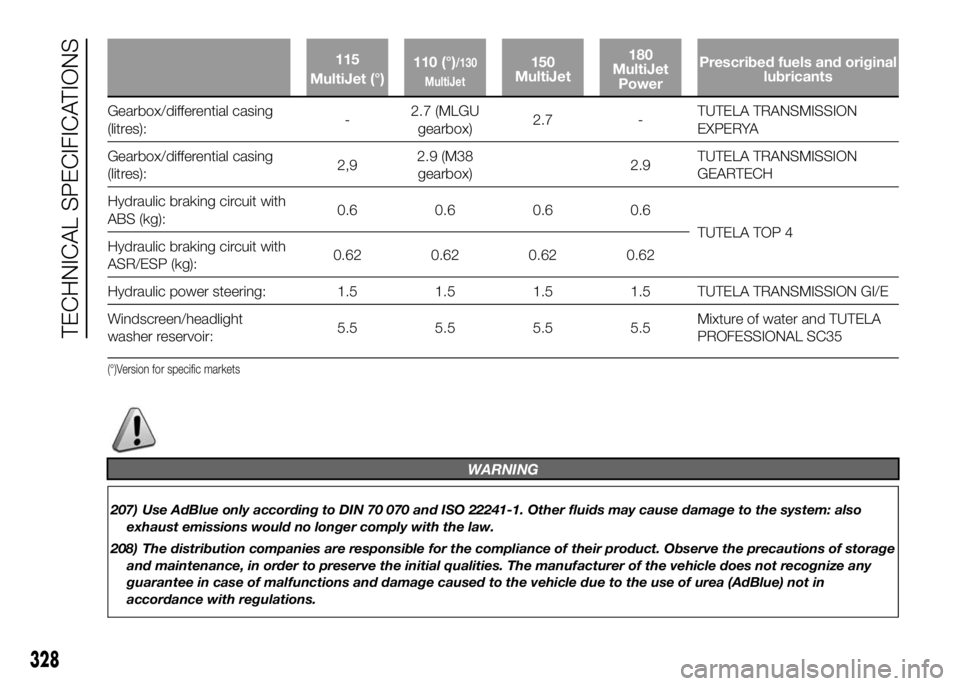

115
MultiJet (°)110 (°)/130
MultiJet150
MultiJet180
MultiJet
PowerPrescribed fuels and original
lubricants
Gearbox/differential casing
(litres):-2.7 (MLGU
gearbox)2.7 -TUTELA TRANSMISSION
EXPERYA
Gearbox/differential casing
(litres):2,92.9 (M38
gearbox)2.9TUTELA TRANSMISSION
GEARTECH
Hydraulic braking circuit with
ABS (kg):0.6 0.6 0.6 0.6
TUTELA TOP 4
Hydraulic braking circuit with
ASR/ESP (kg):0.62 0.62 0.62 0.62
Hydraulic power steering: 1.5 1.5 1.5 1.5 TUTELA TRANSMISSION GI/E
Windscreen/headlight
washer reservoir:5.5 5.5 5.5 5.5Mixture of water and TUTELA
PROFESSIONAL SC35
(°)Version for specific markets
WARNING
207) Use AdBlue only according to DIN 70 070 and ISO 22241-1. Other fluids may cause damage to the system: also
exhaust emissions would no longer comply with the law.
208) The distribution companies are responsible for the compliance of their product. Observe the precautions of storage
and maintenance, in order to preserve the initial qualities. The manufacturer of the vehicle does not recognize any
guarantee in case of malfunctions and damage caused to the vehicle due to the use of urea (AdBlue) not in
accordance with regulations.
328
TECHNICAL SPECIFICATIONS

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
57)
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONS
Use Characteristics SpecificationOriginal fluids and
lubricantsReplacement interval
Diesel engine
lubricantsSAE
0W-30ACEA C29.55535-S1SELENIA WR
FORWARD
Contractual Technical
Reference No.
F842.F13According to
Scheduled Servicing
Plan
In the case of emergency, if the above specified lubricants are not available, products with the minimum indicated ACEA
performance can be used for topping up; in this case optimal performance of the engine is not guaranteed.
IMPORTANT
57) The use of products with specifications other than those indicated above could cause damage to the engine not
covered by the warranty.
329

Use Characteristics SpecificationOriginal fluids and
lubricantsApplications
Lubricants and
greases for drive
transmissionSynthetic base
lubricant SAE 75W-80
grade9.55550-MZ2TUTELA
TRANSMISSION
EXPERYA
Contractual Technical
Reference No.
F178.B06Manual gearbox and
differential
Synthetic base
lubricant SAE 75W-85
grade9.55550-MZ3 or
MS.90030-M2TUTELA
TRANSMISSION
GEARTECH
Contractual Technical
Reference No.
F704.C08Manual gearbox and
differential
Molybdenum
disulphide grease, for
use at high
temperatures.
Consistency NLGI 1-29.55580 - GRAS IITUTELA ALL STAR
Contractual Technical
Reference No.
F702.G07Wheel side constant
velocity joints
Grease for constant
velocity joints with low
friction coefficient.
Consistency NLGI 0-19.55580 - GRAS IITUTELA STAR 700
Contractual Technical
Reference No.
F701.C07Differential-side
constant velocity joints
Lubricant for power
steering. Exceeds "ATF
DEXRON III"
specifications9.55550-AG2TUTELA
TRANSMISSION GI/E
Contractual Technical
Reference No.
F001.C94Hydraulic power
steering
330
TECHNICAL SPECIFICATIONS

Use Characteristics SpecificationOriginal fluids and
lubricantsApplications
Brake fluidSynthetic
fluid for brake
and clutch systems.
Exceeds specifications:
FMVSS n° 116 DOT 4,
ISO 4925, SAE J 1704.9.55597 or MS.90039TUTELA TOP 4
Contractual Technical
Reference No.
F001.A93Hydraulic brakes and
clutch controls
Protective agent for
radiatorsRed protective agent
with antifreeze action,
based on inhibited
monoethylene glycol
with organic formula.
Exceeds CUNA NC
956-16, ASTM D 3306
specifications.9.55523 or MS.90032PARAFLU
UP
Contractual Technical
Reference No.
F101.M01Cooling circuits Use
rate 50% up to -35°C.
Mixture with different
formulation products
not allowed. (*)
Diesel fuel additiveAdditive for diesel
antifreeze, protecting
diesel engines.-TUTELA DIESEL ART
Contractual Technical
Reference No.
F601.L06To be mixed with diesel
(25 cc per 10 litres)
ADDITIVE FOR
DIESEL EMISSIONS
(UREA)Water-urea solutionDIN 70 070 and ISO
22241-1AdBlueTo be used for filling the
tank UREA on vehicles
equipped with system
of Selective Catalytic
Reduction (SCR).
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUPand 40% demineralised water.
331

Use Characteristics SpecificationOriginal fluids and
lubricantsApplications
Windscreen washer
fluidMixtur
e of spirits and
surfactants. Exceeds
CUNA NC 956-II
specifications.9.55522 or MS.90043TUTELA
PROFESSIONAL SC
35
Contractual Technical
Reference No.
F201.D02To be used diluted or
undiluted in screen
washer/wiper systems
332
