COMBI WEIGHTS
3500 kg GVW versions110 (*)/130/150 Multijet Euro 5 /
Euro 6180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)2035 ÷ 2465(**) 2035 ÷ 2465
Maximum permitted loads (***)
- front axle: 1850 1850
– rear axle: 1900 1900 ÷ 2000
– total: 3500 3500
Towable loads
- braked trailer: 1900(**)
- 20002000 ÷ 2500
– non-braked trailer: 750 750
Maximum load on ball joint (braked trailer): 100 100
(*) Version for specific markets
(**) Long Wheelbase versions
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
301

COMBI WEIGHTS (MAXI versions)
3500 kg GVW versions110 (*)/130/150 Multijet Euro 5 /
Euro 6180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)2100 2180
Maximum permitted loads (***)
– front axle: 2100 2100
– rear axle: 2400 2400
– total: 3500 3500
Towable loads
– braked trailer: 3000 3000
– non-braked trailer: 750 750
Maximum load on ball joint (braked trailer): 120 120
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
302
TECHNICAL SPECIFICATIONS

PANORAMA WEIGHTS
3150 kg GVW versions
115 Multijet (*)110 (*)
/130/150
Multijet Euro 5 / Euro
6
180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%and without optional equipment)2200 2215 2295
Maximum permitted loads (***)
– front axle: 1750 1750 1750
– rear axle: 1650 1650 1650
– total: 3150 3150 3150
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
303

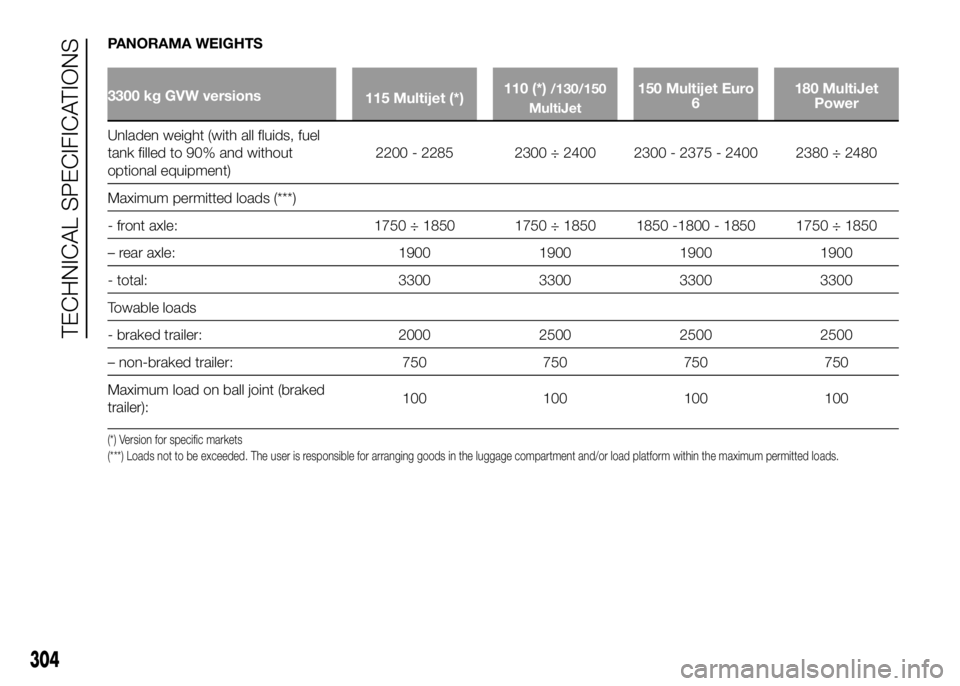

PANORAMA WEIGHTS
3300 kg GVW versions
115 Multijet (*)110 (*)/130/150
MultiJet150 Multijet Euro
6180 MultiJet
Power
Unladen weight (with all fluids, fuel
tank
filled to 90% and without
optional equipment)2200 - 2285 2300 ÷ 2400 2300 - 2375 - 2400 2380 ÷ 2480
Maximum permitted loads (***)
- front axle: 1750 ÷ 1850 1750 ÷ 1850 1850 -1800 - 1850 1750 ÷ 1850
– rear axle: 1900 1900 1900 1900
- total: 3300 3300 3300 3300
Towable loads
- braked trailer: 2000 2500 2500 2500
– non-braked trailer: 750 750 750 750
Maximum load on ball joint (braked
trailer):100 100 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
304
TECHNICAL SPECIFICATIONS

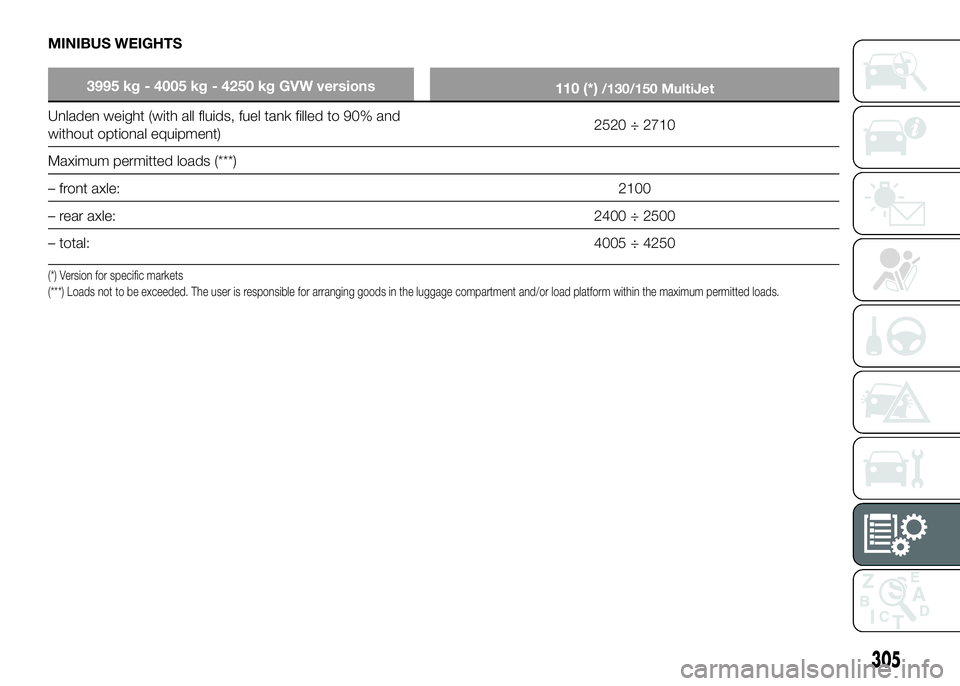

MINIBUS WEIGHTS
3995 kg - 4005 kg - 4250 kg GVW versions
110 (*)/130/150 MultiJet
Unladen weight (with all fluids, fuel tank filled to 90% and
without optional equipment)2520 ÷ 2710
Maximum permitted loads (***)
– front axle:2100
– rear axle:2400 ÷ 2500
– total:4005 ÷ 4250
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
305

MINIBUS WEIGHTS
4250 - 4300 kg (Heavy) GVW versions 150 Multijet Euro 6
Unladen weight (with all fluids, fuel tank filled to 90% and
withoutoptional equipment)2520 ÷ 2710
Maximum permitted loads (***)
– front axle:2100
– rear axle:2400 ÷ 2500
- total:4250 ÷ 4300
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
306
TECHNICAL SPECIFICATIONS

WEIGHTS OF CHASSIS WITHOUT CAB
3000 kg GVW versions
115 MultiJet (*)110 (*)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1245 ÷ 1360 1305 ÷ 1375 1385 ÷ 1455
Maximum permitted loads (***)
– front axle: 1630 1630 1630
– rear axle: 1650 1650 1650
– total: 3000 3000 3000
Towable loads
– braked trailer: 2000 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
307

WEIGHTS OF CHASSIS WITHOUT CAB
3300 kg GVW versions
115 MultiJet (*)110 (*)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1245 ÷ 1360 1260 ÷ 1375 1340 ÷ 1455
Maximum permitted loads (***)
– front axle: 1750 1750 1750
– rear axle: 1900 1900 1900
– total: 3300 3300 3300
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
308
