2016 FIAT DOBLO PANORAMA Owners Manual

WARNING
35) If you are travelling in areas with
few filling stations and you want
to transport fuel in a spare tank,
comply with the law by using only
an approved, suitably secured
tank. However, the risks of fire in
the case of collision increase
anyway.
36) Never exceed the maximum
allowed load in the boot, see
the “Technical specifications”
chapter. Also make sure that the
objects you place in the boot have
been properly secured, to avoid
them from being thrown forward
consequent to sudden braking
and injuring your passengers.37) If you are travelling in areas with
few filling stations and you want
to transport fuel in a spare tank,
comply with the law by using only
an approved, suitably secured
tank. Anyway, by doing so, you
increase the risk of fire in the
event of an accident with your
vehicle.
38) Never exceed the maximum
allowed load in the boot (see
the "Technical specifications"
chapter). Also make sure that the
objects you place in the boot
have been properly secured, to
avoid them from being thrown
forward consequent to sudden
braking and injuring your
passengers.
39) You must not use the folded
rear seat to carry luggage. The
load could be thrown forward into
the backrest of the front seats,
seriously injuring the occupants.
40) Make sure that the objects are
positioned carefully and fixed to
the hooks on the floor to prevent
them being flung forwards in
the event of sharp braking and
causing injury to the passengers.
89F0V0204
400mm400mm
70 kg
90F0V0212
91F0V0114
92F0V0122
61

IMPORTANT
7) To close the tailgate use handle B
fig. 81. Do not try to close the
tailgate by pressing on the side
shock absorbers C fig. 81. Also be
careful not to knock the side
shock absorbers when you load
the boot, to avoid damaging them.
INTERIOR FITTINGS
DRIVER SIDE ARMREST
(for versions/markets, where provided)
On some versions, the driver side
front seat has an armrest fig. 93.
Raise or lower the armrest as shown by
the arrows.
GLOVE COMPARTMENT
(for versions/markets, where provided)
This is located in front of the passenger
seat fig. 94.
GLOVE COMPARTMENT
To open it, operate handle A fig. 95.
Turn the key clockwise/anticlockwise to
lock/unlock the glove compartment
(for versions/markets where provided).
41)
POWER SOCKET (12 V)
It is located in the centre console (fig.
96 - fig. 97, depending on the version)
and only works with the ignition key
in the MAR position.
On Cargo versions, depending on the
trim level, there is a current socket
inside the load compartment fig. 98
(short wheelbase Cargo) - fig. 99 (long
wheelbase Cargo).
93F0V0058
94F0V0059
95F0V0060
62
KNOW YOUR VEHICLE

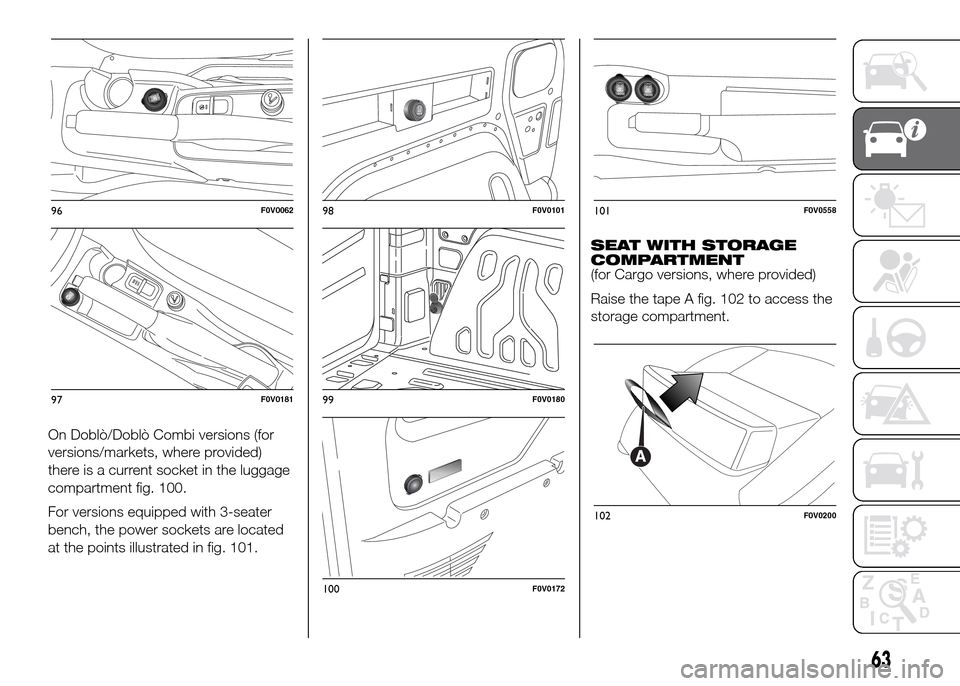

On Doblò/Doblò Combi versions (for
versions/markets, where provided)
there is a current socket in the luggage
compartment fig. 100.
For versions equipped with 3-seater
bench, the power sockets are located
at the points illustrated in fig. 101.SEAT WITH STORAGE
COMPARTMENT
(for Cargo versions, where provided)
Raise the tape A fig. 102 to access the
storage compartment.
96F0V0062
97F0V0181
98F0V0101
99F0V0180
100F0V0172
101F0V0558
102F0V0200
63

FRONT ODDMENT SHELF
(for versions/markets, where provided)
The front storage compartment is
fitted above the sun visors fig. 103 and
is designed for the quick storage of
light objects (e.g. documents, road
maps etc.).
CENTRAL ODDMENT
SHELF
(for versions/markets, where provided)
The central oddment shelf fig. 104,
accessible from the rear seats, is
intended for storing light objects.
UPPER REAR STORAGE
COMPARTMENT
(for versions/markets, where provided)
It can be accessed from the rear, with
the tailgate open.To access the compartment, open the
flap fig. 105 by pulling the dedicated
handle downwards.
The shelf can also be accessed from
inside the passenger compartment
through two flaps B fig. 106 that slide
outwards.
IMPORTANT The shelf can support a
maximum weight of 7 kg.CIGAR LIGHTER
(for versions/markets, where provided)
Press button A fig. 107 - fig. 108
(depending on the version) to switch on
the cigar lighter when the ignition key
is turned to MAR. After a few seconds
the button goes back to its initial
position and the cigar lighter is ready for
use.
IMPORTANT Always make sure the
cigar lighter is switched off.
42)
ASHTRAY
(for versions/markets, where provided)
The ashtray is a removable spring-
loaded plastic box fig. 109 that can be
fitted into the cup/can holders in the
central console.
43)
103F0V0061
104F0V0545
105F0V0559
106F0V0543
64
KNOW YOUR VEHICLE

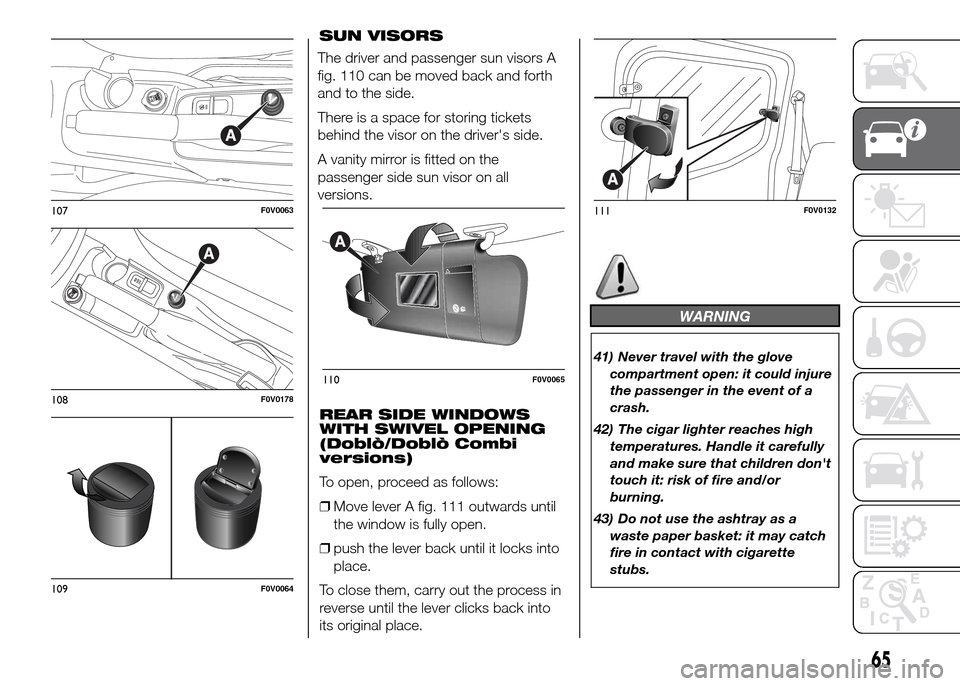

SUN VISORS
The driver and passenger sun visors A
fig. 110 can be moved back and forth
and to the side.
There is a space for storing tickets
behind the visor on the driver's side.
A vanity mirror is fitted on the
passenger side sun visor on all
versions.
REAR SIDE WINDOWS
WITH SWIVEL OPENING
(Doblò/Doblò Combi
versions)
To open, proceed as follows:
❒Move lever A fig. 111 outwards until
the window is fully open.
❒push the lever back until it locks into
place.
To close them, carry out the process in
reverse until the lever clicks back into
its original place.
WARNING
41) Never travel with the glove
compartment open: it could injure
the passenger in the event of a
crash.
42) The cigar lighter reaches high
temperatures. Handle it carefully
and make sure that children don't
touch it: risk of fire and/or
burning.
43) Do not use the ashtray as a
waste paper basket: it may catch
fire in contact with cigarette
stubs.
107F0V0063
108F0V0178
109F0V0064
110F0V0065
111F0V0132
65

ROOF RACK/SKI
RACK
44) 45)
8) 9)
FASTENERS
The fasteners are located at points A, B
and C fig. 112.
ROOF RAILS
(for versions/markets, where provided)
On some versions, the vehicle has
two longitudinal bars which, with the
addition of special accessories, can be
used to carry various objects (e.g.
skis, surfboards, etc.).
WARNING
44) Strictly adhere to the laws in
force concerning maximum
clearance.
45) Check that the attachment fixing
screws are tight after a few
kilometres.
IMPORTANT
8) Evenly distribute the load and
take into account, when driving,
the increased responsiveness
of the vehicle to side wind.
9) Never exceed the maximum
permitted loads (see chapter
“Technical specifications”).
HEADLIGHTS
LIGHT BEAM ALIGNMENT
The correct alignment of the headlights
is essential for the comfort and safety
of the driver and other road users.
To ensure the best visibility when
travelling with the headlights on, the
headlight alignment must be correct.
Contact a Fiat Dealership to have
the headlights checked and adjusted.
HEADLIGHT ALIGNMENT
CORRECTOR
This device works with the ignition key
in the MAR position and the dipped
beam headlights on.
The vehicle tilts backwards when it is
laden, raising the beam. The beams
must therefore be realigned in this case.
Headlight alignment
adjustment
Press the
andfig. 113 buttons
on the control panel to adjust.
The display located on the instrument
panel provides a visual indication of the
adjustment position.
Position 0 - one or two people in the
front seats.
Position 1 - five people.
112F0V0123
66
KNOW YOUR VEHICLE

Position 2 - five people + load in the
luggage compartment.
Position 3 - driver + maximum
permitted load stowed in the luggage
compartment.
IMPORTANT Check the light beam
alignment every time the load
transported changes.

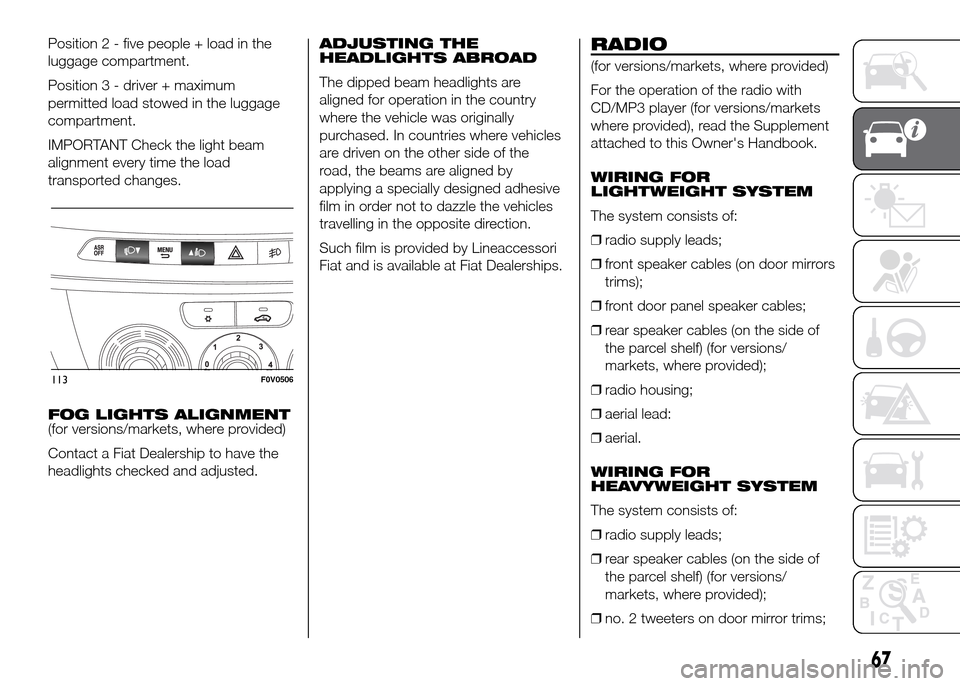

FOG LIGHTS ALIGNMENT
(for versions/markets, where provided)
Contact a Fiat Dealership to have the
headlights checked and adjusted.ADJUSTING THE
HEADLIGHTS ABROAD
The dipped beam headlights are
aligned for operation in the country
where the vehicle was originally
purchased. In countries where vehicles
are driven on the other side of the
road, the beams are aligned by
applying a specially designed adhesive
film in order not to dazzle the vehicles
travelling in the opposite direction.
Such film is provided by Lineaccessori
Fiat and is available at Fiat Dealerships.RADIO
(for versions/markets, where provided)
For the operation of the radio with
CD/MP3 player (for versions/markets
where provided), read the Supplement
attached to this Owner's Handbook.
WIRING FOR
LIGHTWEIGHT SYSTEM
The system consists of:
❒radio supply leads;
❒front speaker cables (on door mirrors
trims);
❒front door panel speaker cables;
❒rear speaker cables (on the side of
the parcel shelf) (for versions/
markets, where provided);
❒radio housing;
❒aerial lead:
❒aerial.
WIRING FOR
HEAVYWEIGHT SYSTEM
The system consists of:
❒radio supply leads;
❒rear speaker cables (on the side of
the parcel shelf) (for versions/
markets, where provided);
❒no. 2 tweeters on door mirror trims;
113F0V0506
67

❒no. 2 midwoofers on front door lower
part;
❒no. 2 rear speakers (on the side of
the parcel shelf) (for versions/
markets, where provided);
❒radio housing;
❒aerial lead:
❒aerial.
SOUND SYSTEM
INSTALLATION
The sound system must be installed in
the space occupied by the centre glove
compartment where you will find the
wiring. Press tabs A to remove the
compartment fig. 114.
46)
WARNING
46) For connection to the existing
devices supplied in the vehicle
contact a Fiat Dealership to
prevent any problems that could
impair vehicle safety.
PROTECTING THE
ENVIRONMENT
The following devices are used for
reducing petrol fuel engine emissions:
❒three-way catalytic converter
(catalytic converter);
❒oxygen sensors;
❒evaporation control system.
In addition, do not let the engine run,
even for a test, with one or more spark
plugs disconnected.
The following devices are used for
reducing diesel fuel engine emissions:
❒oxidising catalytic converter;
❒exhaust gas recirculation system
(EGR);
❒particulate filter (DPF) (for versions/
markets, where provided).
DIESEL PARTICULATE
FILTER (DPF)
(for versions/markets, where provided)
The Diesel Particulate Filter is a
mechanical filter, integral with the
