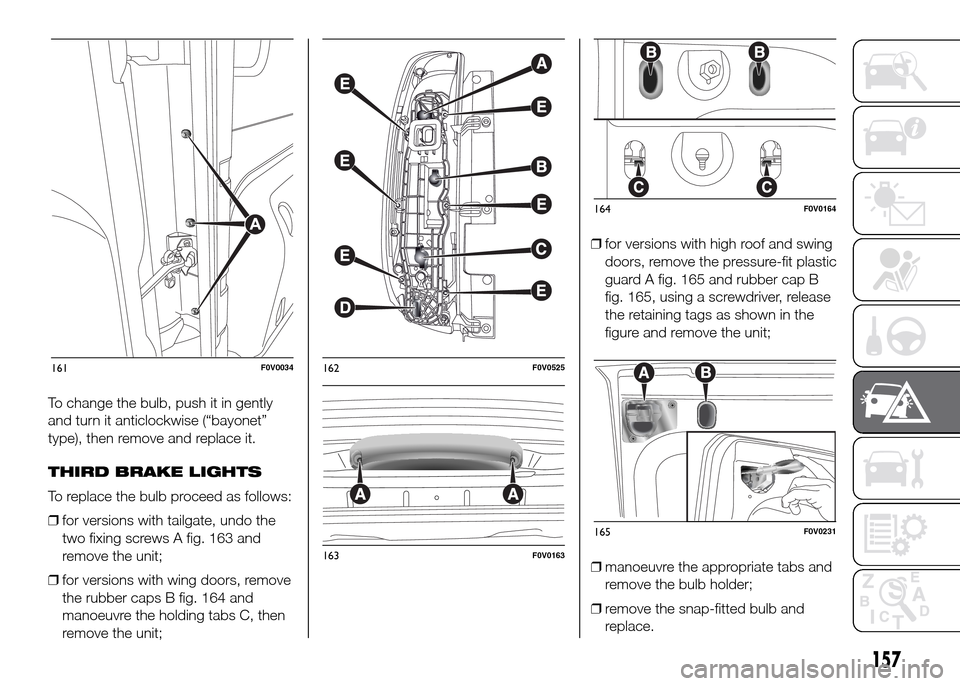

Page 161 of 323
To change the bulb, push it in gently
and turn it anticlockwise (“bayonet”
type), then remove and replace it.
THIRD BRAKE LIGHTS
To replace the bulb proceed as follows:
❒for versions with tailgate, undo the
two fixing screws A fig. 163 and
remove the unit;
❒for versions with wing doors, remove
the rubber caps B fig. 164 and
manoeuvre the holding tabs C, then
remove the unit;❒for versions with high roof and swing
doors, remove the pressure-fit plastic
guard A fig. 165 and rubber cap B
fig. 165, using a screwdriver, release
the retaining tags as shown in the
figure and remove the unit;
❒manoeuvre the appropriate tabs and
remove the bulb holder;
❒remove the snap-fitted bulb and
replace.
161F0V0034162F0V0525
163F0V0163
164F0V0164
165F0V0231
157
Page 162 of 323

NUMBER PLATE LIGHTS
(for hatchback
versions)
Proceed as follows to replace the bulbs
A fig. 166:
❒manoeuvre the holding tabs at the
points indicated by the arrows, and
remove the bulb holder;
❒turn the bulb holder B fig. 167
anticlockwise, then remove bulb C.NUMBER PLATE LIGHTS
(for versions with wing
doors)
Proceed as follows to replace the bulbs
A fig. 168:
❒manoeuvre the holding tabs at the
points indicated in the diagram,
and remove the lens by lifting to the
left;
❒remove the bulbs by releasing them
from the side contacts; insert the
new bulbs and make sure they are
correctly clamped between these
contacts.REPLACING AN
INTERIOR BULB
For the type of bulb and power rating,
see "Changing a bulb".
FRONT ROOF LIGHT
Roof light with movable
lens
Proceed as follows to replace the
bulbs:
❒remove roof light A fig. 169 working
at the points indicated by the arrows;
❒open the cover B fig. 170 as
indicated;
❒replace the bulb C fig. 171 releasing
the side contacts, insert the new
bulb and make sure that it is correctly
locked between the contacts;
166F0V0179
167F0V0037
168F0V0036
169F0V0070
158
IN AN EMERGENCY

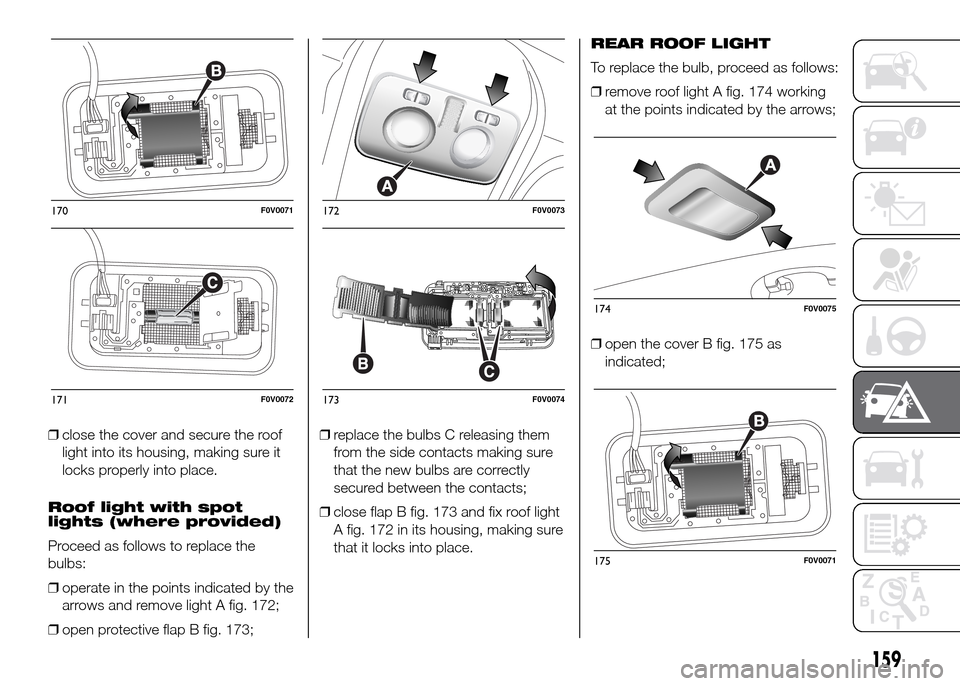

Page 163 of 323
❒close the cover and secure the roof
light into its housing, making sure it
locks properly into place.
Roof light with spot
lights (where provided)
Proceed as follows to replace the
bulbs:
❒operate in the points indicated by the
arrows and remove light A fig. 172;
❒open protective flap B fig. 173;❒replace the bulbs C releasing them
from the side contacts making sure
that the new bulbs are correctly
secured between the contacts;
❒close flap B fig. 173 and fix roof light
A fig. 172 in its housing, making sure
that it locks into place.REAR ROOF LIGHT
To replace the bulb, proceed as follows:
❒remove roof light A fig. 174 working
at the points indicated by the arrows;
❒open the cover B fig. 175 as
indicated;
170F0V0071
171F0V0072
172F0V0073
173F0V0074
174F0V0075
175F0V0071
159
Page 164 of 323

❒replace the bulb C fig. 176 releasing
the side contacts, insert the new
bulb and make sure that it is correctly
locked between the contacts;
❒close the cover B fig. 175 and secure
the roof light into its housing, making
sure it locks properly into place.Removable roof light
To replace the bulb, proceed as follows:
❒press button A fig. 177 and extract
the removable roof light B;
❒remove the roof light, working at the
points indicated by the arrows;
❒replace bulb C fig. 178 releasing the
side contacts, insert the new bulb
and make sure that it is correctly
locked between the contacts;REPLACING FUSES
INTRODUCTION
Fuses protect the electric system: they
blow in the event of a failure or
improper action on the system.
When a device does not work, check
the condition of its protective fuse:
the filament A fig. 179 must be intact.
If it is not, replace the blown fuse with
another having the same amperage
(same colour).
B intact fuse.
C fuse with damaged filament.
To change a fuse, use the tweezers D
located in the tool box or the Fix &
Go container (for versions/markets
where provided).
26)
176F0V0072
177F0V0176
178F0V0177
179F0V0088
160
IN AN EMERGENCY
Page 165 of 323
105) 106) 107)
To identify the protective fuse, see the
tables on the following pages.
ENGINE COMPARTMENT
FUSE BOX
The fuse box fig. 181 is located on the
right-hand side of the engine, next to
the battery. To remove the protective
cover A fig. 180 and access the fuse
box, undo the two fixing screws B.
27)
180F0V0081
181F0V0089
161
Page 166 of 323
PASSENGER
COMPARTMENT FUSE
BOXES
To access the fuses, remove snap-fitted
protective cover A fig. 182.
The fuses are located in the two fuse
boxes shown in fig. 183.
182F0V0562
183F0V0563
162
IN AN EMERGENCY
Page 167 of 323
Engine compartment fuse box
fig. 180 - fig. 181
DEVICE PROTECTED FUSE AMPERE
Remote control switch for opening swing door (Cargo version) F09 10
Single tone hornF10 10
Main beam headlights F14 15
Heated rear window F20 30
Fog lightsF30 15
Rear power socket F85 15
Passenger compartment power socket F86 15
163
Page 168 of 323
Passenger compartment fuse boxes
fig. 182 - fig. 183
DEVICE PROTECTED FUSE AMPERE
Door locking/unlocking motors, dead lock actuator motors, tailgate unlocking
motorF38 20
Supply + battery for EOBD diagnosis socket, radio, tyre pressure monitoring
control unitF36 10
Windscreen/rear window washer pump F43 15
Electric window motor on passenger-side front door F48 20
Left low beam, headlight corrector F13 7,5
Electric window motor on driver-side front door F47 20
164
