2016 CITROEN DS3 CABRIO Handbook (in English)

12Access
System for mechanical unlocking of the boot in the event of a battery or central locking malfunction.
Unlocking
Emergency release
 Insert a small screwdriver into hole A of each lateral latch to unlock the boot.  Fold back the rear seat to gain access to the two latches, from inside the boot.
Before opening the boot, ensure that the roof is not in zone B .
For information on the perimeter protection of your vehicle, refer to the DS 3 handbook.
The alarm provides only perimeter protection for your vehicle.
Alarm
System for the protection and dissuasion against theft of your vehicle.

13Comfort
The rear shelf is fixed .
Rear shelf
Before opening the roof completely, check that no object has been left on the shelf.
When the roof is fully open, the rear screen rests on the shelf. Do not place any object on the screen.

14Practical information
Changing a fuse
 To unclip the upper boot trim, pull it down, starting on the left.  Remove the trim by tipping it downwards.  Change the fuses. To reassemble, carry out these operations in reverse order, starting at the back of the boot.
Fuse under the bonnet
(maxi-fuse)
Fuse N°RatingFunctions
-20 A Soft top roof
-20 A Soft top roof
If the roof is in zone B when a fuse fails, it is then not possible to open the boot. To be able to open the boot and proceed with fuse replacement, first close the roof manually from inside the boot (by folding the rear seats).
There are three fuses for the soft top roof.
Fuses under the rear shelf
Fuse N°RatingFunctions
MF0840 A Soft top roof
The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a CITROËN dealer or a qualified workshop.

15Practical information

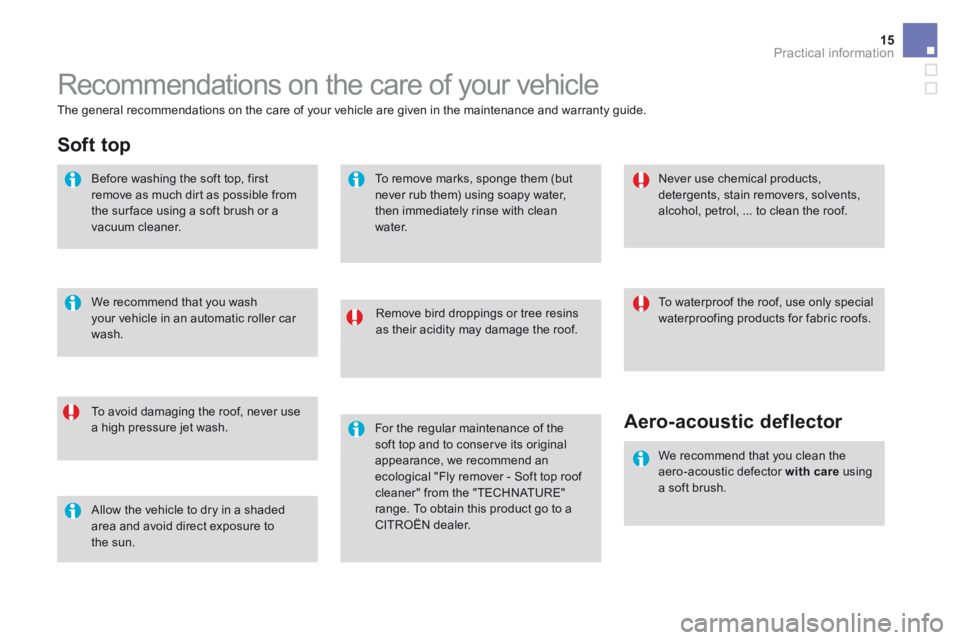

Recommendations on the care of your vehicle
Remove bird droppings or tree resins as their acidity may damage the roof.
To avoid damaging the roof, never use a high pressure jet wash.
Never use chemical products, detergents, stain removers, solvents, alcohol, petrol, ... to clean the roof.
The general recommendations on the care of your vehicle are given in the maintenance and warranty guide.
Allow the vehicle to dry in a shaded area and avoid direct exposure to the sun.
We recommend that you wash your vehicle in an automatic roller car wash.
To remove marks, sponge them (but never rub them) using soapy water, then immediately rinse with clean water.
To waterproof the roof, use only special waterproofing products for fabric roofs.
Soft top
Before washing the soft top, first remove as much dirt as possible from the sur face using a soft brush or a vacuum cleaner.
For the regular maintenance of the soft top and to conserve its original appearance, we recommend an ecological "Fly remover - Soft top roof cleaner" from the "TECHNATURE" range. To obtain this product go to a CITROËN dealer.
Aero-acoustic deflector
We recommend that you clean the aero-acoustic defector with care using a soft brush.

16Technical data
Petrol enginePureTech 82V Ti 120PureTech 110 S&STHP 165 S&STHP 150 S&S **
Gearbox Manual (5-speed) Automatic (4-speed) Manual (5-speed)
E AT 6 (6-speed automatic)
Manual (6-speed)
Model code: SB... HMZ6 5FS9 HNZ6/S H NZ T/S 5GZM/S 5GWM/S **
Cubic capacity (cc) 1 199 1 598 1 199 1 598
Bore x stroke (mm) 75 x 90.5 77 x 85.8 75 x 90.5 77 x 85.8
Max power: EU standard (kW) * 60 88 81 120 11 0 * *
Max power engine speed (rpm) 5 750 6 000 5 500 6 000
Max torque: EU standard (Nm) 118 160 205 240
Max torque engine speed (rpm) 2 750 4 250 1 500 1 750
Fuel Unleaded Unleaded Unleaded Unleaded
Catalytic converter Ye s Ye s Ye s Ye s
Engine oil capacity (in litres) (with filter replacement) 3.25 4.25 3.25 4.25
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC). ** For Belgium.
Petrol engines
.../S: model fitted with Stop & Start.

17Technical data
Petrol enginePureTech 82V Ti 120PureTech 110 S&STHP 165 S&STHP 150 S&S *
Gearbox Manual (5-speed) Automatic (4-speed) Manual (5-speed)
E AT 6 (6-speed automatic)
Manual (6-speed)
Model code: SB... HMZ6 5FS9 HNZ6/S H NZ T/S 5GZM/S 5GWM/S *
- Unladen weight 1 035 1 133 1 090 1 150 1 165
- Kerb weight 1 110 1 208 1 165 1 225 1 240
- Gross vehicle weight (GV W) 1 536 1 610 1 598 1 635 1 630
- Gross train weight (GTW) on a 12 % gradient 2 336 2 510 2 498 2 535 2 530
- Braked trailer (within the GTW limit) on a 12 % gradient 800 900 900 900 900
- Braked trailer ** (with load transfer within the GTW limit) 1 100 1 150 1 500 1 150 1 150
- Unbraked trailer 520 570 520 570 570
- Recommended nose weight 46 46 46 46 46
* For Belgium. ** The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude. The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country). High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Petrol weights and towed loads (in kg)

18Technical data
Diesel enginee-HDi 90BlueHDi 100BlueHDi 120BlueHDi 115 **
Gearbox Manual (5-speed) ETG6 electronic (6-speed) Manual (5-speed) Manual (6-speed)
Model code: SB... 9HPK /S 9HP8/PS BHY6/S BHZM/S BHXM/S **
Cubic capacity (cc) 1 560 1 560 1 560
Bore x stroke (mm) 75 x 88.3 75 x 88.3 75 x 88.3
Max power: EU standard (kW) * 68 73 88 85 **
Max power engine speed (rpm) 4 000 3 750 3 500
Max torque: EU standard (Nm) 230 254 300
Max torque engine speed (rpm) 1 750 1 750 1 750
Fuel Diesel Diesel Diesel
Catalytic converter Ye s Ye s Ye s
Particle filter (FAP) Ye s Ye s Ye s
Engine oil capacity (in litres)(with filter replacement) 3.75 3.75 3.75
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC). ** For Belgium.
Diesel engines
.../S: model fitted with Stop & Start .

19Technical data
Diesel enginee-HDi 90BlueHDi 100BlueHDi 120BlueHDi 115 **
Gearbox Manual (5-speed) ETG6 electronic (6-speed) Manual (5-speed) Manual (6-speed)
Model code: SB... 9HPK /S 9HP8/PS BHY6/S BHZM/S BHXM/S **
- Unladen weight 1 085 1 090 1 148 1 200
- Kerb weight 1 160 1 165 1 223 1 275
- Gross vehicle weight (GV W) 1 625 1 639 1 652 1 665
- Gross train weight (GTW) on a 12 % gradient 2 525 2 539 2 552 2 565
- Braked trailer (within GTW limit) on 12 % gradient 900 900 900 900
- Braked trailer * (with load transfer with the GTW limit) 1 150 1 150 1 150 1 150
- Unbraked trailer 570 570 570 570
- Recommended nose weight 46 46 46 46
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude. The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country). High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding. ** For Belgium.
Diesel weights and towed loads (in kg)
