2016 Citroen BERLINGO MULTISPACE RHD Owner's Manual

103
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015

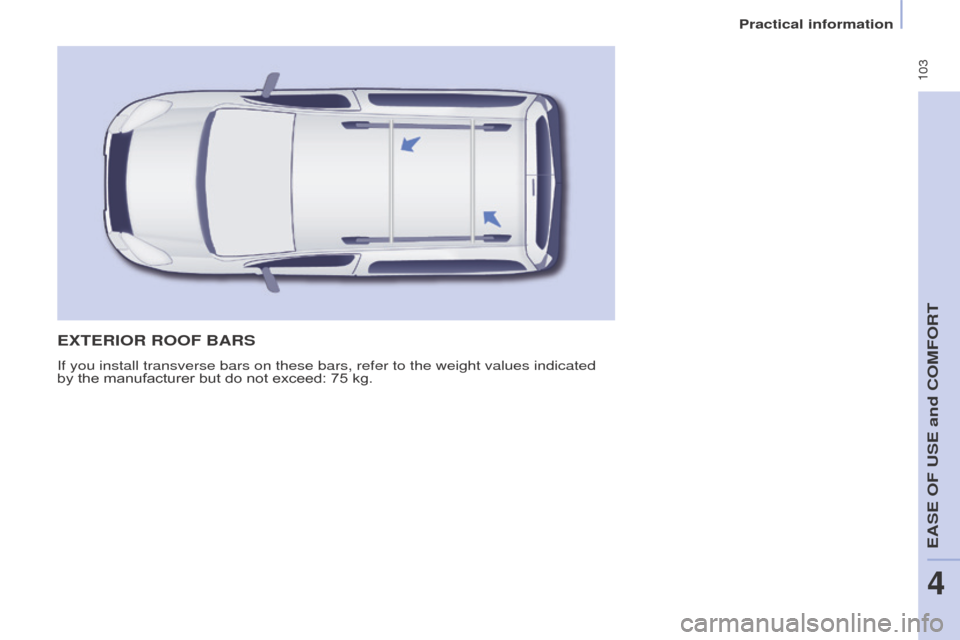

ExTERIOR ROOF BARS
If you install transverse bars on these bars, refer to the weight values\
indicated
by  the   manufacturer   but   do   not   exceed:   75   kg.
EaSE oF USE and CoMFoRT
4
Practical information

104
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015
Automatic switching on/off
The front courtesy lamp comes on when the  key   is   removed   from   the   ignition,   when the

  vehicle   is   unlocked,   when   one   of   the
 front doors is opened and for location of


the
  vehicle   using   the   remote   control.
It goes off gradually after the ignition is
switched on and when the vehicle is
locked.Front seats: comes on when one of the front doors is
opened. These are switched on and of
f by
means   of   a   manual   switch,   with
the

  ignition   on.
Rear
  seats:   comes   on   when
one of the rear doors is
opened.
If

  the   doors   remain   open   for
a

  few   minutes,   the   courtesy
lamps

  go   off.
Permanently
  off.
Permanently

on,

ignition

on.
Front courtesy lamp
COURTESY
LAMPS
Rear courtesy lamp Front individual reading lamps
Practical information

105
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015
LOAD SPACE COVER (5 SEAT VERSION)
This rigid shelf conceals the objects stored  in   the   boot. Removing
Fold
  the   load   space   cover.
Detach   it   from   the   notches   A and B
pulling
  it   towards   you.
Raise
  it   and   remove   the   assembly.
Refitting
Place the load space cover in front
of A and B.
Push it forwards to insert the lugs in
the
  notches.
Unfold and clip into the notches C.
Folding
From
  the   boot,   fold   the   half-shelf,
raising

  it   to   detach   it   from   the   notch   C. Storing (according to version)
A
location   is   provided   in   the   back   of   the  rear
  seats   to   accommodate   the   load
space

  cover   folded   onto   itself.
Slide it vertically between the side
guides
  located   at   mid   seat   back   height.
Insert
  the   hinge   first,   with   the   free   flaps
turned

  upwards.
This rigid load space cover can
form
  a   shelf.   However,   as   a   safety
measure,

  do   not   place   objects
on

  it   which   could   become   dangerous
projectiles

  in   the   event   of   sharp   braking
or

  rear   impact.
EaSE oF USE and CoMFoRT
4
Practical information

106
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015
12 volt socket (120 W max)
It is advisable to limit the use of this socket  to   avoid   discharging   the   battery.
Protective net
Open the cover located in the hook support.
Fix the top of the net in the notches,
having
  first   turned   the   bar   1/4   of   a   turn.
Ensure that the end of the bar engages
correctly
  in   the   metal   part   of   its
location.
Fix the straps in the locations provided
on

  the   floor.
Tighten
  the   net   using   the   straps.
Stowing rings
Use these rings to secure loads on the
floor.
Practical information

 107
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015
REAR FITTINGS
(7 SEAT VERSION )
Cup holder
Any liquid carried in a cup (mug or other) on board which could spill,
presents   a   risk.
Take
  care.
12 volt socket (120 W max)
It is advisable to limit the use of this socket   to   avoid   discharging   the   battery.
Stowing rings
Use the stowing rings on the floor to secure  and   retain   your   loads   firmly.
The
  seat   belt   anchorages   must   not   be
used

  for   this   purpose.
 It

  is   recommended   that   the   load   is
immobilised

  by   securing   it   firmly
using the stowing rings on the
floor

.
EASE OF USE and COMFORT
4
Practical information

108
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015
Storage flaps
Raise the corresponding flap.next to the boot sill, the recess is
intended to receive the roller tube
containing
  the   load   space   cover.
Seat belts
Ensure that the centre seat belt has
reeled in correctly to its carrier in the
roof.
Prevent
  the   row   3   seat   belt   buckles
from

  knocking   by   raising   them   as   close
as possible to the anchorages in the
roof.
The

  seat   belt   buckle   attachment   rings
on

  each   side   of   the   boot   must   not   be
used

  to   retain   loads.
Practical information

 109
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015
BLIND, LOAD SPACE COVER
Position the load space screen so as to
present  the   rear   load   space   cover   flaps
towards

  you.
Engage the left-hand lug of the roller in
the support A.
The load space cover is the roller blind
type.

T

ake

care

not

to

place

heavy

objects


on

the

load

space

cover

when

unreeled.
Compress
  then   place   the   right-hand  lug facing the support
B.
Release to engage the roller in its
support.
Unroll the load space cover to the rear
side
  pillars.
Engage the ends in the rear notches to
keep
  it   taut.
To install it
Place the row 3 seats in the fully folded
position.
Raise

the

storage

flap

at

the

boot

sill.
Take

hold

of

the

roller

in

the

centre

and

compress


it

towards

the

left-hand

pillar.
Raise

the

assembly.
EASE OF USE and COMFORT
4
Practical information

11 0
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015
To remove it
From  the   boot,   pull   the   load   space
cover

  towards   you   to   release   it   from
the

  side   pillars.
Guide
  the   load   space   cover   as   it   rolls   up.
Remove
  the   clips   of   the   three   flaps
from

  the   base   of   each   row   2   head
restraint.
Compress

  the   roller   to   the   left   to
remove

  it   from   the   support   B.
Raise
  it   and   pivot   it   forwards. To store it
Store it in the recess at the boot sill,
with
  the   two   rear   flaps   uppermost.
First,
  compress   the   load   space   screen
to

  the   left.
Release.
Arrange
  the   two   flaps   and   close   the
storage

  flap.
The

roller

is

fitted

with

three

flaps

permitting


concealment

of

the

boot, whether the row 2 seats
are


in

the

normal

position

or

the

comfort


position.
Each

flap

has

two

clips

which

are

hooked


on

the

base

of

each

head

restraint.
Practical information
