Instruments and controls
Berlingo-2-VP_en_Chap03_Pret-a-partir_ed02-2015
SERVICE INDICATOR
This programmes service intervals according  to   the   use   of   the   vehicle.More than 1 000 miles/km before the
next service is due
Example:
  4   800   miles/km   remain
before

  the   next   service   is   due.   When
the ignition is switched on and for a
few

  seconds,   the   screen   shows:
a few seconds after the ignition is
switched on, the oil level is displayed
(depending on version), then the total
distance

  recorder   resumes   normal
operation showing the total and trip
distances.
Less than 1 000 miles/km before the
next service is due
Each time the ignition is switched on and for a few seconds,  the   spanner   flashes   and   the   number   of miles/kilometres

  remaining   is   displayed:
a few seconds after the ignition is
switched on, the oil level is displayed
(depending on version), then the total
distance
  recorder   resumes   normal
operation

  and   the   spanner   remains   on.
This indicates that a service should be
carried

  out   shortly.
Service overdue
Operation
A


few

moments

after

the

ignition

has been switched on, the spanner
indicating


a

service

operation

comes

on; the display for the total distance
recorder


gives

(in

round

figures)

the

distance


remaining

before

the

next

service.
The points at which a service is due
are


calculated

from

the

last

indicator

zero


reset.
The point at which a service is due is
determined

by

two

parameters:
-

the distance travelled,
-


the


time

which

has

elapsed

since

the


last

service.
The

distance

remaining

before

the

next


service

may

be

weighted

by

the


time

factor,

depending

on

the

type


of

driving. With the engine running the spanner
remains
  on   until   the   service   has   been
carried

  out.
For BlueH
d i d iesel versions, this
alert
  is   also   accompanied   by   the   fixed
illu

mination   of   the   Service   warning
lamp,

  on   switching   on   the   ignition.
Each
  time   the   ignition   is
switched on and for a few
seconds, the spanner
flashes

  and   the   excess
distance

  is   displayed.
For BlueH
d i d iesel versions, the
spanner
  can   also   come   on   early,
according the level of deterioration
of

  the   engine   oil.   Deterioration   of   the
engine oil depends on the conditions of
use

  of   the   vehicle.
REadY To Go
3

48
Berlingo-2-VP_en_Chap03_Pret-a-partir_ed02-2015
Instruments and controls
Berlingo-2-VP_en_Chap03_Pret-a-partir_ed02-2015
Trip recorder zero
reset button
after this operation, if you wish to
disconnect   the   battery,   lock   the
vehicle

  and   wait   for   at   least   five
minutes,

  otherwise   the   zero   re-set   will
not


be   registered.
Engine oil level indicator
depending on your vehicle's engine,
when the ignition is switched on,
the engine oil level is indicated for
a few
seconds, after the service
information. Oil level
correct
Low oil level
Flashing of "OIL",
linked
  with   the
service

  warning   lamp,
accompanied

  by   an
audible

  signal   and   a   message   in   the
screen, indicates a low oil level which
could

  damage   the   engine.
If   the   low   oil   level   is   confirmed   by   a
check

  using   the   dipstick,   it   is   essential
that

  the   level   is   topped   up.
Oil level gauge fault
Flashing of "OIL--"
indicates a
malfunction   of   the
engine oil level
indicator
.   Contact   a   CITROËN   dealer
or

  a   qualified   workshop.
The level read will only be correct
if the vehicle is on level ground
and the engine has been off for
more   than   30   minutes.Dipstick
A
  =   maximum,   never   exceed
this level as a surplus of oil
may

  damage   the   engine.
Contact a CITR o Ë n dealer
or   a   qualified   workshop
without

  delay.
B
=

minimum,

top

up

the

level

via

  the   oil   filler   cap,   using   the
grade of oil suited to your
engine.
Lighting dimmer
With the ignition on, press
the button until the zeros
appear.
With the lighting on,
press the button to vary
the brightness of the
instruments
  and   controls.
When the lighting
reaches

  the   minimum   (or
maximum)


setting,   release   the   button
then press it again to increase (or
reduce)


the

brightness.
a

s soon as the lighting is of the
required

brightness,   release   the   button.
Zero reset
Your CITROËN dealer or a qualified workshop  carries   out   this   operation
after

  each   service.
However, if you carry out the service
yourself, the re-set procedure is as
follows:
-

switch of
f the ignition,
-

press and hold the trip recorder
reset button,
-


switch
  on   the   ignition.
The
  display   begins   a   countdown.
When the display shows "=0", release
the
  button;   the   spanner   disappears.

49
Berlingo-2-VP_en_Chap03_Pret-a-partir_ed02-2015Berlingo-2-VP_en_Chap03_Pret-a-partir_ed02-2015

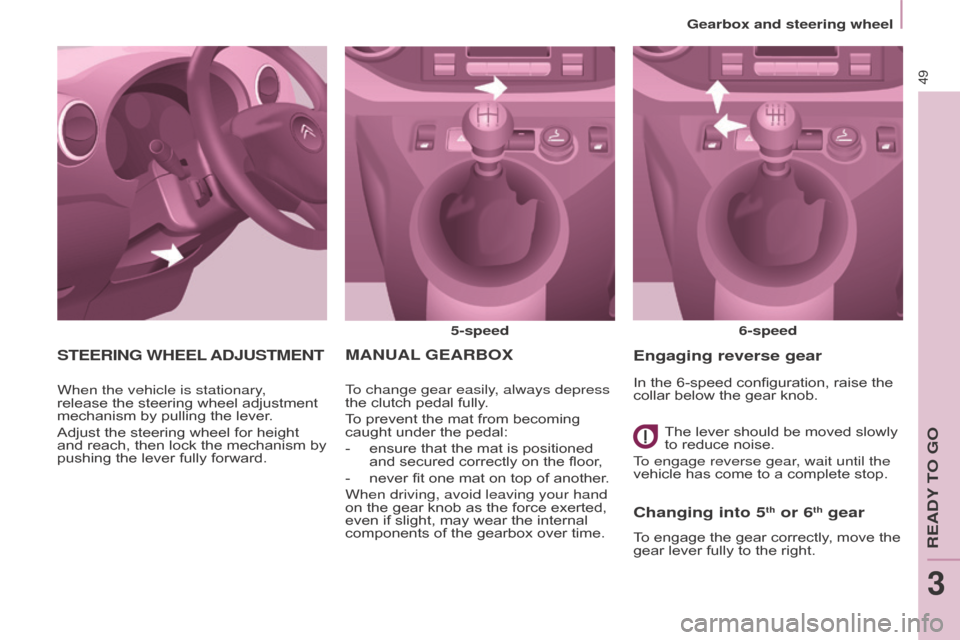

MANUAL GEARBO x
5-speed
6-speed
To change gear easily, always depress
the

clutch

pedal   fully.
To

prevent

the

mat   from   becoming
caught


under

the   pedal:
-

ensure


that
  the   mat   is   positioned
and


secured   correctly   on   the   floor,
-

never


fit

one   mat   on   top   of   another.
When driving, avoid leaving your hand
on

the

gear

knob   as   the   force   exerted,
even


if

slight,

may   wear   the   internal
components


of
  the   gearbox   over   time.
Changing into 5th or 6th gear
To engage the gear correctly, move the gear  lever   fully   to   the   right.
Engaging reverse gear
The lever should be moved slowly to  reduce   noise.
To engage reverse gear, wait until the
vehicle
  has   come   to   a   complete   stop.
STEERING WHEEL ADJUSTMENT
When the vehicle is stationary,
release
  the   steering   wheel   adjustment
mechanism

  by   pulling   the   lever.
Adjust
  the   steering   wheel   for   height
and

  reach,   then   lock   the   mechanism   by
pushing

  the   lever   fully   forward. In
  the   6-speed   configuration,   raise   the  collar
  below   the   gear   knob.
REadY To Go
3
Gearbox and steering wheel

50
Berlingo-2-VP_en_Chap03_Pret-a-partir_ed02-2015Berlingo-2-VP_en_Chap03_Pret-a-partir_ed02-2015
The information appears in the  instrument   panel   in   the
form

  of   an   arrow.
The
  system   adapts   its   gear
change

  recommendation
according to the driving conditions
(slope,


load, ...)   and   the   demands
of the driver (power

, acceleration,
braking, ...).
The

system   never   suggests:
-

engaging
  first   gear,
-

engaging
  reverse   gear.
With

an

electronic

gearbox,

the

system

is


only

active

in

manual

mode.

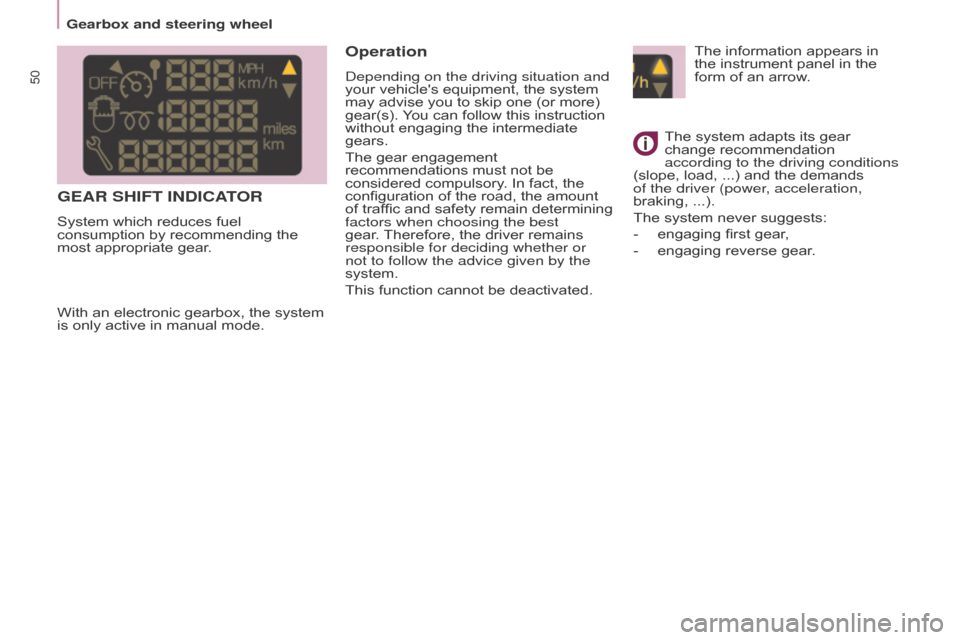

GEAR SHIFT INDICATOR
System which reduces fuel consumption   by   recommending   the
most

  appropriate   gear.
Operation
depending on the driving situation and
your   vehicle's   equipment,   the   system
may

  advise   you   to   skip   one   (or   more)
gear(s).


Y
ou   can   follow   this   instruction
without

  engaging   the   intermediate
gears.
The

  gear   engagement
recommendations

  must   not   be
considered

  compulsory.   In   fact,   the
configuration

  of   the   road,   the   amount
of

  traffic   and   safety   remain   determining
factors when choosing the best
gear

.
Therefore,
  the   driver   remains
responsible for deciding whether or
not to follow the advice given by the
system.
This

  function   cannot   be   deactivated.
Gearbox and steering wheel

51
Berlingo-2-VP_en_Chap03_Pret-a-partir_ed02-2015Berlingo-2-VP_en_Chap03_Pret-a-partir_ed02-2015
6-SPEED ELECTRONIC GEARBOx
- automatic  mode:   gear   selector   in  position
A.
-

manual
  mode:   gear   selector   in
position

M.
For
  safety:
It
  is   only   possible   to   come   out
of position

N   if   the   brake   pedal   is
pressed.
The

  change   from   position   A (driving in
automatic
  mode)   to   position   M (driving
in
  manual   mode)   or   vice   versa   can   be
made

  at   any   time.
The
  warning   lamp   A
goes
  off   in   the   instrument   panel.
Mode selection Moving off
- To start the engine, the gear
selector   must   be   in   position   N.
-

Press
  firmly   on   the   brake   pedal.
-

Operate
  the   starter.
-

When the engine is running, place
the gear selector on

R, A or M as
desired.
-

Release
  the   brake   pedal   and
accelerate.
If the gear selector is not in position

N,
and/or
  if   the   brake   pedal   is   not
pressed,

  the   engine   will   not   start.
Repeat

  the   above   procedure.
Reverse gear Engaging reverse gear
Move the gear selector to R.
Only attempt to select reverse gear
when the vehicle is stationary.
Neutral Changing to neutral
Move the gear selector to N.
  If   the
vehicle

  is   moving,   do   not   select   this
position

  even   momentarily.
REadY To Go
3
Gearbox and steering wheel

52
Berlingo-2-VP_en_Chap03_Pret-a-partir_ed02-2015Berlingo-2-VP_en_Chap03_Pret-a-partir_ed02-2015
Acceleration
For optimum acceleration (e.g. to overtake  another   vehicle),   simply
press the pedal beyond the point of
resistance at the end of its travel, by
pressing

  down   firmly.
Vehicle stationary, with the
engine running
In the event of a prolonged stop with
the engine running, the gearbox
changes  automatically   to   neutral   N.
Stopping the vehicle
Before stopping the engine, put the
gear selector in position N.
In all cases, it is essential to apply
the
  parking   brake.   Check   that   the
parking

  brake   warning   lamp   is   on   in   the
instrument

  panel.
Before doing anything in the
engine
  compartment,   check   that
the gear selector is in neutral

N.
Changing gear
In situations of high engine speeds
(heavy acceleration), a change
up will not occur unless the driver
operates the electronic gearbox control
paddle. Pull on the "+" control
paddle
  to   change   up.
Pull on the "-" control
paddle to change
down.
-

If the vehicle stops or reduces
speed

  (for   example   when
approaching a stop sign),
the gearbox changes down
automatically

,   to   first   gear   if
needed.
-


It is not necessary to release the
accelerator

  completely   during   gear
changes.
-

a
gear change instruction is
accepted only if the engine speed
permits.
-


For safety reasons, depending on
the engine speed, a change down
may

  be   performed   automatically.
Manual mode
Changing to manual mode
Move the gear selector to M. Automatic mode Changing to automatic
mode
Move the gear selector to A.
The gearbox then operates in
automatic

mode,

without

any

action

on

your


part.
It constantly selects the gear that is
best

suited

to

the

following

conditions:
-

driving style,
-


road


profile,
-

optimum


fuel

consumption.
Gearbox and steering wheel

53
Berlingo-2-VP_en_Chap03_Pret-a-partir_ed02-2015Berlingo-2-VP_en_Chap03_Pret-a-partir_ed02-2015
STOP & START
The Stop & Start system puts the engine
  temporarily   on   standby   -   STOP mode

  -   during   stops   in   the   traffic   (red
lights,

  traffic   jams,   or   other...).
The

engine

  restarts   automatically   -   START
 mode

  -   as   soon   as   you   want   to   move
of

f.
The
  restart   takes   place   instantly,
quickly

  and   silently.
Perfect for urban use, the Stop & Start
system
  reduces   fuel   consumption   and
exhaust

  emissions   as   well   as   the   noise
level

  when   stationary.
Operation
Going into engine STOP mode
The "ECO"  warning  lamp  comes on
  in   the   instrument   panel   and the

  engine   goes   into   standby:
- with a manual gearbox , at speeds
below   12   mph   (20   km/h),   when   you
put the gear lever into neutral and
release the clutch pedal,
-


with
a 6-speed electronic
gearbox,
  at   speeds   below   5   mph
(8

  km/h),   when   you   press   the   brake
pedal or put the gear lever into
position

N. If
  your   vehicle   is   fitted   with   the   system,
a

  time   counter   calculates   the   sum   of
the

  periods   in   STOP

mode   during   a
journey

.   It   rests   itself   to   zero   every   time
the

  ignition   is   switched   on   with   the   key.
With   a   6-speed   electronic
gearbox,

  for   your   comfort   during
parking

  manoeuvres,   STOP

mode
is not available for a few seconds after
coming

  out   of   reverse   gear.
STOP

mode   does   not   affect   the
functionality of the vehicle, such as
braking,

  power   steering,   for   example.
n

ever refuel with the engine in
STOP

mode;   you   must   switch   off
the

  ignition   with   the   key.Special cases: STOP mode
unavailable
STOP

mode   is   not   invoked   when:
-
the driver's door is open,
-

the driver's seat belt is not
fastened,
-

the vehicle has not exceeded
6 mph

  (10   km/h)   since   the   last
engine

  start   using   the   key,
-
the
  engine   is   needed   to   maintain
a

  comfortable   temperature   in   the
passenger

  compartment,
-
demisting
  is   on,
-
some
  special   conditions   (battery
charge,

  engine   temperature,
braking

  assistance,   ambient
temperature...)

  where   the   engine
is needed to assure control of a
system.
In this case, the
"ECO"
warning   lamp   flashes   for   a
few

  seconds,   then   goes   off.
This operation is perfectly normal.
REadY To Go
3
Stop & Start

54
Berlingo-2-VP_en_Chap03_Pret-a-partir_ed02-2015Berlingo-2-VP_en_Chap03_Pret-a-partir_ed02-2015
Going into engine START mode
The "ECO" warning lamp goes  off   and   the   engine   starts:
- with a manual gearbox , when you
fully depress the clutch pedal,
-

with
a 6-speed electronic
gearbox:
●

gear
  lever   in   position   A or M,
when
  you   release   the   brake
pedal,
●


or
  gear   lever   in   position   N and
the
  brake   pedal   released,   when
you

  move   the   gear   lever   to
position

A or M,
●

or
  when   you   engage   reverse
gear

.
With
  a   manual   gearbox   in   STOP
 mode,

  if   a   gear   is   engaged   without
fully depressing the clutch pedal, a
warning

  lamp   comes   on   or   a   message
is

  displayed   asking   you   to   depress   the
clutch

  pedal   to   restart   the   engine.Special cases: START invoked
automatically
For
  your   safety   and   comfort,   START

is
invoked

  automatically   when:
-
you open the driver's door
,
-
you unfasten the driver's seat belt,
-
the speed of the vehicle exceeds
15
  mph   (25   km/h)   with   a   manual
gearbox

  or   7   mph   (11   km/h)   with
the

  6-speed   electronic   gearbox
system,
-


some
  special   conditions   (battery
charge,

  engine   temperature,
braking

  assistance,   ambient
temperature...)

  where   the   engine
is needed to assure control of a
system.In this case the

"ECO"
warning
  lamp   flashes   for
few seconds,

  then   goes   off.
This operation is perfectly normal.
Deactivation
At any time, press the "ECO
OFF" switch to deactivate the
system.
This

is

confirmed   by   the   switch   warning
lamp


coming   on   accompanied   by   a
message

  in   the   screen.
If

the

system   has   been   deactivated
in


STOP


mode,   the   engine   restarts
immediately

.
Reactivation
Press the "ECO OFF" switch again.
The   system   is   active   again;   this   is
confirmed

  by   the   switch   warning
lamp

  going   off   and   a   message   in   the
instrument

  panel.
The
  system   is   reactivated
automatically

  at   every   new   start
using

  the   key.
Operating fault
In the event of a malfunction with  the   system,   the   "ECO
OFF"
  switch   warning   lamp
flashes,

  then   comes   on
continuously

.
have

it

checked   by   a   CITROËN   dealer
or


a

qualified   workshop.
In

the

event   of   a   fault   in   STOP

mode,
the


vehicle   may   stall.
All
  of   the   warning
lamps


in

the   instrument   panel   come
on.


It

is

then   necessary   to   switch   off
the ignition and start the engine again
using


the
  key.
Stop & Start
