2016 AUDI TT ROADSTER Owners Manual

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl
CX) Audi
connect
Introduction
Applies to: vehicles with Audi connect
Audi connect services allow online information to
be directly transmitted and integrated into the
vehicle.
Thanks to a Wi-Fi hotspot, it is possible to use a
mobile device to access the Internet when the ve­
hicle is stationary.
A WARNING
- Only use Audi connect services when the
traffic conditions allow you to do so safely -
risk of accident! Please always observe the
notes in the chapter ¢page 121, Notes on
traffic safety.
- Mobile devices, tablet and laptop computers
and devices of a similar weight can only be
operated safely when the vehicle is station­
ary. Like any loose object, they can be cata­
pulted through the vehicle in an accident
and cause serious injuries. Always make sure
that such devices are securely stowed while
you are driving.
-Audi connect services should only be used
via a Wi-Fi hotspot when the vehicle is sta­
tionary -risk of accident!
Pl ease also refer to ¢ page 167, Notes on
Audi connect before using.
Setting up
Before you start
Applies to: vehicles with Audi connect
An Internet connection is required in order to use
Audi connect. You can establish a connection by
using one of the following options:
l) Not available in all markets. Applies to mobile phones
with Bluetooth remote SIM Access Profile on vehicles with
Audi connect and Audi phone box*.
2 > Not available for all countries and models Audi
connect
Option 1
Using a separate mini SIM card in the SIM card
reader ¢ page 159
Option 21
)
Connecting an rSAP¢ page 160 enabled mobile
phone via Bluetooth
Option 32
)
Using a mobile device (e.g. a smartphone) as a
personal Wi-Fi hotspot for the MMI ¢ page 161
Using the SIM card reader
Applies to: vehicles with SIM card reader
Fig. 150 Mini SIM card (actual size)
Important
The vehicle must be stationary.
The ignition must be switched on.
Inserting a SIM card
.,.. Select: I MENU
I button > Audi connect.
159

Downloaded from www.Manualslib.com manuals search engine Audi
connect
... To establish an Internet connection for Audi
connect services, confirm the prompt on the
display with Accept .
... The missing corner of the mini SIM card should
be at the front left. Slide the mini SIM card into
the slot in the SIM card reader ¢ Fig. 150 until
you feel it engage.
... Select and confirm Enter PIN.
... Enter the PIN code for your SIM card in the
MMI.
... Select and confirm OK.
... To allow the MMI to connect automatically in
the future, select and confirm Yes .
... Confirm
the system query of whether an Inter­
net connection should be established with Yes,
connect once or Yes, always connect if neces­
sary.
After connecting successfully
After connecting successfully, the signal strength
and type of connection will appear in the status
line of the infotainment display@/@
¢ page 130, Fig. 137.
You can now use Audi connect.
The available Audi connect services will be listed
on the infotainment display.
Removing a SIM card
... Briefly press the mini SIM card. The card will
then eject from the slot. Remove the mini SIM
card.
CD CAUTION
- To avoid damaging the SIM card reader, on­
ly use mini SIM cards (25 mm x 15 mm)
¢ Fig. 150. Please contact your service pro­
vider for more information on mini SIM
cards.
- Should you have inserted a different SIM
card size in the SIM card reader, do not un­
der any circumstances attempt to remove it
yourself as this may damage the SIM card
reader. Please contact a qualified workshop.
l l
Not available in all markets. Applies to mobile phones
with Bluetooth remote SIM Access Profile on vehicles with
Audi connect* and Audi phone box*.
160 -
If you use SIM card adapters, the vibrations
caused by the movement of the vehicle may
cause the SIM card to become detached
from the adapter -risk of damage to the
SIM card reader.
Connecting an rSAP enabled mobile phone
via Bluetooth
Applies to: vehicles with Audi connect
M
....
"' ....
a:
Fig. 151 Is your mobile phone rSAP enabled? This QR code
takes you directly to the mobile device database (data con­
nection costs vary according to your mobile phone con­
tract).
Important
Your mobile phone must support the Bluetooth
remote SIM Access Profile (Bluetooth rSAP).
For information regarding which Bluetooth con­
nections and functions your mobile phone sup­
ports, contact your mobile network service pro­
vider or consult the mobile device database at
www.audi.com/bluetooth ¢ Fig. 151.
The vehicle must be stationary, and the ignition
must be switched on.
The Bluetooth function and the discoverability
option of the MMI system and the mobile phone
must be activated.
The mobile phone you would like to connect must
not be connected actively to any other Bluetooth
device. The MMI must not be connected to a mo­
bile phone.
Access to your SIM card (SIM Access) must be ac-
tivated on your mobile phone.1
) ..,.

Downloaded from www.Manualslib.com manuals search engine Connecting
a mobile phone
� Select: IM
EN
u I button > Telephone > Connect
mobile phone> Continue. The available Blue­
tooth devices will be shown on the infotain­
ment display. Or: Search for the MMI system
via the Bluetooth device search function on
your mobile phone.
� Select and confirm the desired mobile phone
from the List of Bluetooth devices shown.
� Enter the PIN to establish a connection on your
mobile phone. Or: If the PIN is already being
displayed on your mobile phone, confirm it on
the phone and on the MMI. You have about 30
seconds to enter the PIN.
If you wish to connect your mobile phone via the
remote SIM Access Profile, please also enter your
SIM card's PIN in the MMI1
).
Please note any additional system queries on
your mobile phone, e.g. whether the phone
should connect automatically in the future. On
some mobile phones, you may also need to
download the directory separately.
� Confirm the system query of whether an Inter­
net connection should be established with Ac­
cept.
After connecting successfully
The Bluetooth symbol@, signal strength symbol
@ and type of connection@ � page 130 will ap­
pear on the infotainment display when the mo­
bile phone has been connected successfully.
You can now use Audi connect.
- Bluetooth devices only have to be bonded
once. Depending on the mobile phone you
are using, any devices that have already
been bonded to the MMI system are connec­
ted automatically when they are within
range and the ignition is on.
o l)
Not available in all markets. Applies to mobile phones
� with Bluetooth remote SIM Access Profile on vehicles with
� Audi
connect* and Audi phone box*.
8 2
> The number of possible attempts depends on the SIM
"
� card. Audi
connect
- You receive the SIM PIN and the PUK from
your mobile network service provider to­
gether with the SIM card. If you enter the
SIM PIN code incorrectly three times2
)
in a
row, the SIM card will be be blocked. A PUK
(personal unblocking key) must be entered
in order to reactivate the SIM card.
- The Bluetooth connection between the sys­
tem and the mobile phone is automatically
terminated when you Leave the car.
- For further information regarding your mo­
bile phone, contact your mobile network
service provider or refer to the operating in­
structions for your mobile phone. For infor­
mation on using a phone in your car, please
go online (e.g. www.audi .com/blue tooth)
or ask an Audi dealer.
Using a personal Wi-Fi hotspot
Applies to: vehicles with Audi connect and personal Wi-Fi hot­
spot
Impor tant
The vehicle must be stationary, and the ignition
must be switched on.
Your mobile device and mobile network provider
must support the mobile Wi-Fi hotspot function.
The personal Wi-Fi hotspot on your mobile device
must be activated.
Other devices must be permitted to access the
mobile hotspot.
Connecting the MMI to a personal hotspot
� Select: I M EN
U I button >Telephone > right con­
trol button > Wi-Fi settings > Wi-Fi > on.
� Then select and confirm Network search. The
devices found will be shown on the infotain­
ment display.
� Select and confirm your personal Wi-Fi hotspot
from the List.
� You may need to enter the password specified
by your mobile device.
Ill-
161

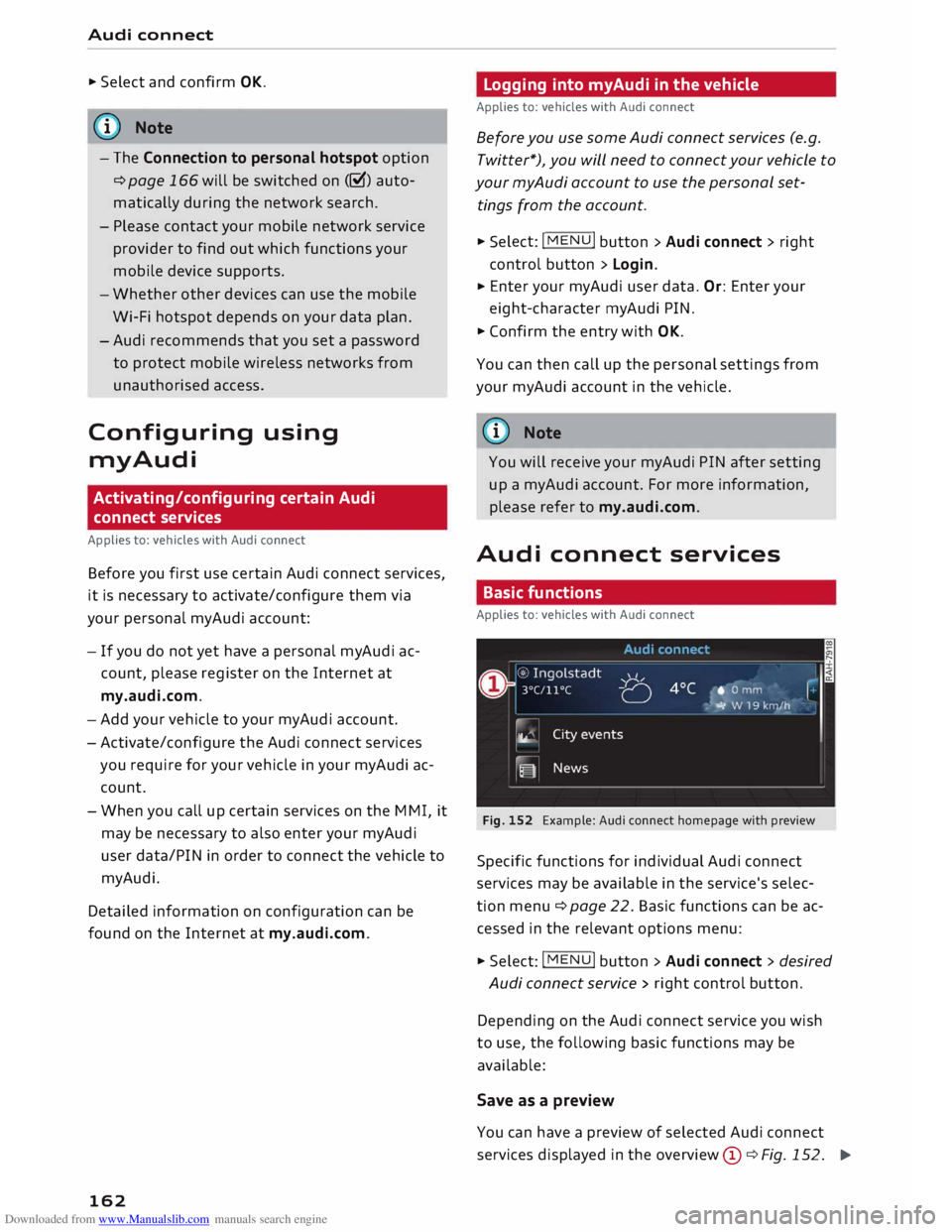

Downloaded from www.Manualslib.com manuals search engine Audi
connect
... Select and confirm OK.
(© Note
- The Connection to personal hotspot option
¢ page 166 will be switched on (�) auto­
matically during the network search.
- Please contact your mobile network service
provider to find out which functions your
mobile device supports.
- Whether other devices can use the mobile
Wi-Fi hotspot depends on your data plan.
-Audi recommends that you set a password
to protect mobile wireless networks from
unauthorised access.
Configuring using
myAudi
Activating/configuring certain Audi
connect services
Applies to: vehicles with Audi connect
Before you first use certain Audi connect services,
it is necessary to activate/configure them via
your personal myAudi account:
- If you do not yet have a personal my Audi ac­
count, please register on the Internet at
my.audi.com.
-Add your vehicle to your myAudi account.
- Activate/configure the Audi connect services
you require for your vehicle in your myAudi ac­
count.
- When you call up certain services on the MMI, it
may be necessary to also enter your myAudi
user data/PIN in order to connect the vehicle to
myAudi.
Detailed information on configuration can be
found on the Internet at my.audi.com.
162 Logging
into myAudi in the vehicle
Applies to: vehicles with Audi connect
Before you use some Audi connect services (e.g.
Twitter*), you will need to connect your vehicle to
your myAudi account to use the personal set­
tings from the account. ...
Sele ct: !MENU! button > Audi connect > right
control button > Login.
... Enter
your myAudi user data. Or: Enter your
eight-character myAudi PIN.
... Confirm the entry with OK.
You can then call up the personal settings from
your myAudi account in the vehicle.
ijJ} Note
You will receive your myAudi PIN after setting
up a myAudi account. For more information,
please refer to my.audi.com.
Audi connect services
Basic functions
Applies to: vehicles with Audi connect
Fig. 152 Example: Audi connect homepage with preview
Specific functions for individual Audi connect
services may be available in the service's selec­
tion menu ¢ page 22. Basic functions can be ac­
cessed in the relevant options menu:
... Select: !MENU!
button> Audi connect > desired
Audi connect service> right control button.
Depending on the Audi connect service you wish
to use, the following basic functions may be
available:
Save as a preview
You can have a preview of selected Audi connect
services displayed in the overview@ ¢ Fig. 152.
.,..

Downloaded from www.Manualslib.com manuals search engine Show
on map
You can have selected content displayed on the
map and use it for route guidance.
Read 1
)
You can have the MMI read out some types of
content.
Start route guidance
If an entry contains a location (e.g. in City
events), this can be used as a navigation destina­
tion in the MMI.
Refresh
The content of the Audi connect service selected
is updated.
Change search area
The search area selected can be changed at any
time. For more information on search areas,
please refer to ¢ page 172, Entering a special
destination.
Cl osing an Audi connect service
You can close an Audi connect service at any time
and go back to the overview, regardless of which
function you have chosen ¢ Fig. 152.
Parking information
Applies to: vehicles with Audi connect
Information on places to park and parking fees in
the search area selected (e.g. In immediate vi­
cinity).
� Select and confirm Parking information.
You can use the right control button to sort the
car parks by distance or by availability.
Travel information
Applies to: vehicles with Audi connect
Information on landmarks in the search area se­
lected.
� Select an confirm a landmark to have details
� displayed.
0
N
,.....
N
......
0
,.....
� 1}
Not available in all languages. Audi
connect
Fuel prices
Applies to: vehicles with Audi connect
Information on filling stations with the cheapest
fuel prices for your vehicle in the search area se­
lected.
� Select and confirm Fuel prices.
You can use the right control button to sort the
fuel prices by price or by distance.
Weather
Applies to: vehicles with Audi connect
Information on the current weather and weather
forecasts for the search area selected (e.g. In im­
mediate vicinity).
� Select and confirm Weather.
Flight information
Applies to: vehicles with Audi connect
Information on flights and current arrival/depar­
ture times in the search area selected.
� Select and confirm Flight information.
You can use the right control button to select the
information you require.
City events
Applies to: vehicles with Audi connect
Information on events of different categories in
the search area selected.
� Select and confirm City events > left control
button > a category.
Online news
Applies to: vehicles with Audi connect
With this service, you can call up the latest head­
lines from your preferred news providers in the
MMI.
Important: You must have subscribed to news
feeds via your myAudi account and your vehicle
must be connected to myAudi ¢page 162.
..,_
163

Downloaded from www.Manualslib.com manuals search engine Audi
connect
... Select: Online news > desired news feed> a
headline.
{Q')) Note
If you have not yet subscribed to any personal
news feeds in your myAudi account, pre-con­
figured news feeds will be shown.
Twitter
Applies to: vehicles with Audi connect
You can access the most important functions of
your Twitter account via the MMI.
Important: You must have linked your myAudi account to
Twitter. For more information, please refer to
my.audi.com.
You must have linked your vehicle to myAudi
¢page 162.
... Select Twitter > left control button > function
desired (e.g. Trends).
You can choose the following categories in the
Twitter menu:
- My tweets: New tweets and tweets you have
composed are listed.
- Home: All the tweets from people you are fol­
lowing are displayed.
- Trends: Topics currently being favoured for dis-
cussion within a particular country.
Different functions will be available depending
on the Twitter category you choose:
- New tweet: You can send a new tweet with the
help of ready-made templates or text blocks
personalised in your myAudi account.
- Refresh: The selected Twitter function is upda­
ted.
- Favourite: You can "favourite" a tweet to show
that you like it.
- Retweet: You can repost a tweet to share it
with other people.
164 (I))
Note
- For more information on how to connect
your myAudi account to Twitter, please see
my.audi.com.
- Further settings (such as your account, lan­
guage, Tweet privacy, and location settings)
cannot be changed in the MMI. If you wish
to change anything in these menus, please
do so on the Twitter website itself.
- Further information on the individual tem­
plates can be found at my.audi.com.
- You can only connect one Twitter account to
your myAudi account.
- Audi connect enables you to access the Twit­
ter service. Audi cannot guarantee that
these services will be available indefinitely;
this is the responsibility of Twitter.
Audi connect services in the navigation
system
Applies to: vehicles with navigation system and Audi connect
The following Audi connect services are currently
available:
- Navigation with Google Earth and Google
Street View ¢page 181.
- Online point of interest search with speech
dialogue system (e.g. restaurants): For plan­
ning a route via the MMI control console and
the speech dialogue system ¢page 133.
-Adding a destination to your MMI via your
my Audi account ¢ page 173 or Google Maps
¢page 181.
- Online traffic information*: Up-to-the-minute
reception of information on accidents, road­
works and other incidents ¢page 182.
- myAudi special destinations*: Your personal
special destinations can be imported to your
MMI via an SD card.
- Map update*: Navigation map updates can be
imported to your MMI using an SD card.
(D) Note
- The Audi connect map update service using
an SD card allows you to find out which soft­
ware version is installed in your vehicle. You
can then check whether a new version is
�

Downloaded from www.Manualslib.com manuals search engine available
at my.audi.com. You can also have
the new navigation data installed by an Audi
dealer (carries additional charges).
- Further information on the myAudi special
destinations and the map update can be
found at my.audi.com.
Audi connect services for telephones
Applies to: vehicles with Audi connect
The following Audi connect services are currently
available:
Creating contacts on your PC via your myAudi ac­
count and loading the contacts into the directory
of your MMI system ¢page 154.
Audi connect services in the Media menu
Applies to: vehicles with Wi-Fi audio player and Audi connect
- Wi-Fi audio player: To access the media centre
of your player (e.g. smartphone) connected via
Wi-Fi ¢page 195.
- Online media: With assistance from the Audi
MMI connect app, this function allows you to
access and operate various on line media serv­
ices using the MMI.
CD CAUTION
Please always observe the information ¢(Din
Wi-Fi hotspot on page 166.
Note
Please contact an Audi dealer for more infor­
mation on Wi-Fi audio players and for a list of
supported devices.
Further options
Applies to: vehicles with Audi connect .,.. Selec
t: I
MENU ! button
> Audi connect > right
control button.
The following options are available to you in the
overview of the Audi connect services:
- Login: Refer to ¢page 162, Logging into
0
� myAudi
in the vehicle.
� -Connection manager: Refer to ¢page 213.
N
......
0
"
Vl Audi
connect
- Licence periods: The validity and the time re­
maining on your licences is displayed. If the Li­
cence expiry warning function is switched on, a
message will be displayed before the licence
expires.
Wi-Fi hotspot
Applies to: vehicles with Wi-Fi hotspot
You can use your MMI system as a Wi-Fi hotspot
for connecting to the Internet on up to eight Wi­
Fi devices.
Important: The ignition must be switched on.
.,.. Select:
I MENU
I button >Telephone > right con-
trol button > Wi-Fi settings.
The following settings can be made:
Wi-Fi
The Wi-Fi hotspot is deactivated when the vehicle
leaves the factory. Switch the Wi-Fi hotspot on
before establishing an Internet connection be­
tween your vehicle and your Wi-Fi device.
- on: The MMI's Wi-Fi hotspot is activated and
visible to other devices. You can connect your
Wi-Fi device to the MMI.
- off: The M Mi's Wi-Fi hotspot is deactivated.
Wi-Fi devices will not be able to connect to the
Internet.
Network key
The Wi-Fi connection between your vehicle and
the Wi-Fi device (laptop or mobile phone) is en­
crypted. Before a connection can be established,
you must enter the following values/settings
when setting up your Wi-Fi device (these values
can be edited as required):
-Access point (SSID): Name of the Wi-Fi net­
work.
- Password: A random MMI password is set at
the factory. This password can be changed. The
encryption type WPA2 requires the password to
be at least 8 characters long. Please select a se­
cure password.
- Discoverability: To switch the discoverability of
your Wi-Fi network on or off.
.,.
165

Downloaded from www.Manualslib.com manuals search engine Audi
connect
Netwo rk search*
A List of the Wi-Fi networks available near you is
displayed.
Connection to personal hotspot1
)
The Wi-Fi hotspot of the MMI is activated. The
MMI can establish an Internet connection to a
personal Wi-Fi hotspot (e.g. smartphone). You
can search for your personal hotspot and connect
to the MMI using Network search. For more in­
formation, please refer to ¢ page 161.
This mode is not available if your own SIM card is
inserted in the SIM card reader.
A WARNING
- Do not allow the features of the Wi-Fi hot­
spot to distract you from watching the traf­
fic -taking your eyes off the road can cause
an accident.
- Mobile devices, tablet and laptop computers
and devices of a similar weight can only be
operated safely when the vehicle is station­
ary. Like any loose object, they can be cata­
pulted through the vehicle in an accident
and cause serious injuries. Always make sure
that such devices are securely stowed while
you are driving.
- No Wi-Fi devices may be used in the areas
around the airbags while the vehicle is being
driven. Please also observe the safety warn­
ings in the chapter on¢ page 235.
- Depending on the configuration of the Wi-Fi
device you are using (refer to the operating
manual of your Wi-Fi device for more de­
tails), the SIM card of the device may be
used in certain
cases
to provide the data
connection for Internet-supported apps and
services which use the MMI Wi-Fi hotspot.
Depending on your network provider, you
may be charged for this service, especially if
you are using the system abroad. We there­
fore strongly recommend that you use an
unlimited data plan. For more information,
l l
Not available in all markets.
166 contact
your service provider. Some exam­
ple cases are described below:
- Data plan expired/used up
- Data plan not valid abroad
- SIM card in the card reader* is not a data
SIM card
- SIM card in the card reader* is defective/
not valid
- Network is switched automatically due to
a low signal strength/data rate of the Wi­
Fi hotspot, the eSIM* or the SIM card in
the card reader*
- Connection to Wi-Fi hotspot interrupted
- Please note that it is your responsibility to
. take
precautions regarding data protection,
anti-virus protection and protection against
loss of data on mobile devices used to con­
nect to the Internet via the Wi-Fi hotspot.
1 Note
- You might require a separate mobile phone
contract with extra costs before you can use
the Wi-Fi hotspot. For more information,
contact your service provider.
- In vehicles without Audi connect*, the Wi-Fi
hotspot can only be used for the Wi-Fi audio
player*. A data connection to the Internet
cannot be established.
- Further information can be found on the In­
ternet at www.audi.com.
Configuring the data
connection
Applies to: vehicles with Audi connect
You must configure a data connection before you
can use Audi connect services.
� Select: I MENU
I button > right control button >
Connection manager.
� Select: right control button > Online settings >
Data connection settings.
You can select when you would Like the system to
establish an Internet connection in the Data con­
nection settings menu. The online connection is �
