2016 AUDI TT ROADSTER Owners Manual

Downloaded from www.Manualslib.com manuals search engine Displaying
the entry field*
Push the rotary pushbutton upwards to access
the entry field or the beginning of a list in the
central area.
Switching to the speller*
If the entry field is already open, you can switch
directly to entry via the speller by pushing the ro­
tary pushbutton upwards again¢ page 128,
Speller for Letters/numbers.
On the map
Important: A map must be displayed
¢page 178, Fig. 159.
- To display the entry field*: Push the rotary
pushbutton upwards.
- To display the route: If route guidance is ac­
tive, you can have the route displayed by push­
ing the rotary pushbutton upwards
¢page 170.
- To zoom in/out of the map: Turn the rotary
pushbutton to the left/right to make the map
scale larger or smaller.
Adjusting the sound focus*
Important: The balance/fader option must be se­
lected ¢ page 217. The cross hairs must be dis­
played.
- To adjust the sound focus using the cross­
hairs: The crosshairs can be moved horizontal­
ly. Turn the rotary pushbutton to the left or
right. To move the crosshairs vertically, press
the rotary pushbutton. Turn the rotary push­
button to the left or right. Press the rotary
pushbutton again to save the setting.
Operating the DVD main menu
Important: A video DVD must be playing
¢page 200.
- To select a menu option: Move the rotary push­
button with joystick function up or down, or to
the left or right.
- To confirm your selection: Press the rotary
� pushbutton.
0
N
,.....
N
......
0
,.....
Vl
CX) Multi
Media Interface
G}) Note
Please note that the control buttons are the
other way around if Arabic is selected as the
menu language.
Calling up the selection/options menu with
the rotary pushbutton
Applies to: vehicles with joystick function
Fig. 134 Calling up the selection/options menu with the
rotary pushbutton
To call up/close the selection menu: Press the
rotary pushbutton to the left
@ to
call up the se­
lection menu ¢ Fig. 134. You can then use the ro­
tary pushbutton to select and confirm a function.
Press the !BACK!
button (J) ¢page
121, Fig. 123
to return to the previous function.
To call up/close the options menu: Press the ro­
tary pushbutton to the right
@¢
Fig. 134 to call
up the options menu. You can then use the rotary
pushbutton to select and confirm a function.
Pres s the !BACK!
button
(J) ¢page
121, Fig. 123
to return to the previous function.
127

Downloaded from www.Manualslib.com manuals search engine Multi
Media Interface
Speller for Letters/numbers
Fig. 135 Illustration: Speller for letters/numbers
You can use the speller for letters/numbers to
enter letters, numbers and characters in the
MMI. This option is available while the entry field
@ is active ¢ Fig. 135.
- To call up/close the speller for letters/num­
bers: Push the rotary pushbutton upwards/
downwards while the entry field is active. Or:
Select the right control button > Open speller/
Close speller.
- To enter a letter/number: With the selection
line activated, turn the rotary pushbutton @
¢ Fig. 135 to select the desired letter/number.
Press the rotary pushbutton to confirm the let­
ter/number. Your entry will appear in the entry
field @. When you have entered all characters,
select and confirm I LIST !@ .
Or: Push the rota­
ry pushbutton downwards.
- To enter diacritics (e.g. a,�. ii, o)*: With the
selection line activated, turn the rotary push­
button to select a letter @¢ Fig. 135. To open
the corresponding set of diacritics, press and
hold the rotary pushbutton. Turn the rotary
pushbutton to select a diacritic while in the
character selection line@¢ Fig. 135. Press the
rotary pushbutton to apply the diacritic. To
close the set of diacritics without selecting a
character, press and hold the rotary pushbut­
ton again. Or: Select and confirm la ou lQ)
¢ Fig. 135. Select and confirm a diacritic.
-To delete a character: Select and confirm �@
¢Fig. 135. To delete all characters in the entry
128 field,
select� @¢ Fig. 135 and press and
hold the rotary pushbutton until all characters
have been deleted.
- To enter a special character: Select and confirm
! !&?! @¢Fig. 135 or!123! @. Use the speller
for numbers to select and confirm the special
character desired (such as a hyphen or full
stop).
- Input help: In some cases (such as in the navi­
gation system*), the system will suggest a
word* to complete your entry while you are still
making it@ ¢ Fig. 135. You can confirm the
word by pushing the rotary pushbutton up­
wards.
- Results list: In some cases (such as in the direc­
tory), the system will switch to the results list
@ ¢Fig. 135 automatically. Select and confirm
a suggestion from the list.
Requirement: The entry field@¢ Fig. 135 must
be active.
- To switch between the speller and the MMI
touch pad*: The handwriting recognition fea­
ture is automatically activated for the MMI
touch pad*, which means you can simply start
writing.
Overview of the symbols in the speller
The symbols of the speller for letters/numbers
are explained in the following table:
�

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
....
0
,.....
Vl
CX) CD
@ ®
@
®
®
0
®
®
@
@
@ Symbol
/ marking
I LIST! or�
Entry field
Results list +
E
!!&? !
laoul
! 123!�ABC!
Character selection
•
(©) Note Multi
Media Interface
Description
To switch to the results list.
The current entry is displayed.
Menu Language Arabic: A vertical line on the left/right side of the
cursor indicates where the next character will be inserted.
A list of suggestions for the letters already entered is displayed.
To switch from lower case to upper case letters and vice versa.
Menu Language Arabic: To show additional Arabic characters.
To open further speller options (e.g. Close speller, Clear entry field
or Switch to Cyrillic characters).
To display punctuation marks and special characters (e.g. hyphen or
full stop).
To display diacritics (e.g. a,�. n, o) or the Cyrillic alphabet.
Menu Language Arabic: To switch between Arabic and Latin charac-
ters.
To switch the speller from letters to numbers and vice versa
To enter a space in the entry field .
The character selected will be highlighted.
The entry suggestion* can be accepted by pushing the rotary push-
button upwards.
To delete the character to the left of the cursor.
Menu Language Arabic: Note the direction of writing.
Calling up the search function
Diacritics are not available for every letter. .,.
Select: !MENU
! button > the desired menu item
(e.g. Telephone) .
Search function
You can enter search terms in any order using
the search function.
Fig. 136 Example: Search function in the telephone menu
The search function is available in the Car*, Ra­
dio*, Media*, Telephone*, Navigation* and Audi
connect* menus. .,.
If necessary, turn the rotary pushbutton to the
left until the entry field CD¢ Fig. 136 for the
search function is displayed. Or: Push the rota­
ry pushbutton upwards to call up the entry field
CD ¢ Fig. 136.
The handwriting recognition feature is automati­
cally activated for the MMI touch pad*, which
means you can simply start writing.
Searching for an entry
.,. Enter one or more search terms in the entry
field in any order. The individual search terms
must be separated by spaces.
The system may make suggestions to complete
your entry @¢ Fig. 136 depending on what you
have entered. Further entries containing the
search terms entered will be displayed in the list
of results
@¢
Fig.136.
1)11,,
129

Downloaded from www.Manualslib.com manuals search engine Multi
Media Interface
If the desired term is not yet displayed, continue
entering letters until it appears.
The first few letters of the search terms will of­
ten be sufficient to bring up a list of results. In
the Telephone* menu, for example, write the ini­
tials of the contact you are looking for, separat­
ing them with a space.
Confirming an autocomplete suggestion
Important: An autocomplete suggestion@
¢ Fig. 136 must be displayed .
... When using MMI touch: Press the rotary push­
button.
Menus and symbols
Fig. 137 Illustration: Menus and symbols
Symbol / marking
Explanation
CD Selected
option Selected function ...
When using the speller: Push the rotary push­
button upwards.
Using an entry from the results list
... When using MMI touch: Turn the rotary push­
button to the right. Select an entry from the
list and confirm it.
... When using the speller: Select and confirm
! LIST! (!)
¢page 128, Fig. 135. Or: Push the ro­
tary pushbutton downwards. Select an entry
from the list and confirm it.
@ !TMC!
Reception of TMC/TMCpro* /on line traffic information ¢ page 182
Network coverage of the active
connection
¢ page 166
2G: GSM network
3G: UMTS network
® 2G/3G/LTE*
LTE*: L TE network
When a data connection has been established, a symbol indicating
the active data connection ¢page 166 appears in the status line of
the infotainment display
Reception strength of the active connection, or
@ Signal
strength bars for PIN:
Enter the SIM PIN code
data connection* PUK:
Enter the PUK code
SIM: Insert the SIM card¢ page 159
® Jukebox*
import process
Copying audio/video files to the jukebox* ¢ page 193
130

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl
CX) ®
(J)
®
®
@
@
@
@
@
@
@
@
@
@
@
Symbol
/ marking
Repeat track
Random playback
Rotary control
Arrow
Roaming
Import procedure
Bluetooth*
Options menu
Scrolling bar
Entry field
Signal strength bars for
mobile phone*
MMI touch*
Selection list
Checkbox
Battery* Multi
Media Interface
Explanation
The track currently playing will be repeated ¢ page 204
All tracks in the playlist will be played in random order
¢ page 204, Random playback
Settings for the selected function can be made by turning the rotary
pushbutton
Information can be called up by pressing the rotary pushbutton
Connected mobile phone/inserted mini SIM card has left its mobile
network
Import/update of contacts in the directory/call list
Bluetooth device connected ¢ page 194/¢ page 142
Select and confirm specific functions for individual menu items and
make changes to settings
Signifies a long list.
You can move within lists by turning the rotary pushbutton
Entries that can be changed using the speller for letters/numbers
¢ page 128 or the MMI touch pad*¢ page 124
Reception strength of mobile phone network of a connected mobile
phone ¢ page 142
Can be used via the MMI touch pad
Settings for the selected function that can be called up by pressing
the rotary pushbutton
You can switch certain functions on� or off Oby pressing the ro-
tary pushbutton.
Battery charge level of the connected mobile phone during wireless
charging ¢ page 146
131

Downloaded from www.Manualslib.com manuals search engine Speech
dialogue system
• Telephone
• Audi connect
• Navigation
• Directory
• Radio
• Media
• Sound
• Help
• Help Speech Dialogue System
• Help Telephone
• Help Audi connect
• Help Navigation
• Help Map
• Help Radio
• Help Media
• Enter
number
• Delete
number / correction
• Directory
• Call (XY)
•business/ private/ Land line/ mobile
• Drive
me to (XY)
• Business address/ Private address
• Start/ stop route guidance
• Directory
• Last destinations
• Navigation
favourites
• Drive
home
• Enter
address
• Enter
country/ town/ street
• Exclude
route/ Exclude route for (XY) km/ m
• Audi connect
• Travel information / Parking information
• Fuel prices
• Weather
• Radio
favourites
• Last
stations
• FM
and DAB
•FM/ DAB/ AM
• Station (XY) / Frequency (XY)
• Ensemble (XY)
• Traffic programme on/ off
Fig. 138 Overview of commands
132 •
Favourites
• Call (XY)
• Enter number
• Redial
• Read new text message
• Drive
me to (XY)
• Enter address
• Stop route guidance
• Map
• Line (XY)
• Next page / previous page
• Cancel
• Online destinations
• No, I meant (XY)
• Correction
• Call
list
• Redial
• Call
mailbox
• Enter
PIN / delete PIN
• Telephone favourites
• Exclude
next route section / Exclude
next street
• Manual / Automatic traffic
avoidance
• Route
list
• Calculate
alternative routes
• Online
destinations
• Special
destination •
• Flight
information / Train information
• City events
• Online
news
• Twitter
MEDIA
• Jukebox
• CD I DVD
• SD card 1 / SD card 2
• Audi
music interface / iPod / USB / Bluetooth /
Wi-Fi / Medium (XY)
• Media favourites/ Artists/ Albums/ Genres/
Tracks / Playlists / Videos
• Folder up
• Random playback on / off

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
....
0
,.....
Vl
CX) Speech
dialogue system
How to use the speech
dialogue system
Applies to: vehicles with speech dialogue system
You can operate many infotainment functions
conveniently by voice.
Important: The ignition and the MMI system
must be switched on, you must not be talking on
the phone, and the parking aid must not be ac­
tive.
� To switch on: Briefly press the [2!l button @ on
the multi-function steering wheel¢ page 23,
Fig. 10 and give a spoken command after the
beep signal.
� To switch off: Press and hold the [2!l button for
several seconds. Or: Say the command Cancel.
� To pause: Say the command Pause. To end the
pause, press the [2!l button.
� To make a correction: Press the� button once
® ¢page 21, Fig. 8. Or: Say the command Cor­
rection.
Input help
The system guides you through the input routine
with cues and messages.
- Input help messages on screen: After the
speech dialogue system is switched on, a selec­
tion of possible commands will be shown. The
command display can be switched on/off via
IM ENU I
> Settings > left control button > MMI
settings > Speech dialogue system.
- Spoken input help cues: To have the system
play the commands currently possible, press
the [2!l button on the multi-function steering
wheel and say Help.
How to help the system understand you
Speak clearly in a normal volume. Speak louder if
you are driving fast.
Speak in a normal tone without long pauses.
Avoid speaking when the speech dialogue system
is saying a cue. Speech
dialogue system
Close doors and windows and soft top* to reduce
background noise. Make sure that passengers are
not talking when you say a command.
Keep the air outlets of the air distribution system
pointed away from the microphone, which is fit­
ted in the vicinity of the front interior lights in
the headliner/on the driver's seat belt*. For more
information about the seat belt microphone, re­
fer to¢ page 157.
The system should only be operated by the driv­
er, since the handsfree microphone is directed
towards the driver.
Other settings
Refer to¢ page 218, Speech dialogue system.
&_ WARNING
- Please direct your full attention to the road
at all times! As the driver, you have full re­
sponsibility for the safety of the vehicle and
other road users. For this reason, you should
only use the functions in a manner that al­
lows you to maintain control of the vehicle
in all situations -accident risk!
- The speech dialogue system must not be
used in cases of emergency, since the voice
changes in stressful situations. This could
result in a failed or delayed telephone con­
nection. Always dial emergency numbers
manually!
(@ Note
- The dialogue is paused when an incoming
telephone call is received; you can continue
the dialogue by ignoring the call. If you an­
swer the call, the dialogue will be cancelled.
- No navigation cues* or traffic announce­
ments* are played when a dialogue is active.
- You can select an entry from a list both via
the speech dialogue system and using the
rotary pushbutton.
- The speech dialogue system does not sup­
port commands in Arabic, Norwegian or
Hungarian.
133

Downloaded from www.Manualslib.com manuals search engine Speech
dialogue system

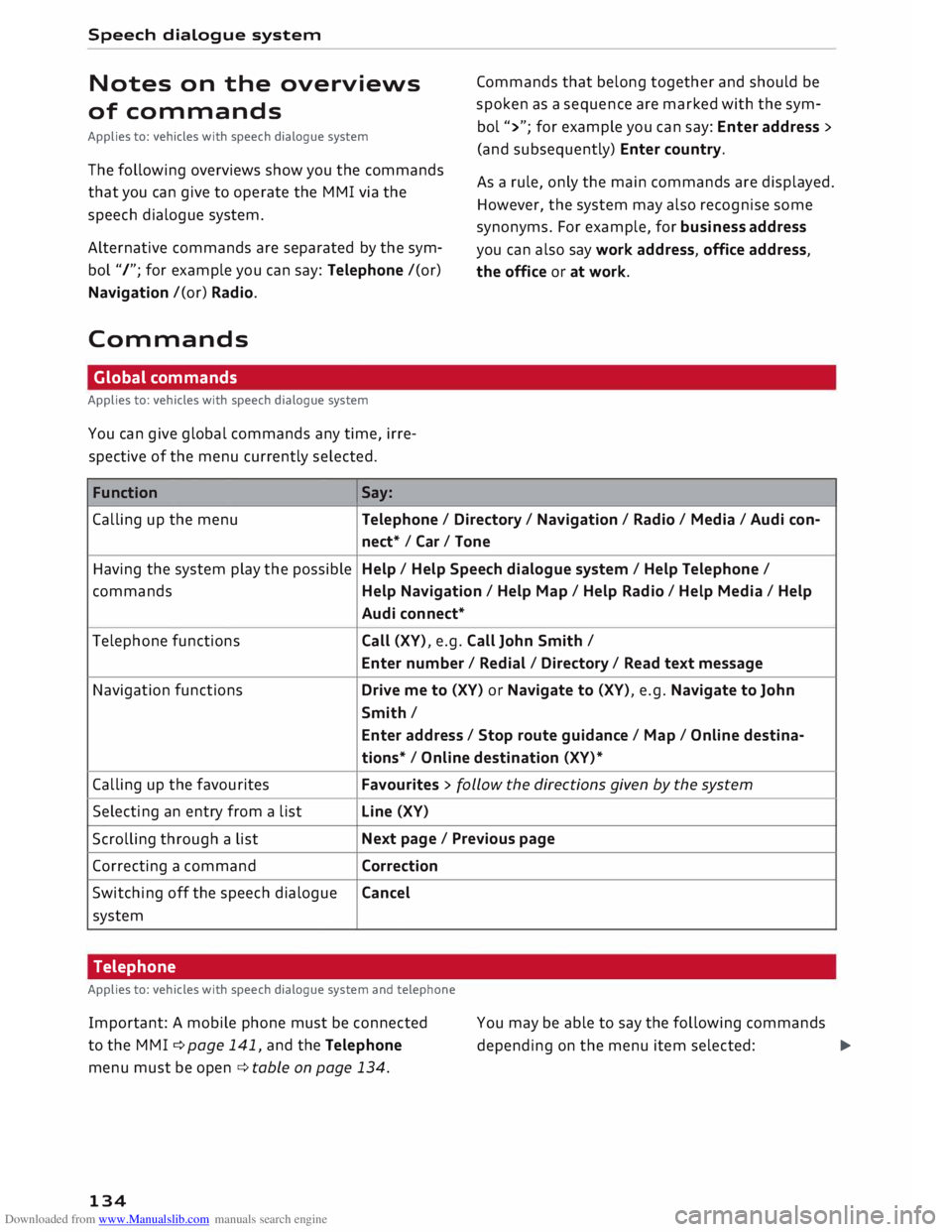

Notes on the overviews
of commands
Applies to: vehicles with speech dialogue system
The following overviews show you the commands
that you can give to operate the MMI via the
speech dialogue system.
Alternative commands are separated by the sym­
bol "/"; for example you can say: Telephone /(or)
Navigation /(or) Radio.
Commands Global commands
Applies to: vehicles with speech dialogue system
You can give global commands any time, irre­
spective of the menu currently selected.
Function Say: Commands
that belong together and should be
spoken as a sequence are marked with the sym­
bol ">"; for example you can say: Enter address >
(and subsequently) Enter country.
As a rule, only the main commands are displayed.
However, the system may also recognise some
synonyms. For example, for business address
you can also say work address, office address,
the office or at work.
Calling up the menu Telephone/ Directory/ Navigation / Radio / Media / Audi con-
nect* /Car/ Tone
Having the system play the possible Help
/ Help Speech dialogue system / Help Telephone /
commands Help Navigation / Help Map/ Help Radio/ Help Media / Help
Audi connect*
Telephone functions Call (XV), e.g. Call John Smith /
Enter number/ Redial/ Directory/ Read text message
Navigation functions Drive me to (XV) or Navigate to (XV), e.g. Navigate to John
Smith/ Enter address / Stop route guidance/ Map/ Online destina-
tions* / Online destination (XV)*
Calling up the favourites Favourites
> follow the directions given by the system
Selecting an entry from a list Line
(XV)
Scrolling through a list Next
page / Previous page
Correcting a command Correction
Switching off the speech dialogue Cancel
system
Telephone
Applies to: vehicles with speech dialogue system and telephone
Important: A mobile phone must be connected
to the M MI ¢ page 141, and the Telephone
menu must be open ¢ table on page 134.
134 You
may be able to say the following commands
depending on the menu item selected:
�
