2016 Alfa Romeo 4C Owner handbook (in English)

FUEL CONSUMPTION
The fuel consumption values given in the table below are determined on the basis of the type-approval tests laid down by
specific European Directives.
The procedures below are followed for measuring consumption:
urban cycle: cold starting followed by driving that simulates urban use of the car;
extra-urban cycle: frequent acceleration in all gears, simulating extra-urban use of the car: speed varies between 0 and
120 km/h;
combined consumption: calculated with a weighting of approximately 37% of the urban cycle and 63% of the extra-urban
cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim
level/equipment/accessories, use of the climate control system, car load, presence of roof racks and other situations that
adversely affect the aerodynamics or wind resistance lead to different fuel consumption values than those measured.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE
(litres/100 km)
Versions Urban Extra-urban Combined
1750 Turbo Petrol9.8 5.0 6.8
166
TECHNICAL SPECIFICATIONS

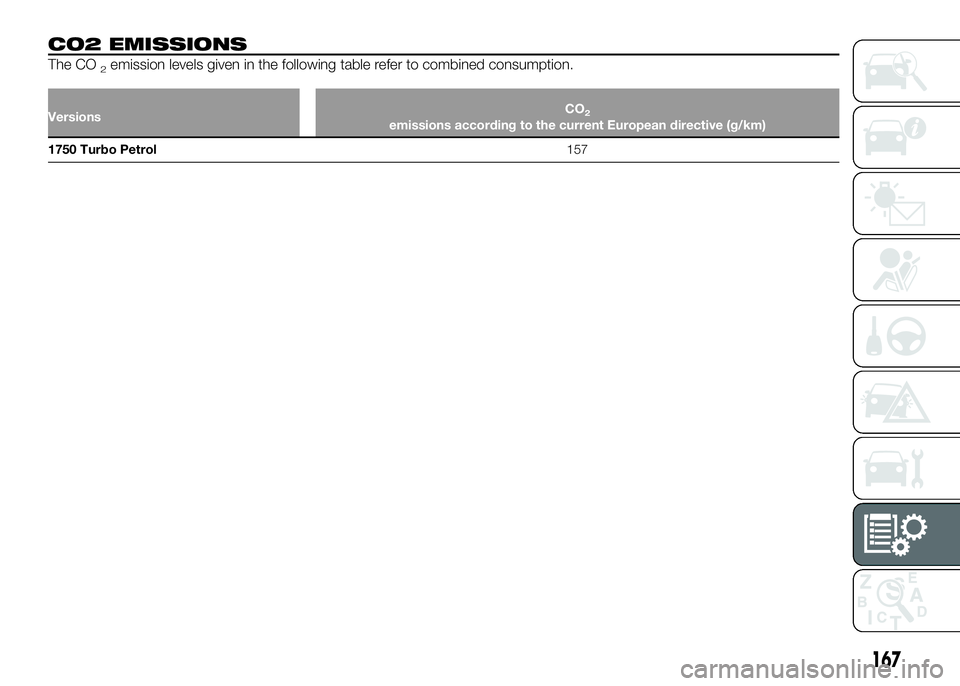

CO2 EMISSIONS
The CO2emission levels given in the following table refer to combined consumption.
VersionsCO2emissions according to the current European directive (g/km)
1750 Turbo Petrol157
167

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF
ITS LIFE
FCA has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly "eco-compatible". To grant customers the best possible service in
terms of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of
their life, FCA is offering its customers the chance to hand over their vehicle at the end of its life without incurring any additional
costs.
The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any expenses
as a result of it having a zero or negative market value.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another
vehicle or an FCA-authorised collection and scrapping centre.
These centres have been carefully chosen to offer high quality service for the collection, treatment and recycling of vehicles at
their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an FCA dealership or by calling the
number in the Warranty Booklet or by consulting the websites of the various FCA brands.
168
TECHNICAL SPECIFICATIONS

Fault Possible solution
... A TYRE IS PUNCTURED. Use the Fix&Go tyre repair kit.See.................p.106.
... A TYRE DEFLATES. Restore the correct pressure.See
.................p.158.
... THE BATTERY IS FLAT. -See
.................p.124or contact a dedicated Alfa
Romeo Dealership.
... THE INTERNAL ROOF LIGHT DOES NOT
SWITCH ON.Replace the bulb.See
.................p.119or contact a dedicated Alfa
Romeo Dealership.
... THE LUGGAGE COMPARTMENT ROOF LIGHT
DOES NOT SWITCH ON.Replace the bulb.See
.................p.119or contact a dedicated Alfa
Romeo Dealership.
... AN EXTERNAL BULB (main beam, dipped beam
headlights...) DOES NOT COME ON.-Contact a dedicated Alfa Romeo
Dealership.
Replace the bulb.See
.................p.116or contact a dedicated Alfa
Romeo Dealership.
... THE REMOTE CONTROL DOES NOT WORK. Replace the batteries inside the remote control.See
.................p.16.
... AN ELECTRIC WINDOW DOES NOT WORK.Check the relevant protective fuse.See
.................p.120or contact a dedicated Alfa
Romeo Dealership.
Have the appropriate window raising / lowering
motor checkedContact a dedicated Alfa Romeo
Dealership.
... THE ENGINE DOES NOT START, THE STARTER
DOES NOT TURN.-Contact a dedicated Alfa Romeo
Dealership.
169

Fault Possible solution
... THE ENGINE DOES NOT START OR STOPS
WHEN DRIVING.Check that there is sufficient fuel in the tank; refuel if
necessary.See.................p. 60.
... THE ENGINE DOES NOT START FOLLOWING
AN IMPACT.Check whether the fuel cut-off system has
intervened.See
..................p.33.
170
TECHNICAL SPECIFICATIONS
