537 5-2. Steps to take in an emergency
When trouble arises

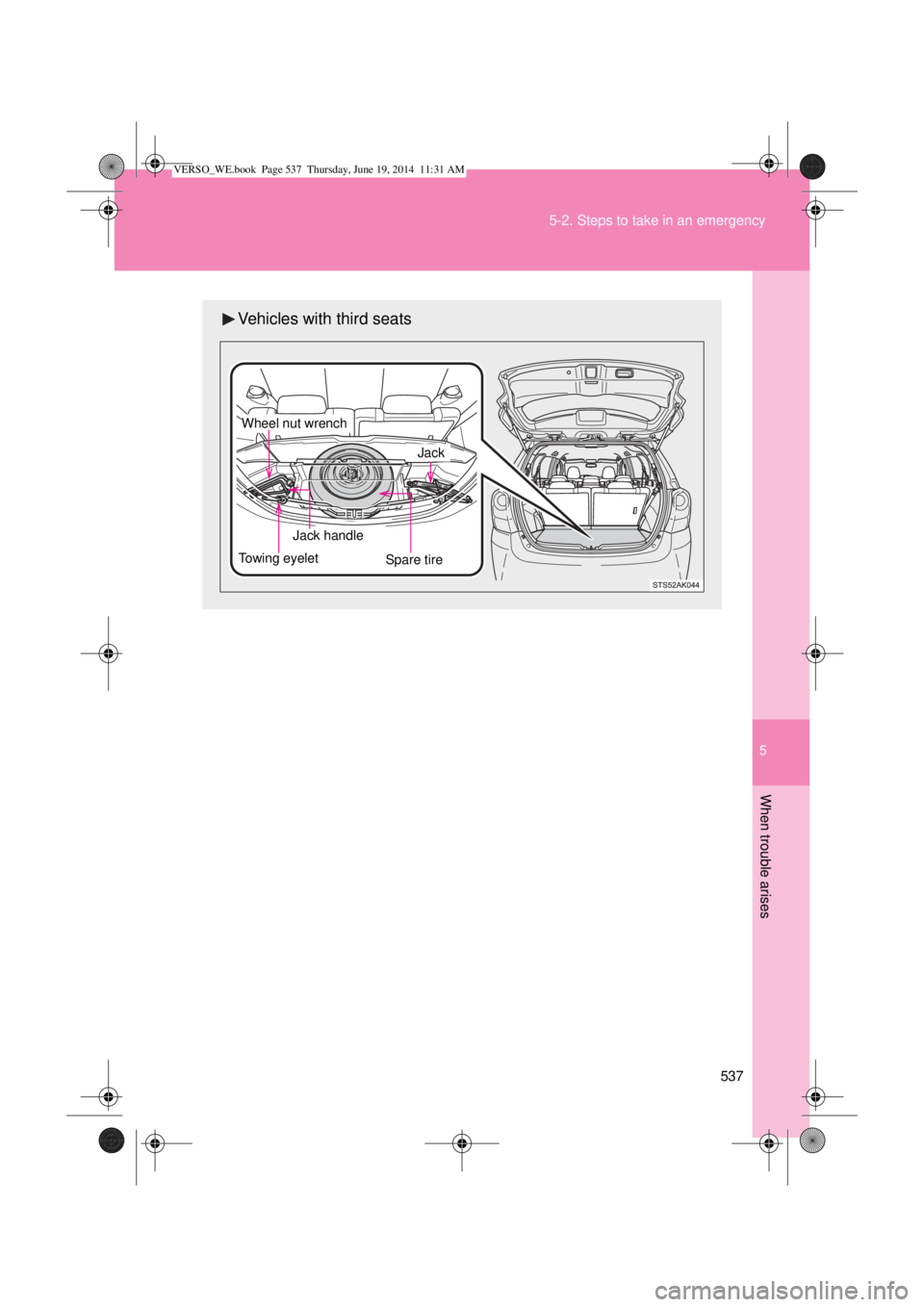

Vehicles with third seats
Spare tire
Jack handle
Jack
Wheel nut wrench
Towing eyelet
VERSO_WE.book Page 537 Thursday, June 19, 2014 11:31 AM

538 5-2. Steps to take in an emergency

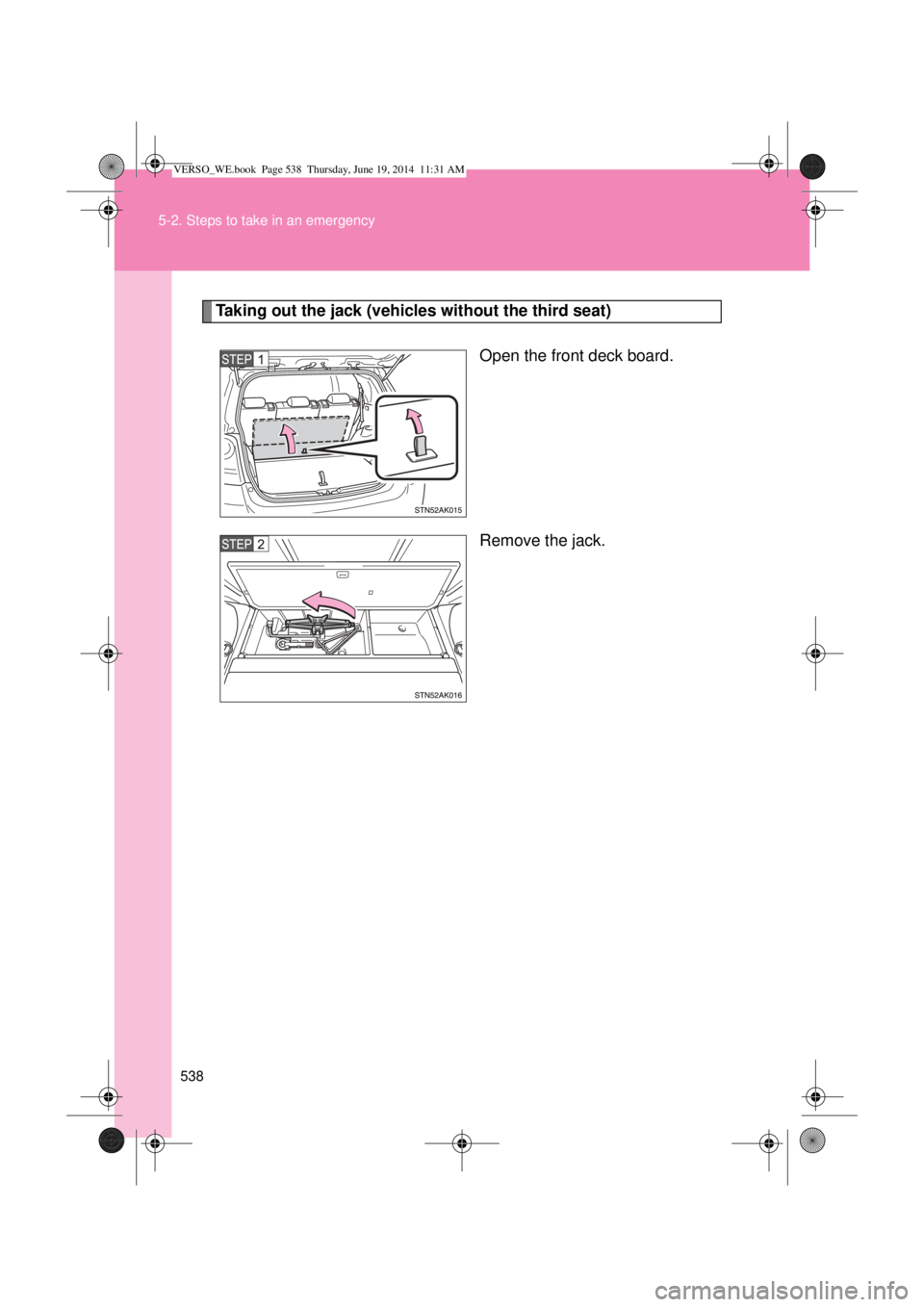

Taking out the jack (vehicles without the third seat)
Open the front deck board.
Remove the jack.
VERSO_WE.book Page 538 Thursday, June 19, 2014 11:31 AM

5
539 5-2. Steps to take in an emergency
When trouble arises

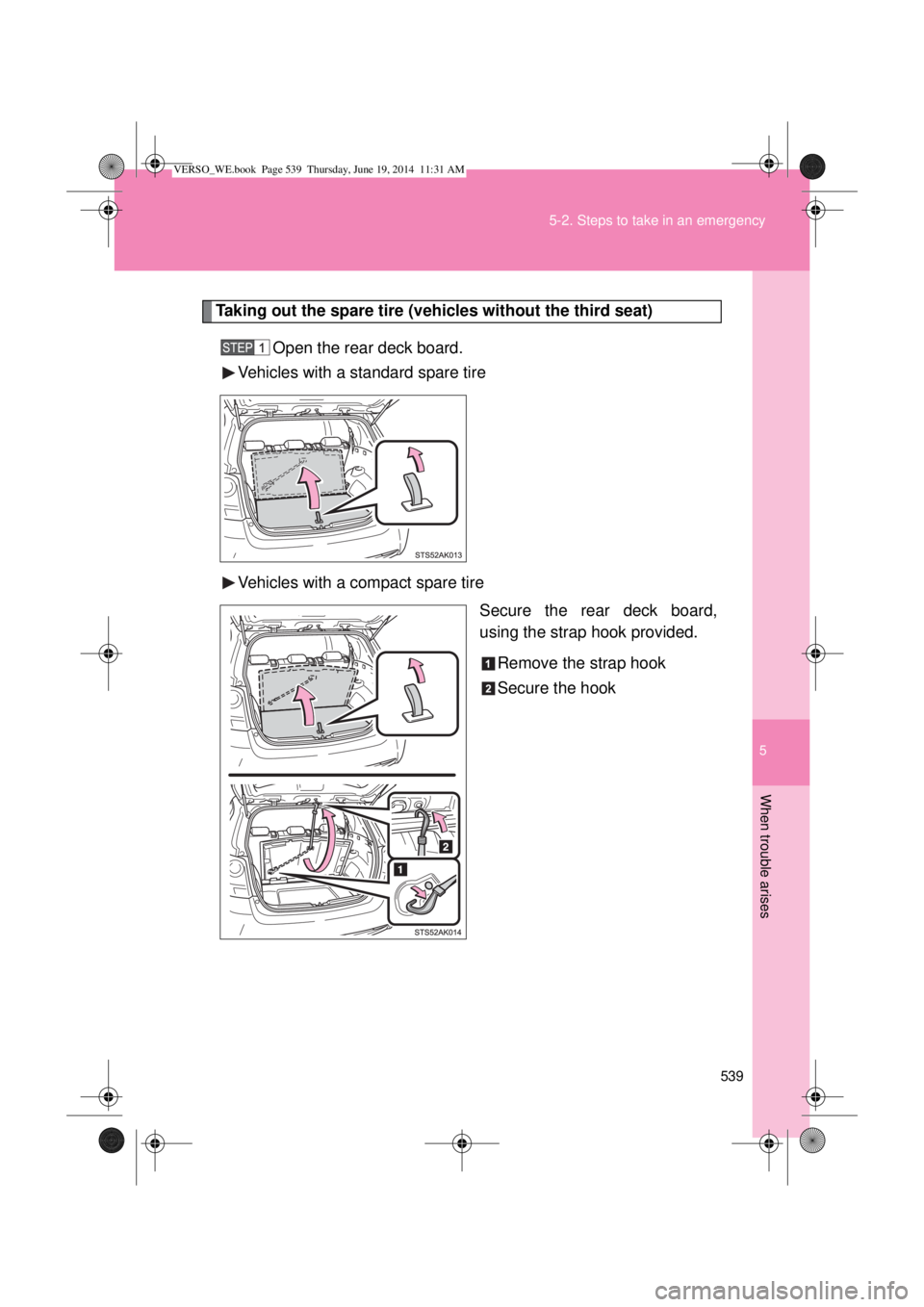

Taking out the spare tire (vehicles without the third seat)
Open the rear deck board.
Vehicles with a standard spare tire
Vehicles with a compact spare tire
Secure the rear deck board,
using the strap hook provided.
Remove the strap hook
Secure the hook
VERSO_WE.book Page 539 Thursday, June 19, 2014 11:31 AM

540 5-2. Steps to take in an emergency

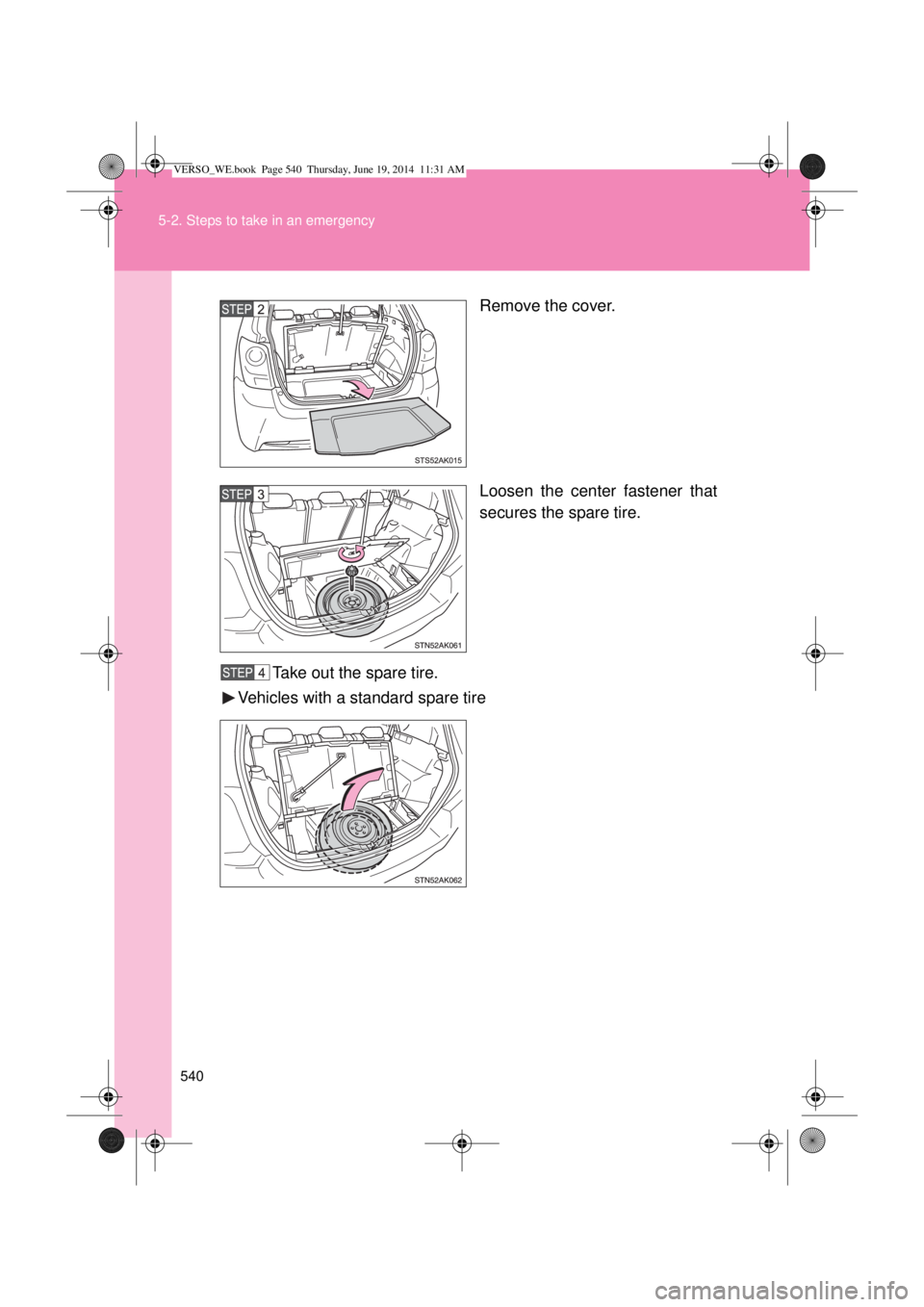

Remove the cover.
Loosen the center fastener that
secures the spare tire.
Take out the spare tire.
Vehicles with a standard spare tire
VERSO_WE.book Page 540 Thursday, June 19, 2014 11:31 AM

5
541 5-2. Steps to take in an emergency
When trouble arises
Vehicles with a compact spare tire
Taking out the jack and spare tire (vehicles with the third seat)

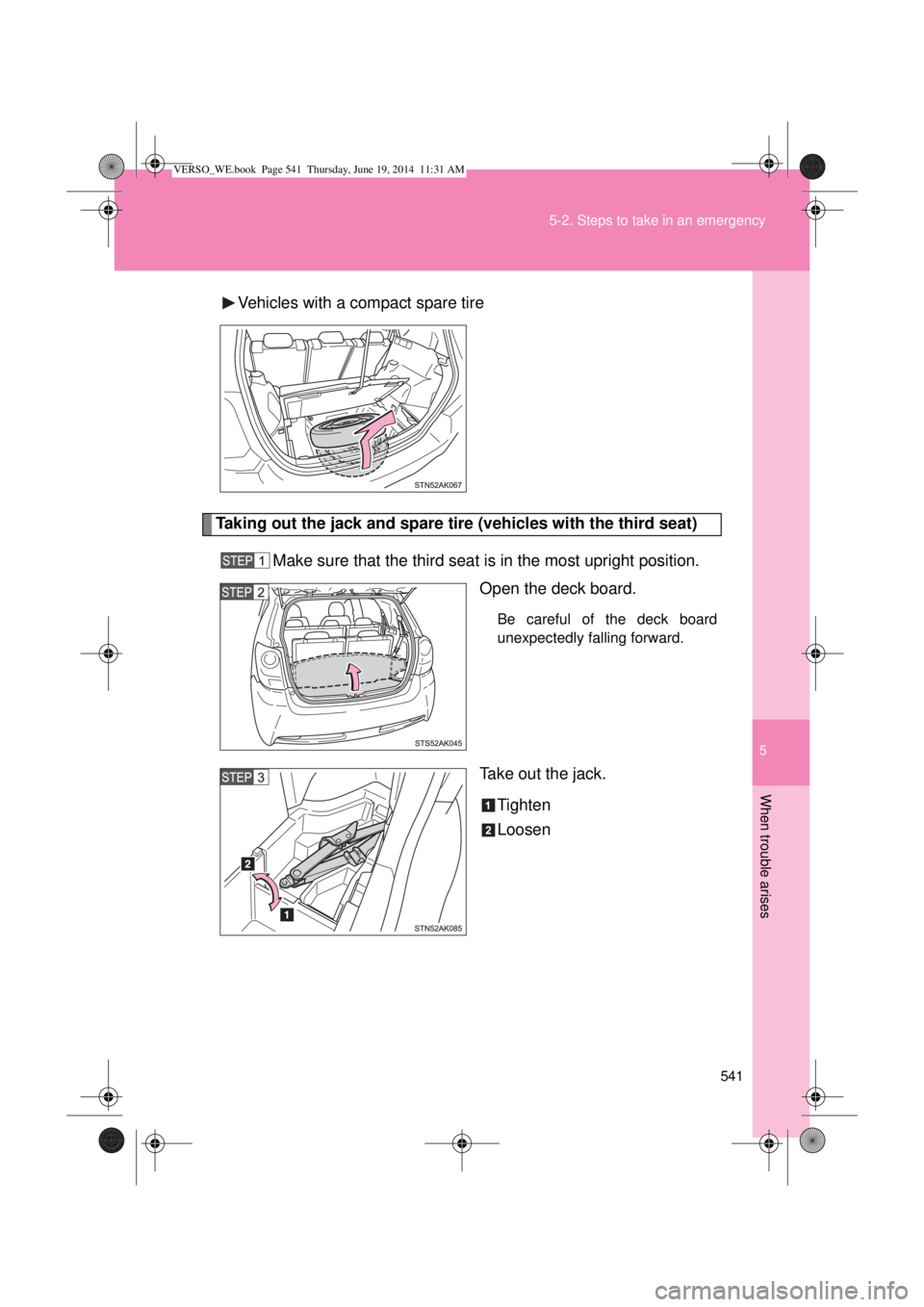

Make sure that the third seat is in the most upright position.
Open the deck board.
Be careful of the deck board
unexpectedly falling forward.
Take out the jack.
Tighten
Loosen
VERSO_WE.book Page 541 Thursday, June 19, 2014 11:31 AM

542 5-2. Steps to take in an emergency

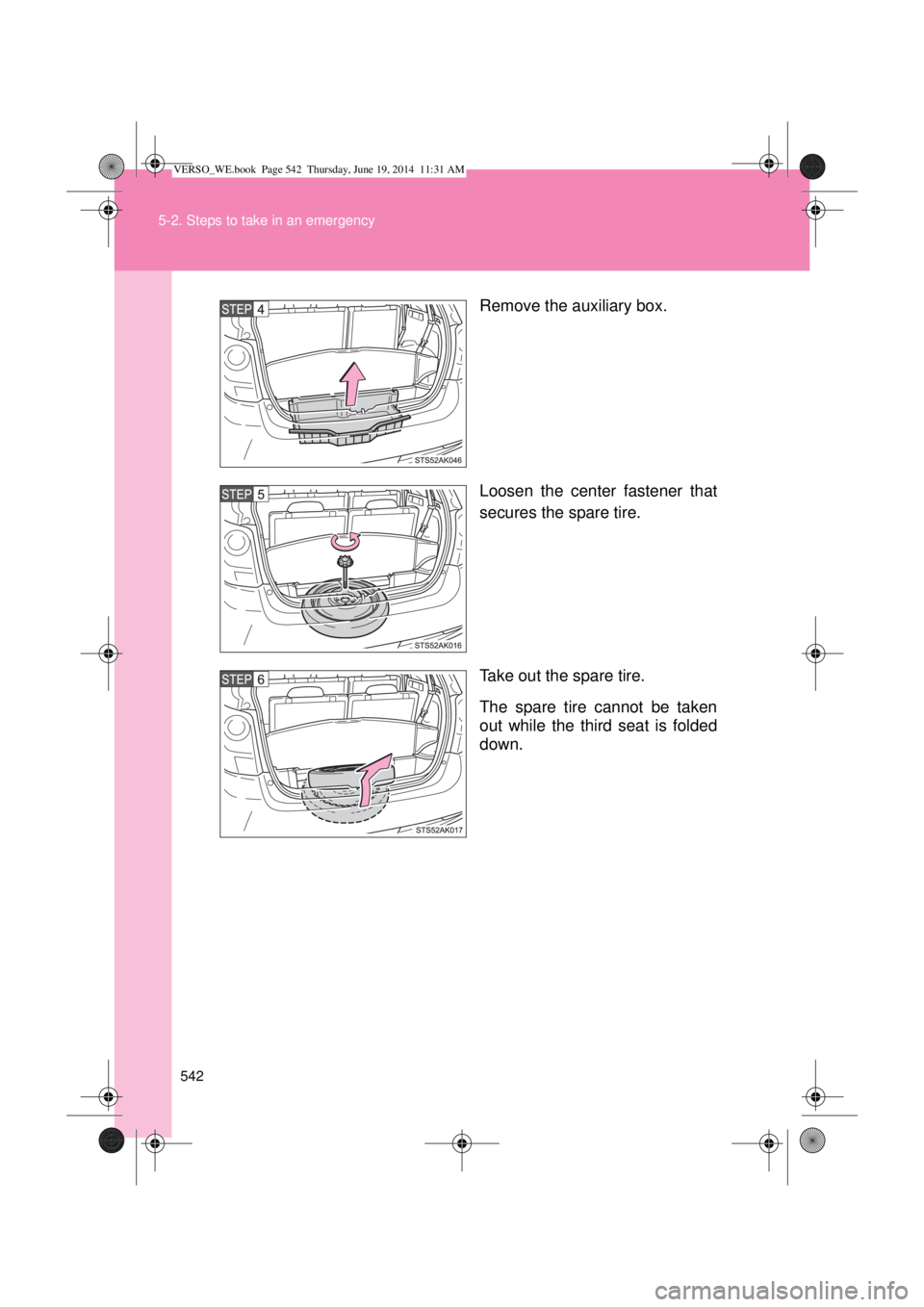

Remove the auxiliary box.
Loosen the center fastener that
secures the spare tire.
Take out the spare tire.
The spare tire cannot be taken
out while the third seat is folded
down.
VERSO_WE.book Page 542 Thursday, June 19, 2014 11:31 AM

5
543 5-2. Steps to take in an emergency
When trouble arises
Replacing a flat tire
Chock the tires.
Vehicles with a steel wheel,
remove the wheel ornament
using the wrench.
To protect the wheel ornament,
place a rag between the wrench
and the wheel ornament, as
shown in the illustration.
Slightly loosen the wheel nuts
(one turn).
Flat tireWheel chock positions
FrontLeft-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
RearLeft-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire
VERSO_WE.book Page 543 Thursday, June 19, 2014 11:31 AM

544 5-2. Steps to take in an emergency
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
