2015 TOYOTA VERSO Owners Manual

233
2-2. Instrument cluster
2
When driving
Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
For the purpose of explanation, the following illustration displays all
indicators and warning lights illuminated.
Instrument cluster (Left-hand drive vehicles)*
Instrument cluster (Right-hand drive vehicles)*
*
: The units used on the speedometer, tachometer and some indicators
may differ depending on the engine, transmission, etc.
VERSO_WE.book Page 233 Thursday, June 19, 2014 11:31 AM

234 2-2. Instrument cluster

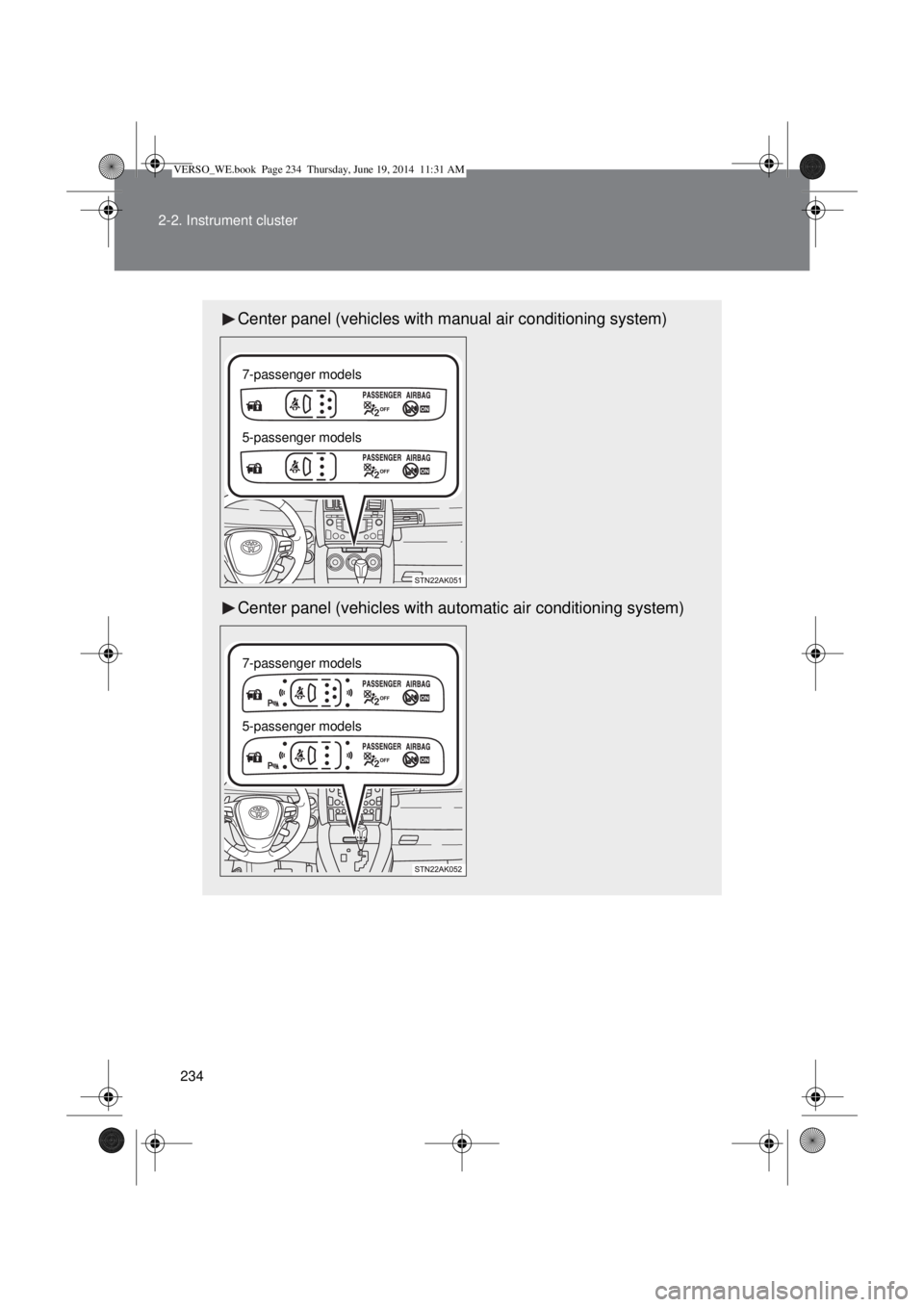

Center panel (vehicles with manual air conditioning system)
Center panel (vehicles with automatic air conditioning system)
7-passenger models
5-passenger models
7-passenger models
5-passenger models
VERSO_WE.book Page 234 Thursday, June 19, 2014 11:31 AM

235 2-2. Instrument cluster
2
When driving

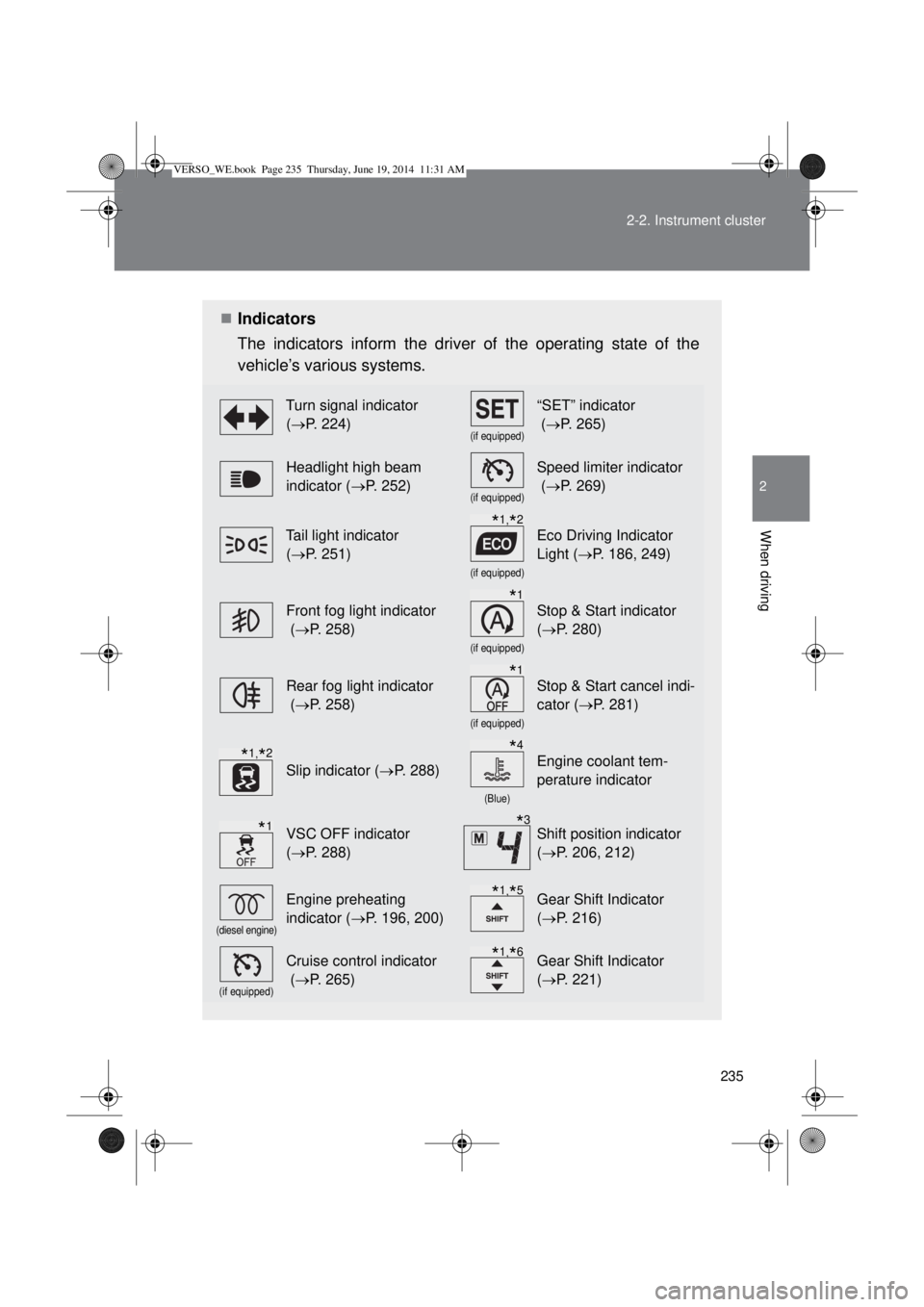

Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 224)
(if equipped)
“SET” indicator
(P. 265)
Headlight high beam
indicator (P. 252)
(if equipped)
Speed limiter indicator
(P. 269)
Tail light indicator
(P. 251)
(if equipped)
Eco Driving Indicator
Light (P. 186, 249)
Front fog light indicator
(P. 258)
(if equipped)
Stop & Start indicator
(P. 280)
Rear fog light indicator
(P. 258)
(if equipped)
Stop & Start cancel indi-
cator (P. 281)
Slip indicator (P. 288)
(Blue)
Engine coolant tem-
perature indicator
VSC OFF indicator
(P. 288)Shift position indicator
(P. 206, 212)
(diesel engine)
Engine preheating
indicator (P. 196, 200)Gear Shift Indicator
(P. 216)
(if equipped)
Cruise control indicator
(P. 265)Gear Shift Indicator
(P. 221)
*1,*2
*1
*1
*1,*2*4
*1*3
*1,*5
*1,*6
VERSO_WE.book Page 235 Thursday, June 19, 2014 11:31 AM

236 2-2. Instrument cluster
*1: These lights turn on when the engine switch is turned to the “ON” posi-
tion (vehicles without smart entry & start system) or the “ENGINE
START STOP” switch is turned to IGNITION ON mode (vehicles with
smart entry & start system) to indicate that a system check is being
performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
*2: The light flashes to indicate that the system is operating.
*3: Vehicles with a Multidrive or an automatic transmission
*4: This indicator turns on in blue when the engine coolant temperature is
low.
*5: Vehicles with an Automatic transmission
*6: Vehicles with a Manual transmission
“SPORT” indicator
(P. 207, 213)
Security indicator
(P. 124, 136)“PASSENGER AIRBAG” indicator
(P. 177)
(if equipped)
Toyota parking assist-sensor
indicator (P. 272)
*3*1
VERSO_WE.book Page 236 Thursday, June 19, 2014 11:31 AM

237 2-2. Instrument cluster
2
When driving
Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (P. 514)
*1: These lights turn on when the engine switch is turned to the “ON” posi-
tion (vehicles without smart entry & start system) or the “ENGINE
START STOP” switch is turned to IGNITION ON mode (vehicles with
smart entry & start system) to indicate that a system check is being
performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
*2: The light flashes to indicate a malfunction.
*3: The light comes on to indicate a malfunction.
*4: Vehicles with a tire pressure warning system.
(Red)(if equipped)
(if equipped)(if equipped)(if equipped)
(5-passenger models)(7-passenger models)
*1*1*1*1*1*1*1*2
*1,2*1,3*1*1*1,4
VERSO_WE.book Page 237 Thursday, June 19, 2014 11:31 AM

238 2-2. Instrument cluster
CAUTION
If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS airbag warning light
not come on when you start the engine, this could mean that these systems
are not available to help protect you in an accident, which could result in
death or serious injury. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional imme-
diately if this occurs.
VERSO_WE.book Page 238 Thursday, June 19, 2014 11:31 AM

239
2-2. Instrument cluster
2
When driving
Multi-information display
The multi-information display presents the driver with a variety of
driving-related data.
Trip information (P. 240)
Displays driving range, fuel
consumption and other cruis-
ing-related information.
Date (P. 240)
Indicates the date and sets it.
Outside temperature display
(P. 240)
Indicates the outside tempera-
ture.
Warning messages
(P. 523)
Automatically displayed when
a malfunction occurs in one of
the vehicle’s systems.
VERSO_WE.book Page 239 Thursday, June 19, 2014 11:31 AM

240 2-2. Instrument cluster
Switch the display
Type A
Display items can be switched
by pressing the “DISP” switch.
Type B
Display items can be switched
by pressing the “DISP” switch.
Trip information
Date and outside temperature display
Displays the date and outside
temperature.
The temperature range that can
be displayed is from -40°C
(-40°F) to 50°C (122°F).
VERSO_WE.book Page 240 Thursday, June 19, 2014 11:31 AM
