2015 TOYOTA VERSO Owners Manual

473 4-3. Do-it-yourself maintenance
4
Maintenance and care

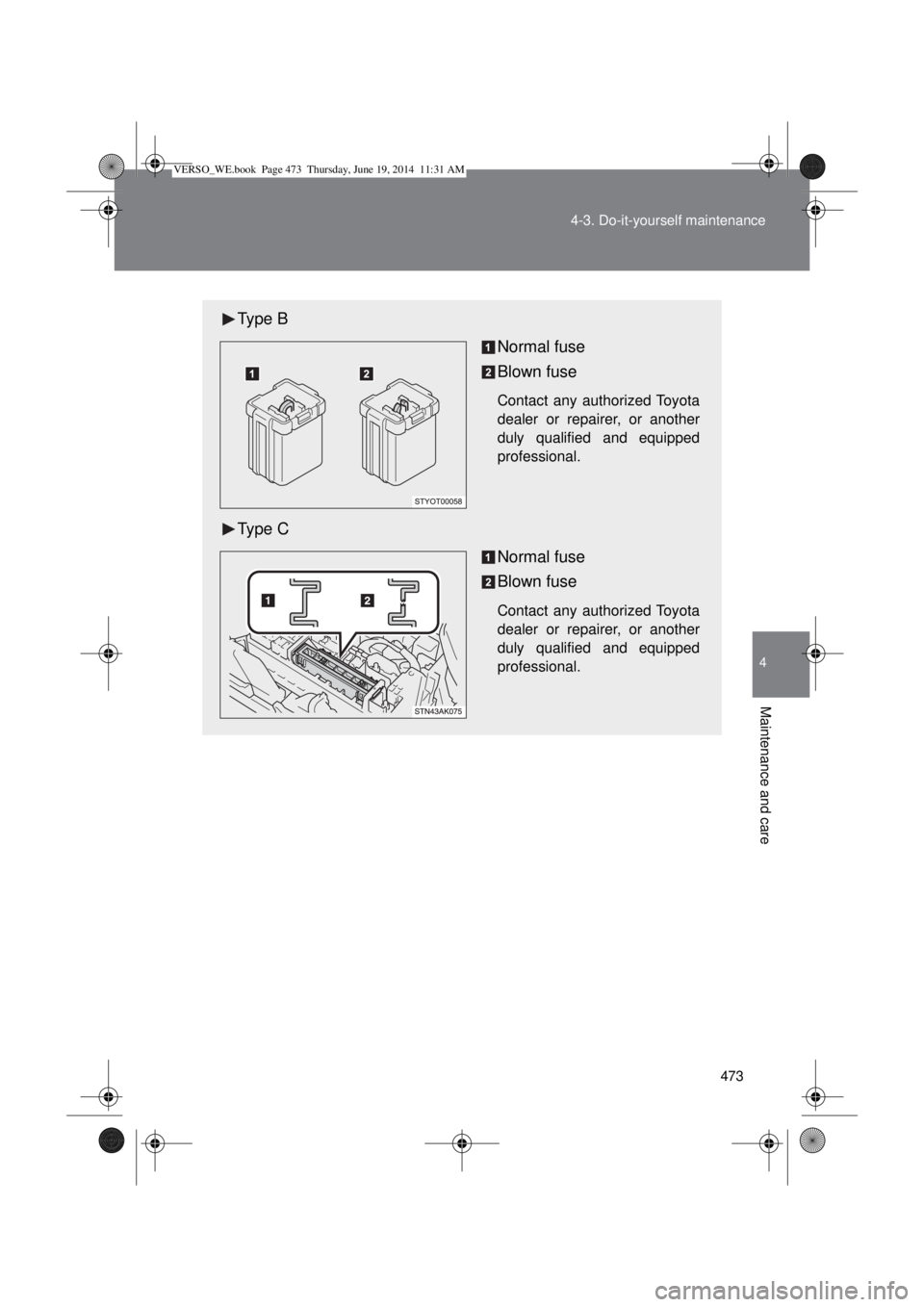

Type B
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
Type C
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
VERSO_WE.book Page 473 Thursday, June 19, 2014 11:31 AM

474 4-3. Do-it-yourself maintenance

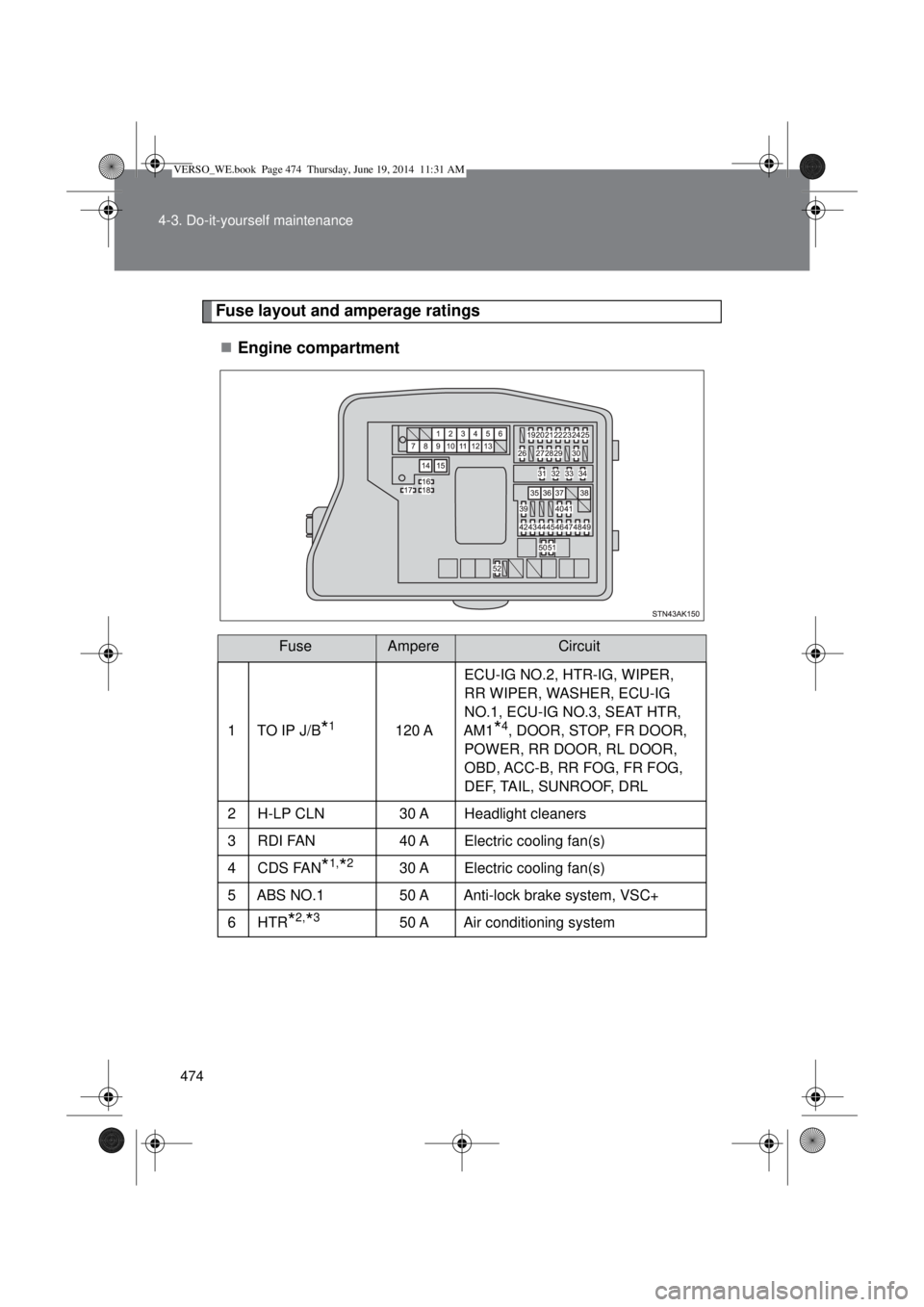

Fuse layout and amperage ratings
Engine compartment
FuseAmpereCircuit
1TO IP J/B*1120 AECU-IG NO.2, HTR-IG, WIPER,
RR WIPER, WASHER, ECU-IG
NO.1, ECU-IG NO.3, SEAT HTR,
AM1*4, DOOR, STOP, FR DOOR,
POWER, RR DOOR, RL DOOR,
OBD, ACC-B, RR FOG, FR FOG,
DEF, TAIL, SUNROOF, DRL
2H-LP CLN30 A Headlight cleaners
3RDI FAN40 A Electric cooling fan(s)
4CDS FAN*1,*230 A Electric cooling fan(s)
5 ABS NO.1 50 A Anti-lock brake system, VSC+
6 HTR
*2,*350 A Air conditioning system
VERSO_WE.book Page 474 Thursday, June 19, 2014 11:31 AM

475 4-3. Do-it-yourself maintenance
4
Maintenance and care
7ALT120 A
*3
Charging system, RDI FAN, CDS
FAN, H-LP CLN, ABS NO.1, ABS
NO.2, HTR, STV HTR
*2, PWR
OUTLET, HTR SUB NO.1, HTR
SUB NO.2, HTR SUB NO.3, ECU-
IG NO.2, HTR-IG, WIPER, RR
WIPER, WASHER, ECU-IG NO.1,
ECU-IG NO.3, SEAT HTR, AM1
*4,
DOOR, STOP, FR DOOR,
POWER, RR DOOR, RL DOOR,
OBD, ACC-B, RR FOG, FR FOG,
DEF, TAIL, SUNROOF, DRL 140 A
*2
8EPS*2,*380 A Electric power steering
GLOW
*180 A Engine glow system
9GLOW
*280 A Engine glow system
EPS
*180 A Electric power steering
10 P-SYSTEM
*330 A VALVEMATIC system
11EFI MAIN
*250 AEFI NO.1, EFI NO.2, EFI NO.3*7,
EFI NO.4
FUEL HTR
*150 A Fuel heater
12P/I
*2,*350 AEDU*2, EFI MAIN*3, IGT/INJ*3,
HORN, IG2
H-LP MAIN
*150 AH-LP LH LO, H-LP RH LO, H-LP LH
HI, H-LP RH HI
13H-LP MAIN
*2,*350 AH-LP LH LO, H-LP RH LO, H-LP
LH HI, H-LP RH HI
P/I
*150 A HORN, IG2, ELEC FUEL PMP
14 BBC
*140 A Stop & Start system
15 EFI MAIN
*150 A EFI NO.1, EFI NO.2, EFI NO.4
16 SPARE 10 A Spare fuse
17 SPARE 30 A Spare fuse
FuseAmpereCircuit
VERSO_WE.book Page 475 Thursday, June 19, 2014 11:31 AM

476 4-3. Do-it-yourself maintenance
18 SPARE 20 A Spare fuse
19 DOOR NO.2 25 A Main body ECU
20EFI MAIN
NO.2
*1,*27.5 AMultiport fuel injection system/
sequential multiport fuel injection
system
21 ECU-B2 10 ASmart entry & start system, air con-
ditioning system, power windows
22 D.C.C SHORT No circuit
23 ECU-B 10 AGauges and meters, main body
ECU, steering sensor, double lock-
ing system, wireless remote con-
trol, smart entry & start system
24 RAD NO.1
*2,*320 A Audio system
25 DOME 10 ALuggage compartment light, vanity
lights, front door courtesy lights,
personal/interior lights, foot lights
26 AM2 NO.2 7.5 A Starting system
27 TURN-HAZ 10 ATurn signal lights, emergency
flashers
28 ETCS
*310 A Electronic throttle control system
29 AM2 30 A Starting system
30 STRG LOCK 20 A Steering lock system
31IGT/INJ
*315 AMultiport fuel injection system/
sequential multiport fuel injection
system EDU
*220 A
32EFI MAIN
*320 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.1, EFI NO.2
FUEL PUMP
*130 A Fuel pump
33 HORN 15 A Horn
34 IG2 15 A IGN, METER
FuseAmpereCircuit
VERSO_WE.book Page 476 Thursday, June 19, 2014 11:31 AM

477 4-3. Do-it-yourself maintenance
4
Maintenance and care
35 HTR SUB NO.130 A*5
Air conditioning system
50 A*1,*6
36 HTR*150 A Air conditioning system
37 HTR SUB NO.2 30 A Air conditioning system
38 HTR SUB NO.3 30 A Air conditioning system
39PWR OUTLET15 APower outlet
40 ABS NO.2 30 A Anti-lock brake system, VSC+
41 STV HTR
*1,*225 A Power heater
42 EFI NO.430 A
*2Multiport fuel injection system/
sequential multiport fuel injection
system, Automatic transmission
*720 A*1
43 IG2 NO.2*2,*37.5 A Starting system
44EFI NO.2
*2,*310 AMultiport fuel injection system/
sequential multiport fuel injection
system
EFI NO.2
*115 AMultiport fuel injection system/
sequential multiport fuel injection
system, Stop & Start system
45EFI NO.1
*2,*310 AMultiport fuel injection system/
sequential multiport fuel injection
system
EFI NO.1
*17.5 AMultiport fuel injection system/
sequential multiport fuel injection
system
46 H-LP RH HI 10 ARight-hand headlight (high beam)
*8,
right-hand headlight solenoid
*9
47 H-LP LH HI 10 ALeft-hand headlight (high beam)*8,
left-hand headlight solenoid
*9
48 H-LP RH LO10 A
*8Right-hand headlight (low beam)
15 A
*9Right-hand discharge headlight
(low and high beam)
FuseAmpereCircuit
VERSO_WE.book Page 477 Thursday, June 19, 2014 11:31 AM

478 4-3. Do-it-yourself maintenance
*1: Vehicles with diesel engine (1WW-FHV engine)
*2: Vehicles with diesel engine (1AD-FTV and 2AD-FHV engines)
*3: Vehicles with gasoline engine (1ZR-FAE and 2ZR-FAE engines)
*4: Vehicles without smart entry & start system
*5: Vehicles without 1AD-FTV engine and DPF catalytic converter
*6: Vehicles with 1AD-FTV engine and DPF catalytic converter
*7: Vehicles with automatic transmission
*8: Vehicles with halogen headlights
*9: Vehicles with discharge headlights49 H-LP LH LO10 A
*8Left-hand headlight (low beam)
15 A
*9Left-hand discharge headlight (low
and high beam)
50 RDI EFI
*15 ARDI FAN MTR, FAN NO.1, FAN
NO.2
51 CDS EFI
*15 ACDS FAN MTR, FAN NO.1, FAN
NO.2
52 EFI NO.3
*27.5 A Automatic transmission*7
FuseAmpereCircuit
VERSO_WE.book Page 478 Thursday, June 19, 2014 11:31 AM

479 4-3. Do-it-yourself maintenance
4
Maintenance and care

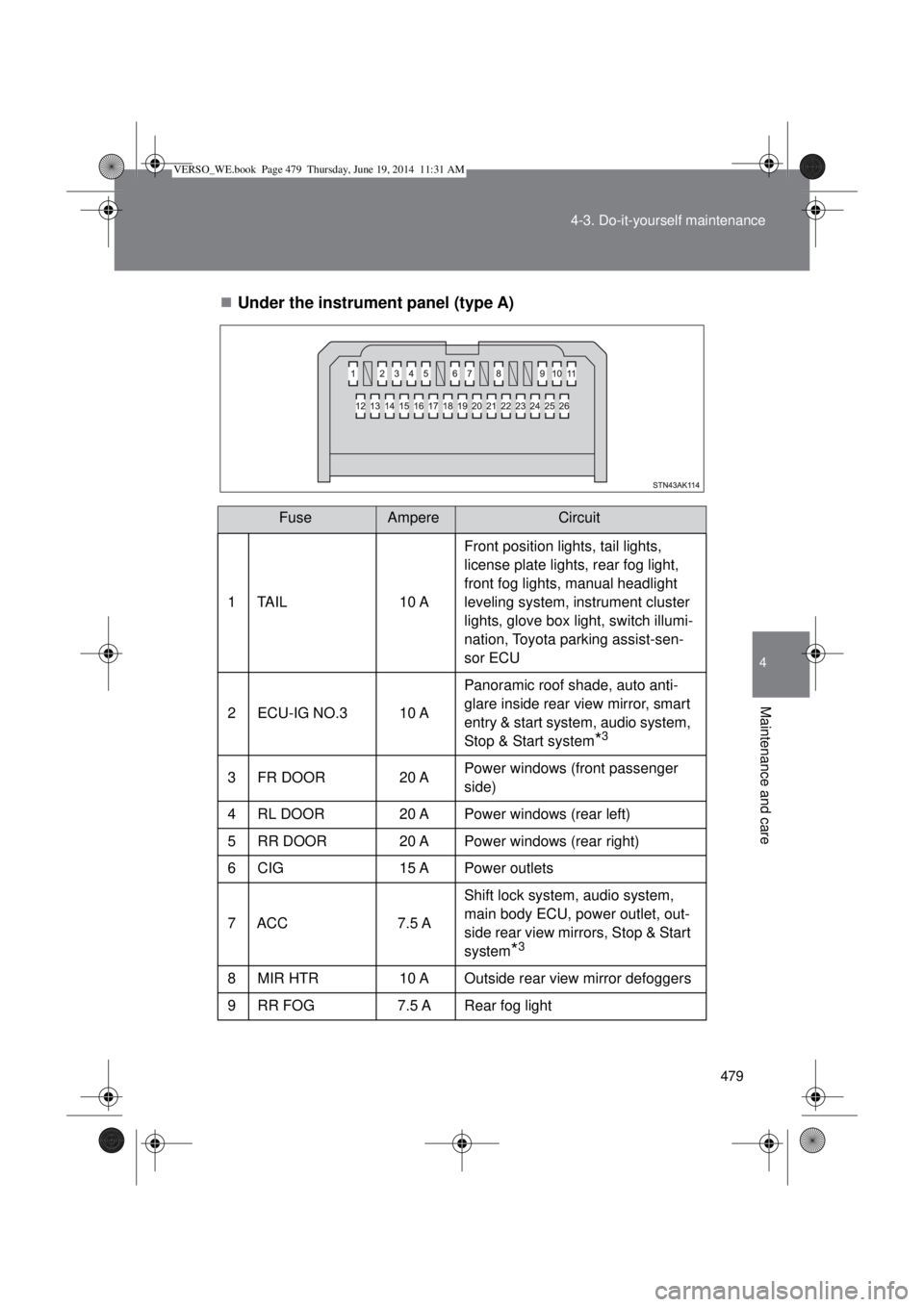

Under the instrument panel (type A)
FuseAmpereCircuit
1 TAIL 10 AFront position lights, tail lights,
license plate lights, rear fog light,
front fog lights, manual headlight
leveling system, instrument cluster
lights, glove box light, switch illumi-
nation, Toyota parking assist-sen-
sor ECU
2 ECU-IG NO.3 10 APanoramic roof shade, auto anti-
glare inside rear view mirror, smart
entry & start system, audio system,
Stop & Start system
*3
3 FR DOOR 20 APower windows (front passenger
side)
4 RL DOOR 20 A Power windows (rear left)
5 RR DOOR 20 A Power windows (rear right)
6 CIG 15 A Power outlets
7 ACC 7.5 AShift lock system, audio system,
main body ECU, power outlet, out-
side rear view mirrors, Stop & Start
system
*3
8 MIR HTR 10 A Outside rear view mirror defoggers
9 RR FOG 7.5 A Rear fog light
VERSO_WE.book Page 479 Thursday, June 19, 2014 11:31 AM

480 4-3. Do-it-yourself maintenance
10 IGN 7.5 ASteering lock system, SRS airbag
system, multiport fuel injection sys-
tem/sequential multiport fuel injec-
tion system, automatic
transmission
*1, starting system
11 METER 7.5 AGauges and meters, Stop & Start
system
*3
12 SEAT HTR 15 A Seat heaters
13 HTR-IG 10 AAir conditioning system, power
heater
14 WIPER 25 AWindshield wipers, rain-sensing
windshield wipers
15 RR WIPER 15 A Rear window wiper
16 WASHER 15 AWindshield washers, rear window
washer
17 ECU-IG NO.1 10 AMain body ECU
*4, electric cooling
fan(s), shift lock system, anti-lock
brake system, steering sensor, yaw
rate sensor, VSC+, headlight
cleaners, SEQUENTIAL switch,
automatic headlight leveling sys-
tem, electric power steering, tire
pressure warning system
18 ECU-IG NO.2 10 ABack-up light, charging system
*4,
emergency flashers, rear window
defogger, “PASSENGER AIRBAG”
indicator, air conditioning system,
Toyota parking assist-sensor indi-
cator, Toyota parking assist-sensor
switch
19 OBD 7.5 A On-board diagnosis system
FuseAmpereCircuit
VERSO_WE.book Page 480 Thursday, June 19, 2014 11:31 AM
