2015 TOYOTA VERSO Owners Manual

257 2-3. Operating the lights and wipers
2
When driving
Turning on the low beam headlights when the vehicle is parked in dark
areas
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings of the light sensor sensitivity can be changed.
(Customizable features P. 629)
NOTICE
To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.
Turn off the engine with the light switch in
or off, and pull the light switch
toward you and release it. The low beam
headlights will turn on for about 30 sec-
onds to light up the area around the vehi-
cle.
The lights are turned off in the following
situations.
Vehicles without smart entry & start
system:
The engine switch is turned to the “ON”
position.
Vehicles with smart entry & start sys-
tem:
The “ENGINE START STOP” switch is
turned to IGNITION ON mode.
The light switch is turned on.
The light switch is pulled toward you
and then released.
VERSO_WE.book Page 257 Thursday, June 19, 2014 11:31 AM

258
2-3. Operating the lights and wipers

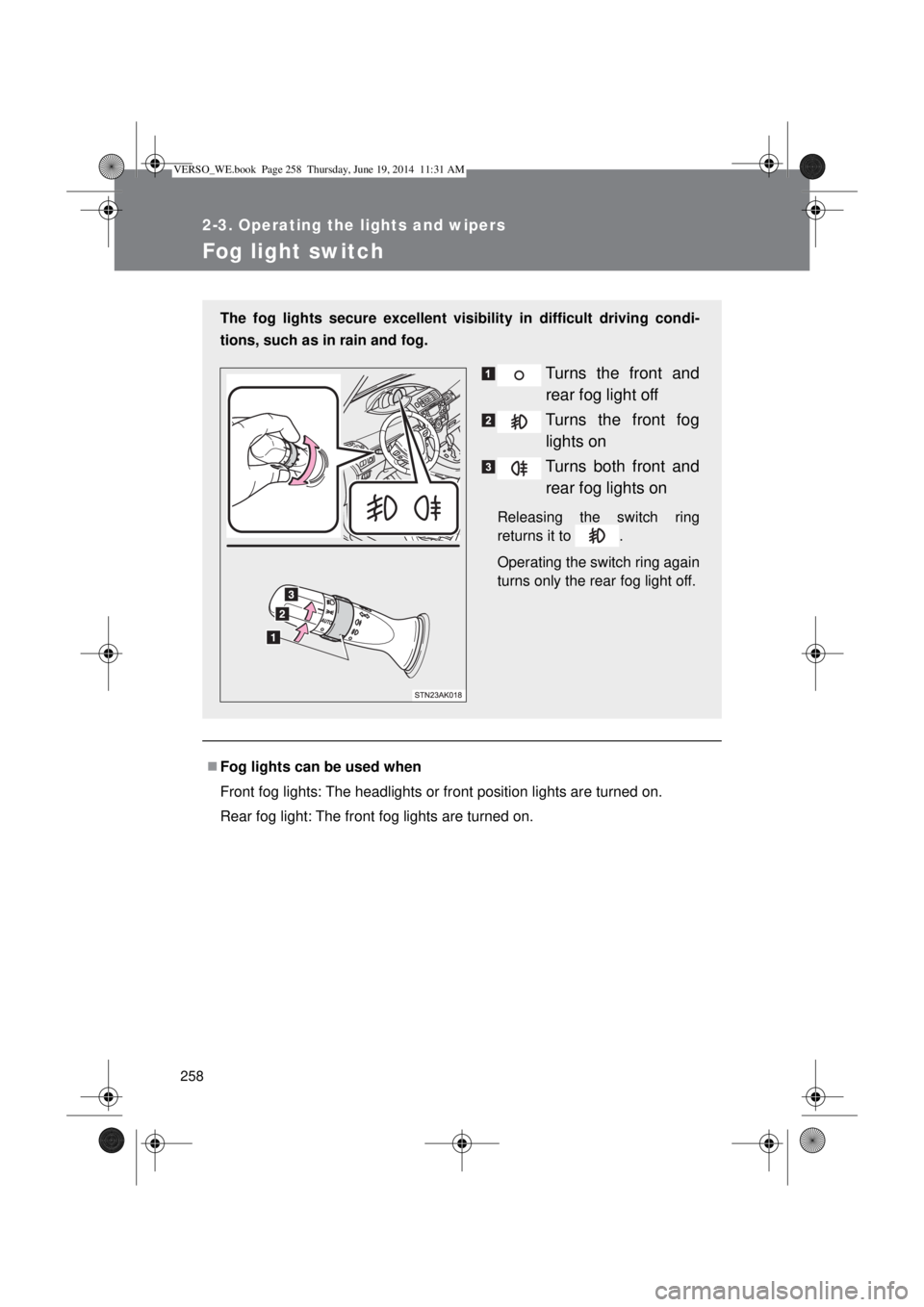

Fog light switch
Fog lights can be used when
Front fog lights: The headlights or front position lights are turned on.
Rear fog light: The front fog lights are turned on. The fog lights secure excellent visibility in difficult driving condi-
tions, such as in rain and fog.
Turns the front and
rear fog light off
Turns the front fog
lights on
Turns both front and
rear fog lights on
Releasing the switch ring
returns it to .
Operating the switch ring again
turns only the rear fog light off.
VERSO_WE.book Page 258 Thursday, June 19, 2014 11:31 AM

259
2-3. Operating the lights and wipers
2
When driving

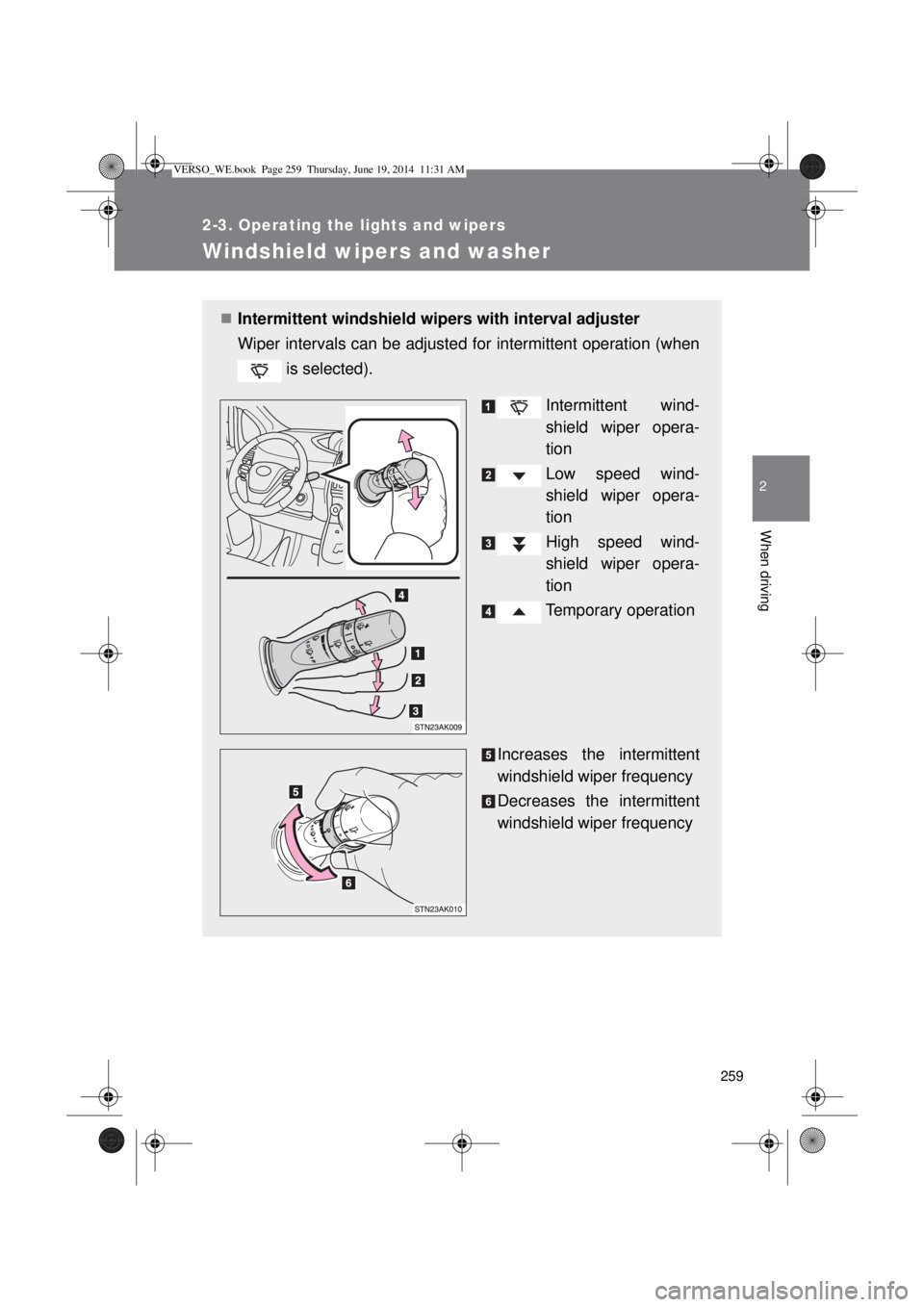

Windshield wipers and washer
Intermittent windshield wipers with interval adjuster
Wiper intervals can be adjusted for intermittent operation (when
is selected).
Intermittent wind-
shield wiper opera-
tion
Low speed wind-
shield wiper opera-
tion
High speed wind-
shield wiper opera-
tion
Temporary operation
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency
VERSO_WE.book Page 259 Thursday, June 19, 2014 11:31 AM

260 2-3. Operating the lights and wipers

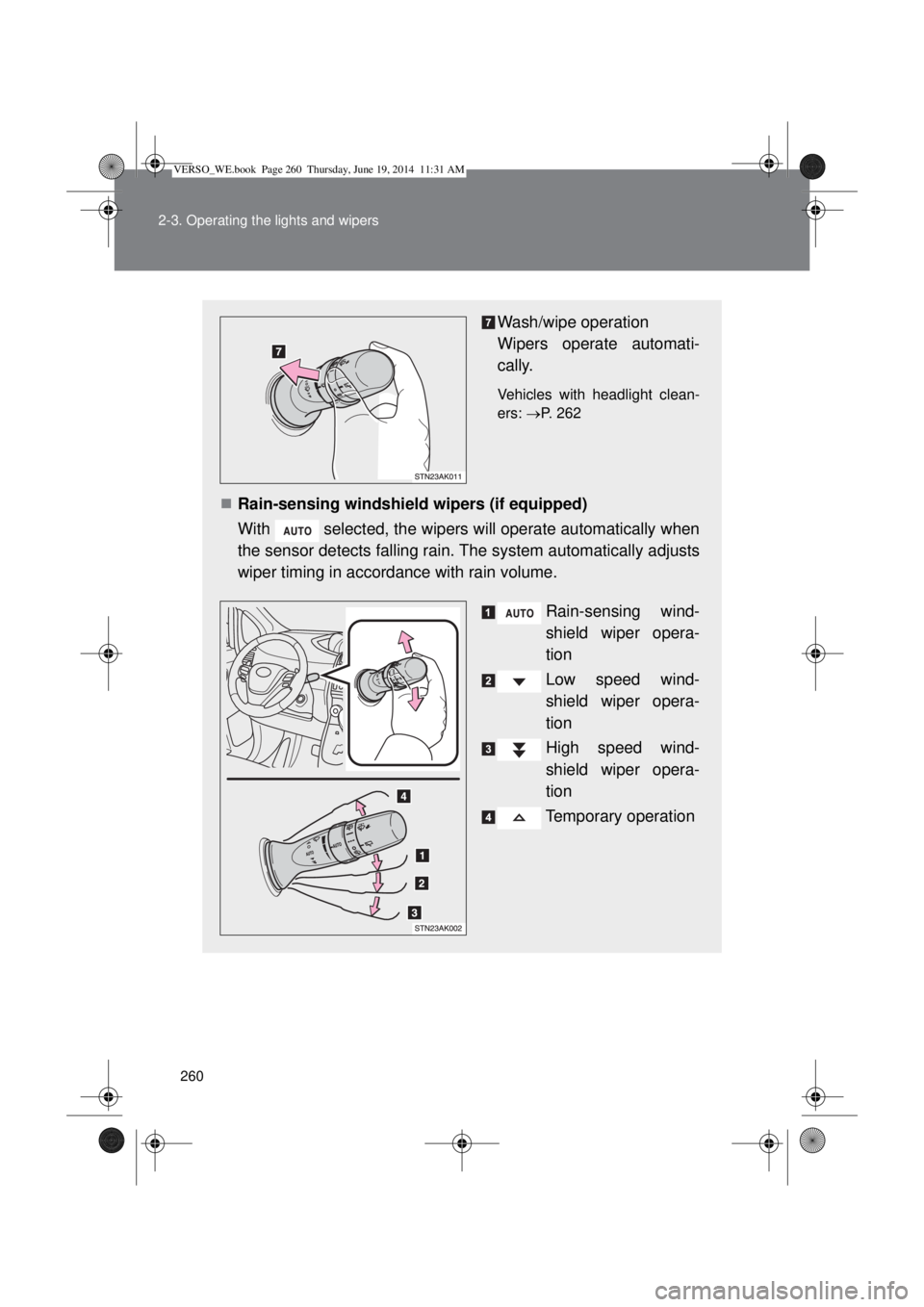

Wash/wipe operation
Wipers operate automati-
cally.
Vehicles with headlight clean-
ers: P. 262
Rain-sensing windshield wipers (if equipped)
With selected, the wipers will operate automatically when
the sensor detects falling rain. The system automatically adjusts
wiper timing in accordance with rain volume.
Rain-sensing wind-
shield wiper opera-
tion
Low speed wind-
shield wiper opera-
tion
High speed wind-
shield wiper opera-
tion
Temporary operation
VERSO_WE.book Page 260 Thursday, June 19, 2014 11:31 AM

261 2-3. Operating the lights and wipers
2
When driving
The windshield wipers and washer can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.

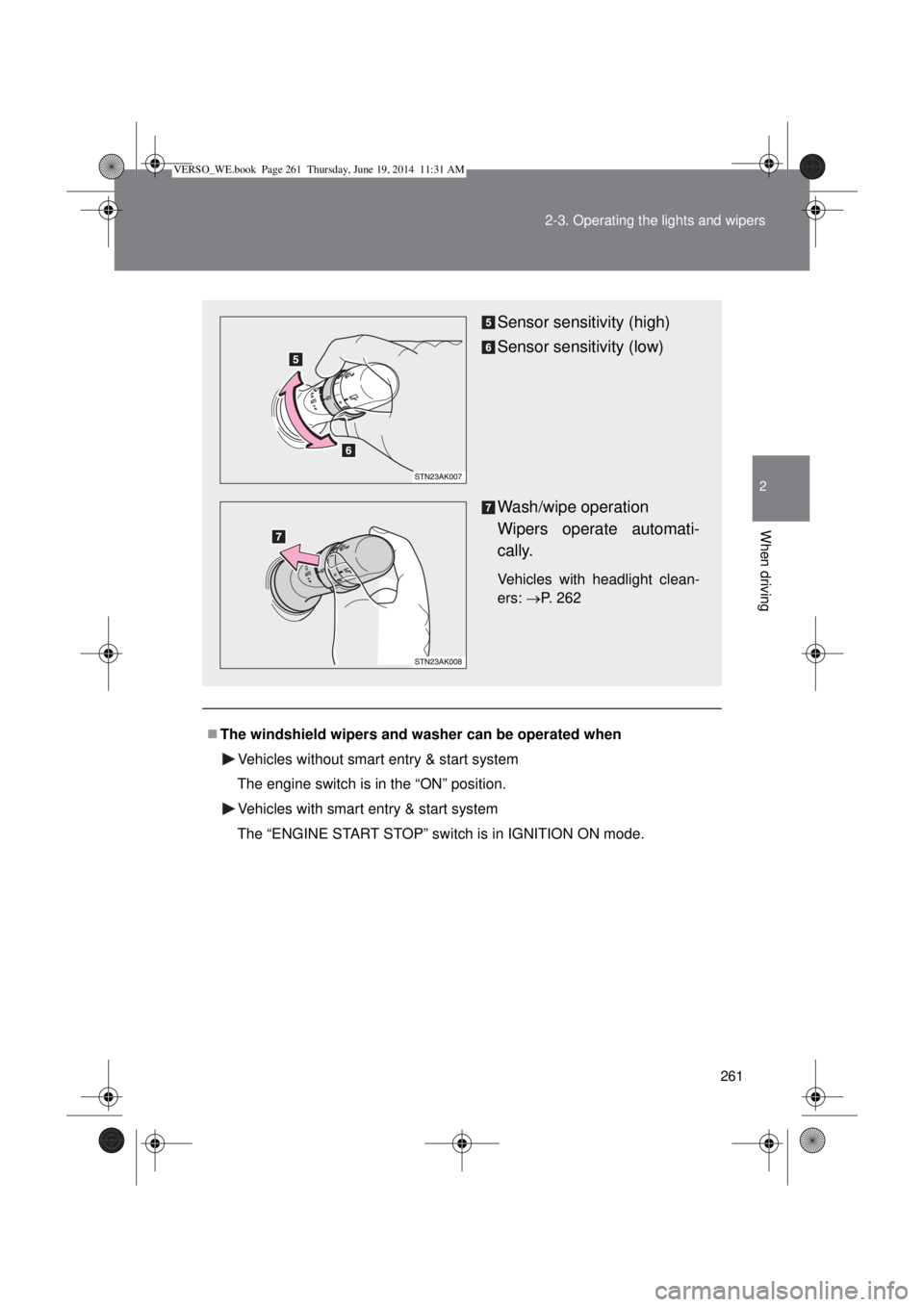

Sensor sensitivity (high)
Sensor sensitivity (low)
Wash/wipe operation
Wipers operate automati-
cally.
Vehicles with headlight clean-
ers: P. 262
VERSO_WE.book Page 261 Thursday, June 19, 2014 11:31 AM

262 2-3. Operating the lights and wipers
The headlight cleaners operation (if equipped)
Vehicles without smart entry & start system
When the windshield washer is operated with the engine switch in the
“ON” position and the headlights turned on, the headlight cleaners will
operate once. (Afterwards, the headlight cleaners operate automatically
once for every 5 times the windshield washer is operated.)
To operate the headlight cleaners again, pull back the washer lever 5
times.
(If the headlights are turned off and then on again, and then the wind-
shield washer is operated, the headlight cleaners will operate once.)
Vehicles with smart entry & start system
When the windshield washer is operated with the “ENGINE START
STOP” switch in IGNITION ON mode and the headlights turned on, the
headlight cleaners will operate once. (Afterwards, the headlight cleaners
operate automatically once for every 5 times the windshield washer is
operated.)
To operate the headlight cleaners again, pull back the washer lever 5
times.
(If the headlights are turned off and then on again, and then the wind-
shield washer is operated, the headlight cleaners will operate once.)
Rain drop sensor (vehicles with rain-sensing windshield wipers)
Vehicles without smart entry & start system:
If the wiper switch is turned to the position while the engine switch is
in the “ON” position, the wiper will operate once to show that AUTO mode
is activated.
If the wiper sensitivity is adjusted to higher, the wiper may operate once to
indicate the change of sensitivity.
The raindrop sensor judges the amount
of raindrops.
VERSO_WE.book Page 262 Thursday, June 19, 2014 11:31 AM

263 2-3. Operating the lights and wipers
2
When driving
Vehicles with smart entry & start system:
If the wiper switch is turned to the position while the “ENGINE
START STOP” switch is in IGNITION ON mode, the wiper will operate
once to show that AUTO mode is activated.
If the wiper sensitivity is adjusted to higher, the wiper may operate once to
indicate the change of sensitivity.
If the temperature of the raindrop sensor is 85°C (185°F) or higher, or
-40°C (-40°F) or lower, automatic operation may not occur. In this case,
operate the wipers in any mode other than AUTO.
If no windshield washer fluid sprays
Check that the washer nozzles are not blocked and if there is washer fluid in
the windshield washer fluid reservoir.
CAUTION
Caution regarding the use of windshield wipers in AUTO mode
The windshield wipers may operate unexpectedly if the sensor is touched or
the windshield is subject to vibration in AUTO mode. Take care that your fin-
gers or anything else do not become caught in the windshield wipers.
Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
NOTICE
When the windshield is dry
Do not use the wipers, as they may damage the windshield.
When the washer fluid tank is empty
Do not use the washer when the washer fluid tank is empty. This may cause
the washer fluid pump to overheat.
When there is no windshield washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
VERSO_WE.book Page 263 Thursday, June 19, 2014 11:31 AM

264
2-3. Operating the lights and wipers
Rear window wiper and washer
The rear window wiper and washer can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
NOTICE
When the rear window is dry
Do not use the wipers, as they may damage the rear window.
When the washer fluid tank is empty
Do not use the washer when the washer fluid tank is empty. This may cause
the washer fluid pump to overheat.
Intermittent window
wiper operation
Normal window wiper
operation
Washer/wiper dual
operation
Washer/wiper dual
operation
VERSO_WE.book Page 264 Thursday, June 19, 2014 11:31 AM
