2015 TOYOTA VERSO Owners Manual

313 3-1. Using the air conditioning system and defogger
3
Interior features
Adjusting the fan speed
Turn the fan speed control dial clockwise (increase) or counter
clockwise (decrease).
Set the dial to “0” to turn the fan off.
Changing the air outlets
Turn the air outlet selection dial.
The air outlets switch each time
either side of air outlet selection
dial is turned.
Air flows to the upper body.
Air flows to the upper body and
feet.
: Some models
VERSO_WE.book Page 313 Thursday, June 19, 2014 11:31 AM

314 3-1. Using the air conditioning system and defogger
Air flows mainly to the feet.
: Some models
Air flows to the feet and the
windshield defogger operates.
: Some models
Air flows to the windshield and
side windows.
The air intake is automatically
switched to outside air mode.
Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recircu-
lated air mode (indicator on) each time is pressed.
VERSO_WE.book Page 314 Thursday, June 19, 2014 11:31 AM

315 3-1. Using the air conditioning system and defogger
3
Interior features
Adjusting the position of and opening and closing the air outlets
Center outlets
Direct air flow to the left or
right, up or down.
Turn the knob up to open the
vent and down to close the
vent.
Right and left side outlets
Direct air flow to the left or
right, up or down.
Turn the knob up to open the
vent and down to close the
vent.
VERSO_WE.book Page 315 Thursday, June 19, 2014 11:31 AM

316 3-1. Using the air conditioning system and defogger
Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
When outside air temperature approaches 0°C (32°F) (vehicles with air
conditioning system)
The air conditioning system may not operate even when is pressed.
When is selected for the air outlets used
For your driving comfort, air flowing to the feet may be warmer than air flow-
ing to the upper body depending on the position of the temperature adjust-
ment dial.
Air conditioning odors
During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
CAUTION
To prevent the windshield from fogging up
Do not set the air outlet selection dial to during cool air operation in
extremely humid weather. The difference between the temperature of the
outside air and that of the windshield can cause the outer surface of the
windshield to fog up, blocking your vision.
NOTICE
To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
VERSO_WE.book Page 316 Thursday, June 19, 2014 11:31 AM

317
3-1. Using the air conditioning system and defogger
3
Interior features

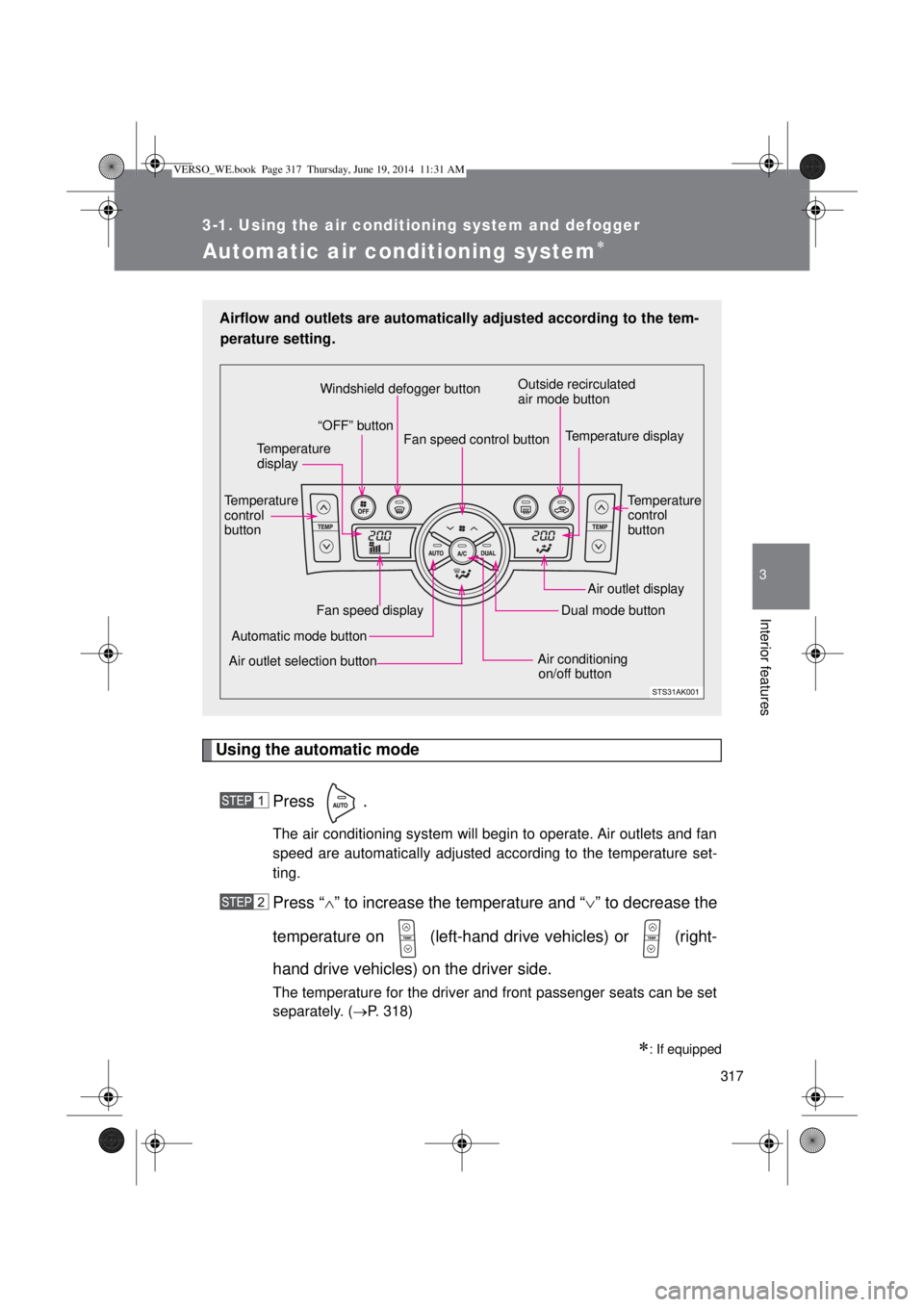

Automatic air conditioning system
Using the automatic mode
Press .
The air conditioning system will begin to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Press “” to increase the temperature and “” to decrease the
temperature on (left-hand drive vehicles) or (right-
hand drive vehicles) on the driver side.
The temperature for the driver and front passenger seats can be set
separately. (P. 318)
: If equipped
Airflow and outlets are automatically adjusted according to the tem-
perature setting.
Outside recirculated
air mode button
Temperature display
Temperature
control
button
Air outlet display
Dual mode button
Air conditioning
on/off button Air outlet selection buttonAutomatic mode buttonFan speed display Temperature
control
buttonTemperature
displayFan speed control button “OFF” buttonWindshield defogger button
VERSO_WE.book Page 317 Thursday, June 19, 2014 11:31 AM

318 3-1. Using the air conditioning system and defogger
Automatic mode indicator
If the fan speed setting or air flow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated are maintained.
Adjusting the settings
Adjusting the temperature setting
Press “” to increase the temperature and “” to decrease the tem-
perature on (left-hand drive vehicles) or (right-hand
drive vehicles) on the driver side.
Press “” (increase) or “” (decrease) on (left-hand drive vehicles)
or (right-hand drive vehicles) on the passenger side to separately
adjust the temperature for the passenger and driver sides (individual
mode). Press
to return the driver and passenger side tempera-
tures to the same setting (simultaneous mode).
The air conditioning system switches between individual and simultane-
ous modes each time
is pressed.
Adjusting the fan speed
Press “” (decrease) or “” (increase) on .
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.
VERSO_WE.book Page 318 Thursday, June 19, 2014 11:31 AM

319 3-1. Using the air conditioning system and defogger
3
Interior features
Changing the air outlets
Press .
The air outlets switch each time
is pressed.
Air flow as shown according to the mode selected.
Air flows to the upper body.
Air flows to the upper body and
feet.
: Some models
VERSO_WE.book Page 319 Thursday, June 19, 2014 11:31 AM

320 3-1. Using the air conditioning system and defogger
Air flows mainly to the feet.
: Some models
Air flows to the feet and the
windshield defogger operates.
: Some models
Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recircu-
lated air mode (indicator on) each time is pressed.
VERSO_WE.book Page 320 Thursday, June 19, 2014 11:31 AM
