2015 TOYOTA VERSO octane

120 1-5. Refueling
Closing the fuel tank cap
When installing the fuel tank cap,
turn it until you hear a click.
The cap will turn slightly to the
opposite direction when released.
Fuel types
Gasoline engine
EU area:
Unleaded gasoline conforming to European standard EN228, Research
Octane Number of 95 or higher
Except EU area:
Unleaded gasoline, Research Octane Number of 95 or higher
Diesel engine
Fuel type can be identified by the fuel label.
“DIESEL”
Diesel fuel that contains 500 ppm or
less of sulphur, and a cetane number
of 48 or higher
“LOW SULPHUR DIESEL”
Diesel fuel that contains 50 ppm or
less of sulphur, and a cetane number
of 48 or higher
VERSO_WE.book Page 120 Thursday, June 19, 2014 11:31 AM

121 1-5. Refueling
1
Before driving
*1: To distinguish the 1AD-FTV engine, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
*2: Fuel type can be identified by the fuel label. (P. 120)
Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
Engine/Model codeType
1AD-FTV (without DPF
catalytic converter)
*1 engineFuel label
*2
“DIESEL”
Diesel fuel that contains 500 ppm or
less of sulphur and has a cetane
number of 48 or higher
“LOW SULPHUR DIESEL”
Diesel fuel that contains 50 ppm or
less of sulphur and has a cetane
number of 48 or higher
1AD-FTV (with DPF catalytic
converter)
*1, 2AD-FHV and
1WW-FHV enginesEU area:
Diesel fuel conforming to European
standard EN590
Except EU area:
Diesel fuel that contains 50 ppm or less
of sulphur and has a cetane number of
48 or higher
VERSO_WE.book Page 121 Thursday, June 19, 2014 11:31 AM

604 6-1. Specifications
Diesel engine
Fuel
Gasoline engine
Model 1AD-FTV, 2AD-FHV, 1WW-FHV
Type4-cylinder in line, 4-cycle, diesel
(with turbo charger)
Bore and stroke1AD-FTV engine
86.0  86.0 mm (3.39  3.39 in.)
2AD-FHV engine
86.0  96.0 mm (3.39  3.78 in.)
1WW-FHV engine
78.0  83.6 mm (3.07  3.29 in.)
Displacement1AD-FTV engine
1998 cm
3 (121.9 cu. in.)
2AD-FHV engine
2231 cm
3 (136.1 cu. in.)
1WW-FHV engine
1598 cm
3 (97.52 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tension Automatic adjustment
Fuel typeEU area:
Unleaded gasoline conforming to European stan-
dard EN228 only
Except EU area:
Unleaded gasoline only
Research octane number 95 or higher
Fuel tank capacity
(Reference)60 L (15.9 gal., 13.2 lmp.gal.)
VERSO_WE.book Page 604 Thursday, June 19, 2014 11:31 AM

625
6-1. Specifications
6
Vehicle specifications

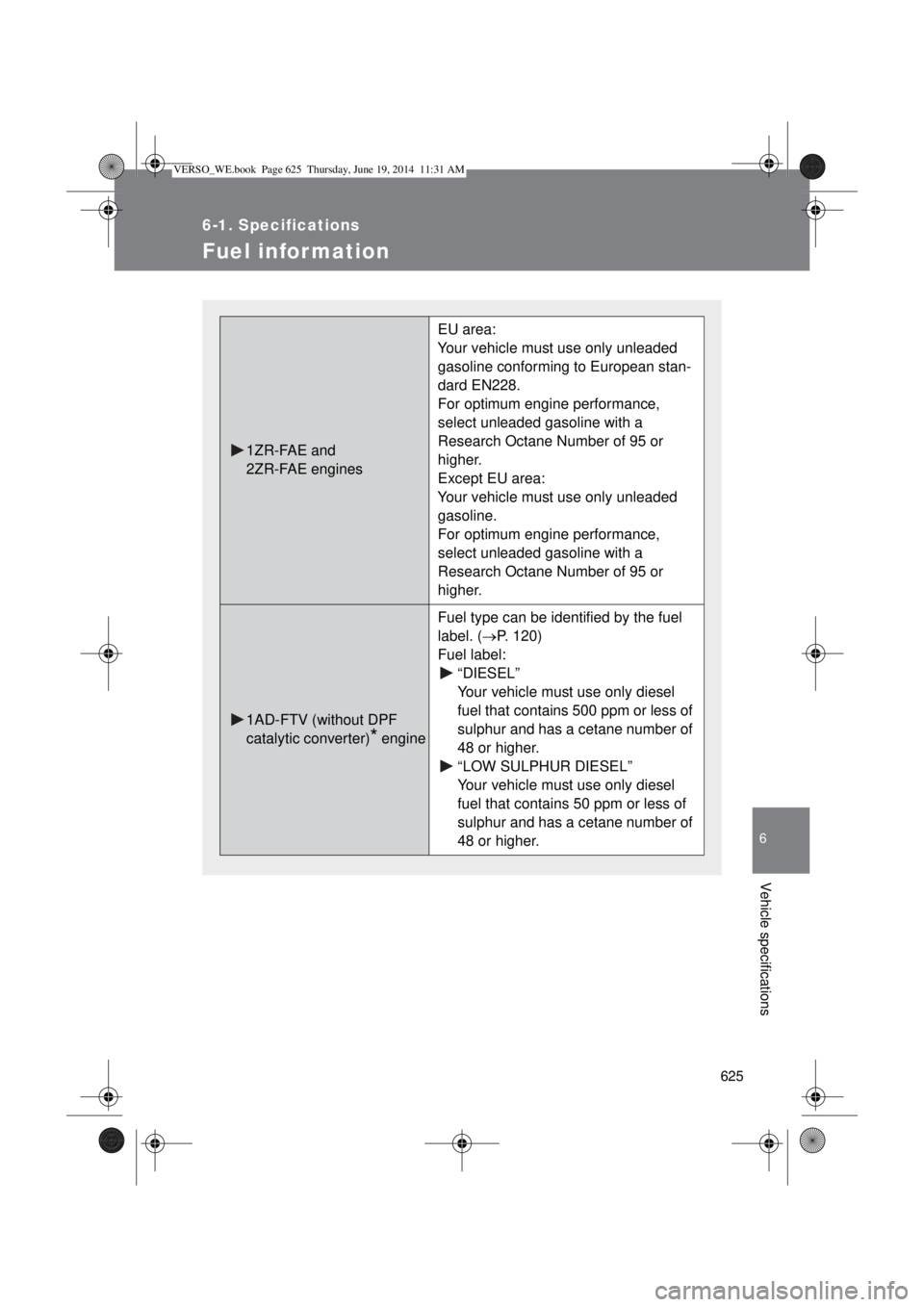

Fuel information
1ZR-FAE and
2ZR-FAE engines
EU area:
Your vehicle must use only unleaded
gasoline conforming to European stan-
dard EN228.
For optimum engine performance,
select unleaded gasoline with a
Research Octane Number of 95 or
higher.
Except EU area:
Your vehicle must use only unleaded
gasoline.
For optimum engine performance,
select unleaded gasoline with a
Research Octane Number of 95 or
higher.
1AD-FTV (without DPF
catalytic converter)
* engine
Fuel type can be identified by the fuel
label. (P. 120)
Fuel label:
“DIESEL”
Your vehicle must use only diesel
fuel that contains 500 ppm or less of
sulphur and has a cetane number of
48 or higher.
“LOW SULPHUR DIESEL”
Your vehicle must use only diesel
fuel that contains 50 ppm or less of
sulphur and has a cetane number of
48 or higher.
VERSO_WE.book Page 625 Thursday, June 19, 2014 11:31 AM
