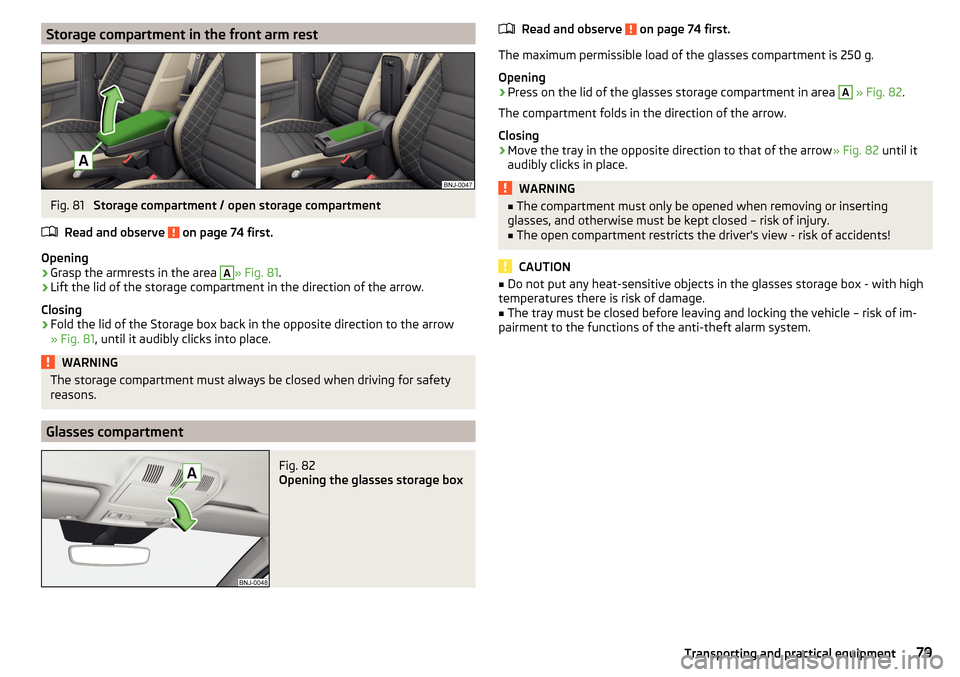

Storage compartment in the front arm restFig. 81
Storage compartment / open storage compartment
Read and observe
on page 74 first.
Opening
›
Grasp the armrests in the area
A
» Fig. 81 .
›
Lift the lid of the storage compartment in the direction of the arrow.
Closing
›
Fold the lid of the Storage box back in the opposite direction to the arrow
» Fig. 81 , until it audibly clicks into place.
WARNINGThe storage compartment must always be closed when driving for safety
reasons.
Glasses compartment
Fig. 82
Opening the glasses storage box
Read and observe on page 74 first.
The maximum permissible load of the glasses compartment is 250 g.
Opening
›
Press on the lid of the glasses storage compartment in area
A
» Fig. 82 .
The compartment folds in the direction of the arrow.
Closing
›
Move the tray in the opposite direction to that of the arrow » Fig. 82 until it
audibly clicks in place.
WARNING■ The compartment must only be opened when removing or inserting
glasses, and otherwise must be kept closed – risk of injury.■
The open compartment restricts the driver's view - risk of accidents!
CAUTION
■ Do not put any heat-sensitive objects in the glasses storage box - with high
temperatures there is risk of damage.■
The tray must be closed before leaving and locking the vehicle – risk of im-
pairment to the functions of the anti-theft alarm system.
79Transporting and practical equipment

Storage compartment on the front passenger sideFig. 83
Open storage compartment / interior of the storage compartment
Read and observe
on page 74 first.
Storage compartment » Fig. 83
Opening lever
Bottle holder with a capacity of max. 1 l
Card holder
Opening
›
Pull the handle
A
to position
1
» Fig. 83 in the direction of the arrow.
The cover folds in the arrow direction
2
.
Closing
›
Screw in the filler cap in the opposite direction of the arrow
2
» Fig. 83 until
it audibly clicks into place.
WARNINGThe storage compartment must always be closed when driving for safety
reasons.
Note
In some vehicles, the storage compartment is equipped with a lamp that lights
up when you open the storage compartment and goes off when you close it.ABCStorage compartment under the front seatFig. 84
Opening the storage compart-
ment
Read and observe on page 74 first.
The maximum permissible load of the storage compartment is 1.5 kg.
Opening
›
Pull the handle to position
1
» Fig. 84 in the direction of the arrow.
›
Remove the wiper blade in the direction of the arrow
2
.
Closing
›
Pull the handle in the direction of arrow
1
and close the tray in the opposite
direction of arrow
2
.
›
Hold onto the handle until the tray is closed.
WARNINGThe storage compartment must always be closed when driving for safety
reasons.80Operation

Clothes hookFig. 85
Clothes hooks
Read and observe on page 74 first.
The clothes hooks are located on the handles of the headliner above each of
the rear doors » Fig. 85.
The maximum permissible load of each of the hooks is 2 kg.
WARNING■ Never leave any heavy or sharp-edged objects in the pockets of the items
of clothing hung up.■
Do not use hangers to hang the clothes - there is a risk of limiting the ef-
fectiveness of head airbags.
■
Ensure that any clothes hanging from the hooks do not impair your vision
to the rear.
Storage pockets on the backs of the front seats
Fig. 86
Map pockets
Read and observe on page 74 first.
The Storage pockets » Fig. 86 are intended for the Storage e.g. of maps, maga-
zines, etc.
WARNINGNever put heavy items in the map pockets – risk of injury.
CAUTION
Never put large objects into the map pockets, e.g. bottles or objects with sharp
edges - risk of damaging the pockets and seat coverings.
Storage pockets on the inner sides of the front seats
Fig. 87
Storage pocket
Read and observe on page 74 first.
The storage pockets are located on the inner sides of the front seats » Fig. 87.
The storage pockets are used for storing small and light objects, such as mo-
bile phones, etc.
The maximum permissible load of each of the pockets is 150 g.
WARNINGDo not exceed the maximum permissible load of the pockets. Heavy objects
are not secured sufficiently – risk of injury!
CAUTION
Never put large objects into the map pockets, e.g. bottles or objects with sharp
edges - risk of damaging the pockets and seat coverings.81Transporting and practical equipment

Storage compartment in the rear centre consoleFig. 88
Storage compartment: Version 1 / version 2
Read and observe
on page 74 first.
The open storage compartment is in the rear of the centre console » Fig. 88.
AUX and USB inputs
Fig. 89
Installation locations of the AUX
and USB inputs
Read and observe on page 74 first.
The AUX input is above the storage compartment in the front centre console
and is identified with the  mark
» Fig. 89 .
The MDI input is above the storage compartment in the front centre console
and is identified by the symbol .
Additional information » Owner´s Manual Infotainment .
Tablet holder
Introduction
This chapter contains information on the following subjects:
Install/remove
82
Handle holder
83
External devices (e.g. tablet, smartphone, etc.) measuring min. 122 mm and
max. 195 mm can be secured in the support.
The maximum permissible load of the compartment is 750 g.
CAUTION
Never exceed the maximum permissible load of the holder - there is a risk of
damage or functional impairment.
Install/remove
Fig. 90
Position adapter/install holder 
82Operation

Fig. 91
Remove holder/remove Adapter
Read and observe
on page 82 first.
Fitting
›
Attach the opened adapter to the guide rods of the head restraint » Fig. 90.
›
Clip in the adapter in the direction of arrow
1
» .
›
Clip in the holder in the direction of arrow
2
into the adapter.
Removing
›
Pull on the locking strap
A
in the direction of arrow
3
» Fig. 91 .
›
Remove the holder from the bracket in the direction of arrow
4
.
›
Press the adapter and remove in the direction of the arrow
5
from the guide
rods of the headrest.
WARNINGCarefully clip in the adapter - it is a risk of injuring your finger.
Handle holder
Fig. 92
Tilt and rotate holder
Fig. 93
Adjust holder size
Read and observe on page 82 first.
Tilt and rotate holder
The holder may be tilted 30° in the direction of arrow
1
and rotated through
360° in the direction of arrow
2
» Fig. 92 .
Adjust holder size
›
Pull out the securing tab
A
in the direction of arrow
3
and move part
B
in
direction of arrow
4
to the desired position » Fig. 93.
Luggage compartment and transport of cargo

Introduction
This chapter contains information on the following subjects:
Fastening elements
84
Fixing nets
85
Multifunction pocket
85
Hooks
85
Storage compartments in the luggage compartment
86
Luggage compartment cover
86
Other positions of the luggage compartment cover
87
Roll-up cover
87
Storage compartments under the floor
88
Cargo element
88
Flexible storage compartment
88
Class N1 vehicles
89

83Transporting and practical equipment

When transporting cargo the instructions below must be followed
▶ When transporting heavy objects, the driving characteristics change due to
the shift in the centre of gravity. The speed and style of driving must be ad-
justed accordingly.
▶ The cargo is stowed in the luggage compartment. To prevent this from mov-
ing, it should be secured with suitable lashing straps to the lashing eyes or
secured with fixing nets.
▶ Distribute loads as evenly as possible.
▶ Place heavy objects as far forward as possible.
▶ Items carried in the luggage compartment must be stowed in such a way
that no objects are able to slip forward under sudden driving manoeuvres or
braking – risk of injury.
▶ Match the tyre pressure to the load.
▶ When transporting loads in the luggage compartment that has been en-
larged by folding the rear seats forward, ensure the safety of the passengers
transported on the other rear seats.
In the event of an accident, even small and light objects gain so much kinetic energy that they can cause severe injuries.
The magnitude of the kinetic energy is dependent on the speed at which the
vehicle is travelling and the weight of the object.
Example: In the event of a frontal collision at a speed of 50 km/h, an object
weighing 4.5 kg produces energy corresponding to 20 times its own weight.
This means that it results in a weight of approx. 90 kg “ ”.
Luggage compartment light
The warning light turns on when tailgate is opened.
The warning light turns off when the tailgate is closed.
If the boot lid is open and the ignition switched off, the light will extinguish
automatically after around 10 minutes.WARNING■ Never exceed the maximum permissible load of the respective fasteners,
nets, hooks etc., as heavy objects are not sufficiently secured - there is a
risk of injury!■
If the cargo is tied down with unsuitable or damaged lashing straps, inju-
ries can occur in the event of braking manoeuvres or accidents.
WARNING (Continued)■ Loose cargo can be thrown forward during a sudden manoeuvre or in case
of an accident, and can injure the occupants or other road users.■
Loose cargo could hit a deployed airbag and injure occupants – danger of
death!
CAUTION
■ Never exceed the maximum permissible load of the respective fasteners,
nets, hooks etc. - these could be damaged.■
Please ensure that the heating elements for the rear window heater are not
damaged as a result of abrasive objects.
Fastening elements
Fig. 94
Fasteners
Read and observe and on page 84 first.
The fasteners are located on both sides of the luggage compartment.
Overview of the fasteners » Fig. 94
Lashing eyes for securing cargo, fastening nets and multifunction pocket
Fastener for securing fastening nets and multifunction pocket
Lashing eye for securing fastening nets and multifunction pocket
The upper front lashing eye
C
is located behind the folding rear seat backrest.
The maximum permissible load of the individual lashing eyes
A
is 350 kg.
CAUTION
The lashing eyes A cannot be used for attaching bags and nets when the var-
iable loading floor is in the upper position » page 891)
.ABC1)
Applies to vehicles with a variable loading floor.
84Operation

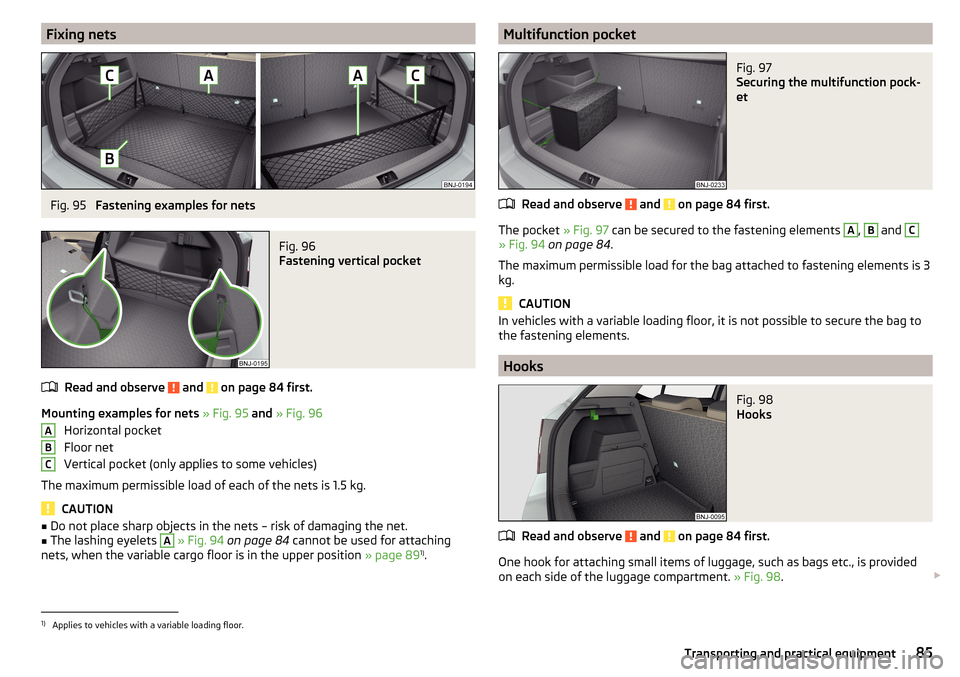

Fixing netsFig. 95
Fastening examples for nets
Fig. 96
Fastening vertical pocket
Read and observe and on page 84 first.
Mounting examples for nets » Fig. 95 and » Fig. 96
Horizontal pocket
Floor net
Vertical pocket (only applies to some vehicles)
The maximum permissible load of each of the nets is 1.5 kg.
CAUTION
■ Do not place sharp objects in the nets – risk of damaging the net.■The lashing eyelets A » Fig. 94 on page 84 cannot be used for attaching
nets, when the variable cargo floor is in the upper position » page 891)
.ABCMultifunction pocketFig. 97
Securing the multifunction pock-
et
Read and observe and on page 84 first.
The pocket » Fig. 97 can be secured to the fastening elements
A
,
B
and
C
» Fig. 94 on page 84 .
The maximum permissible load for the bag attached to fastening elements is 3
kg.
CAUTION
In vehicles with a variable loading floor, it is not possible to secure the bag to
the fastening elements.
Hooks
Fig. 98
Hooks
Read and observe and on page 84 first.
One hook for attaching small items of luggage, such as bags etc., is provided
on each side of the luggage compartment. » Fig. 98. 
1)
Applies to vehicles with a variable loading floor.
85Transporting and practical equipment

The maximum permissible load of the hook is 7.5 kg.
CAUTION
■Place the item of luggage suspended from a hook, if possible, in the storage
compartment B » Fig. 99 on page 86 , otherwise there is a risk of damaging
the storage compartment cover.■
If an item of luggage weighing more than 2.5 kg is suspended on the hook,
then we recommend removing the storage compartment cover
B
» Fig. 99 on
page 86 , otherwise there is a risk of damaging the storage compartment
cover.
Storage compartments in the luggage compartment
Fig. 99
Storage compartments
Read and observe and on page 84 first.
Storage compartments » Fig. 99
Fixed
With removable cover
Remove the cover
›
Remove the cover of the storage compartment
B
in the direction of the ar-
row » Fig. 99 .
The removable storage compartment
A
» Fig. 99 is suitable for stowing small
objects weighing up to 1.5 kg in total.
The storage compartment
B
is designed for storing small objects of up to 2.5
kg. in weight in total.
CAUTION
When handling the cover of the storage compartment B, ensure that this or
the luggage compartment trim is not damaged.ABLuggage compartment coverFig. 100
Remove the luggage compartment cover
Read and observe
and on page 84 first.
If the support straps
A
» Fig. 100 are attached to the boot lid, then opening
the lid will raise the boot lid cover (hereafter only referred to as "cover").
If you want to transport bulky goods, the cover can be removed and stowed in two positions » Fig. 101 on page 87 .
The maximum permissible load of the cover is 1 kg.
Removing
›
On both sides of the boot lid, unhook the straps
A
in direction of arrow
1
» Fig. 100 .
›
Hold the raised cover.
›
Press both sides onto the underside of the cover near the studs
C
.
›
Remove the cover in the direction of the arrow
2
.
Fitting
›
Position the mounts on the cover
B
onto the side trim panel via pins
C
» Fig. 100 .
›
Press both sides onto the upper side of the cover near the studs
C
.
The fixture
B
must lock into place on the studs
C
on both sides of the lug-
gage compartment.
›
On both sides of the boot lid, unhook the straps
A
.
WARNINGNo objects should be placed on the cover. This could endanger the vehicle
occupants during sudden braking or vehicle impact. 86Operation
