Condamnation automatique des ouvrants en roulage (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
RAID (RENAULT ANTI-INTRUDER DEVICE)
Operating principle
When the vehicle is started, the system
automatically locks the doors when the
vehicle reaches approximately 6 mph
(10 km/h).
The door can be unlocked:
– by pressing door unlocking button 1.
– by opening a front door (vehicle sta-
tionary).
Note: if a door is opened or closed,
it will automatically lock again when
the vehicle reaches a speed of 6 mph
(10 km/h).To activate this function:
After switching on the ignition and
when the vehicle is stationary, you
have approximately 20 seconds to
press and hold door locking switch 1
(for approximately 5 seconds).
The message “Auto door lock on” is dis-
played on the instrument panel and a
beep sounds.
To deactivate this function:
After switching on the ignition and
when the vehicle is stationary, press
and hold door locking switch 1 for ap-
proximately 5 seconds.
The message “Auto door lock off” is dis-
played on the instrument panel and a
beep sounds.
Operating faults
If you experience an operating fault (no
automatic locking, the indicator light in-
corporated in button 1 does not light up
when trying to lock the doors and tail-
gate, etc.), firstly check that the doors
and tailgate are properly closed. If they
are closed correctly, contact an ap-
proved dealer.1
Driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as-
sisting you to gain access to the
passenger compartment in the
event of an emergency.

JauneNoir Noir texte
18
ENG_UD23932_3
Appuis-tête avant (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
FRONT HEADRESTS
To remove the headrest
Raise the headrest as far as possible,
then while pressing button 1, raise the
headrest to release it.
To refit the headrest
Insert the headrest rods into the holes,
with the notches facing forwards.
Hold down button 1 and move the
headrest to the required height.
To raise the headrest
Pull the headrest upwards to the de-
sired height.
To lower the headrest
Press button 1 and guide the headrest
down to the desired height.
Adjusting the angle of the headrest
(depending on vehicle)
Tilt the headrest A forwards or back-
wards to the required position.
1
The headrest is important
for safety. Ensure that it is in
place and in the correct po-
sition: the top of the head-
rest should be as close as possible
to the top of the head and there must
be a minimal distance between the
head and the A headrest.
A

JauneNoir Noir texte
19
ENG_UD27217_3
Si ges avant (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
FRONT SEATS (1/2)
To raise or lower the seat base
(depending on vehicle)
Move lever 4 as required:
– move it upwards to raise the seat;
– move it downwards to lower the seat.
To tilt the seatback
Move lever 5 to control the angle of the
seatback.
Front seat with electric
controls
To move the seat forwards or back
Move switch 1 forwards or backwards.
To raise or lower the seat base
Move the rear of switch 1 upwards or
downwards.
To tilt the seatback
Move the rear of switch 2 forwards or
backwards.
Front seat with manual
controls
To move the seat forwards or back
Lift handle 3 to release. Release the
handle at the desired position and
make sure that it is locked.For safety reasons, make
these adjustments only
when the vehicle is station-
ary.
We would advise you not to recline
the seatbacks too far to ensure that
the effectiveness of the seat belts is
not reduced.
Nothing should be placed on the
floor (area in front of driver) as such
objects may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
2
13
45

JauneNoir Noir texte
20
ENG_UD27217_3
Si ges avant (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
FRONT SEATS (2/2)
To fold down the passenger seat
Depending on the vehicle, the passen-
ger seatback may be folded down onto
the seat base to create a table.
Lift handle 6 and lower the seatback.
6
Heated seats(depending on vehicle)
With the engine running, press
switch 8, pressing on the top of the
switch (to select the warmest setting) or
the bottom of the switch (to select the
average setting).
The indicator light on the button lights
up.
The system, which has a thermostat,
decides whether or not the heating is
needed, according to the position se-
lected.
If the heated front passenger seat is ac-
tivated, the indicator light
ð lights
up on the instrument panel.
78
Since front passenger airbag operation and the position of a front pas-
senger seatback table are incompatible, ensure that the airbag is deac-
tivated. (Refer to the information on “Front passenger air bag activation/
deactivation” in Section 1).
There is a risk of very serious injury if the air bags deploy.
When driving, rear passengers must not place their feet on the seatback of the
front seats under any circumstances. Risk of injury.
To adjust the lumbar support on the
driver’s seat:
Move lever 7.

JauneNoir Noir texte
21
ENG_UD27269_7
Ceintures de s curit (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
SEAT BELTS (1/2)
1
2
Always wear your seat belt when trav-
elling in your vehicle. You must also
comply with the legislation of the par-
ticular country you are in.
Adjusting the seat belts
Sit with your back firmly against the
seatback.
The shoulder strap 1 should be as close
as possible to the base of the neck but
not on it.
The lap strap 2 should be worn flat over
the thighs and against the pelvis.
The belt should be worn so that it is
as close as possible to your body, i.e.:
avoid wearing heavy clothing or keep-
ing bulky objects under the belts, etc.Seat belts which are incor-
rectly adjusted or twisted
may cause injuries in the
event of an accident.
Use one seat belt per person,
whether child or adult.
Even pregnant women should wear
a seat belt. In this case, ensure that
the lap belt is not exerting too much
pressure on the abdomen, but do
not allow any slack.
Make sure that the rear bench seat
is securely locked in position so that
the rear seat belts will operate effi-
ciently. Refer to “Rear bench seat”
in Section 3.
Before starting, first adjust your driv-
ing position, then ask all occupants
to adjust their seat belts to ensure
optimum protection.
Adjusting your driving
position
– Sit well back in your seat (having
first removed your coat or jacket).
This is essential to ensure your back
is positioned correctly;
– adjust the distance between the
seat and the pedals. Your seat
should be as far back as possible
while still allowing you to depress
the clutch pedal fully. The seatback
should be adjusted so that your arms
are slightly bent when you hold the
steering wheel;
– adjust the position of your head-
rest. For maximum safety, your head
must be as close as possible to the
headrest;
– adjust the height of the seat. This
adjustment allows you to select the
seat position which offers you the
best possible view;
– adjust the position of the steering
wheel.

JauneNoir Noir texte
22
ENG_UD27269_7
Ceintures de s curit (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
SEAT BELTS (2/2)
Adjusting the height of the
front seat belts
Press button 8 to adjust the seat belt
height so that the shoulder strap 1 is
worn as shown previously:
– to lower the seat belt, press button 8
and lower the seat belt at the same
time;
– to raise the seat belt, press button 8
and raise the seat belt at the same
time.
Make sure that the seat belt is locked
in position correctly after you have ad-
justed it.
Fastening
Unwind the belt slowly and smoothly
and ensure that buckle 3 locks into
catch 5 (check that it is locked by pull-
ing on buckle 3). If the belt jams, allow
it to return slightly before attempting to
unwind it again. If your seat belt is com-
pletely jammed, pull slowly, but firmly
so that just over 3 cm unwinds. Allow
it to return slightly before attempting to
unwind it again. If there is still a prob-
lem, contact an approved dealer.
UnfasteningPress button 4 and the seat belt will be
rewound by the inertia reel. Guide the
belt.
8
61
534
5
™Front passenger seat belt re-
minder warning light
(depending on the vehicle)
This comes on the central display 6
or on the instrument panel 7 when the
engine is started then, if the driver’s
or front passenger’s seat belt (if this
seat is occupied) is not fastened and
the vehicle has reached approximately
12 mph (20 km/ h), it flashes and a
bleep sounds for around 120 seconds.
Note: an object placed on the passen-
ger seat base may activate the warning
light in some cases.
7

JauneNoir Noir texte
23
ENG_UD20765_2
Ceintures de sécurité arrière (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1

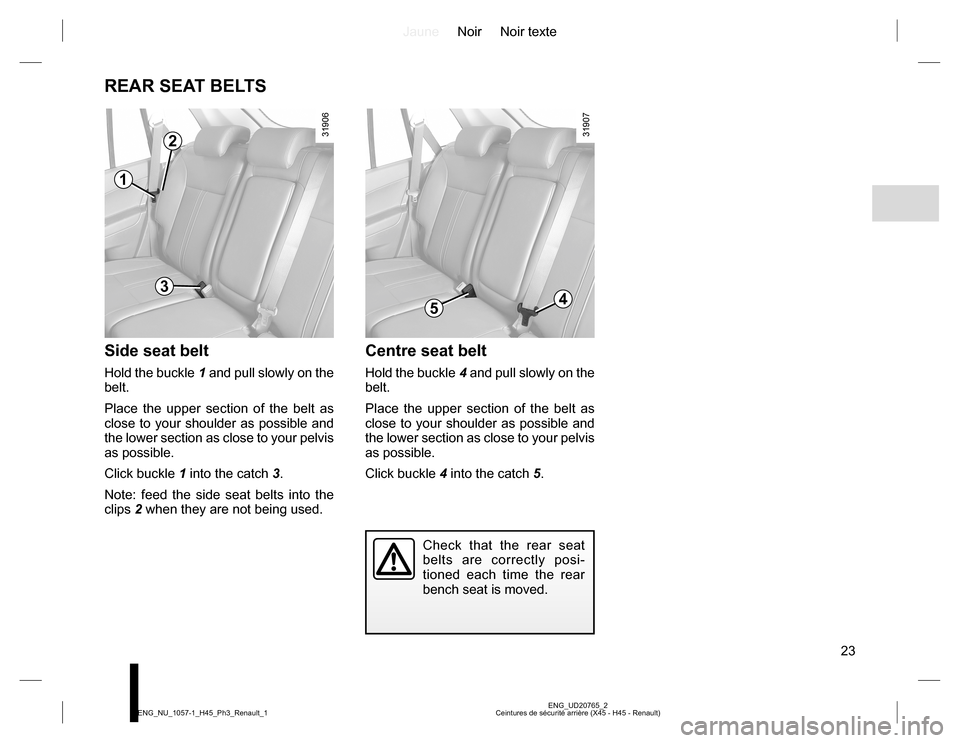

REAR SEAT BELTS
Centre seat belt
Hold the buckle 4 and pull slowly on the
belt.
Place the upper section of the belt as
close to your shoulder as possible and
the lower section as close to your pelvis
as possible.
Click buckle 4 into the catch 5.
Side seat belt
Hold the buckle 1 and pull slowly on the
belt.
Place the upper section of the belt as
close to your shoulder as possible and
the lower section as close to your pelvis
as possible.
Click buckle 1 into the catch 3.
Note: feed the side seat belts into the
clips 2 when they are not being used.
1
3
54
Check that the rear seat
belts are correctly posi-
tioned each time the rear
bench seat is moved.
2

JauneNoir Noir texte
24
ENG_UD20766_3
Ceintures de sécurité : avertissement (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
SEAT BELTS: warnings
The following information applies to the vehicle’s front and rear seat belts.
– No modification may be made to the component parts of the originally fitted restraint system: belts, seats and their
mountings. For special operations (e.g. fitting child seats) contact an authorised dealer.
– Do not use devices which allow any slack in the belts (e.g. clothes pegs, clips, etc.): a seat belt which is worn too
loosely may cause injury in the event of an accident.
– Never wear the shoulder strap under your arm or behind your back.
– Never use the same belt for more than one person and never hold a baby or child on your lap with your seat belt around
them.
– The belt should never be twisted.
– Following an accident, have the seat belts checked and replaced if necessary. Always replace your seat belts as soon as
they show any signs of wear.
– When repositioning the rear bench seat, make sure that the seat belt is correctly positioned so that it can be used properly.
– Make sure that the buckle is inserted into the appropriate catch.
– Ensure that no objects are placed in the area around the seat belt catch as they could prevent it from being properly se-
cured.
