2015 RENAULT KOLEOS Owners Manual

JauneNoir Noir texte
9
ENG_UD27276_6
Carte RENAULT en mode mains libres : utilisation (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
UseFor vehicles with a hands-free
RENAULT card, this allows the vehicle
to be locked/unlocked automatically (in
addition to the functions of the remote
control RENAULT card) if a card is
present in access zone 1.
Note: ensure that the RENAULT card
is not in contact with other electronic
equipment (computer, PDA, phone,
etc.) as this could hinder its operation.
RENAULT "HANDS-FREE" CARD: use (1/3)
Unlocking the vehicleWith the RENAULT card in zone 1,
place your hand on a door handle 2: the
vehicle will unlock (in some cases, you
may need to pull door handle 2 twice to
unlock the vehicle and open the door).
Pressing the button 3 also unlocks all
the doors and the tailgate.
The hazard warning lights flash once
to indicate that the doors have been un-
locked.
Never leave your vehicle with the RENAULT card inside.
The flashing status of the hazard
warning lights informs you of the ve-
hicle status:
– one flash indicates that the vehi-
cle is unlocked;
– two flashes indicates that the
vehicle is locked.
1
23

JauneNoir Noir texte
10
ENG_UD27276_6
Carte RENAULT en mode mains libres : utilisation (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
RENAULT "HANDS-FREE" CARD: use (2/3)
Locking the vehicle
There are two ways to lock the vehi-
cle: using buttons 4 or 5 or using the
RENAULT card.
Locking using button 4 or 5
When the doors and tailgate are closed,
press one of the buttons 4 on the door
handles 2 or the button 5 on the tail-
gate. The vehicle will lock. If a door or
the tailgate is open or not closed prop-
erly, the vehicle will quickly lock/unlock.
Note: a RENAULT card must be within
the vehicle's access zone (zone 1) to
be able to lock the vehicle using the
button.Special note:
If you wish to check that the doors are
locked after locking with button 4, you
have approximately three seconds to
try the door handles without unlocking
them.
After this delay, the hands-free mode
is activated once again and any move-
ment of a handle will unlock the vehicle.
1
2
4
5

JauneNoir Noir texte
11
ENG_UD27276_6
Carte RENAULT en mode mains libres : utilisation (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
RENAULT "HANDS-FREE" CARD: use (3/3)
With the engine running, if, after
having opened and closed a door, the
card is no longer in the passenger com-
partment, the message “Keycard not
detected” (accompanied by a beep
when the speed passes a certain level)
warns you that the card is no longer
in the vehicle. This avoids you driving
away after having dropped off a pas-
senger who has the card, for example.
The warning disappears when the card
is detected again.
Special Note:
The vehicle will not lock if:
– a door or the tailgate is open or not
properly closed;
– a card is still in zone 7 (or in the card
reader) and no other card is in the
external detection zone. Locking using the RENAULT card
With the doors and tailgate closed,
press button 6: the vehicle will lock.
The hazard warning lights flash twice
to indicate that the doors have locked.
Note: the maximum distance at which
the vehicle locks depends on the sur-
roundings.
After locking or unlocking the vehi-
cle doors or the tailgate only, using
the buttons on the RENAULT card,
hands-free unlocking is deactivated.
To reactivate the “hands-free” mode:
restart the vehicle.
7
6

JauneNoir Noir texte
12
ENG_UD27284_5
Carte RENAULT : supercondamnation (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
RENAULT CARD: deadlocking
To activate deadlockingPress button 2 or 3 once.
Note: to raise the windows simulta-
neously, the button must be held down
for more than one second.
The hazard warning lights will flash
three times to signal deadlocking.
To lock the vehicle, without
deadlocking
Press button 2 or 3 twice.
Note: to raise the windows simulta-
neously, the second time the button is
pressed, it must be held down for more
than one second.
The hazard warning lights flash twice
to indicate that the doors have locked.
To unlock the vehiclePress button 1.
The hazard warning lights flash once
to indicate that the doors have been un-
locked.
After activating deadlocking using
button 2, “hands-free” unlocking is
deactivated.
To reactivate the “hands-free” mode:
restart the vehicle.
1
2
Warning: deadlocking is
activated the first time
button 1 is pressed.
Never use deadlocking if
someone is still inside the vehicle.
If the vehicle is equipped with a dead-
locking function, this allows you to lock
the opening elements and to prevent
the doors from being unlocked using
the interior handles (for example, by
breaking the window and then trying to
open the door from the inside).
3

JauneNoir Noir texte
13
ENG_UD27285_7
Ouverture et fermeture des portes (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
OPENING AND CLOSING THE DOORS (1/2)
2
Opening the doors from the
outside
With the doors unlocked or the “hands-
free” RENAULT card in your posses-
sion, hold handle 1 and pull it towards
you.
In some cases, it may be necessary to
pull the handle twice to open the door.
Opening from the inside
Pull handle 2 and push the door.
Lights-on reminder buzzer
If you have switched off the ignition
and left the lights switched on, a re-
minder buzzer will sound when a door
is opened.
Card reminder buzzer
A beep will let you know if you have
left the card in the reader when you
open the driver’s door, and the “Please
remove keycard” message will appear
on the instrument panel.
Special note
After switching off the engine, the lights
and some accessories that are in op-
eration (radio, etc.) will continue to op-
erate.
They stop as soon as the driver’s door
is opened.
Door/tailgate open buzzer
If a door (or tailgate) is open or not
properly closed, as soon as the vehi-
cle reaches a speed of approximately
9 mph (15 km/h), the message “Boot
open” or “Door open” (depending on
which is open) will appear on the instru-
ment panel accompanied by a warning
light.
1
As a safety precaution,
the doors should only be
opened or closed when the
vehicle is stationary.

JauneNoir Noir texte
14
ENG_UD27285_7
Ouverture et fermeture des portes (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
OPENING AND CLOSING THE DOORS (2/2)
Child safety
Manually locking the rear doors
Move lever 3 and check from the inside
that the doors are securely locked, to
prevent the rear doors being opened
from the inside.
3
Driver’s responsibility when parking or stopping the vehicle
Never leave an animal, child or adult who is not self-sufficient alone on
your vehicle, even for a short time.
They may pose a risk to themselves or to others by starting the engine, activating
equipment such as the electric windows or by locking the doors.
Also, in hot and/or sunny weather, please remember that the temperature inside
the passenger compartment increases very quickly.
RISK OF DEATH OR SERIOUS INJURY.

JauneNoir Noir texte
15
ENG_UD23661_6
Verrouillage et déverouillage des portes (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1

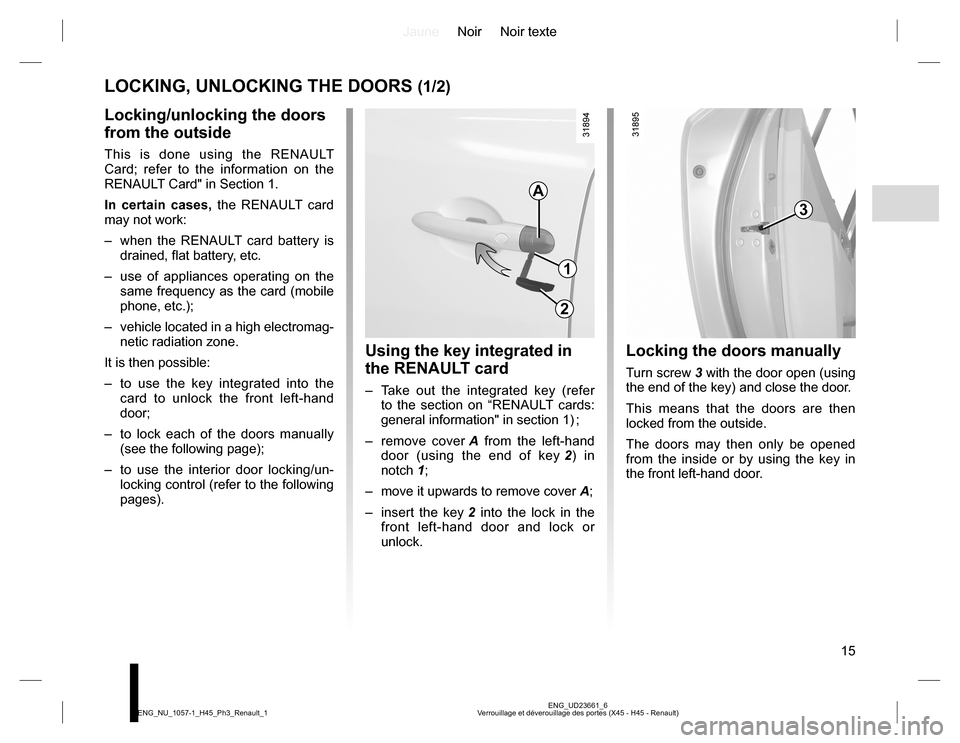

LOCKING, UNLOCKING THE DOORS (1/2)
Locking/unlocking the doors
from the outside
This is done using the RENAULT
Card; refer to the information on the
RENAULT Card" in Section 1.
In certain cases, the RENAULT card
may not work:
– when the RENAULT card battery is
drained, flat battery, etc.
– use of appliances operating on the
same frequency as the card (mobile
phone, etc.);
– vehicle located in a high electromag-
netic radiation zone.
It is then possible:
– to use the key integrated into the
card to unlock the front left-hand
door;
– to lock each of the doors manually
(see the following page);
– to use the interior door locking/un-
locking control (refer to the following
pages).
Locking the doors manually
Turn screw 3 with the door open (using
the end of the key) and close the door.
This means that the doors are then
locked from the outside.
The doors may then only be opened
from the inside or by using the key in
the front left-hand door.
Using the key integrated in
the RENAULT card
– Take out the integrated key (refer
to the section on “RENAULT cards:
general information" in section 1) ;
– remove cover A from the left-hand
door (using the end of key 2) in
notch 1;
– move it upwards to remove cover A;
– insert the key 2 into the lock in the
front left-hand door and lock or
unlock.
A
1
2
3

JauneNoir Noir texte
16
ENG_UD23661_6
Verrouillage et déverouillage des portes (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
LOCKING, UNLOCKING THE DOORS (2/2)
Locking the opening
elements without the
RENAULT card
(if the RENAULT card is not working, for
example)
With the engine switched off and a
front door open, press switch 4 for
more than five seconds.
When the door is closed, all the doors
and the tailgate will be locked.
Unlocking the vehicle from the outside
will only be possible with the RENAULT
card.
Doors and tailgate status
indicator light
When the ignition is on, the indicator
light integrated in switch 4 informs you
of the status of the doors and tailgate:
– indicator light on, the doors and tail-
gate are locked;
– indicator light off, the doors and tail-
gate are unlocked.
When you lock the vehicle from the out-
side, the indicator light remains lit for
approximately one minute, then goes
out.
Interior locking/unlocking
door control
The switch 4 simultaneously controls
the doors and the tailgate.
If a door or the tailgate is open or not
closed properly, the doors and tailgate
lock/unlock quickly.
If transporting an object with a door
or tailgate open: with the engine
stopped, press the switch 4 for more
than five seconds to lock the other
opening elements.
4
Driver’s responsibility
Never leave your vehicle
with the RENAULT card
inside.
Driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as-
sisting you to gain access to the
passenger compartment in the
event of an emergency.
