Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Towing weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Anti-corrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222

JauneNoir Noir texte
210
ENG_UD31484_6
Plaques d’identification v hicule (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_6
VEHICLE IDENTIFICATION PLATES
A
B
A
1
2
34
5
678
9
10
11
12
13
The information shown on the ve-
hicle identification plate should be
quoted on all correspondence or
orders.
Vehicle identification plate A
1 Vehicle type and chassis number.
Depending on the vehicle, this
information is also given on
marking B.
2 Maximum permissible all-up
weight.
3 Total train weight (vehicle fully
loaded, with trailer).
4 Front axle maximum permissible
all-up weight.
5 Rear axle maximum permissible
all-up weight. 6 Technical specifications of vehicle.
7 Vehicle paint reference.
8 Equipment level.
9 Vehicle type.
10 Trim code.
11 Additional equipment specifica-
tion.
12 Fabrication number.
13 Interior trim code.

JauneNoir Noir texte
211
ENG_UD31957_5
Plaques d’identification moteur (H45 - X65 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_6
ENGINE IDENTIFICATION PLATES
The information on the label A or
engine plate B should be quoted
on all of your correspondence or
orders.
Vehicle plate A
This includes the vehicle type and the
chassis number.
Note: depending on the vehicle, a
label stating “Do not cover, paint over,
weld, cut, perforate, alter or remove the
Vehicle Identification Number” is under
the vehicle plate A.Engine plate B
This gives the engine type and number
(it may be in a different location, de-
pending on the engine).
A
BB
2.0 dCi2.5 16V
2.0 16V

JauneNoir Noir texte
212
ENG_UD31485_4
Dimensions (en m tres) (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_6
DIMENSIONS (in metres)
955 2.690 875
4.5201.545
1.550
2.120
1.695 (1)
1.715 (2)
(1) without roof rack
(2) with roof rack

JauneNoir Noir texte
213
ENG_UD31486_5
Caract ristiques moteurs (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_6
ENGINE SPECIFICATIONS
Versions 2.0 16V 2.5 16V 2.0 dCi
Engine type
(see engine number)M4R 2TR M9R Turbo
Cubic capacity (cc) 1998 2488 1 995
Type of fuel
Octane RatingIt is essential to use unleaded petrol with the
octane rating stated on the label inside the fuel
filler flap. If not available, for a limited time only,
use unleaded fuel:
– with an Octane rating of 91 for a label
showing 95 or 98;
– with an octane rating of 87 for a label
showing 91, 95 or 98.Diesel
The label located in the fuel filler
flap indicates authorised fuels.
Spark plugsOnly use the spark plugs specified for your ve-
hicle’s engine.
The type should be marked on a label affixed
inside the engine compartment. If it is not then
contact an approved dealer.
Fitting spark plugs which are not to spe-cifica-
tion may damage the engine.–

JauneNoir Noir texte
214
ENG_UD13158_4
Masses (enKg) (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_6
WEIGHTS (in kg)
Maximum permissible all-up weight (MMAC)
Total train weight (MTR)Weights indicated on the manufacturer’s plate
(refer to Section 6 “Vehicle identification plate”)
Towing weight brakedfound by calculating: Total train weight
Maximum permissible all-up weight
Towing weight unbraked750
Permissible nose weight100
Permissible load on the roof with the carrying device85 kg (including the carrying device)
Towing weight (Towing a caravan, boat, etc.)
– It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in
the Road Traffic Regulations. Contact your approved Dealer about any towing equipment.
– For vehicles fitted with a trailer, the total train weight (vehicle + trailer) must never be exceeded. However, the following is
tolerated:
– rear axle maximum permissible weight exceeded by no more than 15%,
– maximum permissible all-up weight exceeded by no more than 10% or 100 kg (whichever is reached first).
In either case, the maximum speed of the vehicle and trailer must not exceed 60 mph (100 kph) and the tyre pressures must be
increased by 0.2 bar (3 PSI).
– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%
at an altitude of 1,000 metres and by an additional 10% for each 1,000 metres thereafter. The weights indicated are those of a basic model without options: they will vary depending on the equipment level of
your vehicle. Consult an authorised dealer.

JauneNoir Noir texte
215
ENG_UD21022_2
Pi ces de rechange et r parations (X35 - X44 - X45 - H45 - X65 - X77 - X81 - J81 - X85 - X91 - B91 - K91 - D91 - X76 - X83 - X95 - B95 - D95 - E95 - K95 - J95 - R95 - ENG_NU_1057-1_H45_Ph3_Renault_6
Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out
within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the
repair order.

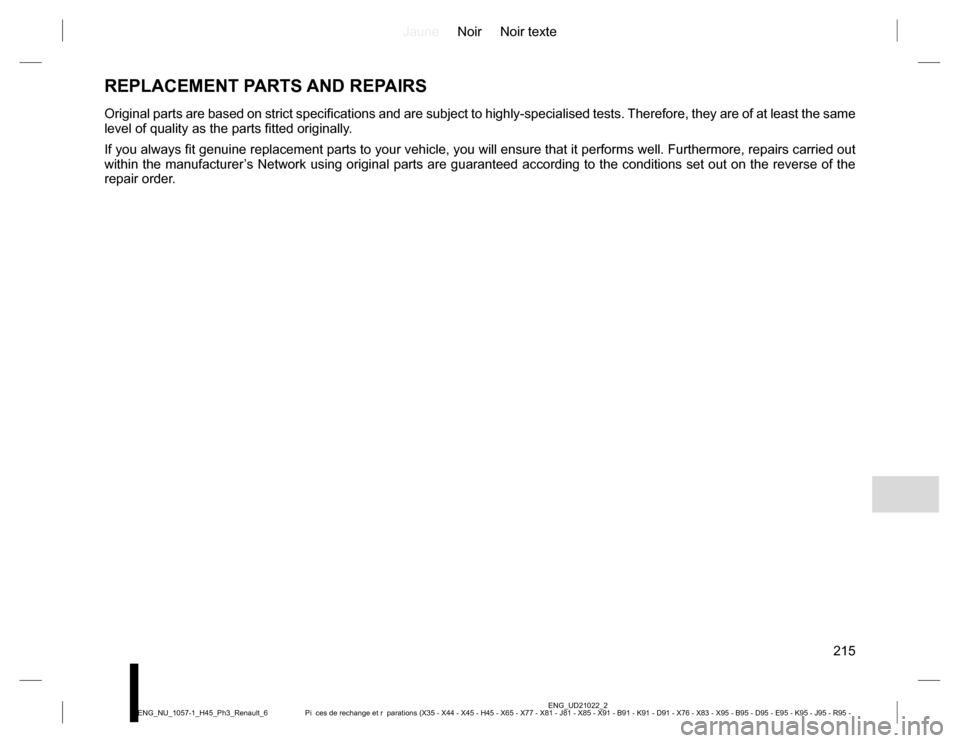

REPLACEMENT PARTS AND REPAIRS

JauneNoir Noir texte
216
ENG_UD25385_3
Justificatif d’entretien (X06 - S06 - X35 - X44 - X45 - X65 - X73 - X81 - X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X33 - X47 - X43 - X38 - H79 ENG_NU_1057-1_H45_Ph3_Renault_6
Date: Miles (Km): Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): Invoice number: Comments/miscellaneous
Type of operation: Stamp
Service □
....................................... □
Anti-corrosion check:
OK □ Not OK* □
*See specific page
VIN: ..................................................................................

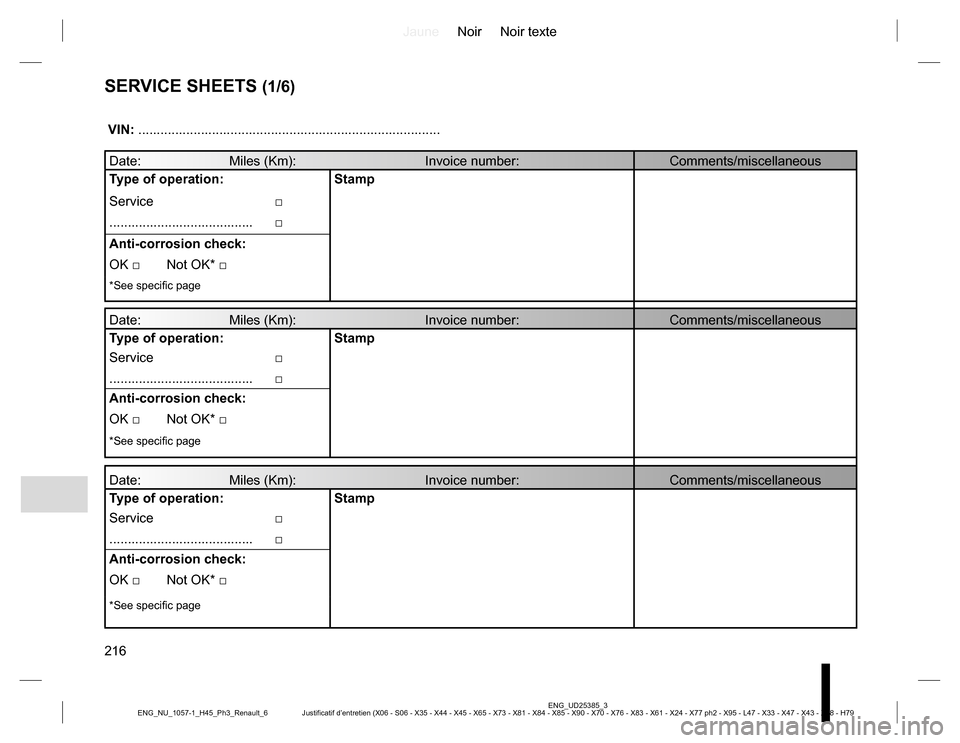

SERVICE SHEETS (1/6)
