2015 RENAULT KOLEOS Owners Manual

JauneNoir Noir texte
137
ENG_UD31692_4
Toit ouvrant lectrique (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_3

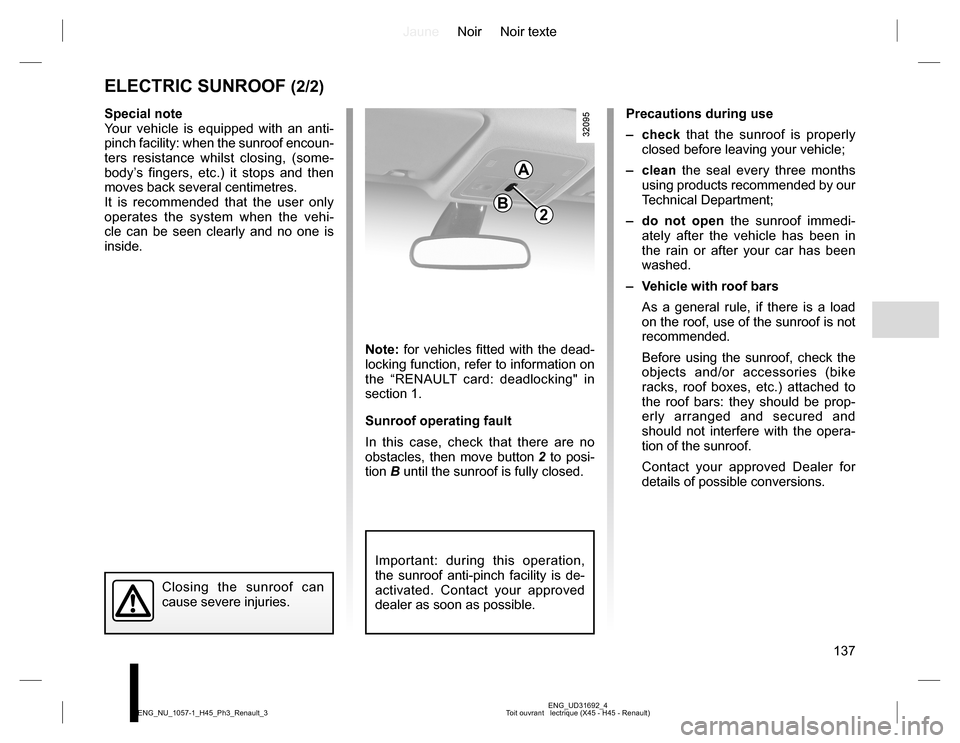

ELECTRIC SUNROOF (2/2)
Special note
Your vehicle is equipped with an anti-
pinch facility: when the sunroof encoun-
ters resistance whilst closing, (some-
body’s fingers, etc.) it stops and then
moves back several centimetres.
It is recommended that the user only
operates the system when the vehi-
cle can be seen clearly and no one is
inside.
Note: for vehicles fitted with the dead-
locking function, refer to information on
the “RENAULT card: deadlocking" in
section 1.
Sunroof operating fault
In this case, check that there are no
obstacles, then move button 2 to posi-
tion B until the sunroof is fully closed.
Precautions during use
– check that the sunroof is properly
closed before leaving your vehicle;
– clean the seal every three months
using products recommended by our
Technical Department;
– do not open the sunroof immedi-
ately after the vehicle has been in
the rain or after your car has been
washed.
– Vehicle with roof bars
As a general rule, if there is a load
on the roof, use of the sunroof is not
recommended.
Before using the sunroof, check the
objects and/or accessories (bike
racks, roof boxes, etc.) attached to
the roof bars: they should be prop-
erly arranged and secured and
should not interfere with the opera-
tion of the sunroof.
Contact your approved Dealer for
details of possible conversions.
Closing the sunroof can
cause severe injuries.
2
A
B
Important: during this operation,
the sunroof anti-pinch facility is de-
activated. Contact your approved
dealer as soon as possible.

JauneNoir Noir texte
138
ENG_UD28047_5
Pare-soleil/Miroir de communication (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_3

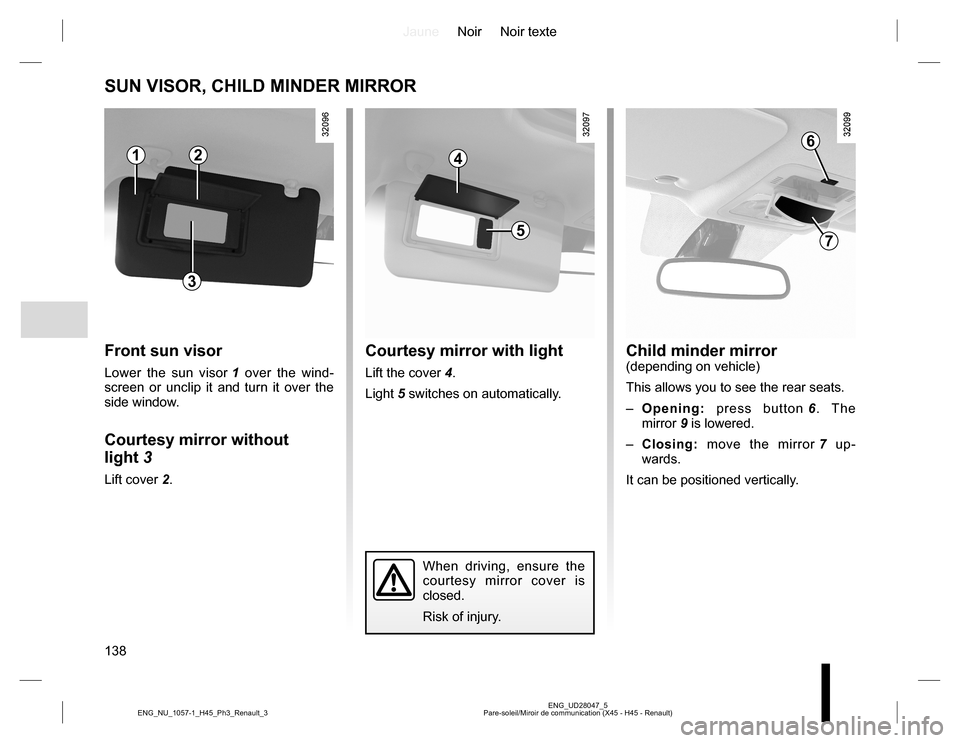

SUN VISOR, CHILD MINDER MIRROR
Child minder mirror(depending on vehicle)
This allows you to see the rear seats.
– Opening: press button 6. The
mirror 9 is lowered.
– Closing: move the mirror 7 up-
wards.
It can be positioned vertically.
6
7
Front sun visor
Lower the sun visor 1 over the wind-
screen or unclip it and turn it over the
side window.
Courtesy mirror without
light 3
Lift cover 2.
Courtesy mirror with light
Lift the cover 4.
Light 5 switches on automatically.
2
3
1
When driving, ensure the
courtesy mirror cover is
closed.
Risk of injury.
4
5

JauneNoir Noir texte
139
ENG_UD23659_3
Eclairage intérieur (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_3

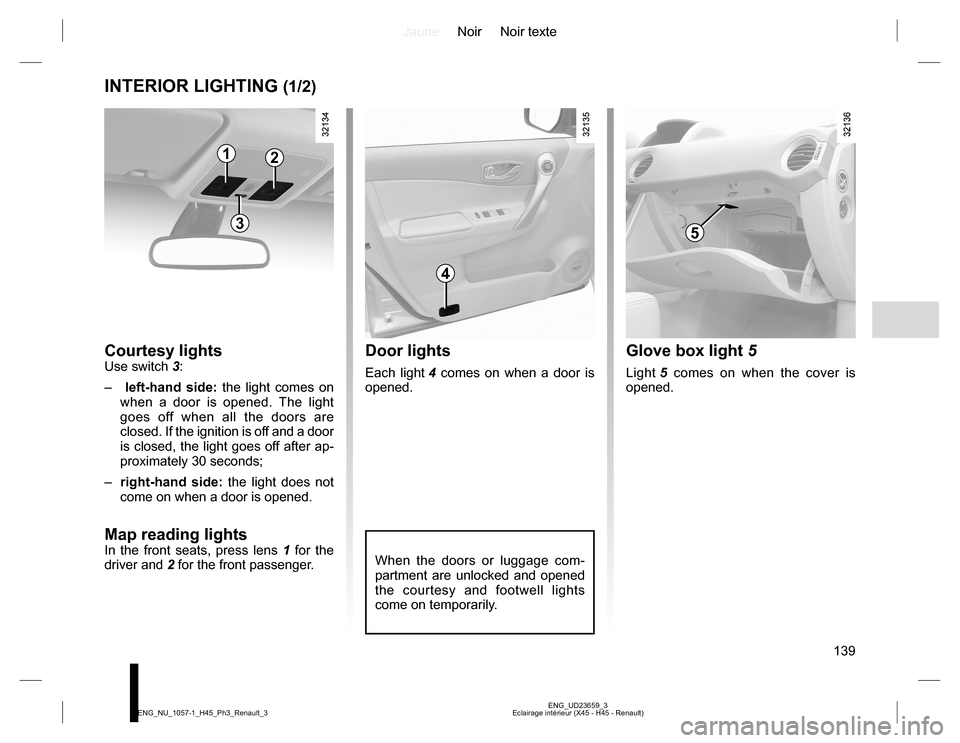

INTERIOR LIGHTING (1/2)
Courtesy lightsUse switch 3:
– left-hand side: the light comes on
when a door is opened. The light
goes off when all the doors are
closed. If the ignition is off and a door
is closed, the light goes off after ap-
proximately 30 seconds;
– right-hand side: the light does not
come on when a door is opened.
Map reading lights
In the front seats, press lens 1 for the
driver and 2 for the front passenger.
Door lights
Each light 4 comes on when a door is
opened.
Glove box light 5
Light 5 comes on when the cover is
opened.
When the doors or luggage com-
partment are unlocked and opened
the courtesy and footwell lights
come on temporarily.
12
3
4
5

JauneNoir Noir texte
140
ENG_UD23659_3
Eclairage intérieur (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_3

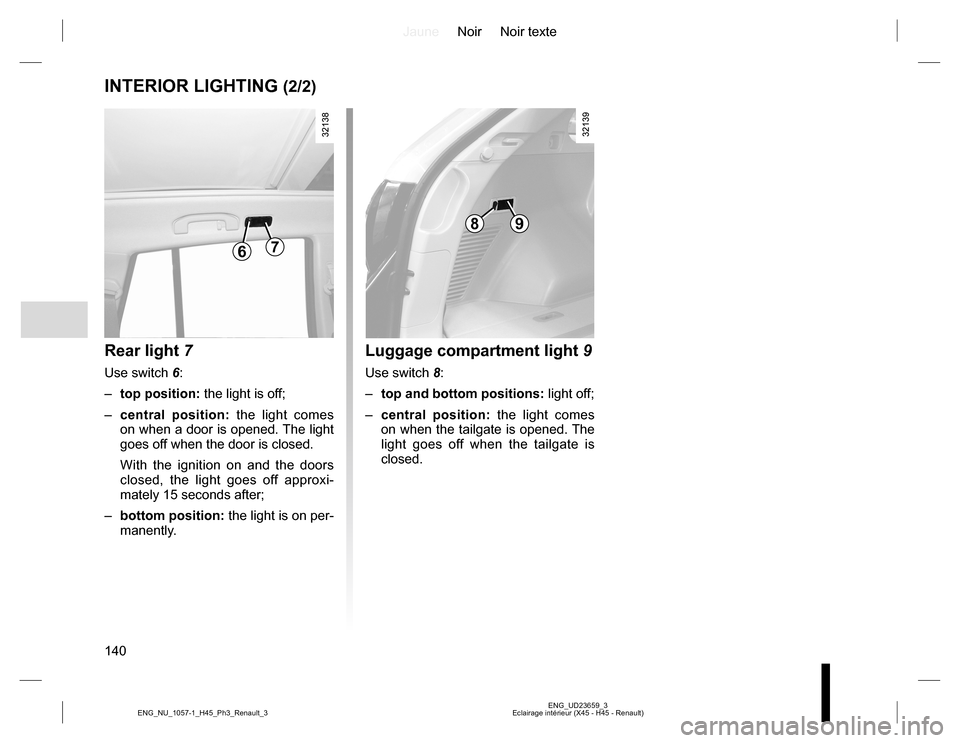

INTERIOR LIGHTING (2/2)
Rear light 7
Use switch 6:
– top position: the light is off;
– central position: the light comes
on when a door is opened. The light
goes off when the door is closed.
With the ignition on and the doors
closed, the light goes off approxi-
mately 15 seconds after;
– bottom position: the light is on per-
manently.
Luggage compartment light 9
Use switch 8:
– top and bottom positions: light off;
– central position: the light comes
on when the tailgate is opened. The
light goes off when the tailgate is
closed.
67
89

JauneNoir Noir texte
141
ENG_UD31507_7
Rangements, am nagements habitacle (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_3

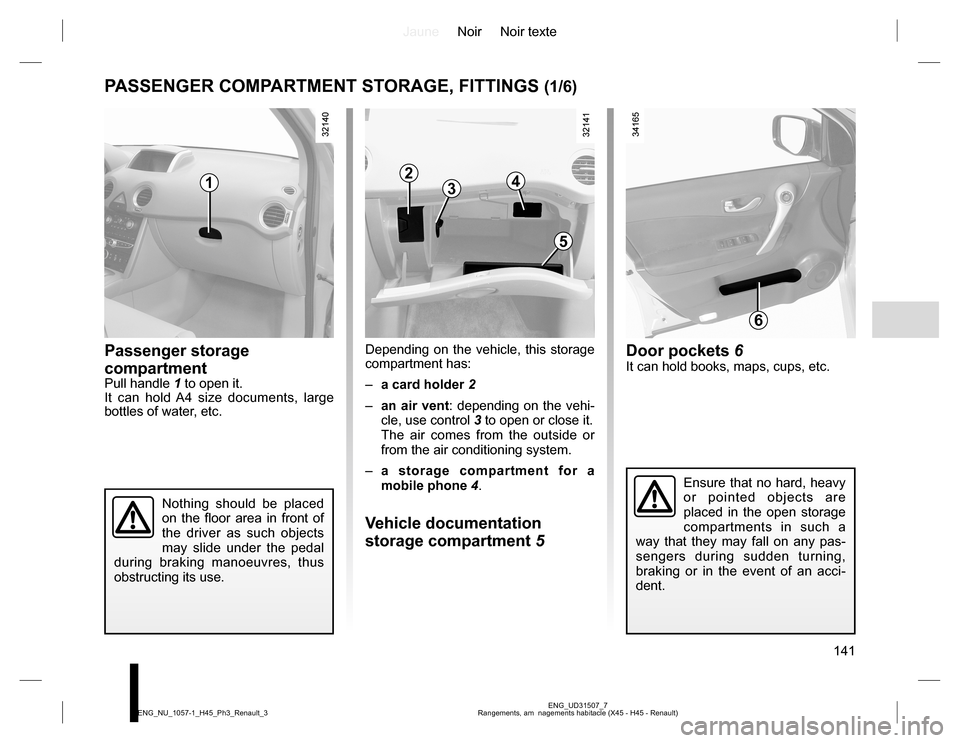

PASSENGER COMPARTMENT STORAGE, FITTINGS (1/6)
Passenger storage
compartment
Pull handle 1 to open it.
It can hold A4 size documents, large
bottles of water, etc.Depending on the vehicle, this storage
compartment has:
– a card holder 2
– an air vent: depending on the vehi-
cle, use control 3 to open or close it.
The air comes from the outside or
from the air conditioning system.
– a storage compartment for a
mobile phone 4.
Vehicle documentation
storage compartment 5
Door pockets 6It can hold books, maps, cups, etc.
Ensure that no hard, heavy
or pointed objects are
placed in the open storage
compartments in such a
way that they may fall on any pas-
sengers during sudden turning,
braking or in the event of an acci-
dent.
12
34
5
6
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.

JauneNoir Noir texte
142
ENG_UD31507_7
Rangements, am nagements habitacle (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_3

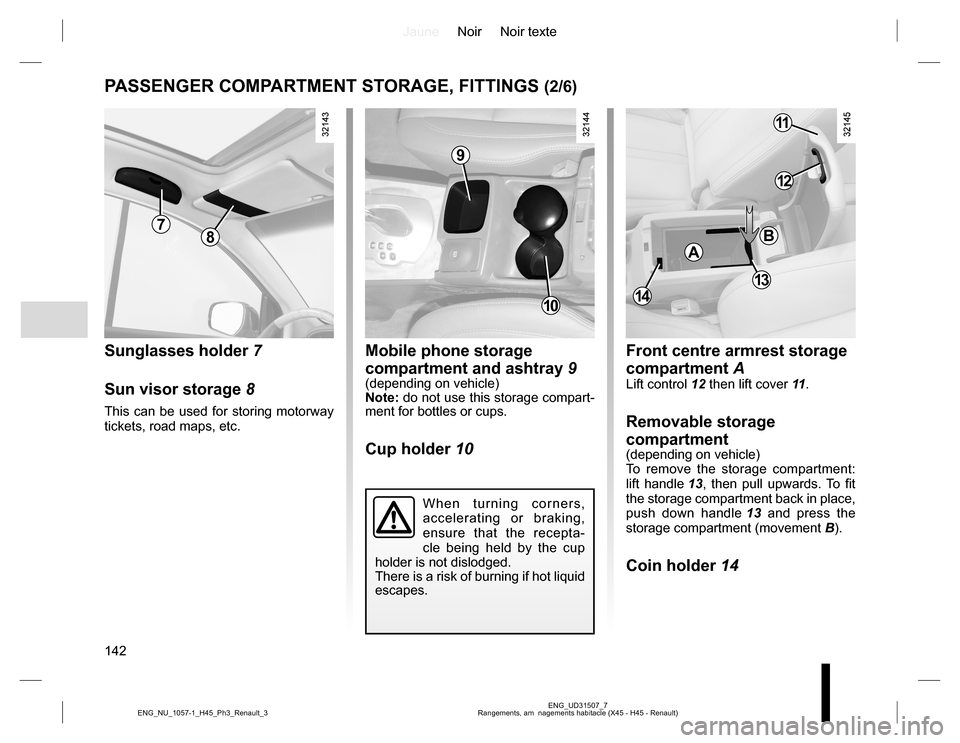

PASSENGER COMPARTMENT STORAGE, FITTINGS (2/6)
Sunglasses holder 7
Sun visor storage 8
This can be used for storing motorway
tickets, road maps, etc.
Front centre armrest storage
compartment A
Lift control 12 then lift cover 11.
Removable storage
compartment
(depending on vehicle)
To remove the storage compartment:
lift handle 13, then pull upwards. To fit
the storage compartment back in place,
push down handle 13 and press the
storage compartment (movement B).
Coin holder 14
78
9
10
11
12
14
13
A
B
When turning corners,
accelerating or braking,
ensure that the recepta-
cle being held by the cup
holder is not dislodged.
There is a risk of burning if hot liquid
escapes.
Mobile phone storage
compartment and ashtray 9
(depending on vehicle)
Note: do not use this storage compart-
ment for bottles or cups.
Cup holder 10

JauneNoir Noir texte
143
ENG_UD31507_7
Rangements, am nagements habitacle (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_3

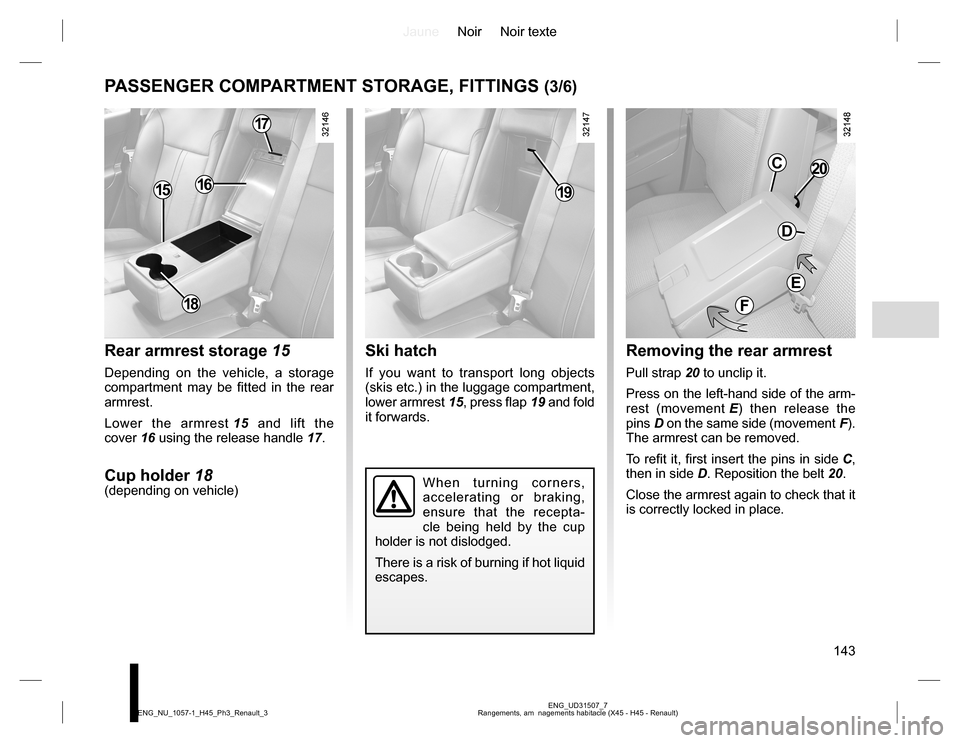

PASSENGER COMPARTMENT STORAGE, FITTINGS (3/6)
Rear armrest storage 15
Depending on the vehicle, a storage
compartment may be fitted in the rear
armrest.
Lower the armrest 15 and lift the
cover 16 using the release handle 17.
Cup holder 18(depending on vehicle)
Ski hatch
If you want to transport long objects
(skis etc.) in the luggage compartment,
lower armrest 15, press flap 19 and fold
it forwards.
Removing the rear armrest
Pull strap 20 to unclip it.
Press on the left-hand side of the arm-
rest (movement E) then release the
pins D on the same side (movement F).
The armrest can be removed.
To refit it, first insert the pins in side C,
then in side D. Reposition the belt 20.
Close the armrest again to check that it
is correctly locked in place.
18
1516
17
19
20
When turning corners,
accelerating or braking,
ensure that the recepta-
cle being held by the cup
holder is not dislodged.
There is a risk of burning if hot liquid
escapes.
F
E
C
D

JauneNoir Noir texte
144
ENG_UD31507_7
Rangements, am nagements habitacle (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_3

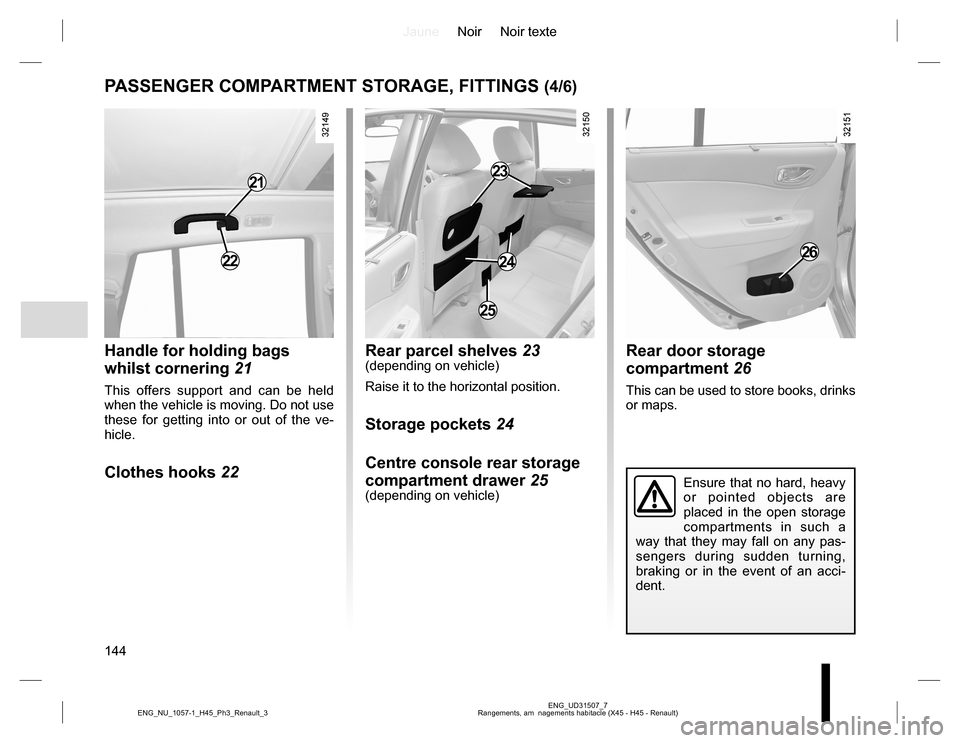

PASSENGER COMPARTMENT STORAGE, FITTINGS (4/6)
Handle for holding bags
whilst cornering 21
This offers support and can be held
when the vehicle is moving. Do not use
these for getting into or out of the ve-
hicle.
Clothes hooks 22Rear parcel shelves 23
(depending on vehicle)
Raise it to the horizontal position.
Storage pockets 24
Centre console rear storage
compartment drawer 25
(depending on vehicle)
Rear door storage
compartment 26
This can be used to store books, drinks
or maps.
22
21
25
26
23
24
Ensure that no hard, heavy
or pointed objects are
placed in the open storage
compartments in such a
way that they may fall on any pas-
sengers during sudden turning,
braking or in the event of an acci-
dent.
