2015 RENAULT KOLEOS Owners Manual

JauneNoir Noir texte
185
ENG_UD31481_6
Projecteurs avant : feux de brouillard avant, additionnels (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5
HEADLIGHTS: additional, front fog lights
Front fog lights 1
Changing a bulb:
Contact an approved dealer.
Additional lights
If you wish to fit fog lights or long range
headlights to your vehicle, consult an
approved dealer.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
1
Any operation on (or modi-
fication to) the electrical
system must be performed
by an approved dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-
ular the alternator). In addition, your
Dealer has all the parts required for
fitting these units.

JauneNoir Noir texte
186
ENG_UD23303_3
Feux arrière : remplacement des lampes (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5
REAR LIGHTS AND SIDE LIGHTS: changing bulbs (1/3)
However, because bodywork compo-
nents need to be removed, you are ad-
vised to have your bulbs replaced by
an approved dealer.
Removing the bulbs
Open the tailgate then unclip cover 1
using a flat blade screwdriver or simi-
lar tool.
Remove the cover 2 then remove the
nut behind.
When changing the bulb, do
not touch the electrical cir-
cuit in which the new bulb is
to be inserted.
You could damage the light.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Release the light unit by pulling it back-
wards.
Undo bulb holder 3, 4 or 5 a quarter of
a turn then replace the bulb.
Note: Ensure that the lead is in place
before inserting the light unit.
Side light 3
Bulb type: W5W.
Indicator light 4
Bulb type: PY21W.
Brake light 5
Bulb type: P21W.
1
2
43
5

JauneNoir Noir texte
187
ENG_UD23303_3
Feux arrière : remplacement des lampes (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5
REAR LIGHTS AND SIDE LIGHTS: changing bulbs (2/3)
Side lights and tailgate
reversing light
Remove the screws 7 on the tailgate
before removing the light unit 6 by
pushing it outwards.
Undo bulb holder 8 or 9 a quarter of a
turn then replace the bulb.
Note: Ensure that the lead is in place
before inserting the light unit.
Reversing light 8
Bulb type: W16W.
Side light 9
Bulb type: W5W.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
8
9
7
6
High-level brake light 10
Consult an approved Dealer.
Rear fog light 11(depending on vehicle)
Consult an approved Dealer.
Do not raise your vehicle
with the jack to change the
bulbs.
Risk of injury.
10
11

JauneNoir Noir texte
188
ENG_UD23303_3
Feux arrière : remplacement des lampes (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5
REAR LIGHTS AND SIDE LIGHTS: changing bulbs (3/3)
Number plate lights 13
Remove the two screws 12 then unclip
the light.
Unclip the lens (using a flat-blade
screwdriver or similar).
Remove the bulb.
Bulb type: W5W.
High-level indicator lights 14
Consult an approved Dealer.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
13
14
12

JauneNoir Noir texte
189
ENG_UD23660_3
Eclairage intérieur : remplacement des lampes (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5

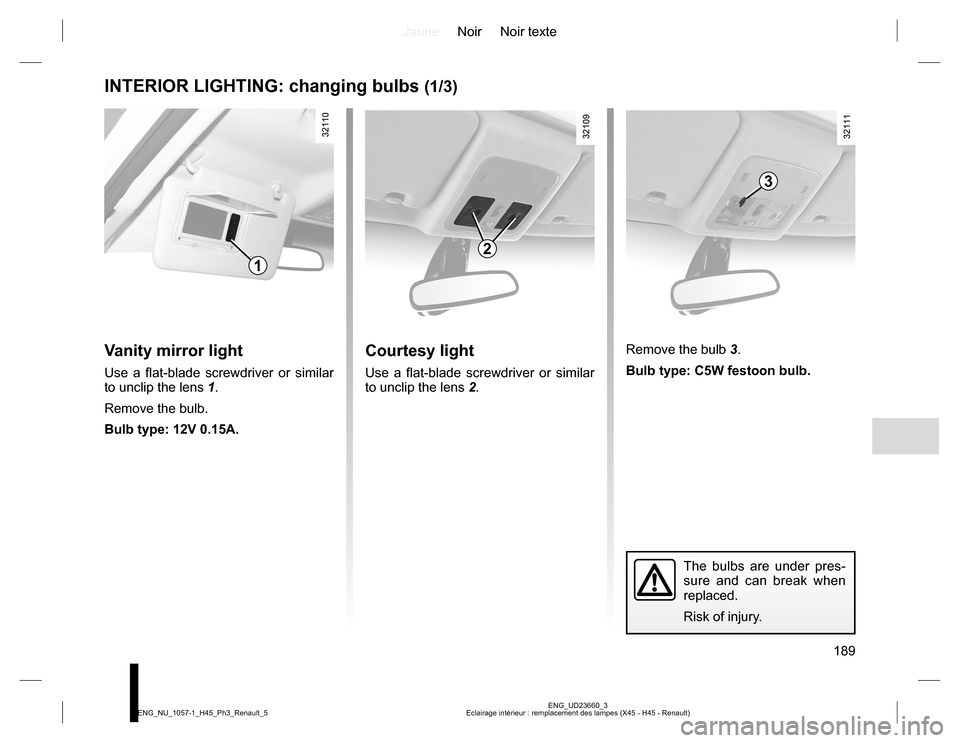

INTERIOR LIGHTING: changing bulbs (1/3)
Vanity mirror light
Use a flat-blade screwdriver or similar
to unclip the lens 1.
Remove the bulb.
Bulb type: 12V 0.15A.
Courtesy light
Use a flat-blade screwdriver or similar
to unclip the lens 2.Remove the bulb 3.
Bulb type: C5W festoon bulb.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
1
2
3

JauneNoir Noir texte
190
ENG_UD23660_3
Eclairage intérieur : remplacement des lampes (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5

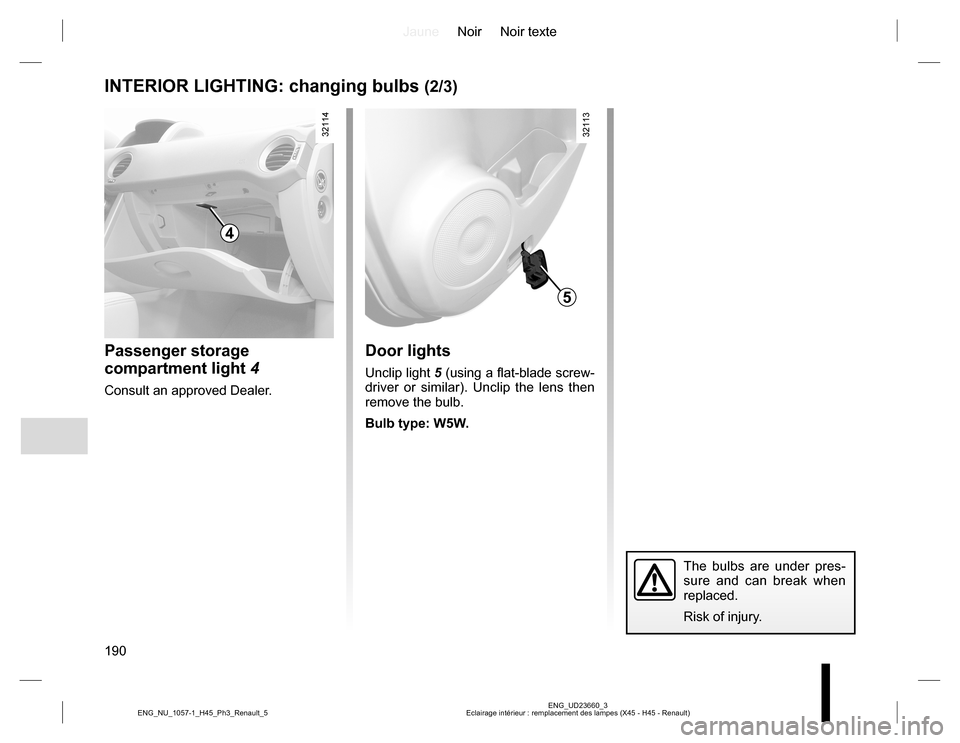

INTERIOR LIGHTING: changing bulbs (2/3)
Passenger storage
compartment light 4
Consult an approved Dealer.
Door lights
Unclip light 5 (using a flat-blade screw-
driver or similar). Unclip the lens then
remove the bulb.
Bulb type: W5W.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
5
4

JauneNoir Noir texte
191
ENG_UD23660_3
Eclairage intérieur : remplacement des lampes (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5
INTERIOR LIGHTING: changing bulbs (3/3)
Rear passenger lights 6
and light for luggage
compartment 7
Unclip light 6 or 7 (using a flat-blade
screwdriver or similar).
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Remove the screw 8 (using a tool such
as a flat-blade screwdriver) then unclip
the lens. Remove the bulb 9.
Bulb type: C5W festoon bulb.
7
8
9
6

JauneNoir Noir texte
192
ENG_UD21012_4 Fusibles (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5
FUSES (1/2)
32119
Disconnect the fuse using tweezers 2.
Slide the fuse backwards to remove it from the tweezers.
Do not reuse the fuse.
1
2
CORRECT
INCORRECT
Fuse box 1
If any electrical component does not work, check the condition of the fuses.
Open the cover.
To identify the fuses, refer to the fuse allocation label (shown on the following page).
Check the fuse in question and replace it, if neces- sary, by a fuse of the same rating .
If a fuse is fitted where the rating is too high, it may cause the electrical circuit to overheat (risk of fire) in the event of an item of equipment using an excessive amount of current.In accordance with local legislation or as a precautionary measure:
Obtain an emergency kit containing a set of spare bulbs and fuses from an approved Dealer.
