2015 PEUGEOT BOXER Owners Manual

135

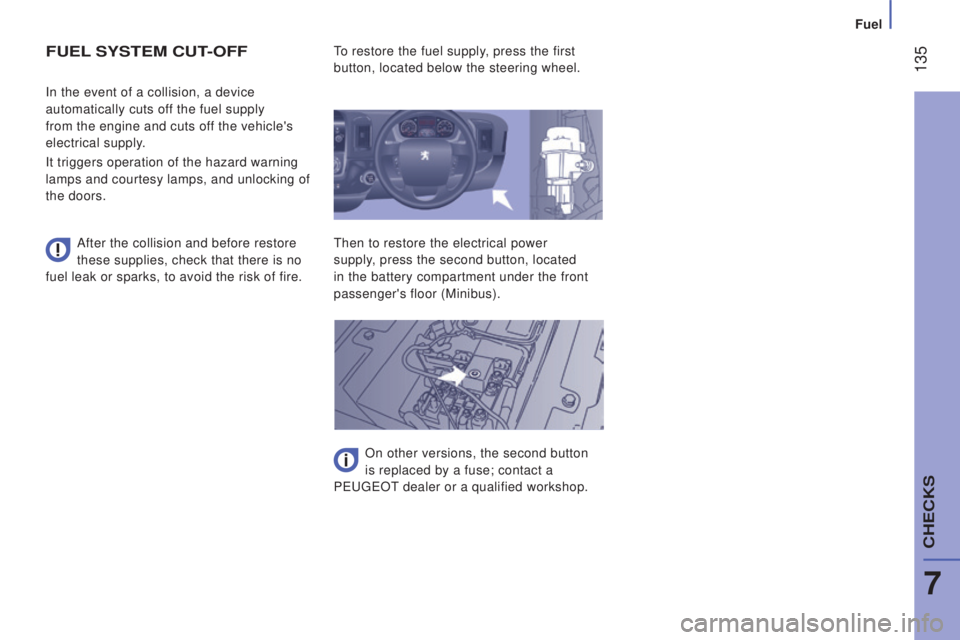

FuEL SYStEM cut-oFF
After the collision and before restore
these supplies, check that there is no
fuel leak or sparks, to avoid the risk of fire. In the event of a collision, a device
automatically cuts off the fuel supply
from the engine and cuts off the vehicle's
electrical supply.
It triggers operation of the hazard warning
lamps and courtesy lamps, and unlocking of
the doors.
to restore the fuel supply, press the first

button, located below the steering wheel.then to restore the electrical power
supply, press the second button, located
in the battery compartment under the front
passenger's floor (Minibus).
On other versions, the second button
is replaced by a fuse; contact a
P
eugeOt dealer or a qualified workshop.
7
CHeCKS
Fuel

136
BLuEHdI
A
nd AdBLuE® AddItIVE
AdBlue® is the brand name of the solution
needed for operation of the SCR system.
BlueHDI vehicles have a specific AdBlue
®
additive tank with a capacity of 15 litres.
It has an exterior filler located behind the
fuel filler flap below the fuel filler cap and
closed with a blue filler cap.
the objective of BlueHDi is to reduce by


up to 90% the emissions of NOx (nitrous
oxides) in the air, using a system that
converts NOx into water vapour and nitrogen
in a dedicated catalytic converter: SCR
(Selective Catalytic Reduction).
this objective meets the "euro 6" emissions


standard adopted by the
european union


aimed at limiting the emissions of pollutants
from internal combustion engines.
the SCR technology used on BlueHDi


engines involves the injection of AdBlue
®
fluid into the exhaust system.this operation can also be carried out
by a PeugeOt dealer or a qualified
workshop.
Scr technology
Filling of the AdBlue® tank can be done
using:
-
5 or 10 litres containers equipped with a
10 centimetre filler tube or the filling kit


available from P
eugeOt dealers,
-
1.89 litre botles that are screwed onto
the filler neck, available from P
eugeOt
dealers,
-
or when at a fuel filling station equipped
with a special

AdBlue
® delivery pump for
heavy or light vehicles.
AdBlue® additive

137

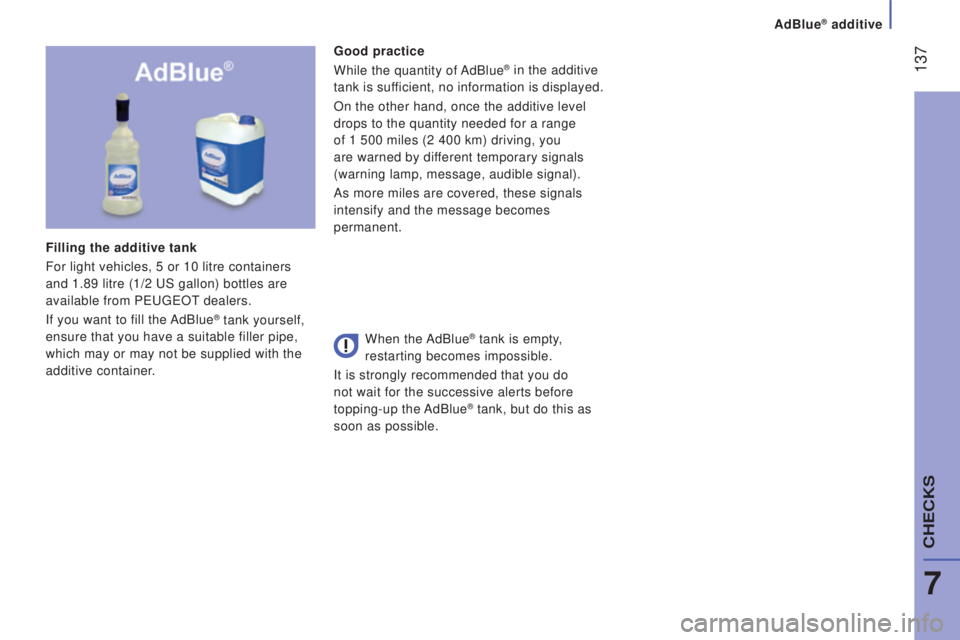

Good practice
While the quantity of AdBlue® in the additive
tank is
sufficient, no information is displayed.
On the other hand, once the additive level
drops to the quantity needed for a range
of 1 500 miles (2 400 km) driving, you
are warned by different temporary signals
(warning lamp, message, audible signal).
As more miles are covered, these signals
intensify and the message becomes
permanent.
Filling the additive tank
For light vehicles, 5 or 10 litre containers
and 1.89 litre (1/2
uS gallon) bottles are


available from P
eugeOt dealers.
If you want to fill the AdBlue® tank yourself,
ensure that you have a suitable filler pipe,
which may or may not be supplied with the
additive container. When the AdBlue® tank is empty,
restarting becomes impossible.
It is strongly recommended that you do
not wait for the successive alerts before
topping-up the AdBlue
® tank, but do this as
soon as possible.
AdBlue® additive
7
CHeCKS

138

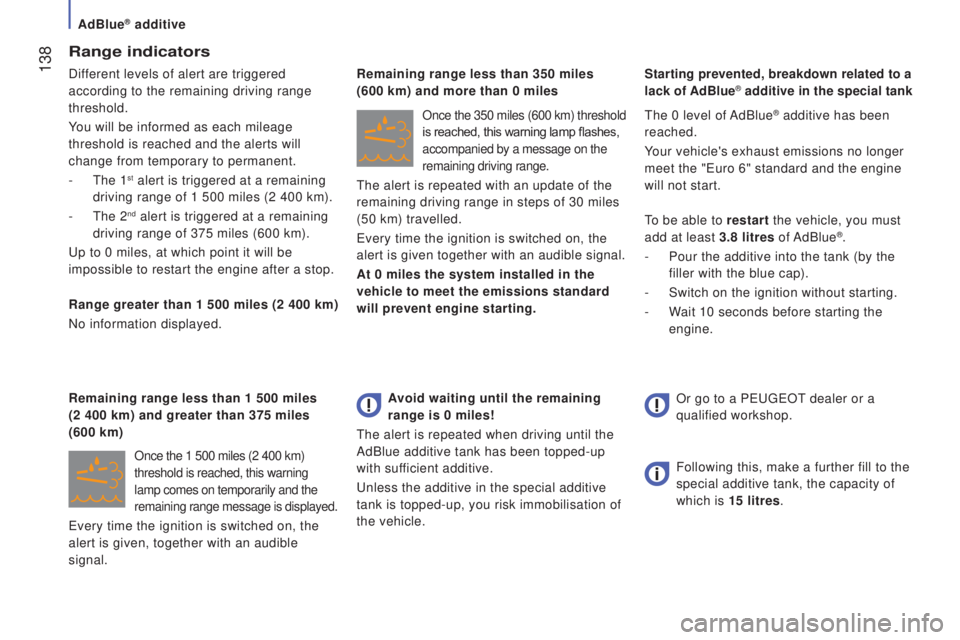

range indicators
Different levels of alert are triggered
according to the remaining driving range
threshold.
You will be informed as each mileage
threshold is reached and the alerts will
change from temporary to permanent.
-

t
he 1st alert is triggered at a remaining
driving range of 1 500 miles (2 400 km).
-


t
he 2nd alert is triggered at a remaining
driving range of 375 miles (600 km).
up to 0 miles, at which point it will be


impossible to restart the engine after a stop.
range greater than 1 500 miles (2 400 km)
No information displayed.
Once the 1 500 miles (2 400 km)
threshold is reached, this warning
lamp comes on temporarily and the
remaining range message is displayed.
every time the ignition is switched on, the
alert is given, together with an audible
signal.
remaining range less than 1 500 miles


(2 400 km) and greater than 375 miles
(600 km)
Once the 350 miles (600 km) threshold
is reached, this warning lamp flashes,
accompanied by a message on the
remaining driving range.
the alert is repeated with an update of the
remaining driving range in steps of 30 miles
(50 km) travelled.
every time the ignition is switched on, the


alert is given together with an audible signal.
At 0 miles the system installed in the
vehicle to meet the emissions standard
will prevent engine starting.
the 0 level of
AdBlue
® additive has been
reached.
Your vehicle's exhaust emissions no longer
meet the "
euro 6" standard and the engine


will not start.
to be able to restart

the vehicle, you must
add at least 3.8 litres of AdBlue
®.
-
Pour the additive into the tank (by the
filler with the blue cap).
-
Switch on the ignition without starting.
-
Wait 10 seconds before starting the


engine.
remaining range less than 350 miles



(600 km) and more than 0 miles Starting prevented, breakdown related to a
lack of AdBlue
®
additive in the special tank
Avoid waiting until the remaining
range is 0 miles!
the alert is repeated when driving until the


AdBlue additive tank has been topped-up
with sufficient additive.
unless the additive in the special additive


tank is topped-up, you risk immobilisation of
the vehicle. Following this, make a further fill to the
special additive tank, the capacity of
which is 15 litres. Or go to a P
eugeOt dealer or a
qualified workshop.
AdBlue® additive

139

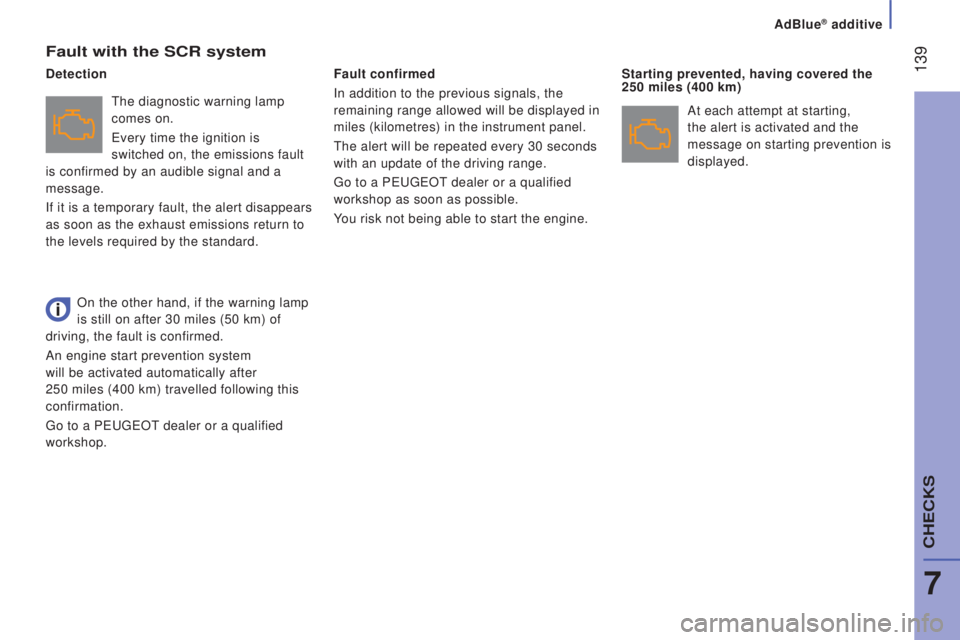

Fault with the Scr system
the diagnostic warning lamp
comes on.
every time the ignition is


switched on, the emissions fault
is confirmed by an audible signal and a
message.
If it is a temporary fault, the alert disappears
as soon as the exhaust emissions return to
the levels required by the standard. Fault confirmed
In addition to the previous signals, the
remaining range allowed will be displayed in
miles (kilometres) in the instrument panel.
the alert will be repeated every 30 seconds


with an update of the driving range.
go to a PeugeOt dealer or a qualified
workshop as soon as possible.
Y

ou risk not being able to start the engine. Starting prevented, having covered the
250 miles (400 km)
detection
At each attempt at starting,

the alert is activated and the
message on starting prevention is
displayed.
On the other hand, if the warning lamp
is still on after 30 miles (50 km) of
driving, the fault is confirmed.
An engine start prevention system
will be activated automatically after
250
miles (400 km) travelled following this


confirmation.
go to a PeugeOt dealer or a qualified
workshop.
AdBlue® additive
7
CHeCKS

140
refilling / topping-up the
AdBlue® additive
Precautions to take
use

only AdBlue® additive that meets the
ISO 22241 standard.
the AdBlue® additive is an urea-based
solution.
this liquid is non-flammable, colourless and


odourless.
to be kept in a cool area.
containers (5 or 10 litres) and bottles


(1.89 litres) of AdBlue
®
Please check the use-by date.
Read the instructions on the label.
ensure that you have a suitable filler pipe,


which may or may not be supplied with the
container. Park the vehicle
-
Before topping-up, ensure that the
vehicle is parked on a flat and level


surface.
open the filler
-
Open the fuel filler flap.
-

t
urn the blue cap a 6th of a turn anti-
clockwise.
-
Remove the blue cap downwards.
top-up
-
Obtain a bottle of AdBlue®. After first
checking the use-by date, read carefully
the instructions on use on the label
before pouring the contents of the bottle
into your vehicle's AdBlue
® tank.
Important: if your vehicle's AdBlue
®
tank is completely empty - which is
confirmed by the alert messages and the
impossibility of starting the engine, you
must add at least 3.8 litres (so two 1.89 litre
bottles).
-
After emptying the bottle, wipe away any
spillage around the tank filler using a


damp cloth.
If any additive is split or splashed,
wash immediately with cold water or
wipe with a damp cloth.
If the additive has crystallised, clean it off
using a sponge and hot water.
AdBlue® additive

141
refit the filler cap
-
Refit the blue cap to the tank and turn it
a 6th of a turn clockwise, to its stop.
-
Close the filler flap.
Never dispose of AdBlue
® additive
bottles in the household waste. Place
them in a special container provided this
purpose or take them to your dealer.
Keep AdBlue
® out of the reach of
children, in its original container.
Never transfer AdBlue
® to another container:
it would loose its purity.
Never dilute the additive with water.
Never pour the additive into the Diesel fuel
tank.
recommendations on storage
Never store containers or bottles of
AdBlue® in your vehicle. Freezing of the AdBlue
® additive
AdBlue® freezes at about -11°C (12.2° F)
and deteriorates above 25°C (77°F).
It is recommended that containers and
bottles be stored in a cool area and
protected from direct sunlight.
under these conditions, the additive can be


kept for at least a year.
Additive that has been frozen can be used
once it has thawed out in ambient air.
the SCR system includes an
AdBlue
®
tank heater that ensures operation of
the vehicle in normal conditions.
In exceptional situations, such as when the
vehicle is kept at temperatures below -15°C
(5°F) for a long period, there may be an
emission fault alert related to freezing of the
AdBlue
® additive.
Park the vehicle in an area at a more
moderate temperature for a few hours until
the additive becomes a liquid again.
the emissions warning lamp does not go of

f
immediately, but does so after a few miles
of driving.
AdBlue® additive
7
CHeCKS

142

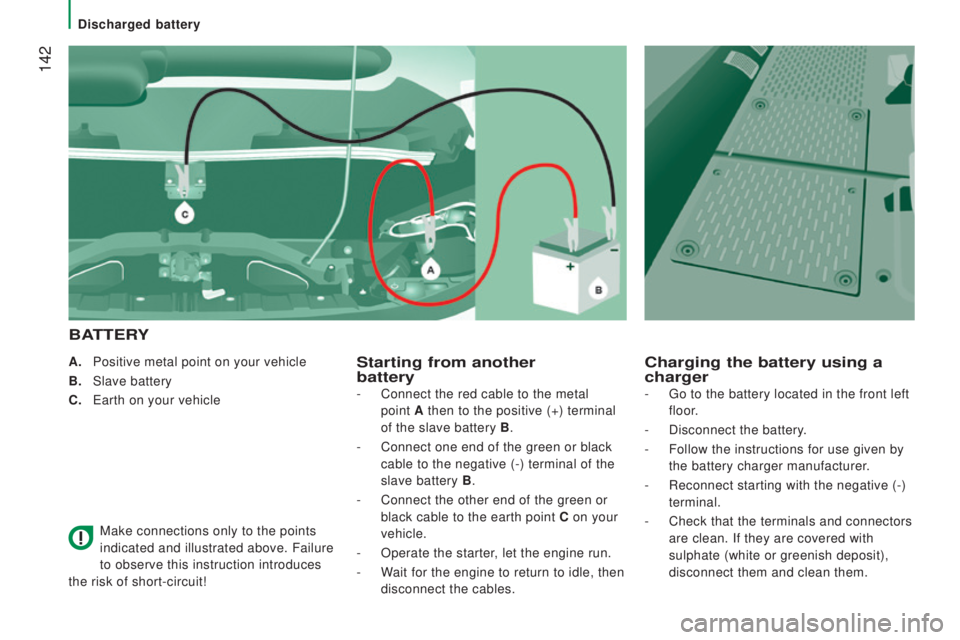

A. Positive metal point on your vehicle
B.
Slave battery
c.

e
arth on your vehicle
Make connections only to the points


indicated and illustrated above. Failure
to observe this instruction introduces
the risk of short-circuit!Starting from another
battery
B
AttErY
c
harging the battery using a
charger
- Connect the red cable to the metal
point
A then to the positive (+) terminal
of the slave battery

B.
-
Connect one end of the green or black
cable to the negative (-) terminal of the


slave battery B .
-
Connect the other end of the green or
black cable to the earth point
c on your
vehicle.
-
Operate the starter, let the engine run.
-
Wait for the engine to return to idle, then


disconnect the cables. -
go to the battery located in the front left
floor.
-
Disconnect the battery.
-
Follow the instructions for use given by
the battery charger manufacturer

.
-
Reconnect starting with the negative (-)
terminal.
-
Check that the terminals and connectors
are clean. If they are covered with


sulphate (white or greenish deposit),
disconnect them and clean them.
Discharged battery
