2015 PEUGEOT BOXER Owners Manual

103
Intelligent traction control
System to improve traction on slippery
surfaces (snow, black ice, mud...).
this system checks for situations of dif
ficult
surface adhesion that could make it difficult
to move off or make progress.
In these situations, Intelligent
traction
control

takes over from the AS
r system,

by transferring drive to the wheel with the
best grip on the ground to provide the best
traction and trajectory control. Switching on
On starting the vehicle, this system is
deactivated.
Press this button, located in the middle of
the dashboard, to activate the system; the
indicator lamp in the button comes on.this system is active up to about 18 mph

(30 km/h).
Once the speed exceed 18 mph (30 km/h),
the system is deactivated automatically, but
the indicator lamp in the button stays on.
the system is reactiv

ated automatically
as soon as the speed drops below 18 mph
(30
km/h). Switching off
Press this button, located in the middle of


the dashboard, to deactivate the system; the
indicator lamp in the button goes off and the
AS
r system is active again.
operating fault
If a fault occurs with the intelligent

traction control system, this
warning lamp comes on.
Have the system checked by a P
eugeOt
dealer or a qualified workshop.
5
Driving safely
SAFetY

104
Hill descent control
System that provides assistance when
descending on surfaces with poor grip (mud,
gravel...) or on a steep gradient.
this system reduces the risk of slip or loss

of control of the vehicle while descending
a hill.
It keeps the vehicle at a steady speed during
a descent by acting independently and with
varying force on each of the brakes. Switching off
Press this button, located in the middle of the
dashboard, to deactivate the system; the indicator
lamp in the button goes off.
Above 30 mph (50 km/h), the system is completely
deactivated; the indicator lamp in the button goes off.
operating fault
If a fault occurs with the hill
descent control system, this

warning lamp comes on.
Have the system checked by a P
eugeOt
dealer or a qualified workshop.
Switching on
On starting the vehicle, the system is
deactivated.
With the speed below 18 mph (30 km/h)


press this button, located in the middle of
the dashboard, to activate the system; the
indicator lamp in the button comes on.
Once the vehicle starts its descent, you can
release the accelerator and brake pedals;
the indicator lamp in the button flashes.
the brake lamps come on automatically


when the system is brought into operation.
If the speed of the vehicle exceeds 18 mph

(30 km/h), the system is automatically
deactivated, but the indicator lamp in the
button stays on.
the system reactivates automatically as


soon as the speed of the vehicle drops
below 18 mph (30 km/h).
For the system to operate, the slope
must be steeper than 8%.
Do not use the system with the gearbox in
neutral.
engage an appropriate gear for the speed of


the vehicle, to avoid the engine stalling.
You can press the accelerator or brake
pedal at any time.
the system may not be available if the

brakes overheat. Wait a few minutes
for them to cool down before trying again.
Driving safely

105
LAnE dEPArturE WArnInG SYStEM
System which detects the involuntary
crossing of longitudinal traffic lane markings
on the ground (continuous or discontinuous
line).
A camera, fitted at the top centre of the
windscreen monitors the road.
With the vehicle running at a speed higher
than 35 mph (60 km/h), it triggers a warning
if the vehicle steers off line.
this system operates to its full potential

above all when used on motorways and
main roads.
Switching off
- Press this button to switch off the
system, the indicator lamp in the button
comes on.
the status of the system remains in the


memory when the ignition is switched off.
Switching on
- Press this button to switch the system
on, the indicator lamp in the button goes
off.
the two indicators in the instrument panel


remain on up to 36 mph (60 km/h).
detection
If a change of direction is detected, you are
alerted by a warning lamp in the instrument
panel and an audible signal:
operating fault
If a fault occurs with the system,
this warning lamp comes on,
accompanied by an audible
message and confirmed by a
message in the screen.
Have the system checked by a P
eugeOt
dealer or a qualified workshop.
the lane departure warning system


cannot, in any circumstances, replace
the need for vigilance on the part of the
driver. -
flashing of the left hand warning
lamp, if drifting to the left,
No warning is transmitted while the direction
indicator is active and for approximately 20
seconds


after the direction indicator is switched off.
A warning may be transmitted if a direction
marking (arrow) or non-standard marking (graffiti)
is crossed.
the detection may be disrupted:
-
if the markings on the ground are worn,
-
if there is little contrast between the markings
on the ground and the road surface. -
flashing of

the right hand warning
lamp, if drifting to the right.
5
Driving safely
SAFetY

106

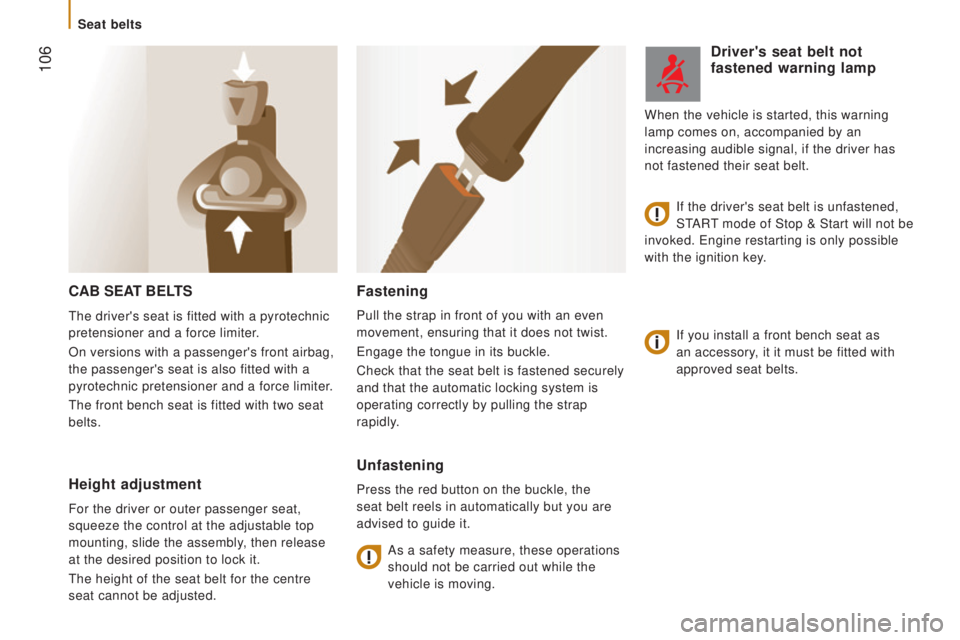

cAB SEAt BELtS
If you install a front bench seat as
an accessory, it it must be fitted with
approved seat belts.
Fastening
Pull the strap in front of you with an even
movement, ensuring that it does not twist.
engage the tongue in its buckle.
Check that the seat belt is fastened securely


and that the automatic locking system is
operating correctly by pulling the strap
rapidly.
unfastening
Press the red button on the buckle, the
seat belt reels in automatically but you are
advised to guide it.
As a safety measure, these operations
should not be carried out while the
vehicle is moving.
driver's seat belt not
fastened warning lamp
If the driver's seat belt is unfastened,
S
tARt mode of Stop & Start will not be
invoked.
engine restarting is only possible


with the ignition key. When the vehicle is started, this warning
lamp comes on, accompanied by an
increasing audible signal, if the driver has
not fastened their seat belt.
the driver's seat is fitted with a pyrotechnic


pretensioner and a force limiter.
On versions with a passenger's front airbag,
the passenger's seat is also fitted with a
pyrotechnic pretensioner and a force limiter.
the front bench seat is fitted with two seat


belts.
Height adjustment
For the driver or outer passenger seat,
squeeze the control at the adjustable top
mounting, slide the assembly, then release
at the desired position to lock it.
the height of the seat belt for the centre


seat cannot be adjusted.
Seat belts

107

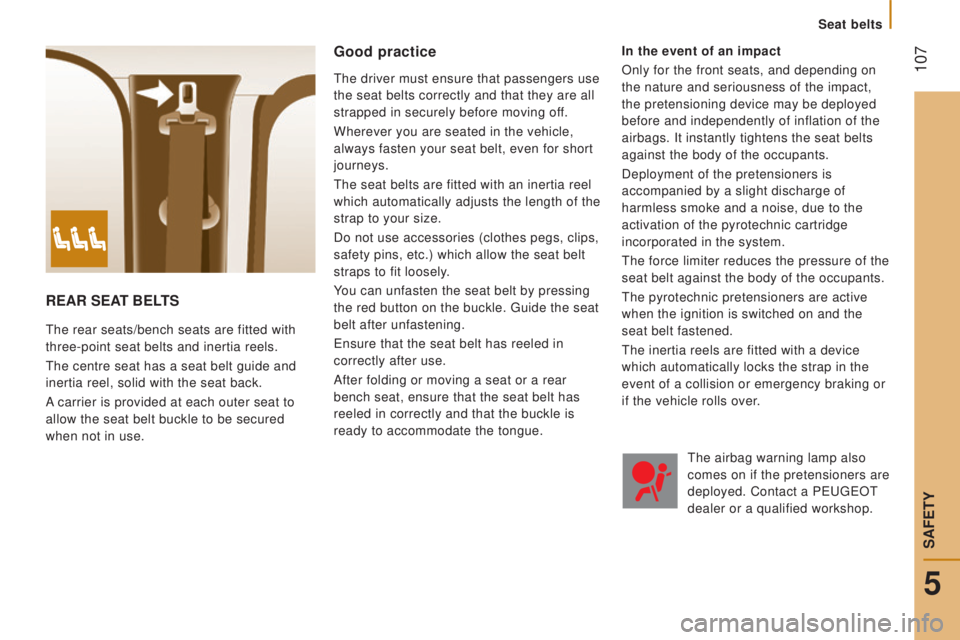

rEAr SEAt BELtS
the rear seats/bench seats are fitted with
three-point seat belts and inertia reels.
the centre seat has a seat belt guide and


inertia reel, solid with the seat back.
A carrier is provided at each outer seat to
allow the seat belt buckle to be secured
when not in use.
Good practice
the driver must ensure that passengers use
the seat belts correctly and that they are all
strapped in securely before moving of
f.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
the seat belts are fitted with an inertia reel


which automatically adjusts the length of the
strap to your size.
Do not use accessories (clothes pegs, clips,
safety pins, etc.) which allow the seat belt
straps to fit loosely.
You can unfasten the seat belt by pressing
the red button on the buckle.
guide the seat


belt after unfastening.
ensure that the seat belt has reeled in


correctly after use.
After folding or moving a seat or a rear
bench seat, ensure that the seat belt has
reeled in correctly and that the buckle is
ready to accommodate the tongue.
the airbag warning lamp also


comes on if the pretensioners are
deployed. Contact a P
eugeOt
dealer or a qualified workshop.
In the event of an impact
Only for the front seats, and depending on
the nature and seriousness of the impact,


the pretensioning device may be deployed
before and independently of inflation of the
airbags. It instantly tightens the seat belts
against the body of the occupants.
Deployment of the pretensioners is
accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
the force limiter reduces the pressure of the


seat belt against the body of the occupants.
the pyrotechnic pretensioners are active


when the ignition is switched on and the
seat belt fastened.
the inertia reels are fitted with a device


which automatically locks the strap in the
event of a collision or emergency braking or
if the vehicle rolls over.
5
SAFetY
Seat belts

108

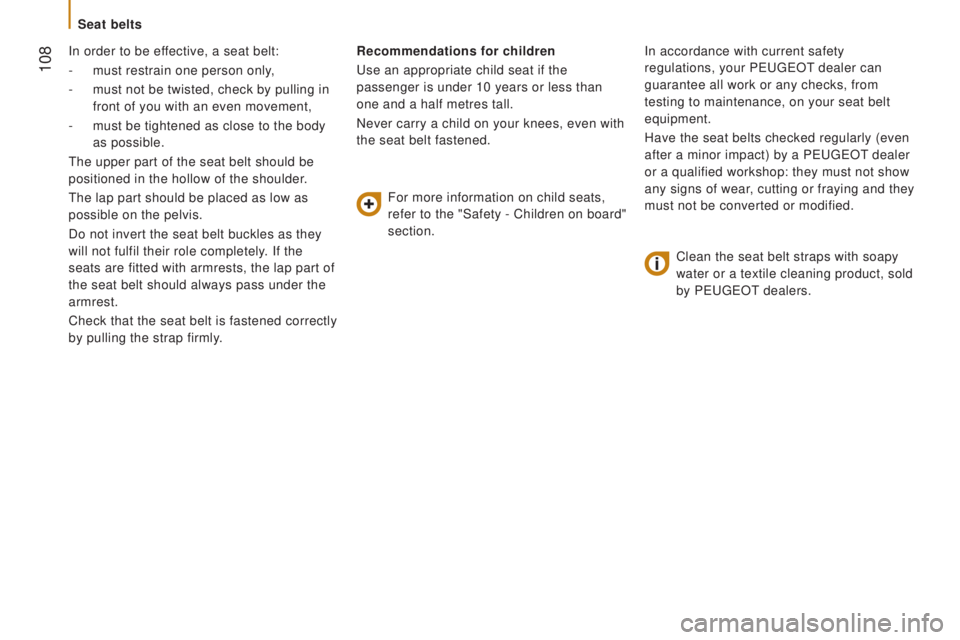

In order to be effective, a seat belt:
-
must restrain one person only,
-
must not be twisted, check by pulling in
front of you with an even movement,
-
must be tightened as close to the body
as possible.
the upper part of the seat belt should be


positioned in the hollow of the shoulder.
the lap part should be placed as low as


possible on the pelvis.
Do not invert the seat belt buckles as they
will not fulfil their role completely. If the
seats are fitted with armrests, the lap part of
the seat belt should always pass under the
armrest.
Check that the seat belt is fastened correctly
by pulling the strap firmly.recommendations for children
use an appropriate child seat if the


passenger is under 10 years or less than
one and a half metres tall.
Never carry a child on your knees, even with
the seat belt fastened.
For more information on child seats,
refer to the "Safety - Children on board"
section. In accordance with current safety
regulations, your P
eugeOt dealer can
guarantee all work or any checks, from


testing to maintenance, on your seat belt
equipment.
Have the seat belts checked regularly (even
after a minor impact) by a P
eugeOt dealer
or a qualified workshop: they must not show


any signs of wear, cutting or fraying and they
must not be converted or modified.
Clean the seat belt straps with soapy
water or a textile cleaning product, sold
by P
eugeOt dealers.
Seat belts

109

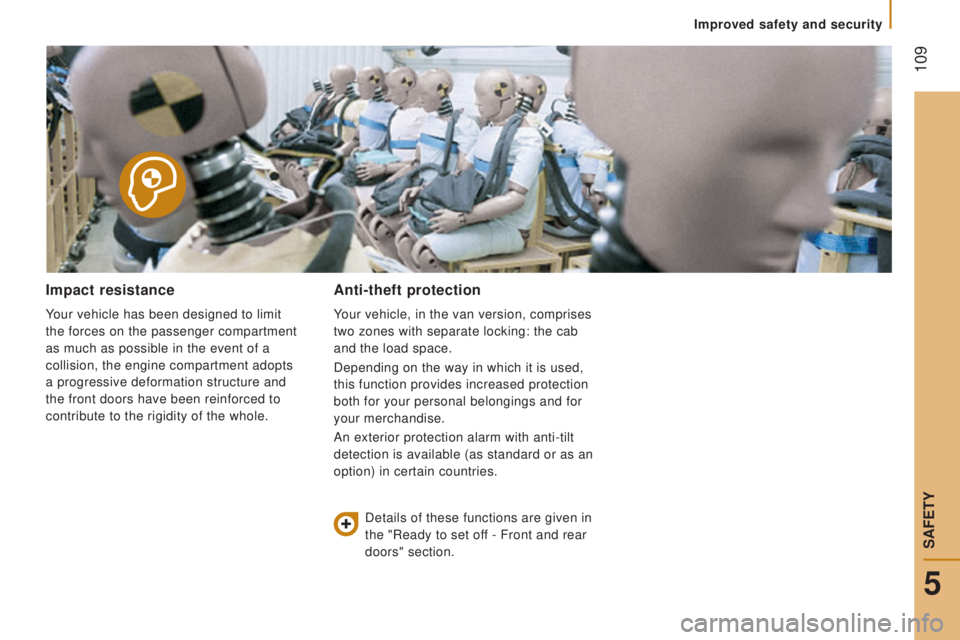

Improved safety and security
Impact resistance
Your vehicle has been designed to limit
the forces on the passenger compartment
as much as possible in the event of a
collision, the engine compartment adopts
a progressive deformation structure and
the front doors have been reinforced to
contribute to the rigidity of the whole.
Anti-theft protection
Your vehicle, in the van version, comprises
two zones with separate locking: the cab
and the load space.
Depending on the way in which it is used,
this function provides increased protection
both for your personal belongings and for
your merchandise.
An exterior protection alarm with anti-tilt
detection is available (as standard or as an
option) in certain countries.Details of these functions are given in
the "Ready to set off - Front and rear
doors" section.
5
SAFetY

11 0

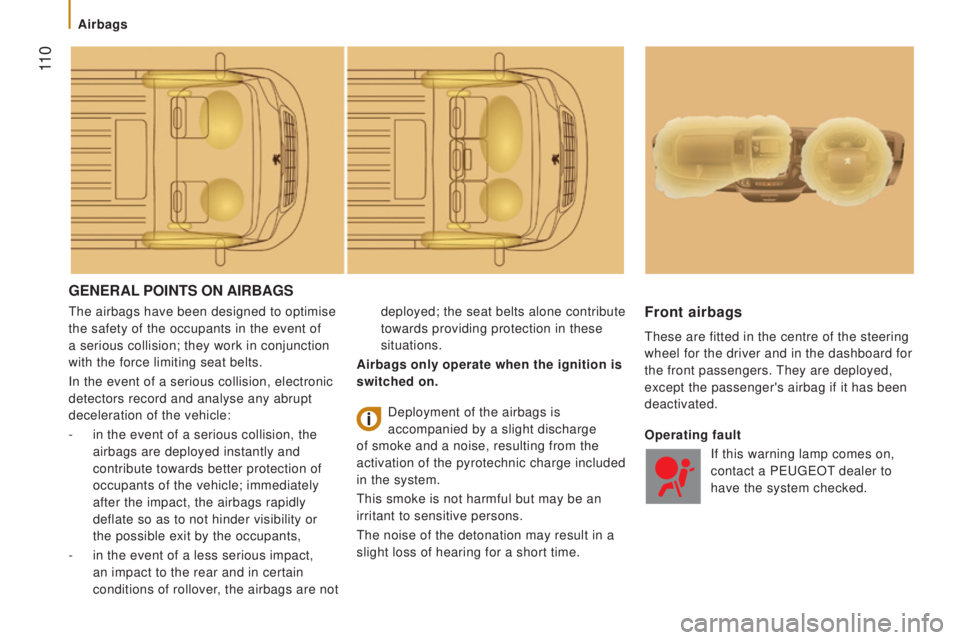

GEnErAL PoIntS on AIrBAGS
the airbags have been designed to optimise
the safety of the occupants in the event of
a serious collision; they work in conjunction

with the force limiting seat belts.
In the event of a serious collision, electronic
detectors record and analyse any abrupt
deceleration of the vehicle:
-
in the event of a serious collision, the
airbags are deployed instantly and


contribute towards better protection of
occupants of the vehicle; immediately
after the impact, the airbags rapidly
deflate so as to not hinder visibility or
the possible exit by the occupants,
-
in the event of a less serious impact,
an impact to the rear and in certain


conditions of rollover, the airbags are not deployed; the seat belts alone contribute
towards providing protection in these
situations.
Airbags only operate when the ignition is
switched on.Front airbags
these are fitted in the centre of the steering
wheel for the driver and in the dashboard for
the front passengers.
they are deployed,


except the passenger's airbag if it has been
deactivated.
Deployment of the airbags is
accompanied by a slight discharge
of smoke and a noise, resulting from the
activation of the pyrotechnic charge included
in the system.
this smoke is not harmful but may be an


irritant to sensitive persons.
the noise of the detonation may result in a


slight loss of hearing for a short time.
operating fault
If this warning lamp comes on,


contact a P
eugeOt dealer to
have the system checked.
Airbags
