2015 PEUGEOT BOXER Owners Manual

175
SIdE door
L1L2L3L4
H1 H2 H1 H2 H2 H3 H2 H3
P Height of the sliding side door 1
485

1
755

1
485 1 755
Q Width of the sliding side door 1
0751 250
9
teCHNICAL DAtA
Dimensions

176
coMBI
L1H1 L2H2
A 751 8721 201 1 322
B 1 201 1 7431 6512 193
c-860 -860
Dimensions

177
Quality of the fuel used for diesel engines
the Diesel engines are perfectly compatible with biofuels which conform t\
o current and future european standards (Diesel fuel which
complies with standard eN 590 mixed with a biofuel which complies with standard eN 14214) available at the pumps (containing up to 5%
Fatty Acid Methyl
ester).
EnGInES And GEArBoxES
diesel engine 2.0 litre BlueHdi 1 102.0 litre BlueHdi 110 S&S
2.0 litre BlueHdi 130
2.0 litre BlueHdi 130 S&S
2.0 litre BlueHdi 160
2.0 litre BlueHdi 160 S&S2.0 litre Hdi 160
Gearbox Manual
(6-speed)
Maximum power (hp) 11 0130 160160
eu standard maximum power (kW) 809611

8 120
Cubic capacity (cc) 1 9971 9971 9971 997
Bore x stroke (mm) 85 x 8885 x 8885 x 8885 x 88
Maximum power engine speed (rpm) 3 5003 7503 7503 750
eu standard maximum torque (Nm) 300340350340
Maximum torque engine speed (rpm) 1 5001 7501 7502 000
Fuel DieselDieselDieselDiesel
Catalytic converter Ye

s Ye s Ye sYe s
Particle filter Ye sYe sYe sYe s
engine oil capacity (in litres)
after draining and replacing the filter 6.6
6.66.65.25
9
teCHNICAL DAtA
Diesel engines

178
diesel engine2.2 litre Hdi 1 102
.2 litre Hdi 13 0
2.2 litre e-Hdi 130
2 .2 litre Hdi 150
2.2 litre e-H
di 1503 litre Hdi 180
Gearbox Manual

(6-speed)
Maximum power (hp) 11 0120 130150180
eu standard maximum power (kW) 81889611

0 130
Cubic capacity (cc) 2 1982 198 21982 999
Bore x stroke (mm) 86 x 94.686 x 94.686 x 94.6 95.8 x 104
Max power engine speed (rpm) 3 5003
5003 5003 600
eu standard max torque (Nm) 250320320400
Max torque engine speed (rpm) 1
5002 0002 0001 400
Fuel DieselDieselDieselDiesel
Catalytic converter Ye

s Ye s Ye sYe s
Particle filter Ye sNoYe s Ye sYe s
engine oil capacity (in litres)
after draining and replacing the oil filter 6.2
6.46.26.2 9
the B30 biofuel can be used in certain Diesel engines; however

, this use is subject to strict application of the special servicing con\
ditions
given in the warranty and maintenance record. Contact a P
eugeOt dealer or a qualified workshop.
the use of any other type of (bio)fuel (vegetable or animal oils, pure\
or diluted, domestic fuel...) is strictly prohibited (ris

k of damage to the
engine and fuel system).
Diesel engines

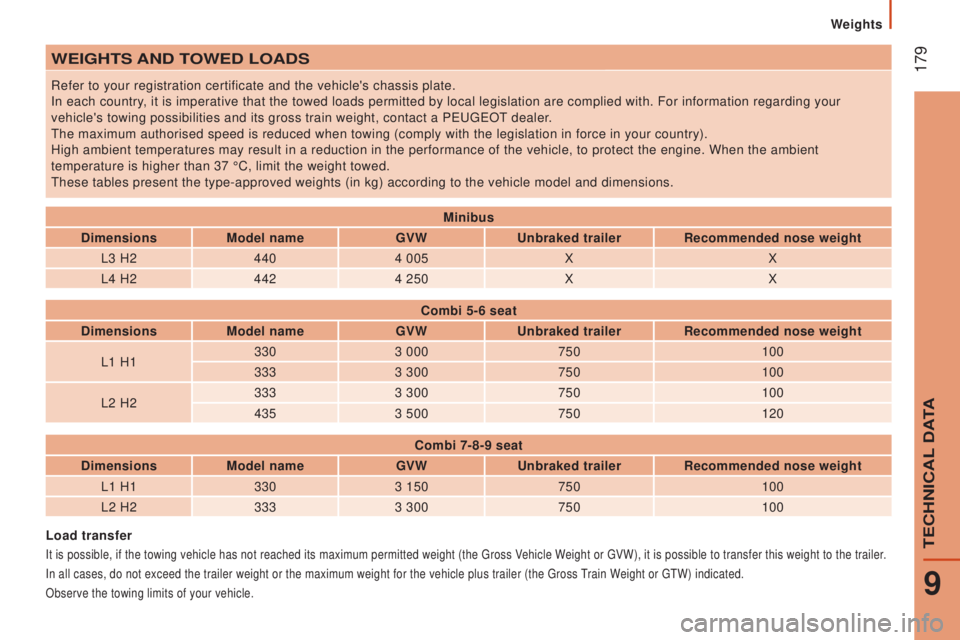

179WEIGHtS And toWEd LoAdS
Refer to your registration certificate and the vehicle's chassis plate.
In each country, it is imperative that the towed loads permitted by local legislation a\
re complied with. For information regarding your
vehicle's towing possibilities and its gross train weight, contact a P
eugeOt dealer.the maximum authorised speed is reduced when towing (comply with the leg\
islation in force in your country).
High ambient temperatures may result in a reduction in the performance o\
f the vehicle, to protect the engine. When the ambient


temperature is higher than 37 °C, limit the weight towed.
these tables present the type-approved weights (in kg) according to the\
vehicle model and dimensions.
Load transfer
It is possible, if the towing vehicle has not reached its maximum permit\
ted weight (the gross Vehicle Weight or gVW), it is possible to transfer this weight to the trailer.
In all cases, do not exceed the trailer weight or the maximum weight for\
the vehicle plus trailer (the
gross train Weight or gtW) indicated.
Observe the towing limits of your vehicle.
Minibus
dimensions Model name GVWunbraked trailerrecommended nose weight
L3 H2 4404 005 X X
L4 H2 4424 250 X X
combi 5-6 seat
dimensionsModel name GVWunbraked trailerrecommended nose weight
L1 H1 330
3 000 750 100
333 3 300 750 100
L2 H2 333
3 300 750 100
435 3 500 750 120
combi 7-8-9 seat
dimensionsModel name GVWunbraked trailerrecommended nose weight
L1 H1 3303 150 750 100
L2 H2 3333 300 750 100
9
teCHNICAL DAtA
Weights

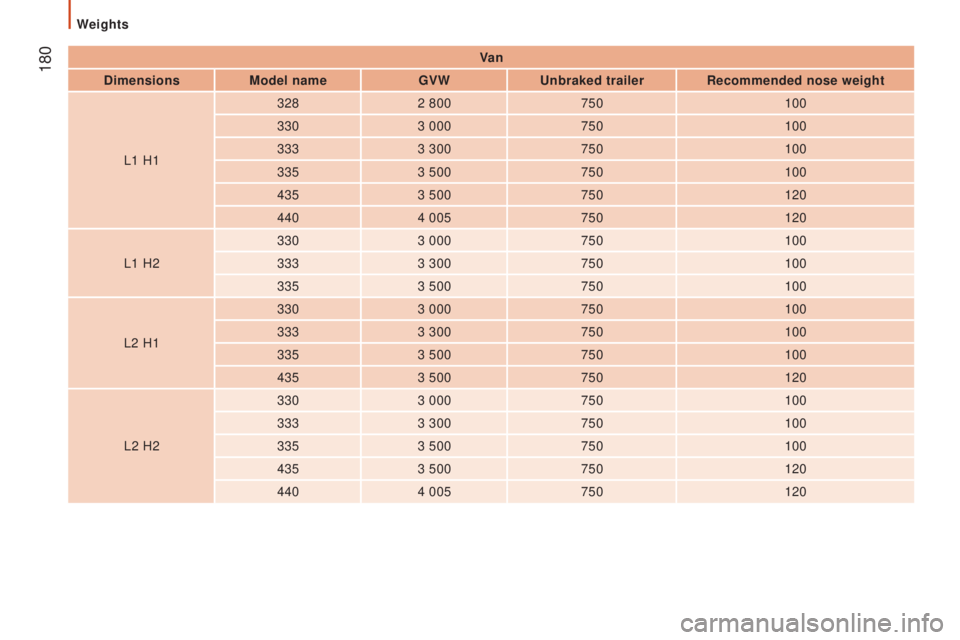

180Va n
dimensionsModel name GVWunbraked trailerrecommended nose weight
L1 H1 328
2 800 750 100
330 3 000 750 100
333 3 300 750 100
335 3 500 750 100
435 3 500 750 120
440 4 005 750 120
L1 H2 330
3 000 750 100
333 3 300 750 100
335 3 500 750 100
L2 H1 330
3 000 750 100
333 3 300 750 100
335 3 500 750 100
435 3 500 750 120
L2 H2 330
3 000 750 100
333 3 300 750 100
335 3 500 750 100
435 3 500 750 120
440 4 005 750 120
Weights

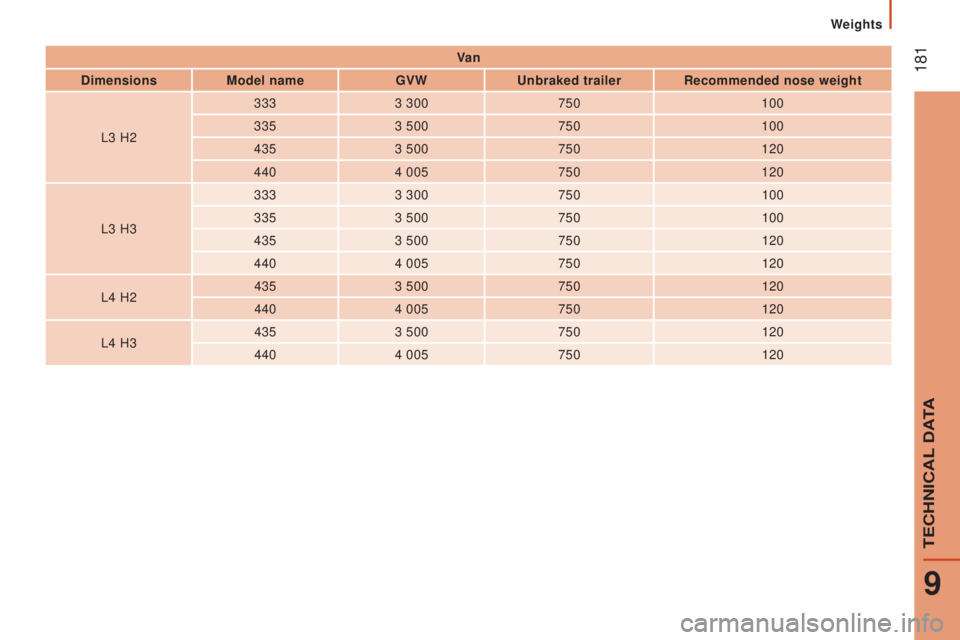

181Va n
dimensionsModel name GVWunbraked trailerrecommended nose weight
L3 H2 333
3 300 750 100
335 3 500 750 100
435 3 500 750 120
440 4 005 750 120
L3 H3 333
3 300 750 100
335 3 500 750 100
435 3 500 750 120
440 4 005 750 120
L4 H2 435
3 500 750 120
440 4 005 750 120
L4 H3 435
3 500 750 120
440 4 005 750 120
9
teCHNICAL DAtA
Weights

182

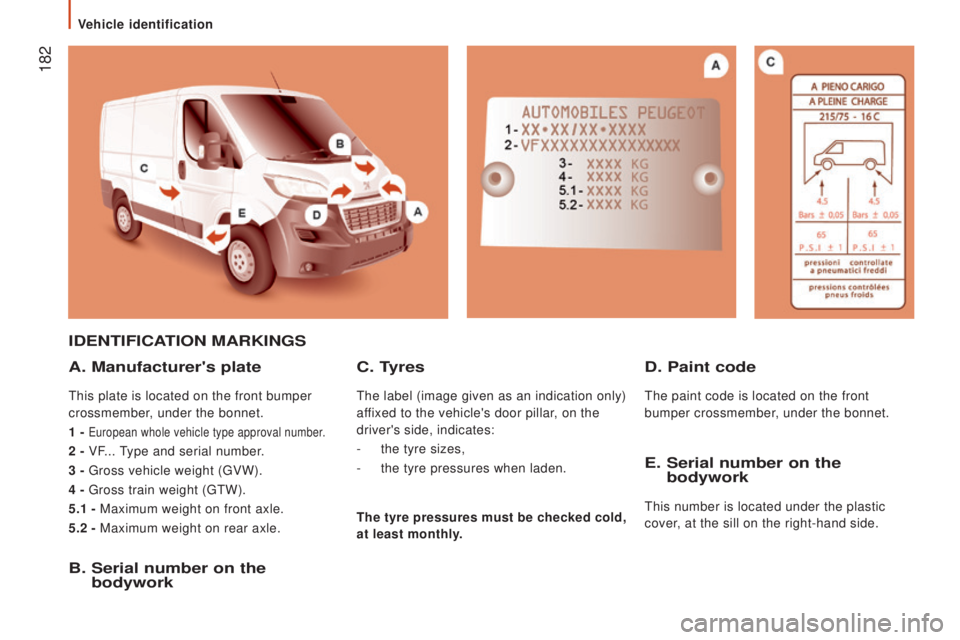

IdEntIFIcAtIon MArKInGS
A. Manufacturer's plate
this plate is located on the front bumper
crossmember, under the bonnet.
1 -

european whole vehicle type approval number.
2 - VF... type and serial number.
3 -
gross vehicle weight (gVW).
4 -


gross train weight (gtW).
5.1 -

Maximum weight on front axle.
5.2 - Maximum weight on rear axle.
B. Serial number on the
bodywork E.
Serial number on the
bodywork
this number is located under the plastic
cover, at the sill on the right-hand side.
c. tyres
the label (image given as an indication only)
affixed to the vehicle's door pillar , on the
driver's side, indicates:
-
the tyre sizes,
-
the tyre pressures when laden.
d. Paint code
the paint code is located on the front
bumper crossmember, under the bonnet.
the tyre pressures must be checked cold,


at least monthly.
Vehicle identification
